39-30-2032: DescriptionHeaders & Wire Housings 3 CKT VERT HEADER; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

39-30-2032 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-30-2032	-	-	View	Buy Now

39-30-2032 Overview

Headers & Wire Housings 3 CKT VERT HEADER

39-30-2032 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Other features	MINI-FIT JR.
Board mount options	COMPLIANT BOARDLOCK
body width	0.213 inch
subject depth	0.504 inch
body length	0.543 inch
Body/casing type	PLUG
Connector type	RECTANGULAR POWER CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
Durability	30 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.165 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	POLARIZED LCK
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	HOUSING SIDE
Rated current (signal)	9 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell material	POLYAMIDE66
Terminal length	0.138 inch
Terminal pitch	4.191 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	3.1136 N
Base Number Matches	1

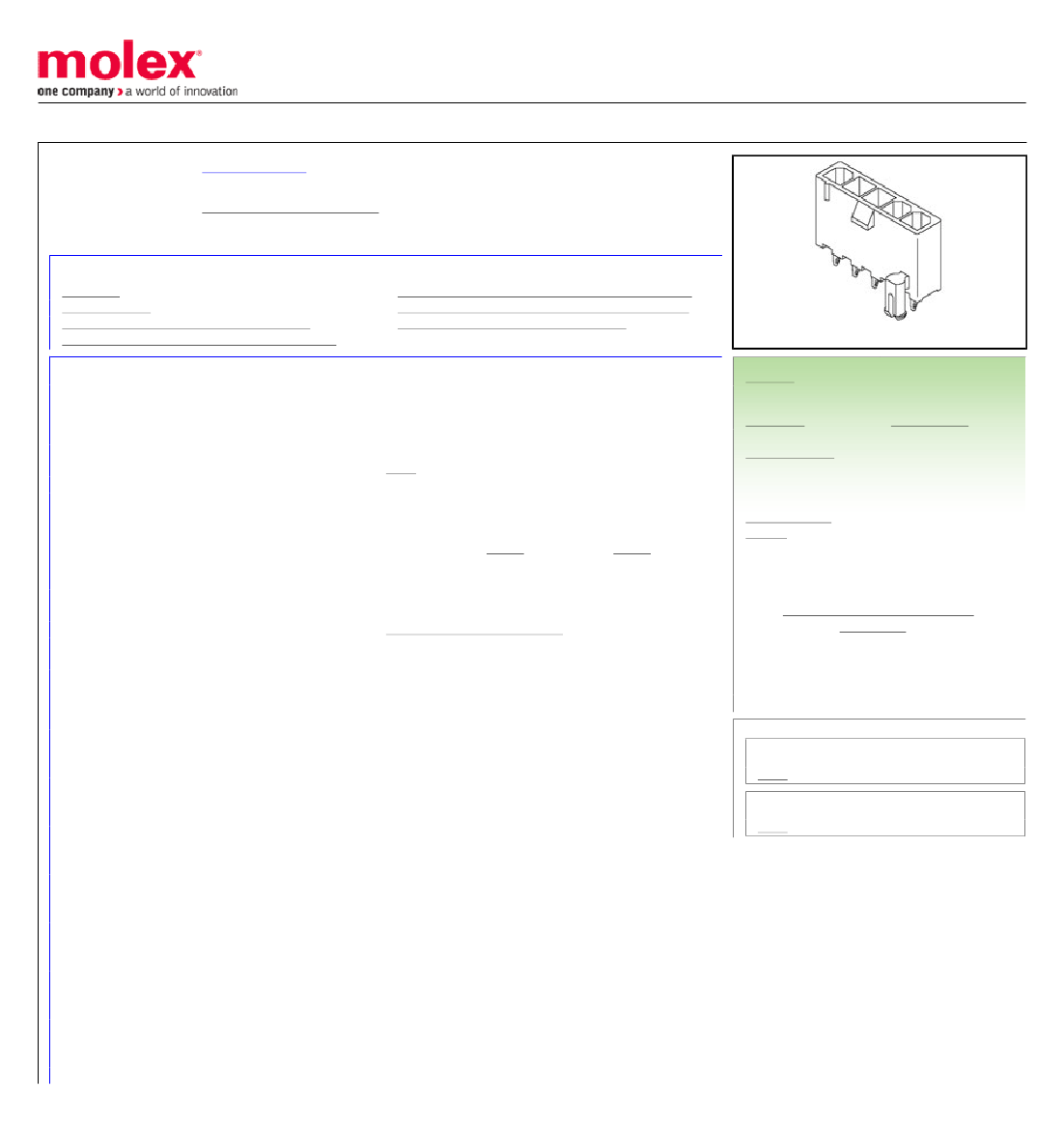

Preview

Download Datasheet

View All

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039302032

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Single Row, 3 Circuits, with Snap-in Plastic

Peg PCB Lock, Gold, Natural

Documents:

3D Model

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification TS-5556-002-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Comments

Application Specification AS-5557-001-001 (PDF)

Packaging Specification PK-5566-002-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

5566

Power, Wire-to-Board

The 5566 header should be used with standard Mini-Fit

female terminals. If increased amperage of up to 13A

per circuit is needed, please consider using the Mini-Fit

Plus HCS family 45750 terminals with 46014 headers; .

See Molex Product specification for current de-rating

information.

Post Go-Live Rev. Not Verified

0040080207, 0098267038, 0098769030A

Mini-Fit Jr. Power Connectors

Mini-Fit Jr.

800754249584

Natural

94V-0

None

Yes

Brass

Gold

Matte Tin

Nylon

0.805/g

Vertical

3.50mm

Yes

1.60mm

Tray

4.20mm

Data Load Status

Made From

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Capable

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Search Parts in this Series

5566 Series

Mates With

5557 Mini-Fit Jr. Receptacle Housing

39-30-2032 Related Products

	39-30-2032	0039302032
Description	Headers & Wire Housings 3 CKT VERT HEADER	Headers & Wire Housings MINI-FIT JR HDR 03P 94V-0 30AU
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	RECTANGULAR POWER CONNECTOR	RECTANGULAR POWER CONNECTOR
Base Number Matches	1	1
