XC25BS7
Series
PLL Clock Generator ICs with Built-In Divider/Multiplier Circuits
ETR1505-006
■GENERAL
DESCRIPTION
The XC25BS7 series are high frequency, low power consumption PLL clock generator ICs with divider circuit & multiplier PLL
circuit. Laser trimming gives the option of being able to select from input divider ratios (M) of 1 to 256 and output divider
ratios (N) of 1 to 256. Output frequency (fQ0) is equal to reference clock oscillation (fCLKin) multiplied by N/M, within a
range of 1MHz to 100MHz. Further, frequency within a range of 32kHz to 36MHz can be inputted as a reference clock. The
IC stops operation when low level signal is inputted to the CE pin. For this, consumption current can be reduced and output
will be one of high-impedance. Because the series is semi-custom, please ask Torex sales contacts for your requested
specifications such as input/output frequency, supply voltage. However, the series has the limit of specifications; therefore,
your request may not be fully satisfied with your requested frequency range.
■
APPLICATIONS
●
●
●
●
●
●
●
■FEATURES
Input Frequency
Output Frequency
Clock for controlling a Imaging dot
Microcomputer and HDD drives
Cordless phones
Wireless communication equipment
PDAs
Cameras, VCRs
Various system clocks
: 32kHz ~ 36MHz
(*1)
: 1MHz ~ 100MHz
(fQ0=fCLKin × N/M)
(*1)
Output Divider (N)
: Selectable from divisions
from 1 to 256
(*1)
Input Divider (M)
: Selectable from divisions
from 1 to 256
(*1)
Operating Voltage Range
: 2.50V ~ 5.50V
(*1)
Low Power Consumption
: CMOS with stand-by function
(*2)
(10μA, MAX. when stand-by)
Ultra Small Packages
: SOT-25, USP-6C
*1: The series are semi-custom products. Specifications for
each product are limited within the above range. The input
frequency range is set within ±5％ of customer’s designated
typical frequency.
*2: When the IC is in stand-by mode, the output becomes high
impedance and the IC stops operation.

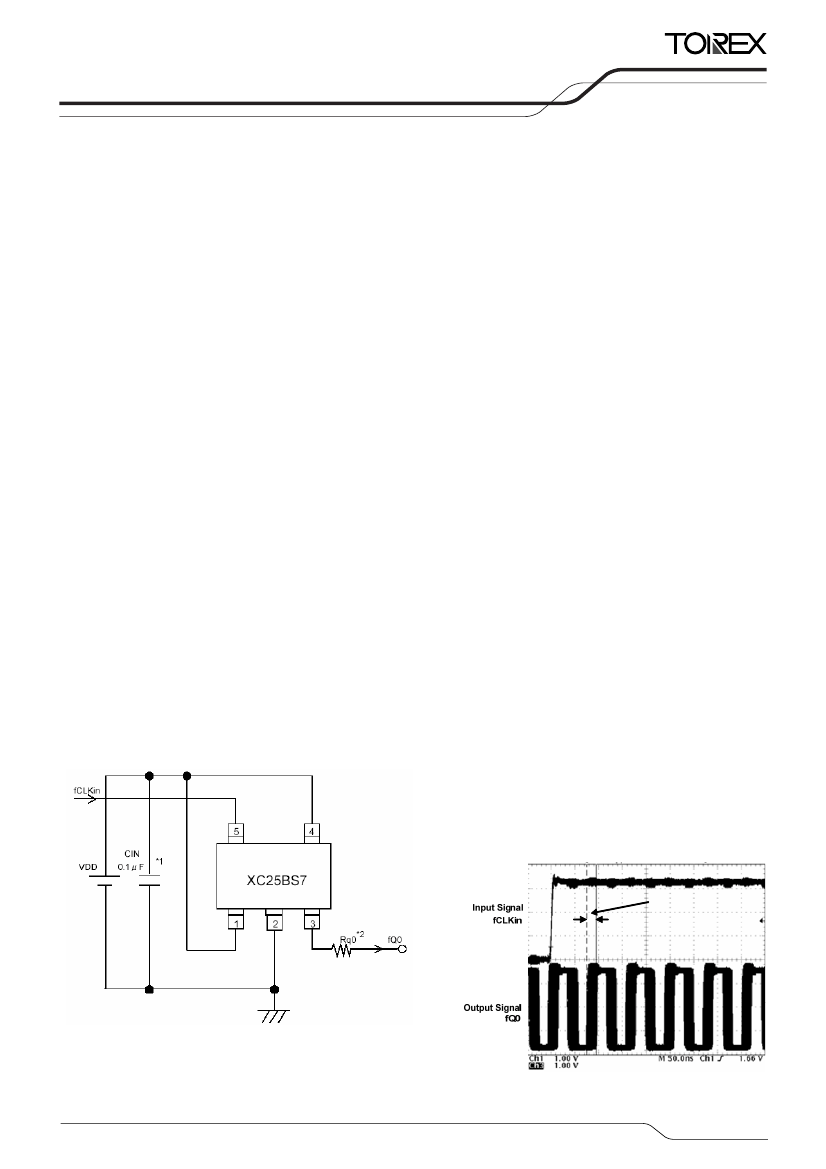

■TYPICAL
APPLICATION CIRCUIT
■
TYPICAL PERFORMANCE
CHARACTERISTICS
●
PLL output signal jitter 2 (equivalent to an input signal)
XC25BS7001xx (256 multiplier, Input 48kHz, TYP.)
*1: C
IN
(by-pass capacitor, 0.1μF) should be connected to the
IC as close as possible.
*2: Rq0 is a resistor for unwanted radiation only to use when
needed.
1/13
XC25BS７
Series
■PIN
CONFIGURATION
CLKin
5
V
DD
4
V
DD
6
1 Q0
2 V
SS
3 CE
* The dissipation pad (TAB) of the
bottom view of the USP-6C package
should be connected to the V
SS
(No. 2)
pin.
NC 5
CLKin 4
1
CE
2
V
SS
3
Q0
SOT-25
(TOP VIEW)
USP-6C
(BOTTOM VIEW)
■PIN
ASSIGNEMNT
PIN NUMBER
SOT-25
3
2
1
5
-
4
USP-6C
1
2
3
4
5
6
PIN NAME
Q0
V
SS
CE
CLKin
NC
V
DD
FUNCTION
Clock Output
Ground
Stand-by Control
Reference Clock Signal Input
No Connection
Power Input
■
FUNCTION LIST
CE
Q0
'H''
Signal Output
'L'' or OPEN
High Impedance
H: High level input
L: Low level input
（stand-by
mode）
■
PRODUCT CLASSIFICATION
●Ordering
Information
XC25BS7①②③④⑤
DESIGNATOR
①②③
④
⑤
DESCRIPTION
Product Number
Packages
Device Orientation
SYMBOL
Integer
M
E
R
L
DESCRIPTION
: Based on internal standards
e.g. product number 001→①②③=001
: SOT-25
: USP-6C
: Embossed tape, standard feed
: Embossed tape, reverse feed
2/13
XC25BS7
Series
■BLOCK
DIAGRAM
■ABSOLUTE
MAXIMUM RATINGS
PARAMETER
Supply Voltage
CLKin Pin Input Voltage
CE Pin Input Voltage
Q0 Pin Output Voltage
Q0 Pin Output Current
Power Dissipation
SOT-25
USP-6C
SYMBOL
V
DD
V
CK
V
CE
V
Q0
I
Q0
Pd
Topr
Tstg
RATINGS
V
SS
- 0.3
½
V
SS
+ 7.0
V
SS
- 0.3
½
V
DD
+ 0.3
V
SS
- 0.3
½
V
DD
+ 0.3
V
SS
- 0.3
½
V
DD
+ 0.3
± 50
150
100
-40
½+85
-55
½+125
V
V
V
V
Ta=25℃
UNIT
mA
mW
mW
℃
℃
Operating Temperature Range
Storage Temperature Range
3/13
XC25BS７
Series
■
ELECTRICAL CHARACTERISTICS
●Characteristics
example by product series
*1: The chart below introduces the products with typical specification characterisitecs which is under production or
production in the past.
*2: The series are semi-custom products. Specifications for each product are limited within the range below.
The input frequency is set within
±5％
of customer’s designated typical frequency.
*3: For other part number with other input-output frequency or multiplication, please ask Torex sales contacts.
XC25BS7001xx (256
multiplication）
PARAMETER
Input Frequency
Multiplier/Divider Ratio
PLL Output Frequency
XC25BS7007xx (0.333 multiplication)
PARAMETER
Input Frequency
Multiplier/Divider Ratio
PLL Output Frequency
XC25BS7008xx (256 multiplication)
PARAMETER
Input Frequency
Multiplier/Divider Ratio
PLL Output Frequency
XC25BS7012xx (256 multiplication)
PARAMETER
Input Frequency
Multiplier/Divider Ratio
PLL Output Frequency
XC25BS7013xx (128 multiplication)
PARAMETER
Input Frequency
Multiplier/Divider Ratio
PLL Output Frequency
SYMBOL
fCLKin
N/M
fQ0
MIN.
-
-
-
TYP.
184.000
128
23.552
MAX.
-
-
-
UNIT
kHz
Multiplier
MHz
SYMBOL
fCLKin
N/M
fQ0
MIN.
-
-
-
TYP.
92.000
256
23.552
MAX.
-
-
-
UNIT
kHz
Multiplier
MHz
SYMBOL
fCLKin
N/M
fQ0
MIN.
-
-
-
TYP.
44.000
256
11.264
MAX.
-
-
-
UNIT
kHz
Multiplier
MHz
SYMBOL
fCLKin
N/M
fQ0
MIN.
-
-
-
TYP.
16.9344
0.333
5.6448
MAX.
-
-
-
UNIT
MHz
Multiplier
MHz
SYMBOL
fCLKin
N/M
fQ0
MIN.
-
-
-
TYP.
48.000
256
12.288
MAX.
-
-
-
UNIT
kHz
Multiplier
MHz
4/13
XC25BS7
Series
■ELECTRICAL
CHARACTERISTICS (Continued)
●Recommended
Operating Conditions: XC25BS7001xx (256 multiplication, Input 48kHz (TYP.)) 3.3V (TYP.)
Tested below Ta=25 C
O
PARAMETER
Supply Voltage
Input Frequency
Multiplier/Divider Ratio
Output Frequency
Capacity Overload
(*3)
SYMBOL
V
DD
fCLKin
N/M
fQ0
CL
T
ON
CONDITIONS
3.3V (TYP.) operation
(*1)
MIN.
2.97
45.000
(*1)
MAX.
3.63
60.000
256
15.360
15
20
UNIT
V
kＨ½
-
MHz
pF
ms
Typical value is shown
(*1)
11.520
-
0.05
Output Start Time
(*2)(*3)
NOTE:
fCLKin＝45kHz
*1: Connected C
IN
=0.1μF of a ceramic capacitor between the V
DD
pin the V
SS
pin while testing.
*2: Time until signal via the Q0 pin flows stably from applying supply voltage to the V
DD
pin and control voltage to the CE pin while
applying the input signal to the CLKin pin.
*3: The value indicated at output start time is designed values which are not guaranteed values.
●DC
Characteristics: XC25BS7001xx (256 multiplication, Input 48kHz (TYP.) ) 3.3V (TYP.)
Test Conditions: V
DD
=3.3V, fCLKin=48kHz, Multiplier ratio=256, Ta=25℃, No Load
PARAMETER
H Level Input Voltage
L Level Input Voltage
H Level Input Current
L Level Input Current
H Level Output Voltage
L Level Output Voltage
Supply Current 1
Supply Current 2
CE H Level Voltage
CE L Level Voltage
CE Pull-Down Resistance 1
CE Pull-Down Resistance 2
Output Off Leak Current
SYMBOL
V
IH
V
IL
Ii
H
Ii
L
V
OH
V
OL
I
DD1
I
DD2
V
CEH
V
CEL
Rdn1
Rdn2
I
OZ
CONDITIONS
MIN.
2.70
-
TYP.
-
-
-
-
-
-
3.0
-
-
-
1.0
30
-
MAX.
-
0.60
3.0
-
-
0.40
6.0
10
-
0.45
1.8
60
10
UNIT
V
V
μA
μA
V
V
mA
μA
V
V
MΩ
kΩ
μA
CIRCUIT
①
①
②
②
③
③
④
④
①
①
⑤
⑤
⑥
V
CLKin
=V
DD
-0.3V
V
CLKin
=0.3V
V
DD
=2.97V, I
OH
=-4mA
V
DD
=2.97V, I
OL
= 4mA
V
DD
=3.63V, CE= 3.63V
V
DD
=3.63V, CE= 0.0V
-
-3.0
2.50
-
-
-
2.70
-
CE=V
DD
CE=0.1 x V
DD
V
DD
=Q0=3.63V, CE= 0.0V
0.2
10
-
●AC
Characteristics: XC25BS7001xx (256 multiplication, Input 48kHz (TYP.)) 3.3V (TYP.)
Test Conditions: V
DD
=3.3V, fCLKin=48kHz, Multiplier ratio=256, Ta=25℃, CL=15pF
PARAMETER
Output Rise Time
(*1)
Output Fall Time
(*1)
Output Signal Duty
(*1)
PLL Output Signal Jitter 1
(*1)
PLL Output Signal Jitter 2
NOTE:
(*1)
SYMBOL
Tr
Tf
Duty
T
J1
T
J
２
CONDITIONS
(20% ~ 80%)
(20% ~ 80%)
fQ0≦60MＨ½
fQ0≧60MＨ½
1σ (Output Period)
Peak to Peak (Output Tracking)
MIN.
-
-
45
40
-
-
TYP.
2.5
2.5
50
50
20
20
MAX.
5.0
5.0
55
60
-
-
UNIT
ns
ns
％
％
ps
ns
CIRCUIT
①
①
①
①
①
*1: Values indicated at the AC Characteristics are designing values, which are not guaranteed values.
5/13
