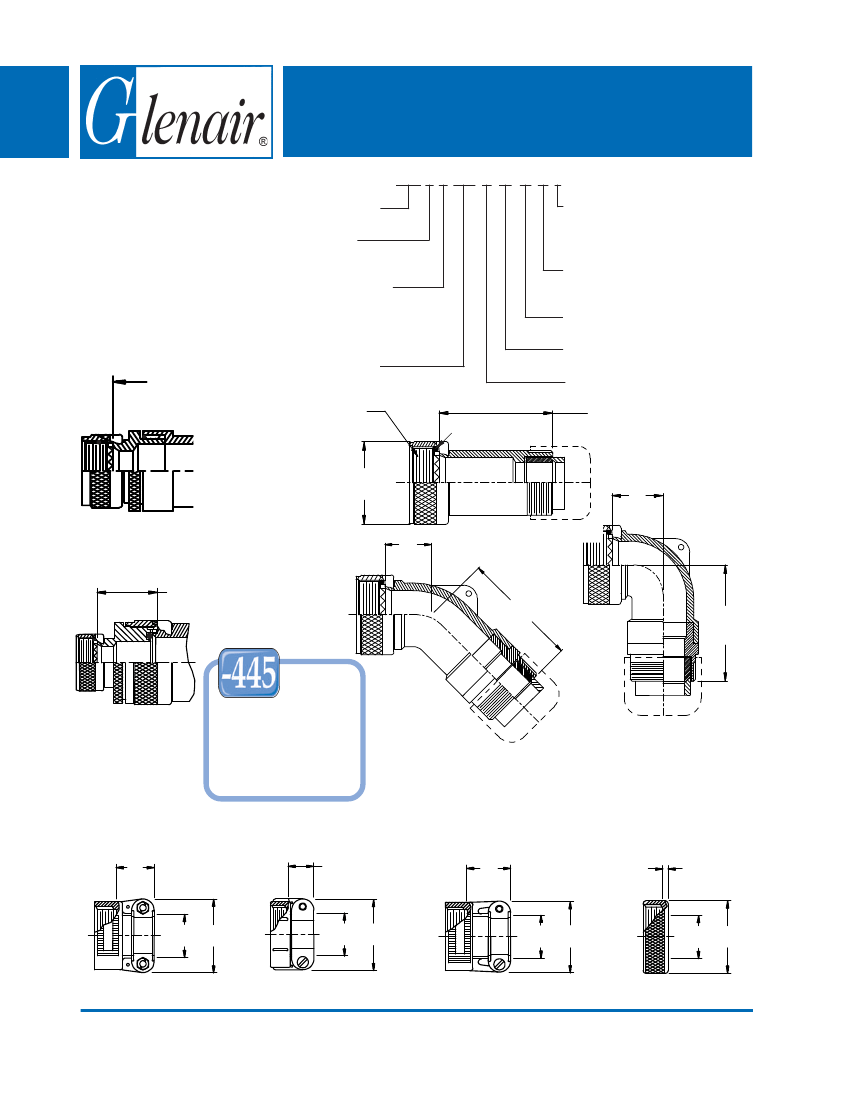

with Strain Relief
Low Profile - Rotatable Coupling
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.810 (46.0)
1.869 (47.5)
1.929 (49.0)
2.359 (59.9)
2.469 (62.7)
2.659 (67.5)
2.659 (67.5)
2.872 (72.9)
2.872 (72.9)
2.905 (73.8)
3.005 (76.3)
3.315 (84.2)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.820 (46.2)
1.940 (49.3)
1.960 (49.8)
2.369 (60.2)
2.459 (62.5)
2.629 (66.8)
2.629 (66.8)
2.802 (71.2)
2.802 (71.2)
2.955 (75.1)
3.205 (81.4)
3.255 (82.7)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions
E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Interface O-Ring not supplied
with connector designator A.
5. Consult factory for shorter
lengths on straight backshells.
Dash
No.
04
06
08
10
12
16
20
24
28
32
TABLE X: CABLE ENTRY
T
V
Cable Range
Max
Max
Min
Max
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8)
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.387 (9.8) .562 (14.3)
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.625 (15.9) .937 (23.8)
.905 (23.0) 1.770 (45.0)
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
See inside back cover fold-out
or pages 13 and 14 for
unabridged Tables I and II.
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
C
G
M
NF
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE XI: CABLE ENTRY
Dash
Z
Y
X
W
No.
Max
Max
Max
Max
03* .437 (11.1) .760 (19.3)
.630 (16.0)
.843 (21.4)
04* .437 (11.1) .760 (19.3)
.755 (19.2)
.906 (23.0)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7)
* Not available in Style M clamp.
Cable Range
Max
Min **
.250 (6.4)
.156 (4.0)
.312 (7.9)
.188 (4.8)
.438 (11.1)
.281 (7.1)
.562 (14.3)
.387 (9.8)
.625 (15.9)
.375 (9.5)
.750 (19.1)
.438 (11.1)
.938 (23.8)
.625 (15.9)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1.437 (36.5) 1.875 (47.6)
1.875 (47.6) 2.375 (60.3)
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 37 - Page 5
37
370-001
Submersible Cable Sealing Backshell
