87937-0802: DescriptionHeaders & Wire Housings CGrid Hrd SRDW THole THole 2.54SnLF 8Ckt; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

87937-0802 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	87937-0802	-	-	View	Buy Now

87937-0802 Overview

Headers & Wire Housings CGrid Hrd SRDW THole THole 2.54SnLF 8Ckt

87937-0802 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.099 inch
subject depth	0.433 inch
body length	0.8 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	SN ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.148 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

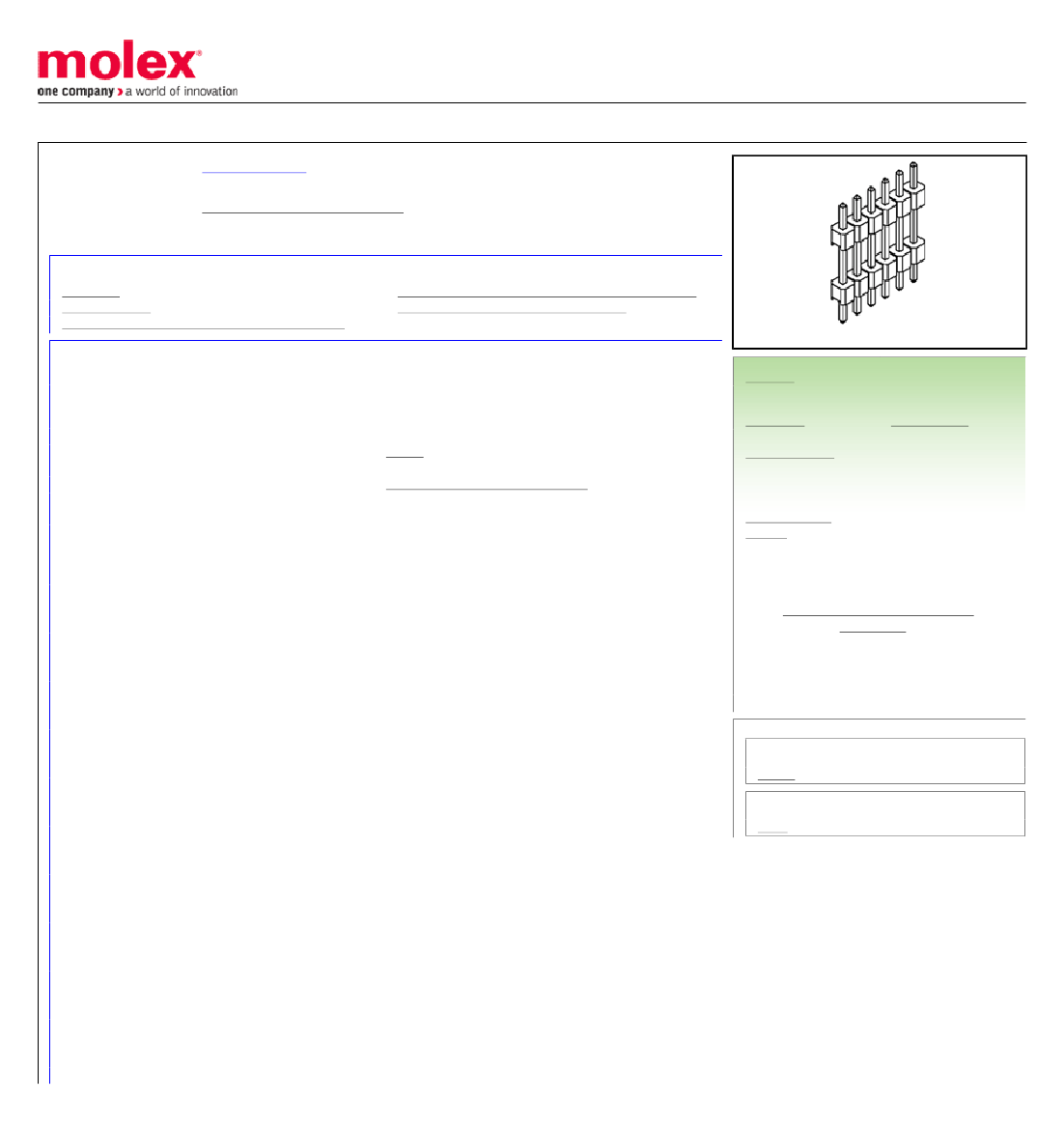

This document was generated on 01/24/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0879370406

Active

KK® Interconnect System - Molex

KK 254 PCB Header, Single Row Dual Body, Through Hole, Vertical, 4 Circuits,

2.50µm Tin (Sn) Plating, 11.00mm Stacking Height, Tray Packaging, Lead-Free

Documents:

3D Model

Drawing (PDF)

Product Specification PS-87920-019-001 (PDF)

Agency Certification

CSA

UL

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Packaging Specification PK-89990-489-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19880

E29179

PCB Headers

87937

Board-to-Board, Signal, Wire-to-Board

KK® Interconnect System - Molex

KK 254

822350104920

Yes

4

Black

No

94V-0

No

None

3.78mm

Copper Alloy

Tin

Nickel

Nylon

0.390/g

1

Vertical

3.76mm

No

None

1.60mm

Tray

2.54mm

2.540µm

1.270µm

No

Yes

-55°C to +105°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained
