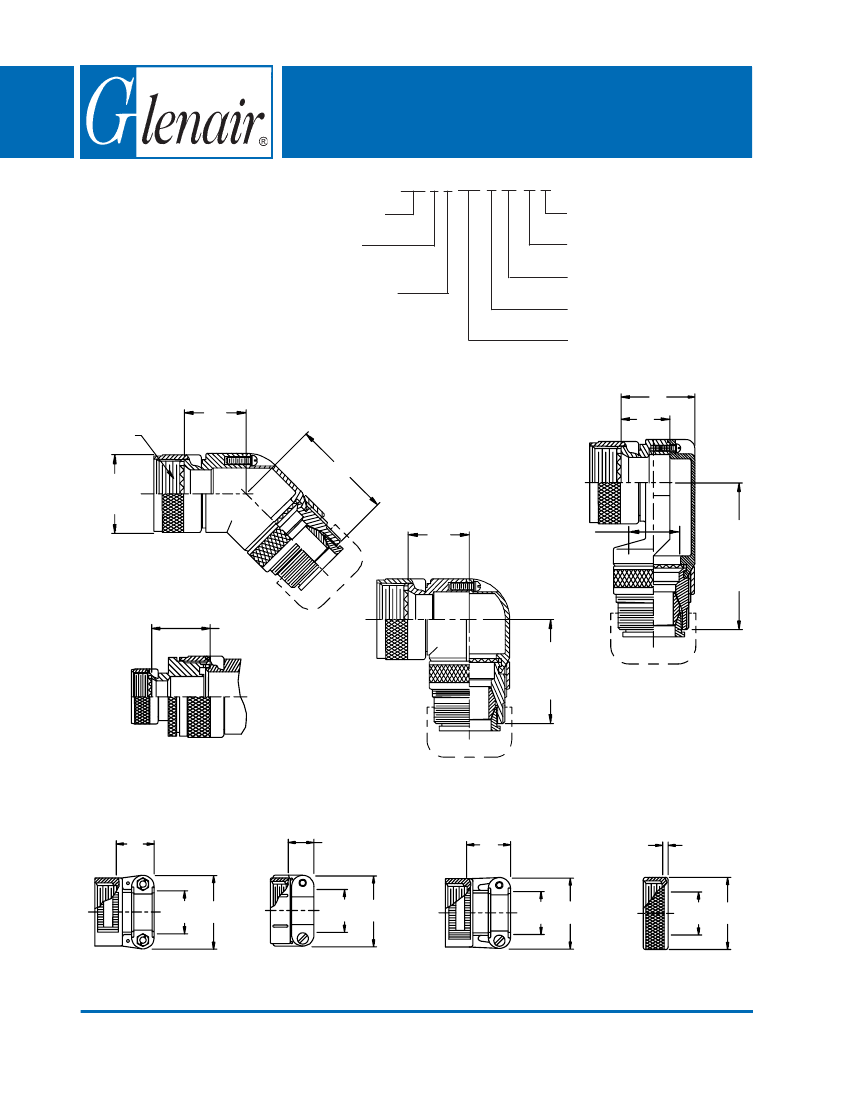

380-103
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type F - Rotatable Coupling - Split Shell
38
CONNECTOR
DESIGNATORS
380 F D 103 M 24 12 A
Product Series
Connector
Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45° (Note 4)
Strain Relief Style (H, A, M, D)
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
Basic Part No.
A-F-H-L-S
ROTATABLE
COUPLING
TYPE F INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
L
(Table III)
J
(Table III)
F (Table III)
C Typ.
(Table I)
G
(Table III)
Max
Wire
Bundle
(Table III,
Note 1)
K
(Table
III)
Split
45°
.88 (22.4)
Max
Split
90°
STYLE 2
(See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
H
(Table
III)
Ultra Low-
Profile Split
90°
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
STYLE M
Medium Duty
(Table XI)
X
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 110
with Strain Relief
Type F - Rotatable Coupling - Split Shell
TABLE III: ELBOW DIMENSIONS
Shell
Size
08/09
10/11
12/13
14/15
16/17
18/19
20/21
22/23
24/25
E
Max
.440 (11.2)
.500 (12.7)
.560 (14.2)
.620 (15.7)
.680 (17.3)
.750 (19.1)
.820 (20.8)
.880 (22.4)
.940 (23.9)
F
Max
1.590 (40.4)
1.650 (41.9)
1.720 (43.7)
1.750 (44.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
2.090 (53.1)
G
Max
.680 (17.3)
.750 (19.1)
.810 (20.6)
.870 (22.1)
.930 (23.6)
1.000 (25.4)
1.060 (26.9)
1.120 (28.4)
1.180 (30.0)
H
Max
1.530 (38.9)
1.590 (40.4)
1.660 (42.2)
1.690 (42.9)
1.790 (45.5)
1.850 (47.0)
1.910 (48.5)
1.970 (50.0)
2.030 (51.6)
J
Max
.340 (8.6)
.270 (6.9)
.270 (6.9)
.280 (7.1)
.420 (10.7)
.640 (16.3)
.640 (16.3)
.540 (13.7)
.540 (13.7)
K
Max
1.780 (45.2)
1.940 (49.3)
1.940 (49.3)
2.010 (51.1)
2.060 (52.3)
2.090 (53.1)
2.090 (53.1)
2.240 (56.9)
2.240 (56.9)
Finction C Max
L
Wire Bundle
Max
.250 (6.4)
.681 (17.3)
.375 (9.5)
.731 (18.6)
.375 (9.5)
.731 (18.6)
.500 (12.7)
.831 (21.1)
.625 (15.9)
.981 (24.9)
.625 (15.9)
1.181 (30.0)
.625 (15.9)
1.181 (30.0)
.750 (19.1)
1.181 (30.0)
.750 (19.1)
1.181 (30.0)
TABLE X: CABLE ENTRY
V
Cable Range
Dash
T
Max
Max
Min
No.
Max
.957 (24.3)
04
.780 (19.8)
.125 (3.2) .312 (7.9)
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
06
.312 (7.9) .562 (14.3)
08
.780 (19.8) 1.332 (33.8)
.780 (19.8) 1.332 (33.8)
.350 (8.9) .625 (15.9)
10
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
.625 (15.9) .937 (23.8)
16
.905 (23.0) 1.770 (45.0)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
24
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
See inside back cover
fold-out or pages 13 and
14 for unabridged
Tables I and II.
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied
(not available in Function C). Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for available sizes of 45° (Function F).
5. Angular function "C", low-profile split elbow, not available with "S" connector designator.
TABLE XI: CABLE ENTRY
Z
Y
Max
Max
.630 (16.0)
.843 (21.4)
.755 (19.2)
.906 (23.0)
.942 (23.9)
1.093 (27.8)
1.187 (30.1) 1.067 (27.1)
1.281 (32.5) 1.192 (30.3)
1.500 (38.1) 1.380 (35.1)
1.719 (43.7) 1.535 (39.0)
2.062 (52.4) 1.848 (46.9)
2.312 (58.7) 2.255 (57.3)
2.719 (69.1) 2.505 (63.6)
Dash
X
W
No.
Max
Max
03* .437 (11.1) .760 (19.3)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3)
08
.563 (14.3) .760 (19.3)
10
.563 (14.3) .760 (19.3)
12
.563 (14.3) .760 (19.3)
16
.656 (16.7) 1.073 (27.3)
20
.656 (16.7) 1.323 (33.6)
24
.656 (16.7) 1.323 (33.6)
28 1.188 (30.2) 1.572 (39.9)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
Cable Range
Max
Min **
.156 (4.0) .250 (6.4)
.188 (4.8) .312 (7.9)
.281 (7.1) .438 (11.1)
.344 (8.7) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.562 (14.3) .938 (23.8)
.750 (19.1) 1.250 (31.8)
.781 (19.8) 1.375 (34.9)
.969 (24.6) 1.625 (41.3)
** Not Applicable Style D
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
