marlow
industries
Subsidiary of II-VI Incorporated
a global leader in thermoelectric solutions

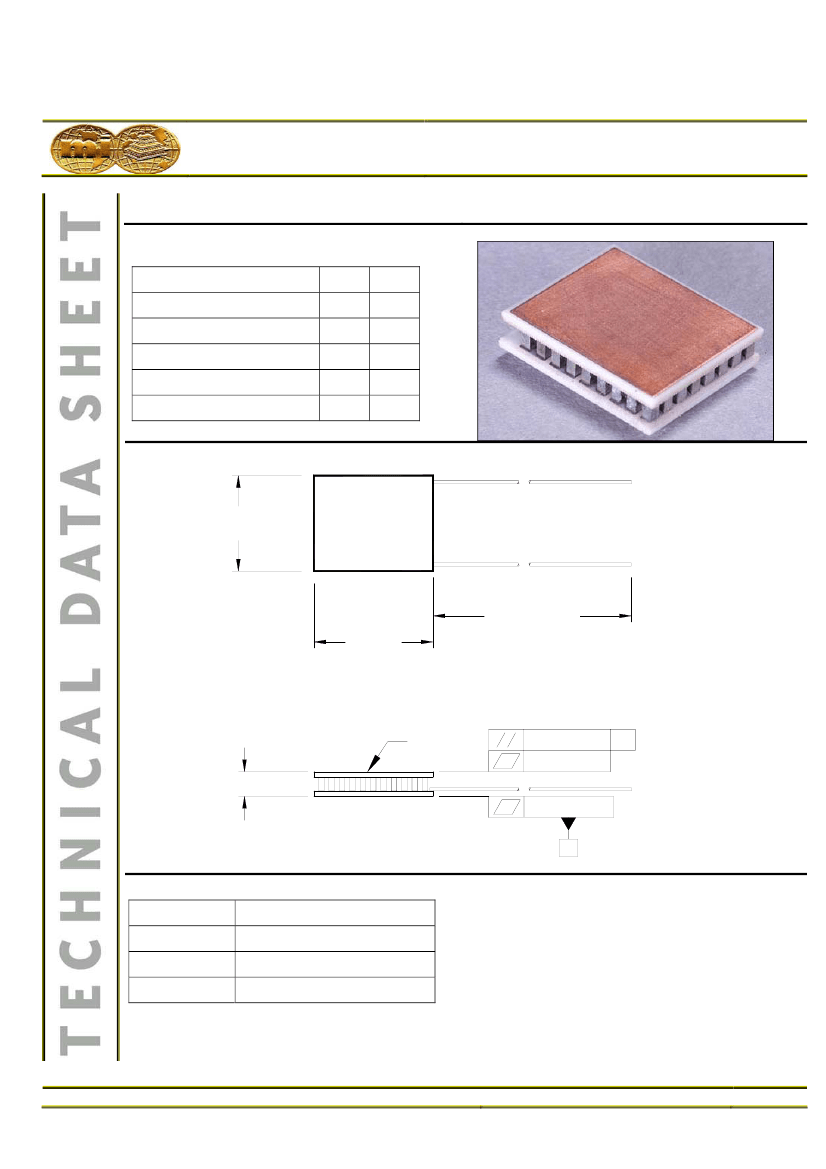

Thermoelectric Cooler NL1015T
Performance Values
Hot Side Temperature (°C)
Δ
Tmax (°C-dry N
2
):
Qmax (watts):
Imax (amps):
Vmax (vdc):
AC Resistance (ohms):
27°C
61
2.6
1.0
4.6
4.07
50°C
69
3.0
1.0
5.3
---
RoHS 2002/95/EC Compliant
Mechanical Characteristics
Positive Lead
.346
[8.79]
Leads: 28 AWG (0.32) Bus
Solid Tinned Copper
Negative Lead
.432
[10.97]
2.00 +/-.25
[50.80+/-6.35]
.094 +/-.005
[2.38 +/-0.13]
Cold Side
.004 [0.09]
.001 [0.03]
.001 [0.03]
A
Ceramic Material: Alumina (AC)
Millimeters are in [ ]
A
Ordering Options
Model Number
NL1015T-01
NL1015T-02
NL1015T-03
Description
both surfaces are metallized
hot side exterior is metallized
no metallization
Features
•
•
RoHS 2002/95/EC compliant
For example, and NL1015T with only the hot side
metallized is specified as an NL1015T-02AC
Available Modifications
•
•
•
Pretinned metallized ceramic surface(s) with 117°C
solder.
Thermistor mounted on edge of cold side ceramic.
(Calibration available.)
Elevated temperature burn-in with test data
provided.
Doc # 102-0293
Rev B
Page 1 of 2
214-340-4900 (tel)
●
214-341-5212 (fax)
●
www.marlow.com
marlow
industries
Subsidiary of II-VI Incorporated
a global leader in thermoelectric solutions

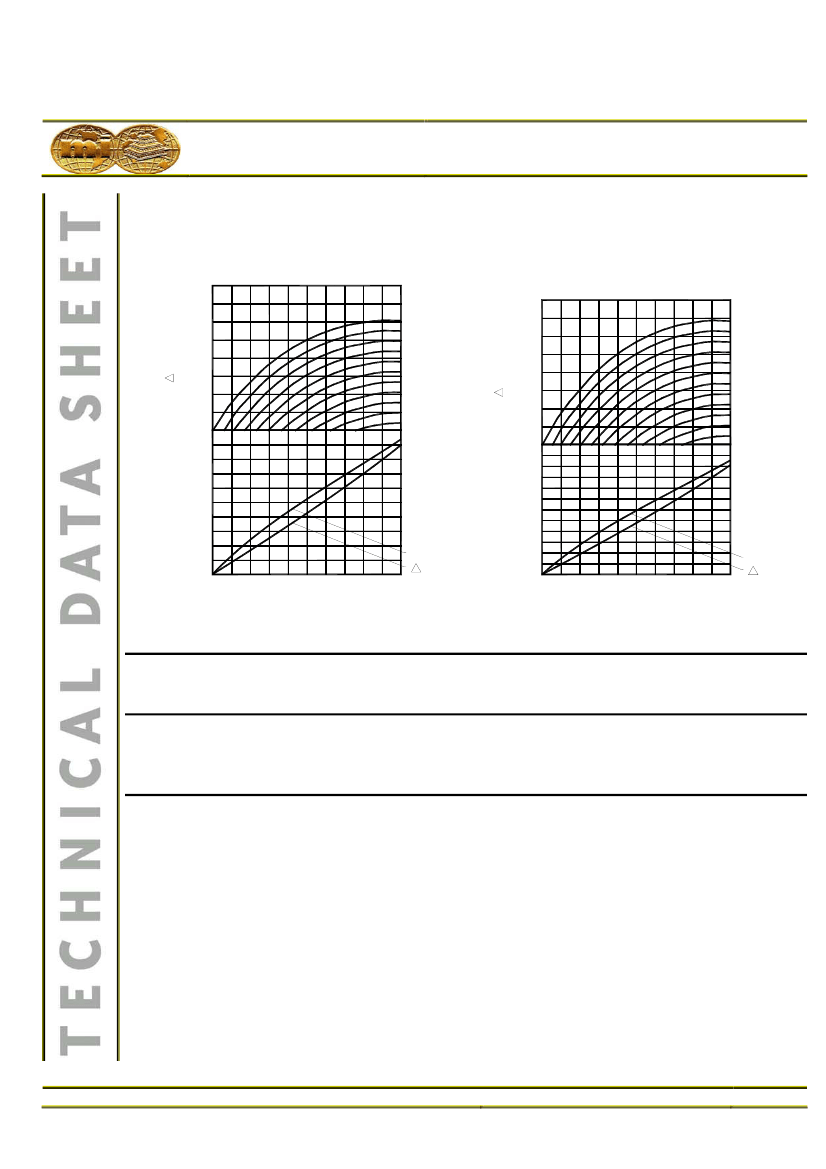

Performance Curves
Environment: One atmosphere dry nitrogen
Hot Side Temperature: 27°C
80.0
60.0
T (C)
Hot Side Temperature: 50°C
HEAT
LOAD
(WATTS)
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
HEAT
LOAD
(WATTS)
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
2.50
2.75
80.0
60.0
T (C)
VOLTAGE (VDC)
40.0
20.0
0.0
40.0
20.0
0.0
VOLTAGE (VDC)
4.0
3.0
2.0
1.0
0.0
0.0
0.2
0.4
0.6
0.8
CURRENT (AMPS)
1.0
Q=0
T=0
5.0
4.0
3.0
2.0
1.0
0.0
0.0
0.2
0.4
0.6
0.8
CURRENT (AMPS)
1.0
Q=0
T=0
For performance information in a vacuum or with hot side temperatures other than 27°C or 50°C, consult one of our Applications
Engineers.
Installation
Recommended mounting methods: Bonding with thermal epoxy or soldering with metallized ceramics. For
additional information, please refer to our TEC Installation Guide.
Operation Cautions
For maximum reliability, storage and operation below 85°C in a non-condensing environment is
recommended. To minimize thermal stress, use linear/proportional temperature control or a similar method
rather than an ON/OFF method.
Addresses
Marlow Industries, Inc.
10451 Vista Park Road
Dallas Texas 75238-1645
214-340-4900 (tel)
214-341-5212 (fax)
II-VI Japan Inc.
WBG Marive East 17F
2-6 Nakase, Mihama-ku
Chiba-Shi, Chiba 261-7117
Japan
81 43 297 2693 (tel)
81 43 297 3003 (fax)
center@ii-vi.co.jp
www.ii-vi.co.jp
Marlow Industries Europe
Aberdeen House, South Road
Haywards Heath
West Sussex RH164NG UK
+44 (0)1444-443404 (tel)
+44 (0)1444-443334(fax)
Marlow Industries China, II-VI
Technologies Beijing
A subsidiary of II-VI Incorporated
II-VI Singapore Pte., Ltd.
Blk. 5012, Techplace II
#04-07 & 05-07/12, Ang Mo Kio Ave. 5
Singapore 569876
(65) 6481 8215 (tel)
(65) 6481 8702 (fax)
info@ii-vi.com.sg
www.ii-vi.com.sg
Rm 202, 1# Lize 2nd Middle Road
Wangjing, Chaoyang District
Beijing 100102 China
64391260 ext 105 (tel)
64399315 (fax)
info@iivibj.com
Doc # 102-0293
Rev B
Page 2 of 2
214-340-4900 (tel)
●
214-341-5212 (fax)
●
www.marlow.com
