1713560: DescriptionPluggable Terminal Blocks MCVR 1,5/ 4-ST- 3,5 CN1,4 BD:-1; CategoryThe connector; File Size73KB，2 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com

Download Datasheet Parametric View All

1713560 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1713560	-	-	View	Buy Now

1713560 Overview

Pluggable Terminal Blocks MCVR 1,5/ 4-ST- 3,5 CN1,4 BD:-1

1713560 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	PHOENIX CONTACT
Product Category	Pluggable Terminal Blocks
Shipping Restrictions	Mouser does not presently sell this product in your region.
Product	Plugs
Number of Positions	4 Position
Pitch	3.5 mm
Connection Method	Screw
Factory Pack Quantity	50
Unit Weight	0.107656 oz

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/hq/products/1713560

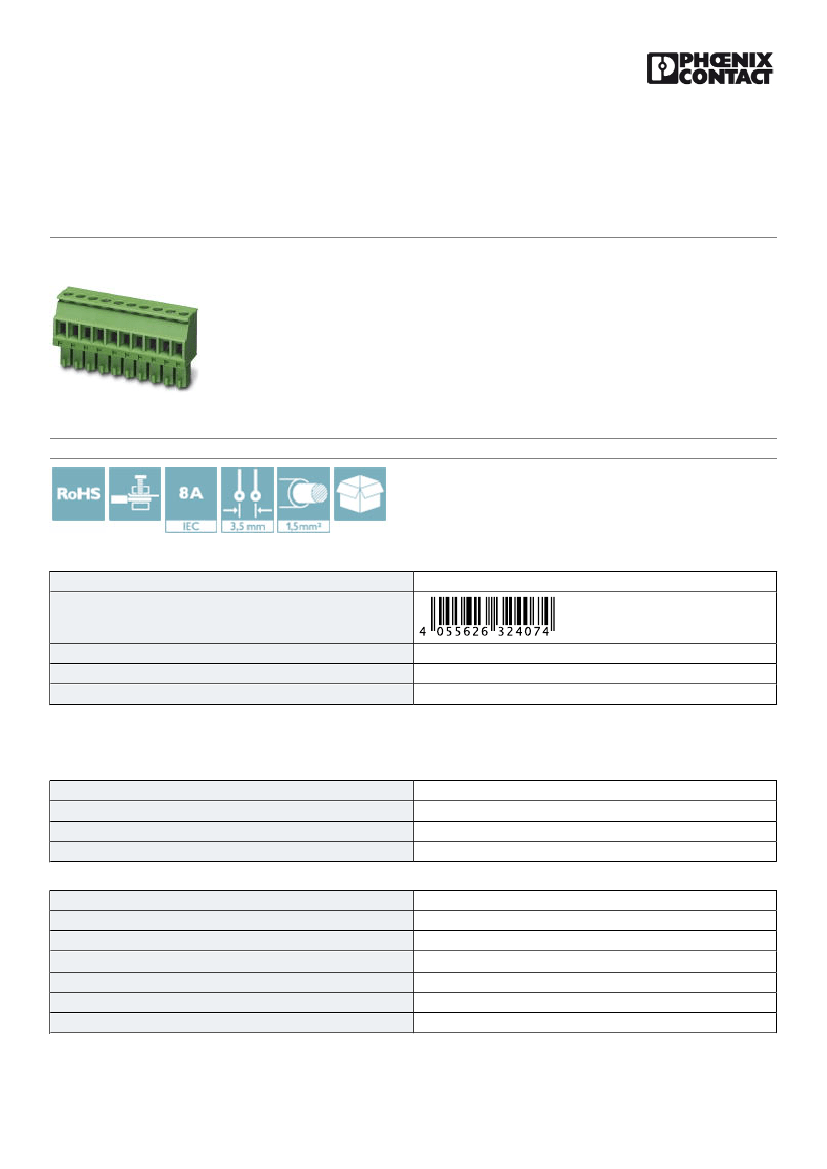

Printed-circuit board connector - MCVR 1,5/ 4-ST-3,5 CN1,4

BD:-1 - 1713560

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Plug component, Nominal current: 8 A, Number of positions: 4, Pitch: 3.5 mm, Connection method: Screw

connection with tension sleeve, Color: green, Contact surface: Tin

The figure shows a 10-position

version of the product

Key Commercial Data

Packing unit

GTIN

Custom tariff number

Note

4055626324074

85366990

Made to Order (non-returnable)

50 STK

Technical data

Dimensions

Height

Width

Pitch

Dimension a

12.5 mm

14.8 mm

3.50 mm

10.5 mm

General

Number of positions

Connection method

Insulating material group

Nominal current I

N

Nominal cross section

Flammability rating according to UL 94

Screw thread

4

Screw connection with tension sleeve

I

8A

1.5 mm²

V0

M2
