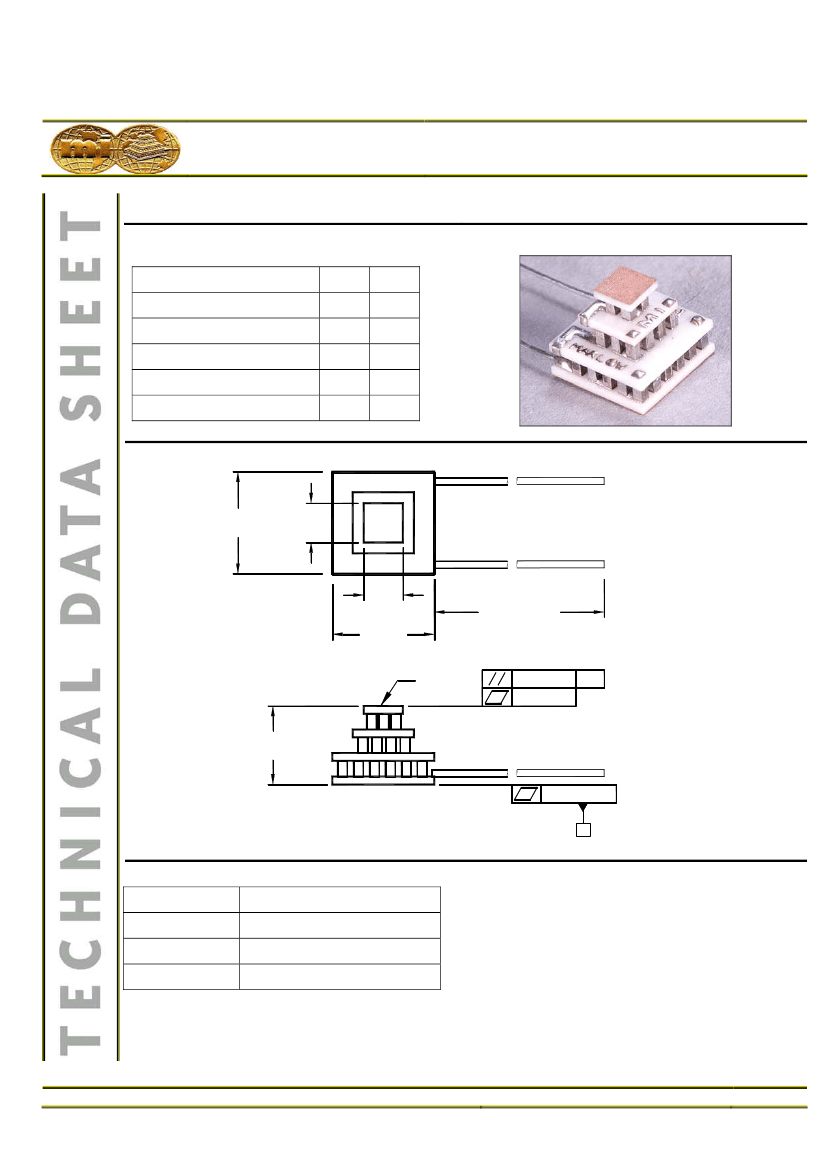

Thermoelectric Cooler NL3021T
Performance Values
Hot Side Temperature (°C)
Δ
Tmax (°C-dry N
2
):
Qmax (watts):
Imax (amps):
Vmax (vdc):
AC Resistance (ohms):
27°C
96
0.33
1.3
1.9
1.42
50°C
109
0.38
1.3
2.2
---
RoHS 2002/95/EC Compliant
Mechanical Characteristics
Positive Lead
.260
[6.60]
.100
[2.54]
Leads: 28AWG (0.33) BUS
Solid Tinned Copper
Negative Lead
.100
[2.54]
.260
[6.60]
Cold Side
2.00 +/-.25
[50.80+/-6.35]
.004 [0.10]
.001 [0.03]
A
.212+/-.010
[5.38 +/-0.25]
.001[0.03]
Ceramic Material: Alumina (AC) or
Beryllia (BC)
Millimeters are in [ ]
A
Ordering Options
Model Number
NL3021T-01
NL3021T-02
NL3021T-03
Description
both surfaces are metallized
hot side exterior is metallized
no metallization
Features
•
•
RoHS 2002/95/EC compliant
For example, and NL3021T with only the hot side
metallized is specified as an NL3021T-02AC
Available Modifications
•
•
•
Pretinned metallized ceramic surface(s) with 117°C
solder.
Thermistor mounted on edge of cold side ceramic.
(Calibration available.)
Elevated temperature burn-in with test data
provided.
Doc # 102-0304
Rev B
Page 1 of 2
214-340-4900 (tel)
●
214-341-5212 (fax)
●
www.marlow.com
marlow
industries
Subsidiary of II-VI Incorporated
a global leader in thermoelectric solutions

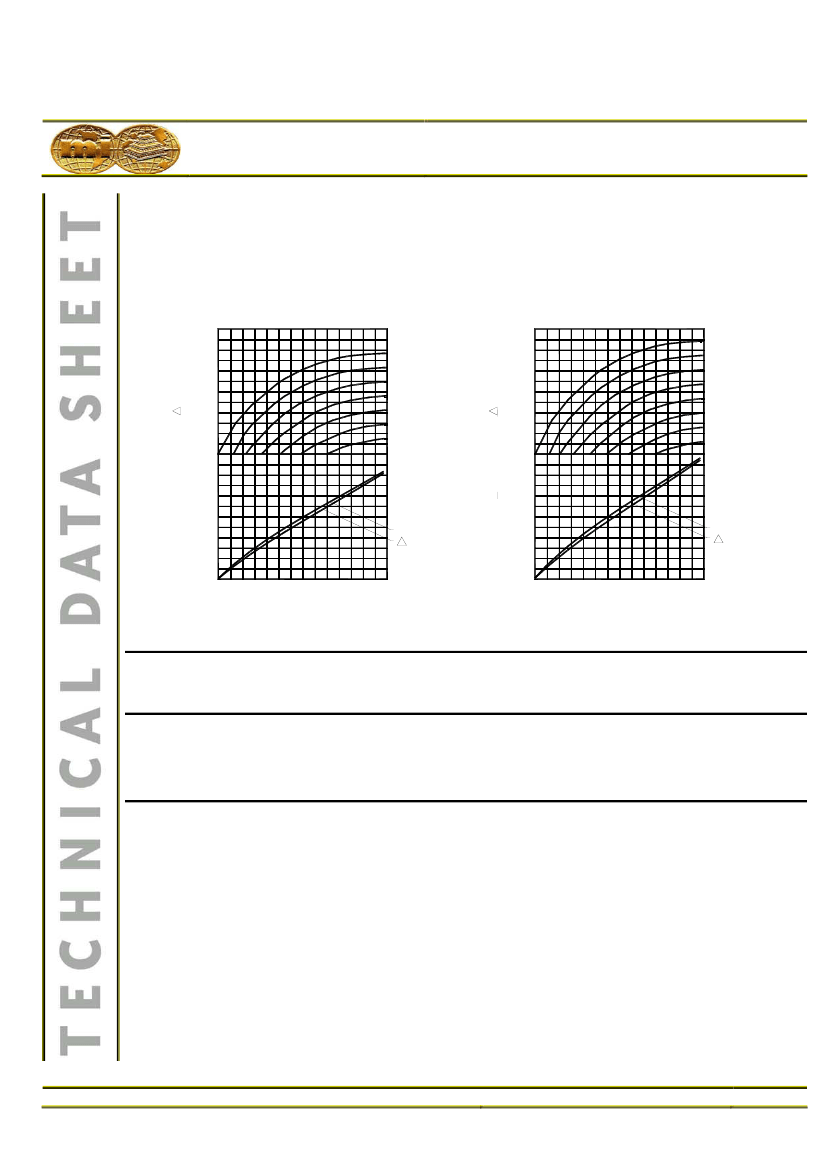

Performance Curves
Environment: One atmosphere dry nitrogen
Hot Side Temperature: 27°C
Hot Side Temperature: 50°C
HEAT
LOAD
(WATTS)
120.0
100.0
T (C)
80.0
60.0
40.0
20.0
0.0
VOLTAGE (VDC)
2.0
1.6
1.2
0.8
0.4
0.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
CURRENT (AMPS)
Q=0
T=0
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
120.0
100.0
T (C)
80.0
60.0
40.0
20.0
0.0
VOLTAGE (VDC)
2.0
1.6
1.2
0.8
0.4
HEAT
LOAD
(WATTS)
0.00
0.05
0.10
0.15
0.20
0.25
0.30
Q=0
T=0
0.0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
CURRENT (AMPS)
For performance information in a vacuum or with hot side temperatures other than 27°C or 50°C, consult one of our Applications
Engineers.
Installation
Recommended mounting methods: Bonding with thermal epoxy or soldering with metallized ceramics. For
additional information, please refer to our TEC Installation Guide.
Operation Cautions
For maximum reliability, storage and operation below 85°C in a non-condensing environment is
recommended. To minimize thermal stress, use linear/proportional temperature control or a similar method
rather than an ON/OFF method.
