Datasheet> All Categories > The connector> 39981-0303
PDF
Preview

39981-0303

Description
Pluggable Terminal Blocks SR BTS PLUG 3 ASY DE BTS PLUG 3 ASY DELTA
CategoryThe connector
File Size26KB，1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

39981-0303 Online Shopping

Suppliers Part Number Price MOQ In stock
39981-0303 - - View Buy Now

39981-0303 Overview

Pluggable Terminal Blocks SR BTS PLUG 3 ASY DE BTS PLUG 3 ASY DELTA

39981-0303 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresLATCHED, POLARIZED, POLYAMIDE, 94V-0
Fastening methodSCREW
Manufacturer's serial number39981
Installation typeCABLE
Number of layers1
Rows1
Number of channels3
Rated current10 A
Rated voltage300 V
safety certificateUL
Terminal and terminal strip typesMODULAR TERMINAL BLOCK
Conductor cross section2.5 mm2
Wire gauge12 AWG

Preview

Download Datasheet

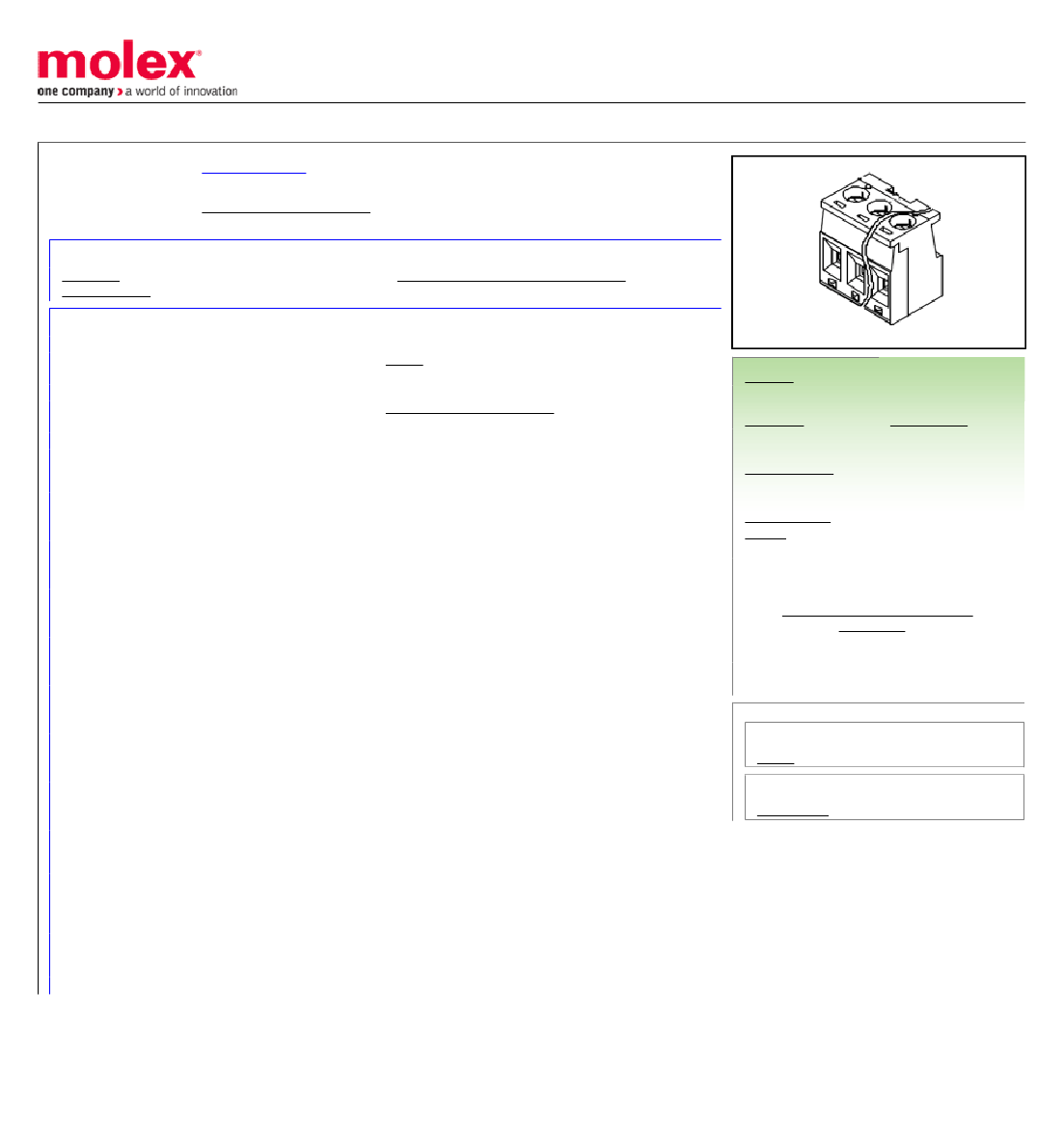

This document was generated on 09/17/2015
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
General
Product Family
Series
Application
Component Type
Overview
Product Name
Type
UPC
Physical
Circuits (Loaded)
Color - Resin
Entry Angle
Lock to Mating Part
Material - Metal
Material - Plating Mating
Material - Plating Termination
Material - Resin
Number of Rows
Orientation
PCB Retention
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Plating min - Mating
Plating min - Termination
Polarized to Mating Part
Shrouded
Stackable
Temperature Range - Operating
Termination Interface: Style
Wire Size AWG
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Old Part Number
Reference - Drawing Numbers
Sales Drawing
0399810303
Active
Eurostyle™ Terminal Blocks
5.08mm Pitch Beau™ Eurostyle™ Screw Clamp Plug, Gold (Au) Plated, 3 Circuits
RoHS Certificate of Compliance (PDF)
Terminal Blocks
39981
N/A
Plug
Eurostyle™ Terminal Blocks
Eurostyle™Pluggable
Euro Block
756054868300
3
Black
Horizontal
Yes
Brass
Gold
Gold
Nylon
1
Vertical
N/A
No
5.08mm
5.08mm
1.270µm
1.270µm
Yes
Fully
No
110°C
Surface Mount
12, 14, 16, 18, 20, 22, 24
10.0A
300V
980903-G30
SD-39980-010
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant with
Exemption 6(c)
REACH SVHC
Contains SVHC(2014
December 17): No
Halogen-Free
Status
Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
Not Relevant
Not Relevant
Search Parts in this Series
39981 Series
Mates With
39981-0403
This document was generated on 09/17/2015
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
