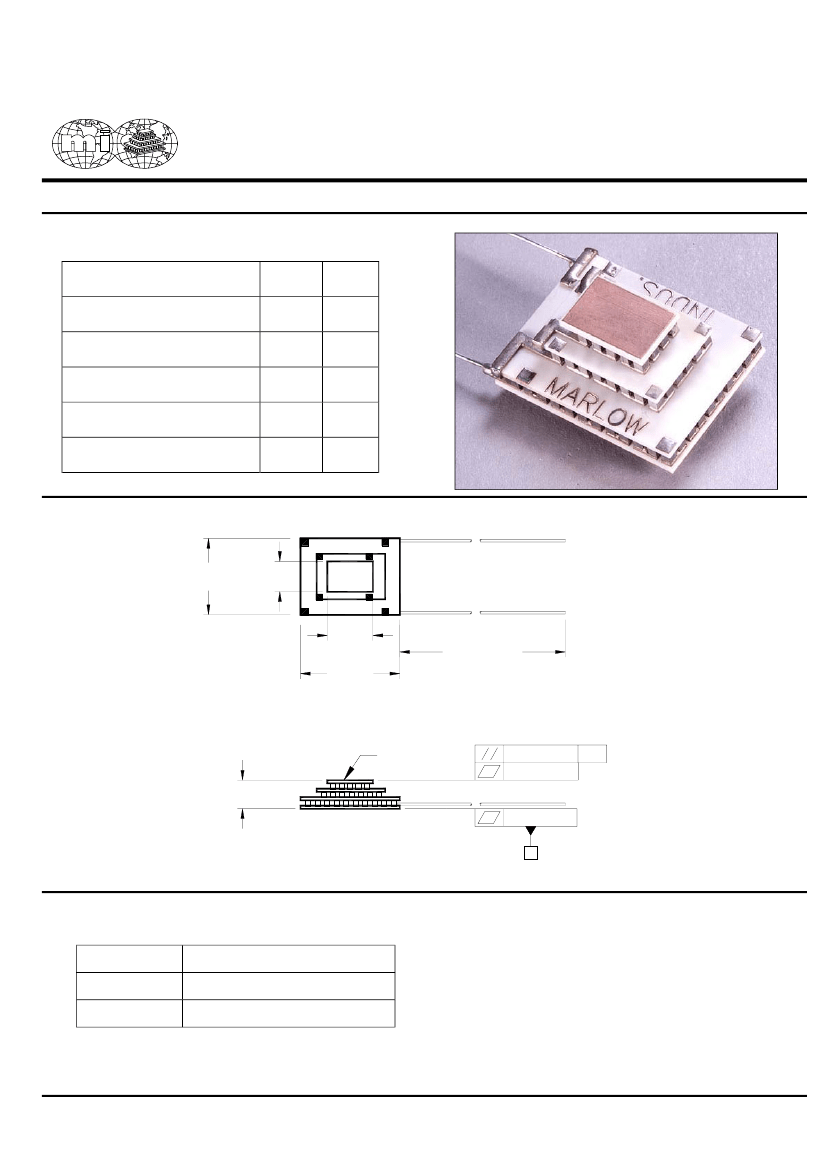

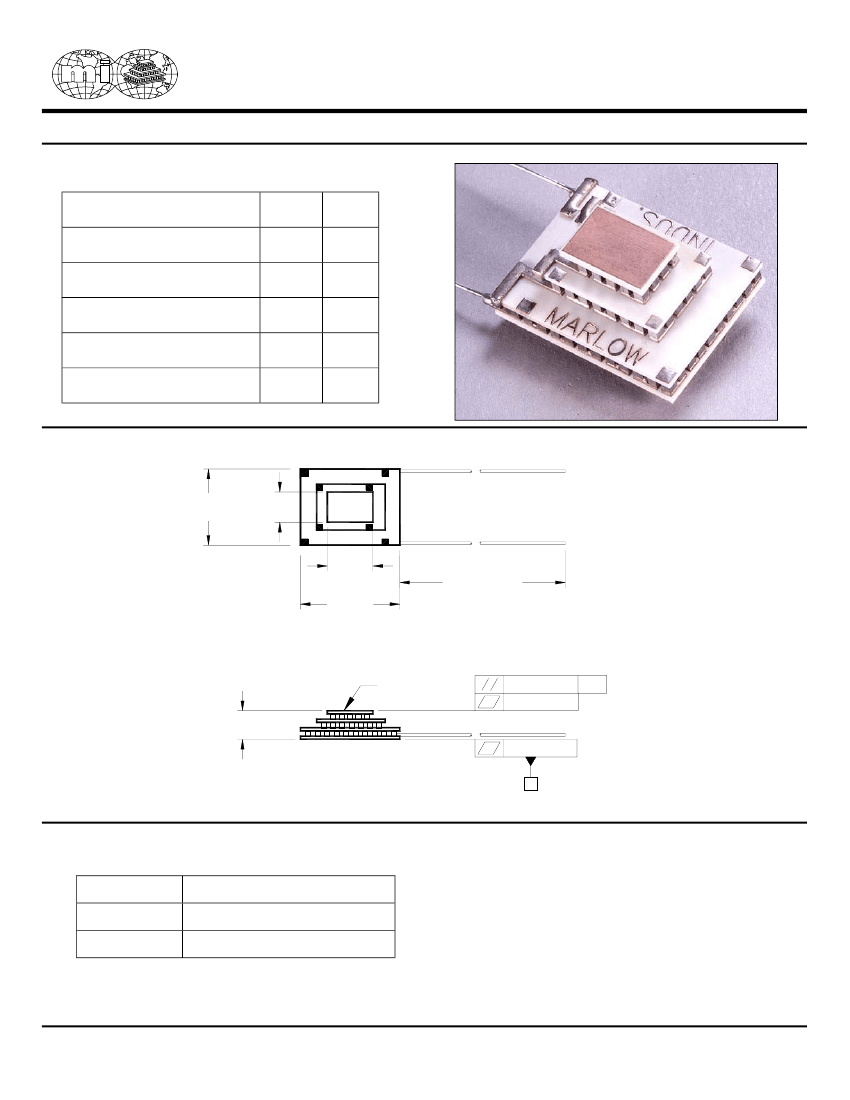

marlow industries inc.
®
Thermoelectric Cooler
Performance Values
Hot Side Temperature (°C)
∆
Tmax (°C-dry N
2
):
Qmax (watts):
Imax (amps):
Vmax (vdc):
AC Resistance (ohms):
27°C
98
5.6
4.5
7.3
1.54
50°C
111
6.25
4.5
8.2
---
MI3040
Mechanical Characteristics
Positive Lead
Leads: 22 AWG (0.64) Bus
Solid Tinned Copper
.855
[21.72]
.339
[8.61]
.425+/-.015
[10.80 +/-0.38]
.003 [0.08]
Ceramic Material: Beryllia (BC)
Millimeters are in [ ]
A
Ordering Options
MI3040-01
MI3040-02
MI3040-03
both surfaces are metallized
hot side exterior is metallized
no metallization
MARLOW
INDUS.
.511
[12.98]
1.113
[28.27]
2.00 +/-.25
[50.80+/-6.35]
Cold Side
.009 [0.23]
.001 [0.03]
Negative Lead
A
•
•
•
•
For example, and MI3040 with only the hot side
metallized is specified as an MI3040-02BC
Pretinned metallized ceramic surface(s) with
117°C solder.
Thermistor mounted on edge of cold side ceramic.
(Calibration available.)
Elevated temperature burn-in with test data provided.
102-0019,Rev E
Thermoelectric Cooler

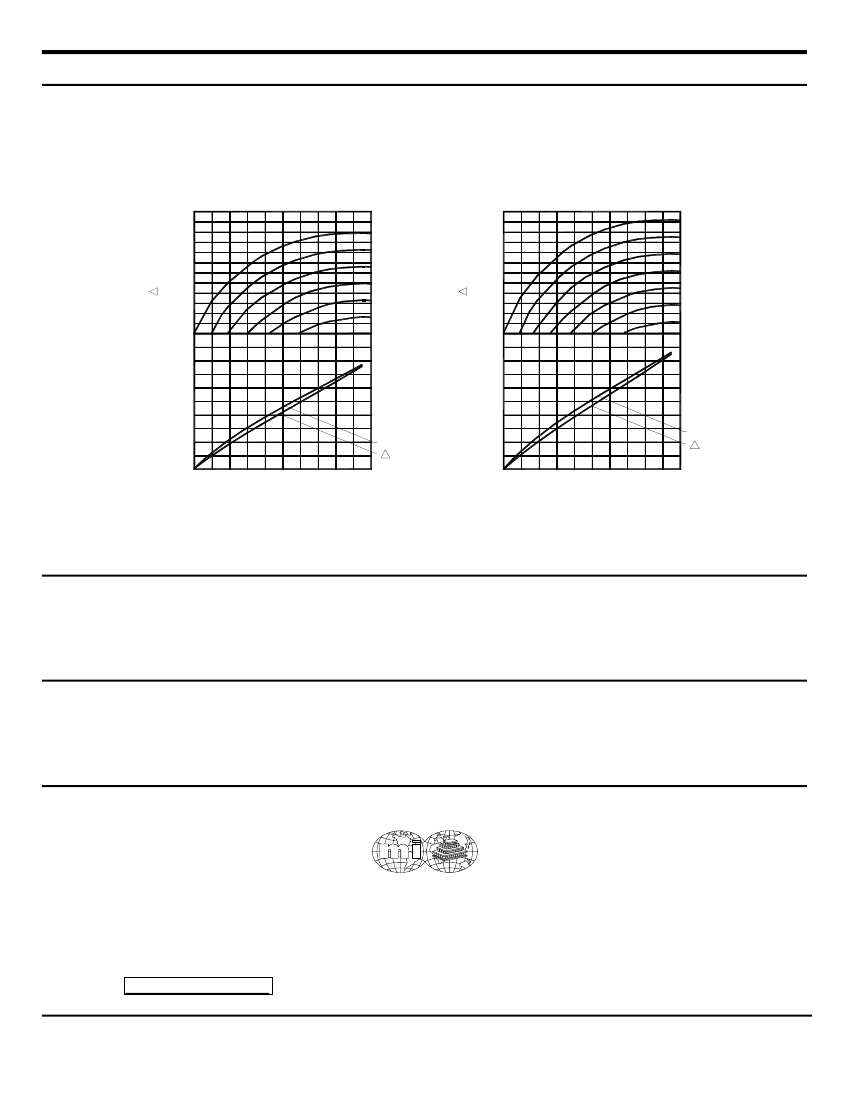

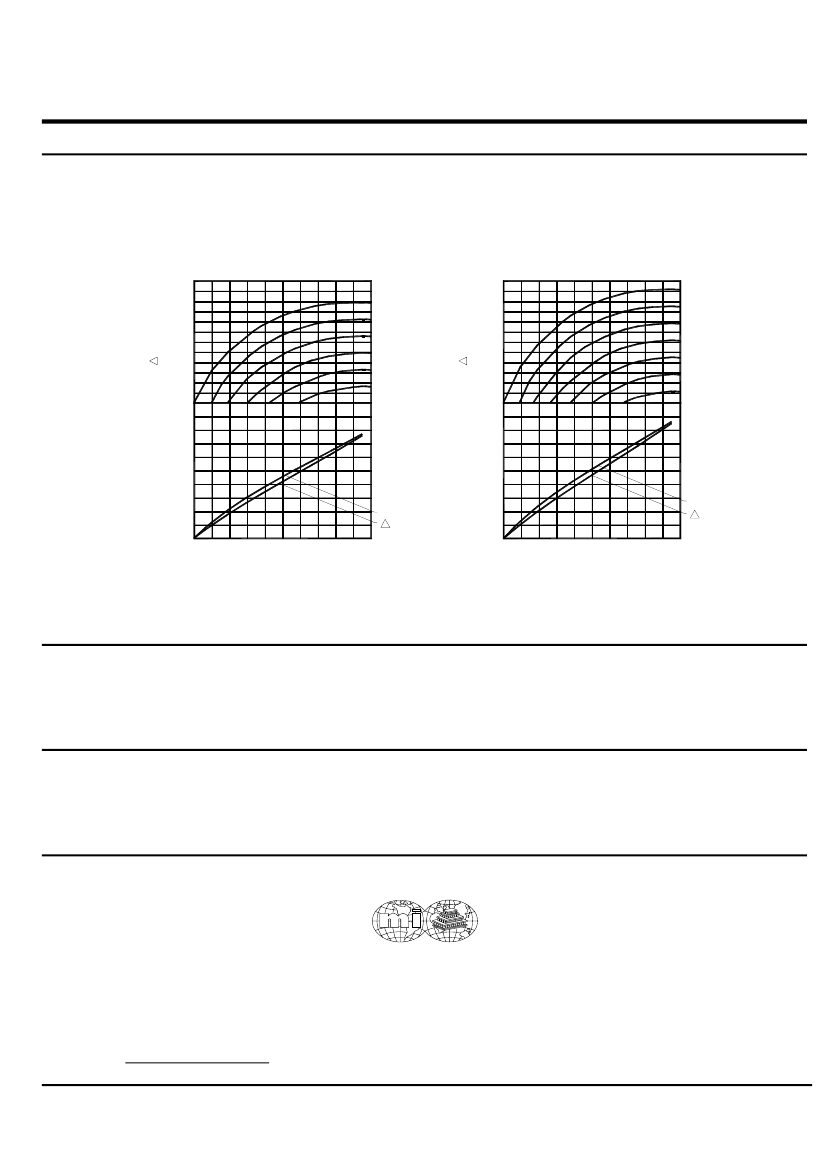

Performance Curves
Environment: One atmosphere dry nitrogen
Hot Side Temperature: 27°C
HEAT
LOAD
(WATTS)
0.00
1.00
2.00
3.00
4.00
5.00
Hot Side Temperature: 50°C
MI3040
HEAT
LOAD
(WATTS)
120.0
100.0
T (C)
80.0
60.0
40.0
20.0
0.0
VOLTAGE (VDC)
8.0
6.0
4.0
2.0
0.0
0.0
1.0
2.0
3.0
4.0
CURRENT (AMPS)
5.0
Q=0
T=0
0.00
1.00
2.00
3.00
4.00
5.00
6.00
120.0
100.0
T (C)
VOLTAGE (VDC)
80.0
60.0
40.0
20.0
0.0
8.0
6.0
4.0
2.0
0.0
0.0
1.0
2.0
3.0
4.0
CURRENT (AMPS)
Q=0
T=0
5.0
For performance information in a vacuum or with hot side temperatures other than 27°C or 50°C, consult one of our
Applications Engineers.
Installation
Recommended mounting methods: Bonding with thermal epoxy or soldering with metallized ceramics. For additional
information, please refer to our TEC Installation Guide.
Operation Cautions
For maximum reliability, storage and operation below 85°C in a non-condensing environment is recommended. To
minimize thermal stress, use linear/proportional temperature control or a similar method rather than an ON/OFF method.
Marlow Industries, Inc.
10451 Vista Park Road
Dallas Texas 75238-1645
TEL: 214-340-4900
FAX: 214-341-5212
Internet: http://www.marlow.com
Marlow Industries Europe
Aberdeen House, South Road
Haywards Heath
West Sussex RH164NG UK
TEL: +44 (0)1444-443404
FAX: +44 (0)1444-443334
Marlow Industries Asia
1-1-8-401
Uehara, Shibuya-ku
Tokyo, Japan 151-0064
TEL: +81 (3) 5454-5280
FAX: +81 (3) 5454-5281
Copyright 2000, Marlow Industries, Inc. Marlow Industries reserves the right to change the design and specifications of products without notice. 102-0019, Rev E
