Ferrule - AI 1,5 - 8 RD-B - 3201592
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ferrule, Sleeve length: 8 mm, Length: 14 mm, Color: red

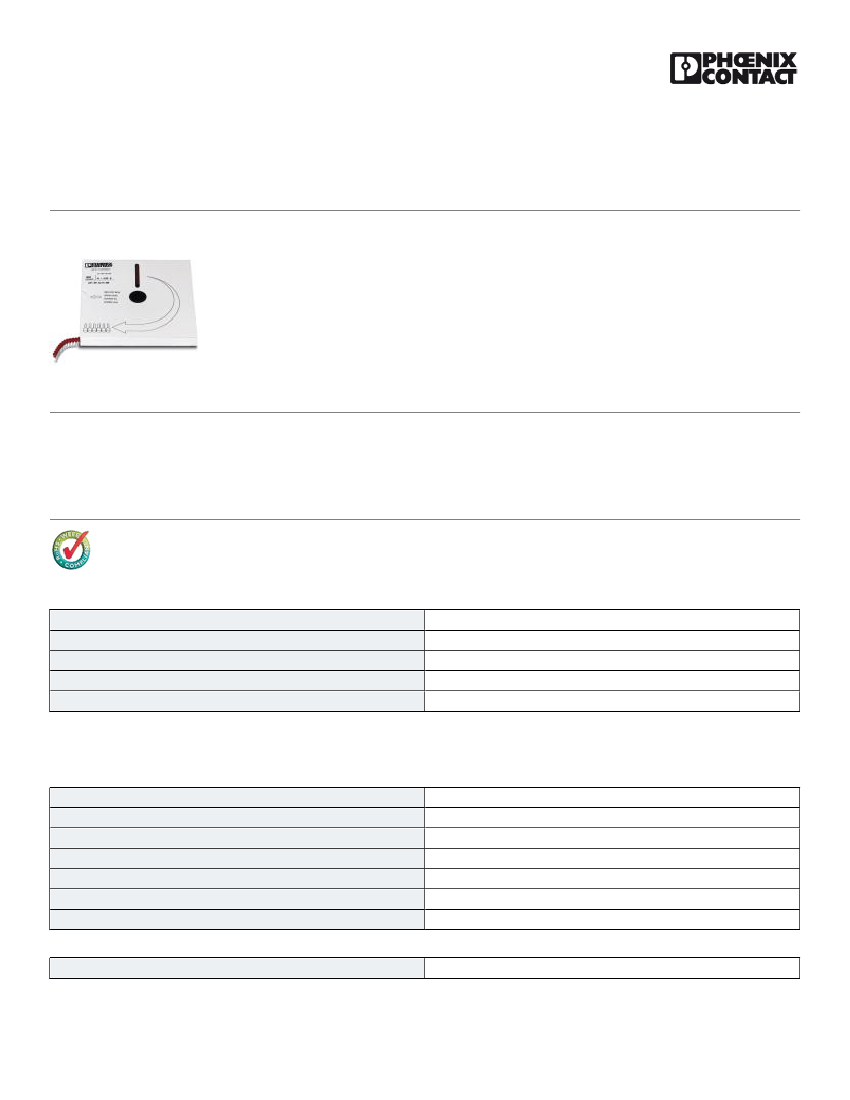

The illustration shows version AI 1,5
- 8 in red
Product Features
■
■
■
The taped ferrules were developed specifically for the crimping machine CF 3000 -2,5
Available in the main color ranges up to 2.5 mm²
Can be used to wire all terminal blocks, especially those of the CLIPLINE complete system
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
1000 pc
0.16 g
85369010
Germany
Technical data
Dimensions
Length (b)
Maximum stripping length
Sleeve length
Inner dimension of the insulating collar (d)
Ferrule diameter
Insulating collar thickness
Sleeve wall thickness
14 mm
11 mm
8 mm
3.4 mm
1.8 mm
0.3 mm
0.15 mm
Ambient conditions
Short-term temperature
120 °C
04/25/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/3201592
Ferrule - AI 1,5 - 8 RD-B - 3201592
Technical data
Ambient conditions
Max. permanent temperature
105 °C
General
Color
Components
Flammability rating according to UL 94
Material
Coating
red
free from silicone and halogen
HB
E-CU
tin-plated (galvanic)
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CSA
HB
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27060701
27060701
27400201
27400201
27400201
27400201
27400201
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000005
EC000005
EC000005
EC000005
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30212109
27121703
27121703
27121703
27121703
Approvals
Approvals
04/25/2016 Page 2 / 3
https://www.phoenixcontact.com/us/products/3201592
Ferrule - AI 1,5 - 8 RD-B - 3201592
Approvals
Approvals
CSA / CSAus / EAC / EAC / cCSAus
Ex Approvals
Approvals submitted
Approval details
CSA
CSAus
EAC
EAC
cCSAus
Drawings
Dimensional drawing
