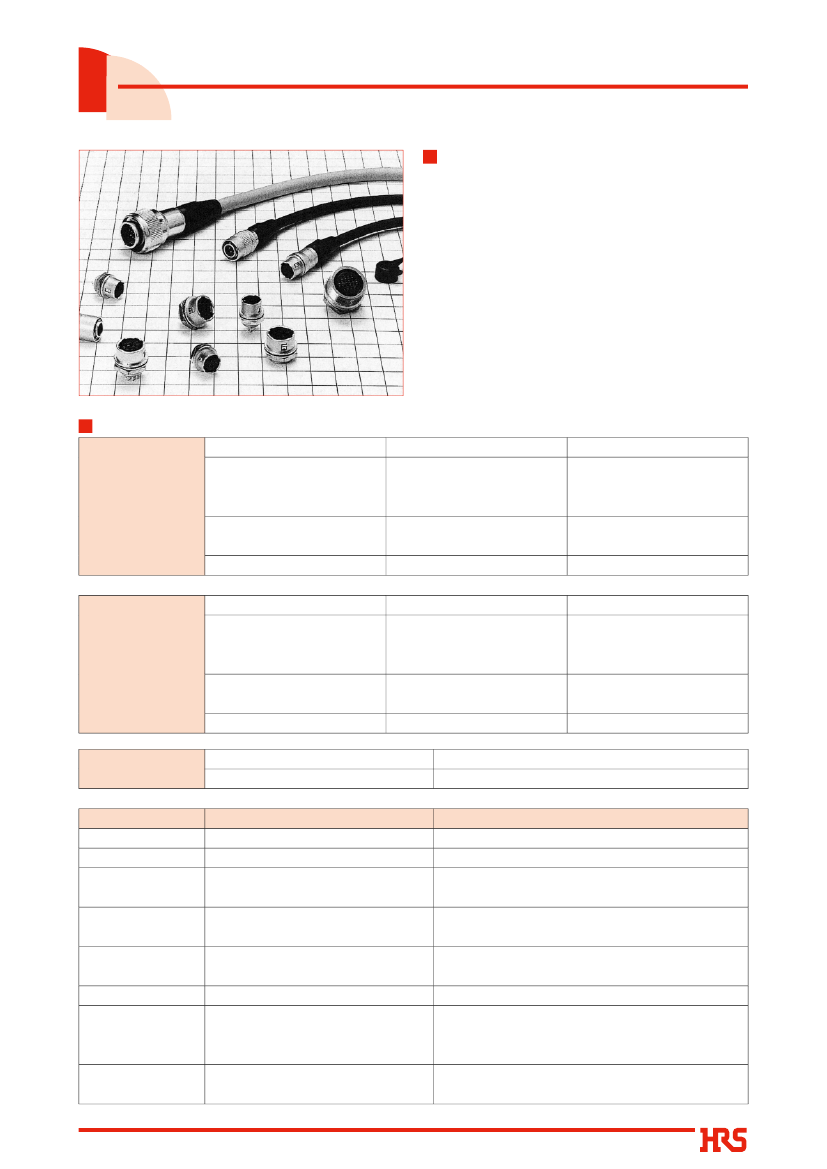

High performance miniature circular connectors
HR10 Series
Features
1. A simple, yet highly reliable design for
compact, high density applications
Although small in size, the HR10 series are full
featured connectors with a well integrated design.
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2. Extremely easy mating/unmating
operations
Easy to operable, the single-action push-pull lock
structure allows for quick and efficient locking and
unlocking.
Product Specifications
Shell size
7
Ratings
10
13
Shell size
7
Ratings
10
13
Operation temperature range
Storage temperature range
Specifications
10mø min.
1,000Mø min.
Measured at DC 1A
Measured at DC 100V
AC 300V for one minute, 4 contacts : AC 500V for 1 minute
10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,
for 2 hours each
Acceleration : 490m/s
2
, duration : 11ms 3 directions,
3 times each
1,000 times
-55ç : 30minutes➝Normal temperature : 10 to 15 minutes➝
85ç : 30minutes➝Normal temperature :
10 to 15minutes, left for 5 cycles.
Temperature : 40ç, relative humidity : 90 to 95%,
left for 96 hours
No. of contacts
4
5
6
10
12
20
No. of contacts
4
5
6
10
12
20
Rated current
2A
2A
2A
Rated voltage
AC150V, DC200V
AC100V, DC140V
AC100V, DC140V
AC100V, DC140V
AC100V, DC140V
-25 to +85ç
-10 to +60ç
Conditions
Ratings
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage No flashover or dielectric breakdown.
4. Vibration resistance
5. Shock resistance
6. Mating Cycles
7. Temperature cycle
No electrical discontinuity of 10µs or greater
No electrical discontinuity of 10µs or greater
Contact resistance : 15mø min.
Insulation resistance : 1,000Mø min.
8. Humidity resistance
5Mø min. (at high humidity)
50Mø min. (at dry)
2017.12y
1
HR10 Series●High performance miniature circular connectors
Materials / Finish
Items
Exterior
Insulator
Contact
Material
Zinc alloy, brass
Polyamide resin, PBT resin
Copper alloy
Finish
Matte finished nickel plating
----------------
HR10 : Gold plating
HR10A : Silver plating
Remarks
----------------
Blue, Black
----------------
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR10A - 7 P - 3 P C
(**)
q
w e
r t y
u
qModel
name : Indicates the HR10A Series. The part type is identified as follows.
HR10A : Lower cost type
HR10G : Shield type
HR10B : Coaxial contact type
wShell
size : The shell size is the outer shell diameter or the mating interface end of the plug.
eShell
type
P : Plug
R : Receptacle
J : Jack
rNumber
of contacts
tContact
form
P : Male contact
S : Female contact
yContact
termination method:
None : Solder termination
C
: Crimp termination
uOther
specifications : A two-digit character is added to indicate other specifications as needed.
2
HR10 Series●High performance miniature circular connectors

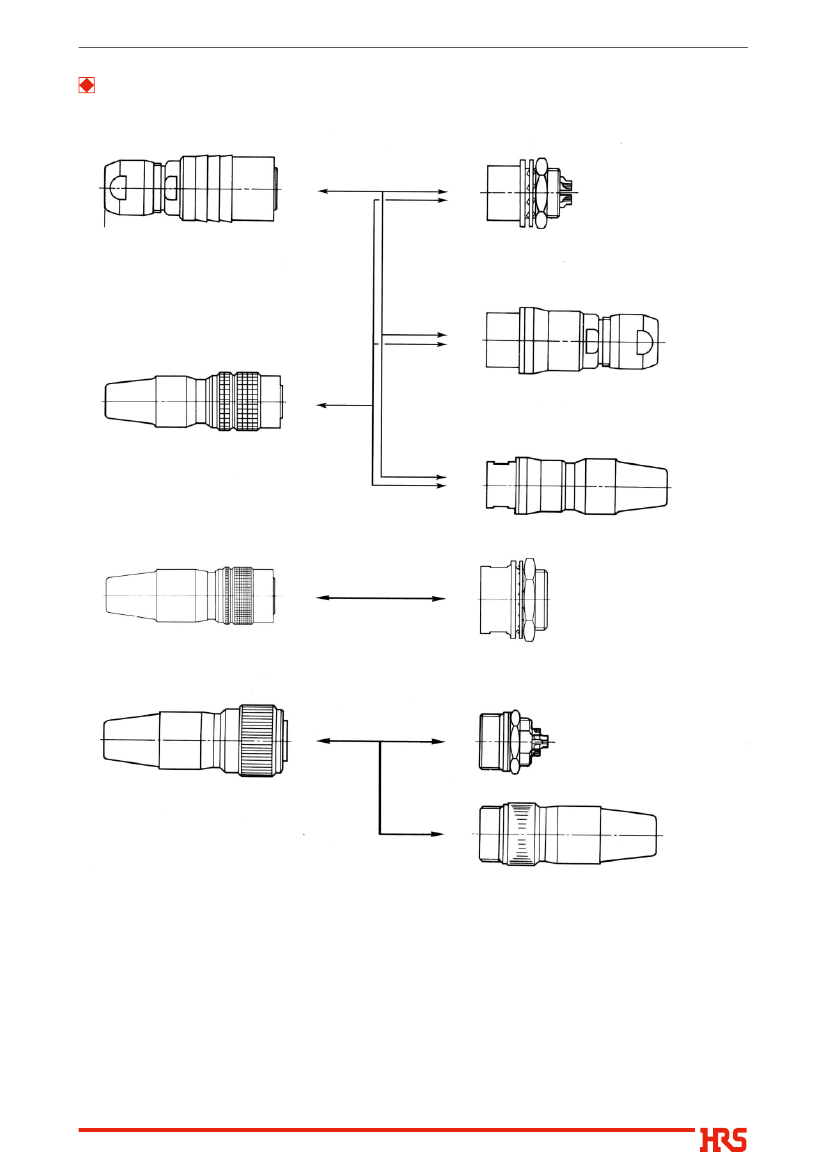

Diagrams of Connectors in Combination
Male Pin side
Female Pin side
(HR10 • HR10A
HR10G Type Receptacle)
(HR10 Type Plug)
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
(HR10 Type Jack)
(HR10A Type Plug)
(HR10A Type Jack)
(HR10B Type Receptacle)
(HR10B Type Plug)
(HR10A-[ ]T Type Receptacle)
(HR10A-[ ]T Type Plug)
(HR10A-[ ]T Type Jack)
Notes
1 : When using a plug with male terminal, be sure to use a receptacle or jack fitted with female terminal.
2 : Standard finish of the terminal is gold plating for the HR10, and silver plating for the HR10A and HR10G.
Be sure to use male and female connectors of the same plating.
3
HR10 Series●High performance miniature circular connectors
HR10 type
HR10 type connectors, use a gold plated contact as the standard plating specification. Silver plating is used on the contacts
for other series such as HR10A and HR10G. To avoid mixing gold and silver contacts, please be sure to confirm the plating
specification when using HR10 type connectors with HR10A or HR10G connectors.

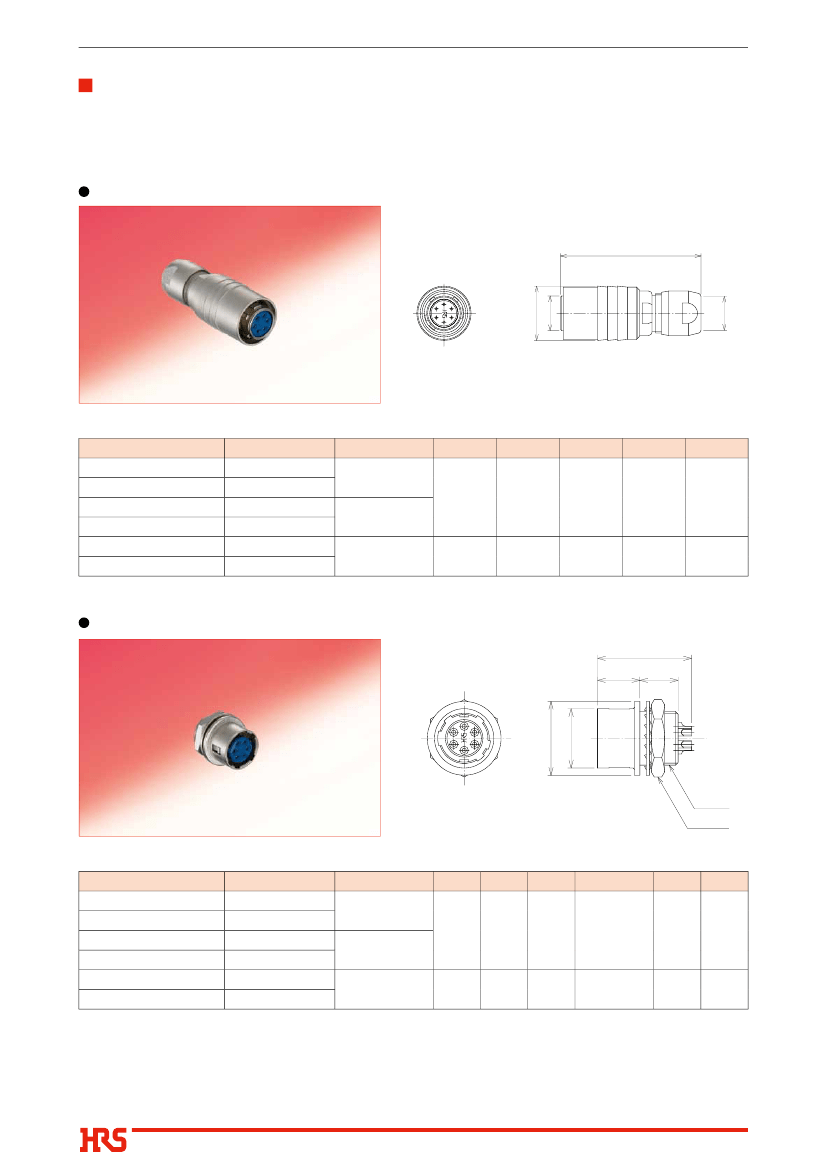

Plug
A Max
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR10-7P-6S(73)
(Representative example)
Unit : mm
Part No.
HR10-7P-4P(73)
HR10-7P-4S(73)
HR10-7P-6P(73)
HR10-7P-6S(73)
HR10-10P-12P(73)
HR10-10P-12S(73)
HRS No.
110-0021-6 73
110-0022-9 73
110-0023-1 73
110-0024-4 73
110-0025-7 73
110-0026-0 73
No. of Contacts
4
A
ØB
ØB
ØC
ØC
ØD
Weight
28.5
6
12
32.5
11
7
5.2
8g
14
9.5
7.2
15g
Receptacle
A
6.3
5.7
ØC
ØB
D
HR10-7R-6S(73)
(Representative example)
E(HEX)
Unit : mm
Part No.
HR10-7R-4S(73)
HR10-7R-4P(73)
HR10-7R-6S(73)
HR10-7R-6P(73)
HR10-10R-12S(73)
HR10-10R-12P(73)
HRS No.
110-0031-0 73
110-0032-2 73
110-0033-5 73
110-0034-8 73
110-0035-0 73
110-0036-3 73
No. of Contacts
4
14
6
12
16
14
11.9
M11×0.75
13
6g
11
8.85
M8×0.5
10
3.5g
A
ØB
ØC
D
E
Weight
Remarks : For mounting holes, see page 20.
4
ØD
HR10 Series●High performance miniature circular connectors

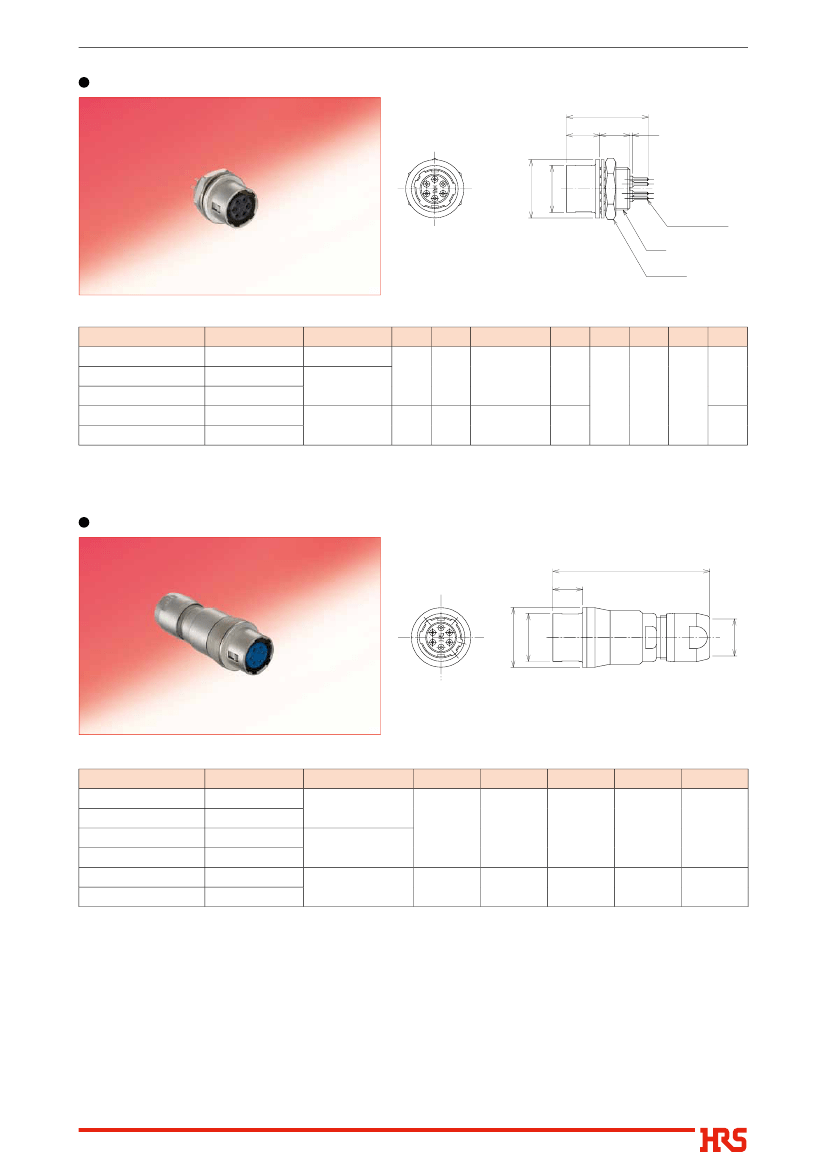

Receptacle (PCB dip type)
G
E
5.7
F
ØA
ØB
Dip post dia.
Ø0.55
C
D(HEX)
May.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
HR10-7R-6SA(73)
(Representative example)
Unit : mm
Part No.
HR10-7R-4SA(73)
HR10-7R-6SA(73)
HR10-7R-6PA(73)
HR10-10R-12SA(73)
HR10-10R-12PA(73)
HRS No.
110-0059-9 73
110-0050-4 73
110-0061-0 73
110-0049-5 73
110-0055-8 73
No. of Contacts
4
6
12
ØA
11
ØB
8.85
C
M8×0.5
D
10
E
F
G
Weight
3g
6.3
14
11.9
M11×0.75
13
0.5
15.5
5g
Remarks : 1. For mounting holes, see page 20.
2. For dip post arrangement, see page 16.
Jack
A Max
5.5
HR10-7J-6S(73)
(Representative example)
Unit : mm
Part No.
HR10-7J-4S(73)
HR10-7J-4P(73)
HR10-7J-6S(73)
HR10-7J-6P(73)
HR10-10J-12S(73)
HR10-10J-12P(73)
HRS No.
110-0027-2 73
110-0028-5 73
110-0029-8 73
110-0030-7 73
110-0037-6 73
110-0038-9 73
No. of Contacts
4
28.5
6
12
32.5
14
11.9
7.2
14g
11
8.85
5.2
7g
A
ØB
ØC
ØD
Weight
ØC
ØB
ØD
5
