42375-1106

Description
Headers & Wire Housings KK 100 Hdr Assy Bkw 03 Ckt 15 SGold
CategoryThe connector    The connector
File Size38KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

42375-1106 Online Shopping

Suppliers Part Number Price MOQ In stock
42375-1106 - - View Buy Now

42375-1106 Overview

Headers & Wire Housings KK 100 Hdr Assy Bkw 03 Ckt 15 SGold

42375-1106 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time11 weeks
Other featuresROHS COMPLIANT
body width0.098 inch
subject depth0.09 inch
body length0.3 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Durability100 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force1.946 N
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
MIL complianceNO
Manufacturer's serial number42375
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature75 °C
Minimum operating temperature
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Plating thickness15u inch
Rated current (signal)4 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.125 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts2
UL Flammability Code94V-0
Evacuation force-minimum value.556 N

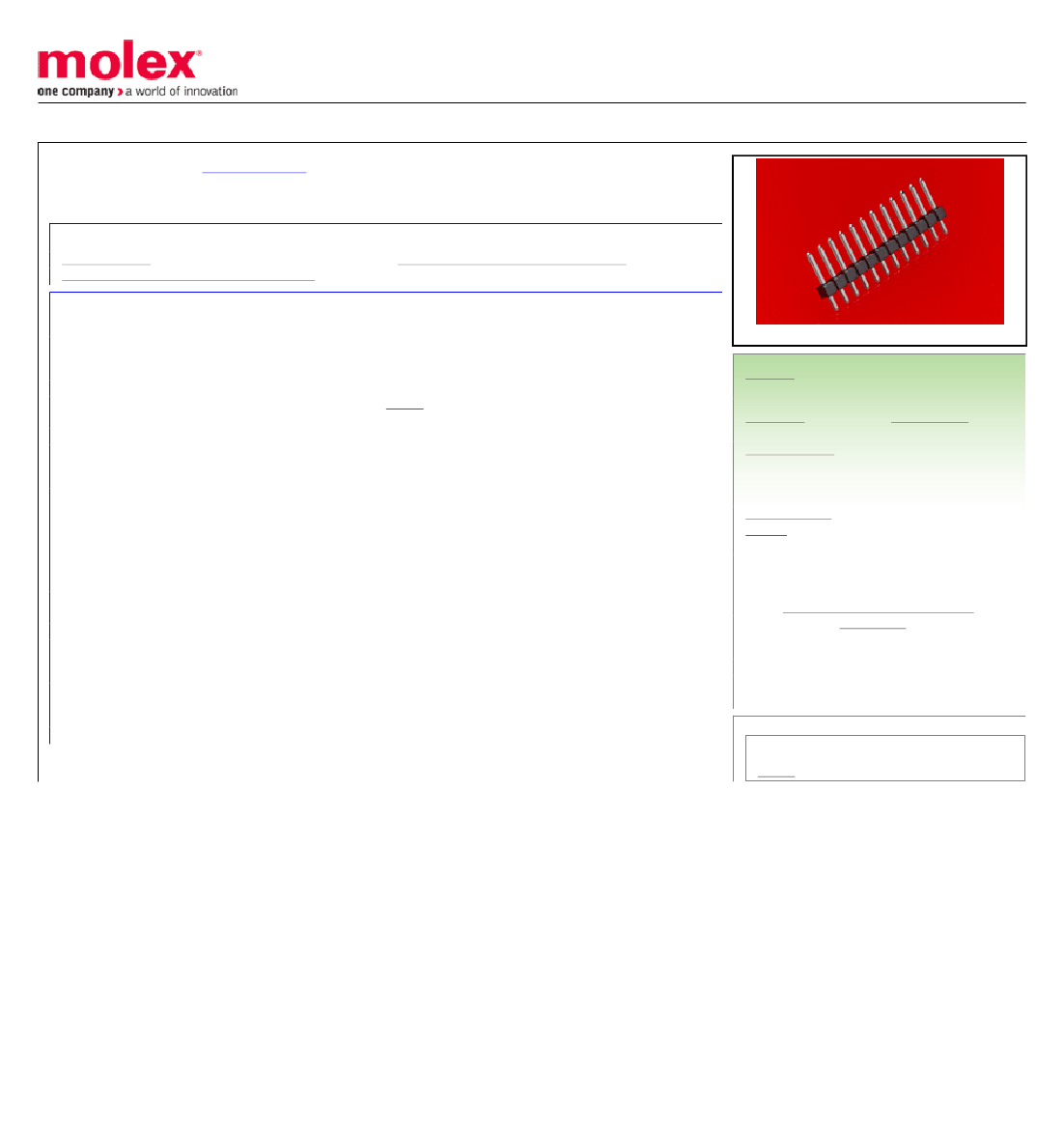

This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
0423751106
Active
KK 100 Hdr Assy Bkwy 03 Ckt 15 SGold
Documents:
Drawing (PDF)
Product Specification PS-10-07-001 (PDF)
Agency Certification
CSA
UL
General
Product Family
Series
Application Tooling Part Link
Product Name
UPC
Physical
Flammability
Net Weight
Electrical
Voltage - Maximum
Solder Process Data
Duration at Max. Process Temperature (seconds)
Lead-freeProcess Capability
Max. Cycles at Max. Process Temperature
Process Temperature max. C
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
RoHS Certificate of Compliance (PDF)
LR19980
E29179
PCB Headers
42375
11-20-1230
KK 254
800756166933
94V-0
0.183/g
500V
005
WAVE
001
235
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
PS-10-07-001
SD-42375-001
Search Parts in this Series
42375 Series
This document was generated on 02/27/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
