39-00-0039 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 39-00-0039

39-00-0039: DescriptionHeaders & Wire Housings SOCKET 24-18AWG BULK; CategoryThe connector Connector bracket; File Size78KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

39-00-0039 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	39-00-0039	-	-	View	Buy Now

39-00-0039 Overview

Headers & Wire Housings SOCKET 24-18AWG BULK

39-00-0039 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	4 weeks
Other features	CONTACT FINISH: TIN OVER COPPER (20)
Assembly name	CONTACT
Maximum number of cable entries	0.122 inch
Minimum cable entry	0.051 inch
Connector bracket type	CONNECTOR ACCESSORY
Contactor design	LOOSE
Contact point gender	FEMALE
Contact style	SQ PIN-SKT
DIN compliance	NO
Finished thickness	35
IEC compliance	NO
MIL compliance	NO
Material	BRASS
Installation method	STRAIGHT
Terminal length	0.169 inch
Terminal type	CRIMP
used for	5557, 30067, 44516 OR 42474
Maximum wire diameter	18 AWG
Minimum wire diameter	24 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

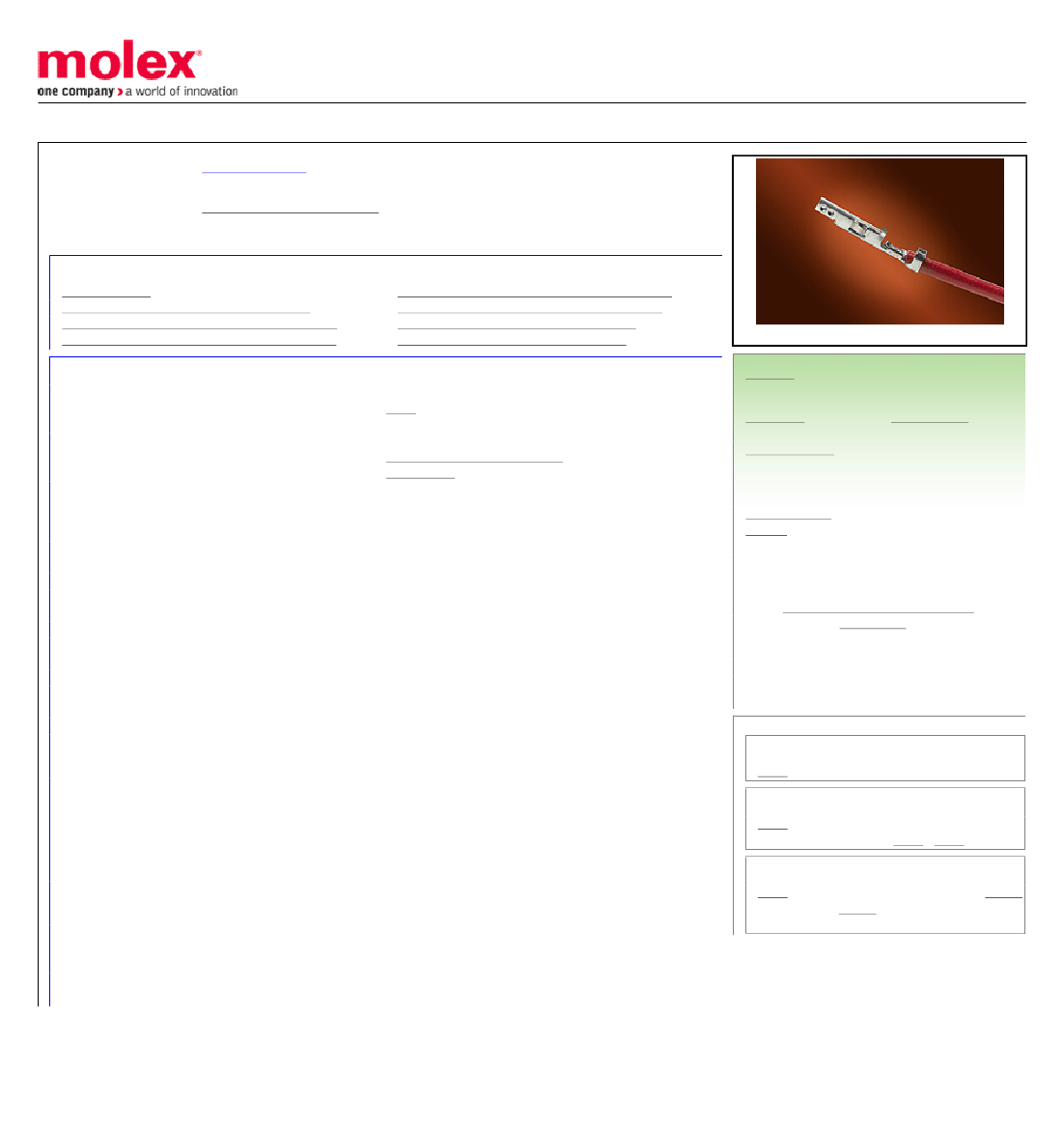

This document was generated on 02/14/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0039000039

Active

Mini-Fit Jr. Power Connectors

Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 18-24 AWG,

Bag

Documents:

Drawing (PDF)

Product Specification PS-5556-001 (PDF)

Product Specification PS-5556-002-001 (PDF)

Product Specification TS-5556-002-001 (PDF)

General

Product Family

Series

Application

Crimp Quality Equipment

Overview

Packaging Alternative

Product Name

UPC

Physical

Durability (mating cycles max)

Gender

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Packaging Type

Plating min - Mating

Plating min - Termination

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire Size mm²

Electrical

Current - Maximum per Contact

Voltage - Maximum

Solder Process Data

Lead-freeProcess Capability

Material Info

Engineering Number

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Test Summary

Product Specification TS-5556-005-001 (PDF)

Packaging Specification PK-5556-003 (PDF)

Test Summary 55560000-TS-000 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Crimp Terminals

5556

Power

Yes

Mini-Fit Jr. Power Connectors

39-00-0038 (Reel)

Mini-Fit

800753585027

Female

Brass

Tin

0.130/g

Bag

0.889µm

Crimp or Compression

1.30-3.10mm

18, 20, 22, 24

N/A

9.0A

600V

N/A

5556TL

PK-5556-003

PS-5556-001, PS-5556-002-001, TS-5556-002-001,

TS-5556-005-001

SD-5556****

55560000-TS-000

Search Parts in this Series

5556 Series

Mates With

5558 Mini-Fit Crimp Male Terminals. Mini-Fit

Jr. Header, Dual Row, 5566 , 5569

Use With

5557 Mini-Fit Jr. Receptacle Housing, 30067

Mini-Fit TPA, 42474 Mini-Fit BMI Panel

Mount

This document was generated on 02/14/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
