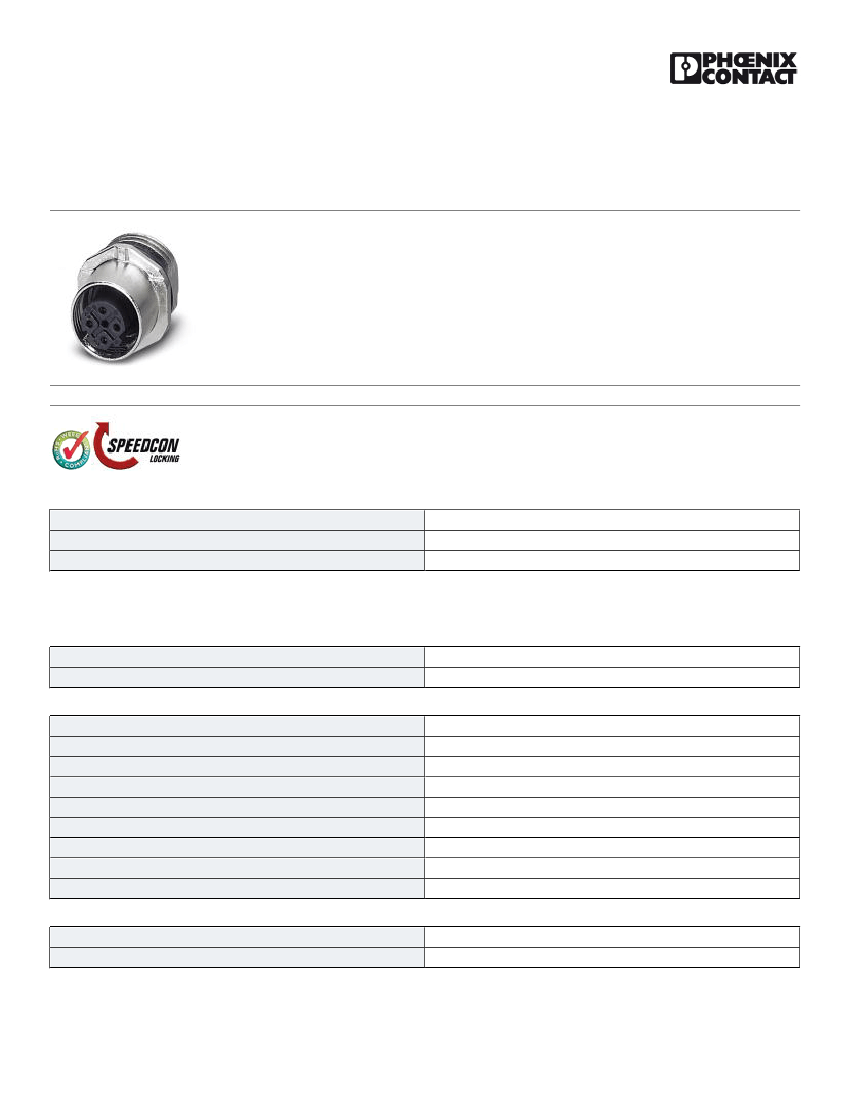

Bus system flat-type plug - SACC-E-FSD-4CON-M16 SCO SOL - 1435904
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Bus system flush-type socket, PROFINET, 4-pos., M12 SPEEDCON, D-coded, rear/screw mounting with M16
thread, with solder cups
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85366990
Germany
Technical data
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
Number of positions
Insulation resistance
Coding
Status display
Overvoltage category
Degree of pollution
Connection method
4A
250 V
4
≥ 100 MΩ
D - data
No
II
3
Solder cup
Material
Flammability rating according to UL 94
Contact material
V0
CuZn
04/14/2016 Page 1 / 3
https://www.phoenixcontact.com/us/products/1435904
Bus system flat-type plug - SACC-E-FSD-4CON-M16 SCO SOL - 1435904
Technical data
Material
Contact surface material
Contact carrier material
Material, knurls
Sealing material
Au
PA66 GF
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27250313
27250313
27143423
27143423
27143423
27449001
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001855
EC002061
EC002061
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31251501
31251501
31251501
31251501
31251501
Drawings
04/14/2016 Page 2 / 3
https://www.phoenixcontact.com/us/products/1435904
Bus system flat-type plug - SACC-E-FSD-4CON-M16 SCO SOL - 1435904
Dimensional drawing
45
°
Dimensional drawing
max.4,5
M16x1,5
Ø17
+0,2
Housing cutout for M16 fastening thread, mounting panel with thread
13,5
+0,1
1x45°
Housing cutout for M16 fastening thread, mounting panel with feed-through
hole (alternatively with surface as protection against rotation)
Schematic diagram
Dimensional drawing
20
11,5
2
Pin assignment M12 socket, 4-pos., D-coded,
female side
min.2,5
M12 flush-type connector
