85513-5013 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 85513-5013

85513-5013: DescriptionModular Connectors / Ethernet Connectors 8/8 VERT LOW PRO; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

85513-5013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	85513-5013	-	-	View	Buy Now

85513-5013 Overview

Modular Connectors / Ethernet Connectors 8/8 VERT LOW PRO

85513-5013 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Factory Lead Time	20 weeks
Samacsys Description	Modular Jack RJ45 8/8 Cat3 SMT Vertical Molex 85513, Cat3 RJ45 Modular Jack Socket, Unshielded, Straight, Surface Mount
Other features	ROHS AND ELV COMPLIANT
body width	0.594 inch
subject depth	0.5 inch
body length	0.63 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL OVER COPPER
Shell material	GLASS FILLED LIQUID CRYSTAL POLYMER
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	8
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

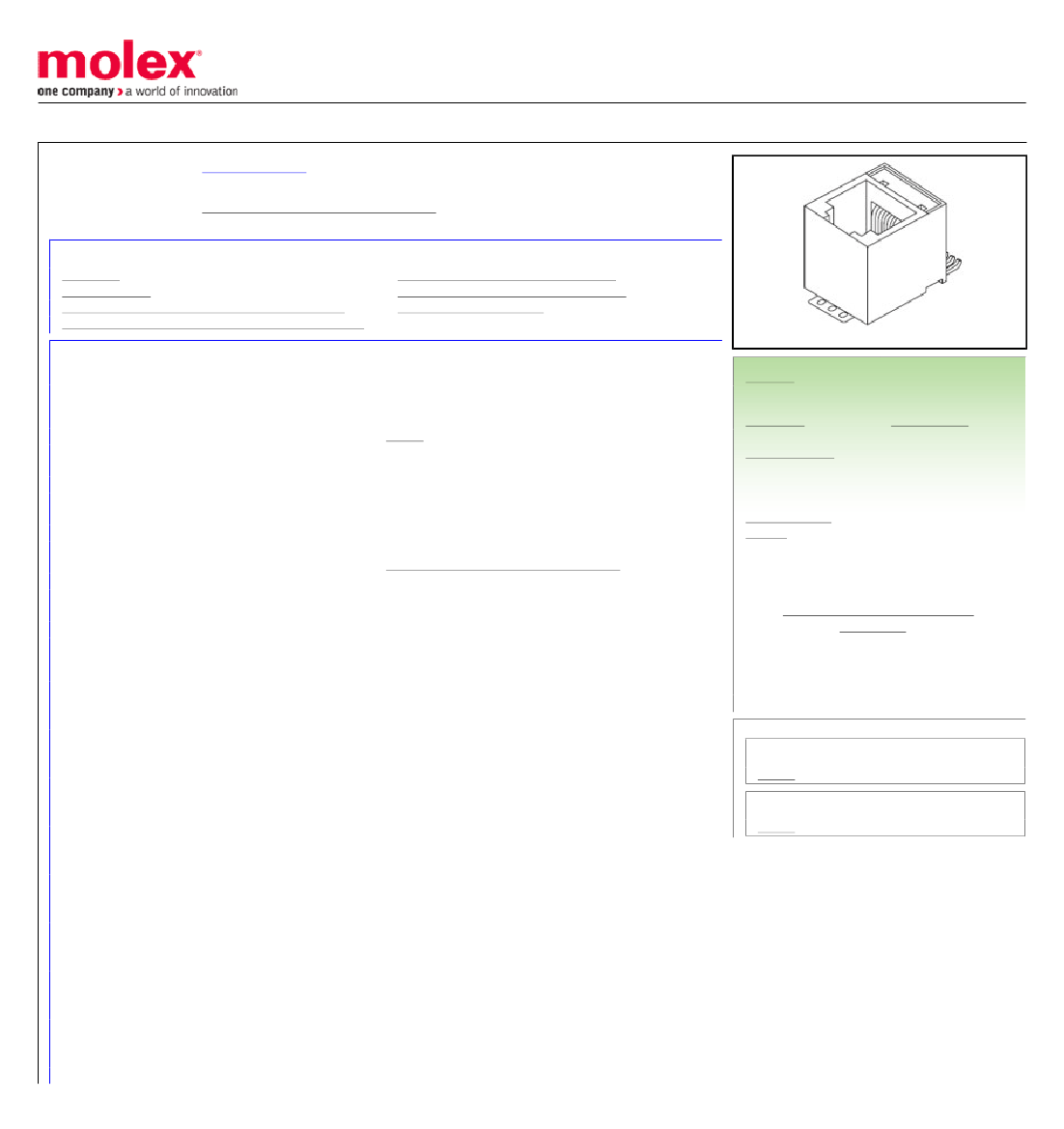

This document was generated on 02/27/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0855135013

Active

Magnetic and Modular Jacks and Plugs

Modular Jack, Vertical, Top Entry, Surface Mount, 8/8, Low Profile, 13" Reel

Documents:

3D Model

Drawing (PDF)

Product Specification PS-85513-002-001 (PDF)

Application Specification AS-85513-001-001 (PDF)

Agency Certification

General

Product Family

Series

Comments

Component Type

Data Load Status

Doc Info - Component

Made From

Magnetic

Overview

Performance Category

Power over Ethernet (PoE)

Product Literature Order No

Product Name

UPC

Physical

Boot Color

Color - Resin

Durability (mating cycles max)

Flammability

Inverted / Top Latch

Jack Height

Lightpipes/LEDs

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Ports

Positions / Loaded Contacts

Surface Mount Compatible (SMC)

Temperature Range - Operating

Temperature Range NonOperating

Test Summary STR-1425-001 (PDF)

RoHS Certificate of Compliance (PDF)

Product Literature (PDF)

Series image - Reference only

E107635

Modular Jacks/Plugs

85513

Reflow Capable, Small Panel Cutout

PCB Jack

Collected FY08-Verified FY08

E-85513-010_B, PK-85513-001_E, PS-85513-002_A,

SD-85513-010_B

0855135005, 0855470001, 0955072288

Magnetic and Modular Jacks and Plugs

N/A

987650-8441

Modular Jack 8/8, RJ45

822350834544

N/A

Black

2500

94V-0

12.70mm

None

Copper Alloy

Gold over Palladium Nickel

Tin

High Temperature Thermoplastic

2.879/g

Vertical (Top Entry)

Yes

Embossed Tape on Reel

1.02mm

1.27mm

0.051µm, 1.016µm

1.905µm

8/8

Yes

-40°C to +85°C

-40°C to +80°C

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

85513 Series

Mates With

90075 Modular Plug
