Optional Self-Locking • Optional Ground Lug
CONNECTOR DESIGNATOR:
Finish
AS85049/63
90° Qwik-Ty Strain Relief
B
AS85049
F
MIL-DTL-38999 Series I and II
Configuration
N
= Non-Detented
G
= Self-Locking with Ground Lug
H
= Non-Detented with Ground Lug
S
= Self-Locking without Ground Lug
––
= Non Self-Locking
A
= Anodize, Black
N
= Electroless Nickel
W
= 1,000 Hour Cadmium Olive Drab
over Electroless Nickel
X
= Nickel Fluorocarbon Polymer
Y
= Pure Dense Electrodeposited Aluminum
Z
= Zinc-Nickel, Black
Basic Part Number
M85049/63
= 90°
M85049/63
G
16
Shell
Size
W
OPTIONAL
SELF-LOCKING
COUPLING

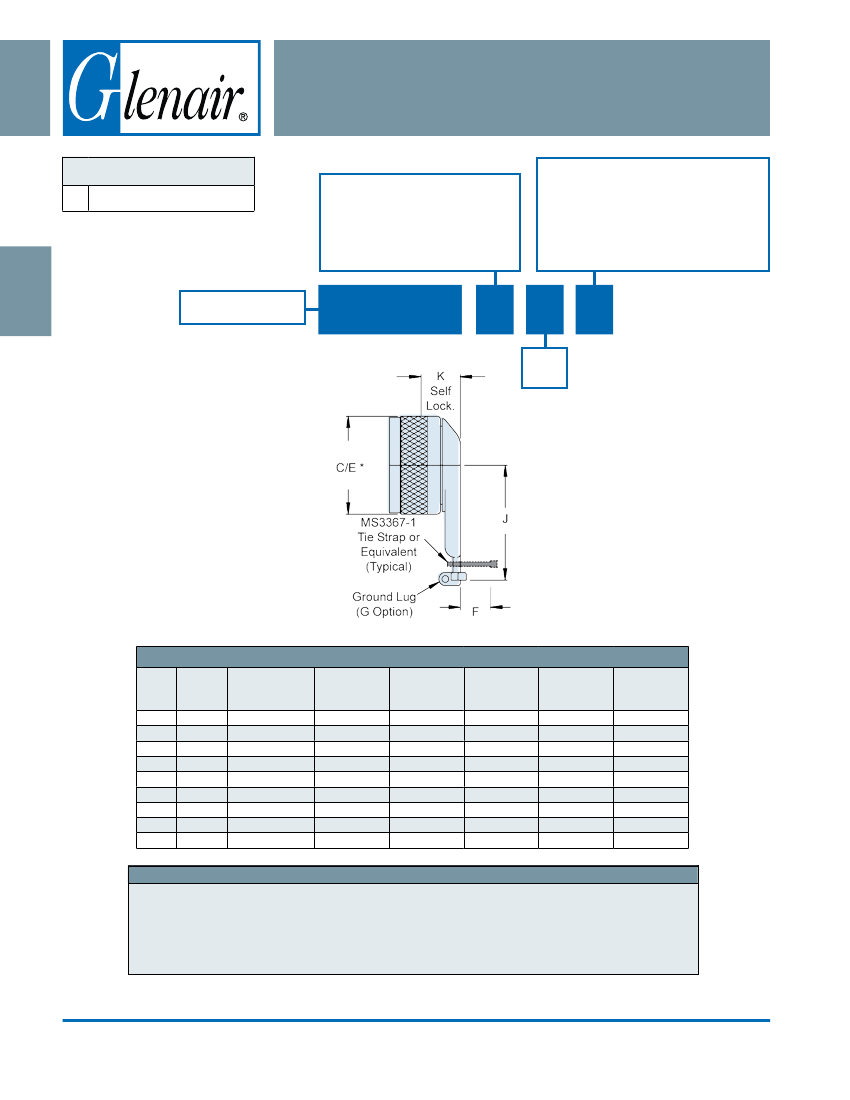

TABLE I: Shell Size, Thread, Cable Entry and Backshell Dimensions
Shell
Series I
Size
Shell Size
Series II
Ref.
8
10
12
14
16
18
20
22
24
9
11
13
15
17
19
21
23
25
A Thread
Class 2B
.438-28 UNEF
.562-24 UNEF
.688-24 UNEF
.813-20 UNEF
.938-20 UNEF
1.063-18 UNEF
1.188-18 UNEF
1.313-18 UNEF
1.438-18 UNEF
C Dia
Max
.750
.850
1.000
1.100
1.250
1.400
1.500
1.650
1.750
(19.1)
(21.6)
(25.4)
(27.9)
(31.8)
(35.6)
(38.1)
(41.9)
(44.5)
E Dia
Max
.860
.980
1.160
1.280
1.410
1.520
1.640
1.770
1.890
F
Cable Entry
J
Max
1.220
1.290
1.620
1.660
1.720
1.720
1.790
1.850
1.910
(31.0)
(32.8)
(41.1)
(42.2)
(43.7)
(43.7)
(45.5)
(47.0)
(48.5)
K
Self-Locking
.630
.630
.630
.700
.700
.730
.730
.730
.730
(16.0)
(16.0)
(16.0)
(17.8)
(17.8)
(18.5)
(18.5)
(18.5)
(18.5)
(21.8) .264 (6.7)
(24.9) .392 (10.0)
(29.5) .506 (12.9)
(32.5) .631 (16.0)
(35.8) .756 (19.2)
(38.6) .845 (21.5)
(41.7) .970 (24.6)
(45.0) 1.095 (27.8)
(48.0) 1.220 (31.0)
APPLICATION NOTES
1.
2.
3.
4.
Assembly identified with manufacturer’s name and part number, space permitting.
For complete dimensions, see the applicable Military Specification.
Cable entry is defined as the accomodation range for the wire bundle or cable. Dimensions shown are not
intended for inspection criteria.
Metric dimensions (mm) are in parentheses.
Dimensions in inches (millimeters) and are subject to change without notice.
U.S. CAGE Code 06324
© 2013 Glenair, Inc.
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
