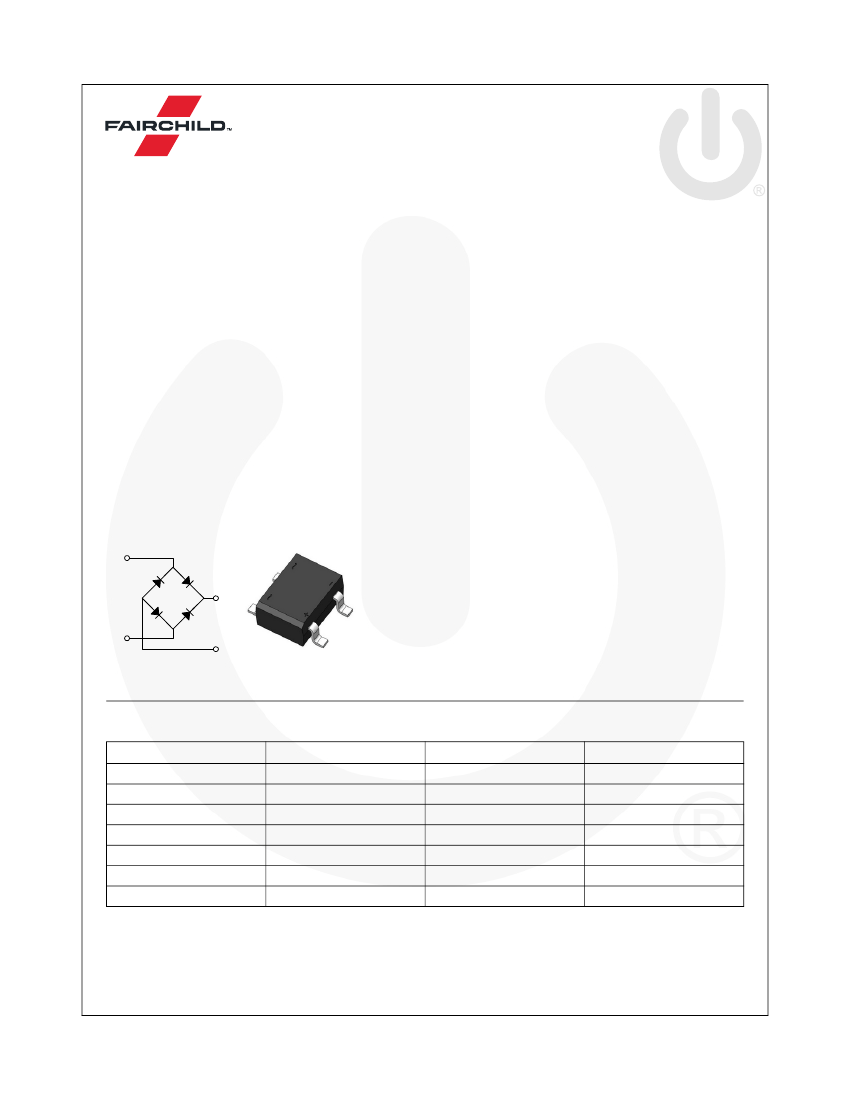

DF005S - DF10S — Bridge Rectifiers
May 2015
DF005S - DF10S
Bridge Rectifiers
Features
• Maximum Surge Rating: I
FSM
= 50 A
I
2
t = 10 A
2
Sec
• Optimized V
F
: Typical 0.94 V at 1.5 A, 25°C
• Glass Passivated Junctions
• Lead Free Compliant to EU RoHS 2002/95/EU Directives
• Green Molding Compound: IEC61249
• Qualified with IR Reflow and Wave Soldering
• UL Certified, UL #E258596
Description
With the ever-pressing need to improve power supply
efficiency, improve surge rating, improve reliability, and
reduce size, the DFxS family sets a standard in perfor-
mance.
The design offers an surge rating of 50 A. This is impor-
tant when improving reliability and increasing efficiency.
High efficiency designs strive to reduce circuit resis-
tance, which, unfortunately can result in increased
inrush surge. As such high surge current ratings can be
required to maintain or improve reliability.
The design also offers better efficiency by achieving a
1.5 A V
F
of 1.1 V maximum at 25°C. This lower V
F
also
supports cooler and more efficient operation.
~
IN
+
OUT
Finally, the DFxS achieves all this in a SDIP surface
mount form factor, reducing board space and volumetric
