DS1007S-2+T&R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DS1007S-2+T&R

DS1007S-2+T&R: DescriptionDelay Lines / Timing Elements; Categorylogic logic; File Size55KB，6 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric View All

DS1007S-2+T&R Overview

Delay Lines / Timing Elements

DS1007S-2+T&R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	compliant
series	1007
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	10.285 mm
Logic integrated circuit type	SILICON DELAY LINE
Humidity sensitivity level	1
Number of functions	7
Number of taps/steps	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	2.67 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	16 ns
width	7.495 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DS1007

7-1 Silicon Delay Line

www.dalsemi.com

FEATURES

PIN ASSIGNMENT

All-silicon time delay

IN1

IN3

7 independent buffered delays

OUT1

OUT3

Delay tolerance ±2 ns

Four delays can be custom set between 3 ns

IN4

IN2

IN3

IN1

and 10 ns

OUT2

OUT4

OUT3

OUT1

Three delays can be custom set between 9 ns

IN4

IN2

GND

and 40 ns

OUT4

OUT2

OUT7

IN5

GND

Delays are stable and precise

OUT7

IN5

OUT5

Economical

IN7

OUT5

Auto-insertable, low profile

IN6

OUT6

IN6

OUT6

Surface mount 16-pin SOIC

DS1007 16-Pin DIP (300-mil)

DS1007S 16-Pin SOIC

Low-power CMOS

See Mech. Drawings Section

(300-mil)

TTL/CMOS-compatible

See Mech. Drawings Section

Vapor phase, IR and wave solderable

Custom specifications available

PIN DESCRIPTION

Quick turn prototypes

IN1 - IN7

- Inputs

Out1 – Out7 - Outputs

GND

- Ground

- +5 Volts

DESCRIPTION

The DS1007 7-in-1 Silicon Delay Line provides seven independent delay times which are set by Dallas

Semiconductor to the customer’s specification. The delay times can be set from 3 ns to 40 ns with an

accuracy of

±2

ns at room temperature. The device is offered in both a 16-pin DIP and a 16-pin SOIC.

Since the DS1007 is an all-silicon solution, better economy and reliability are achieved when compared to

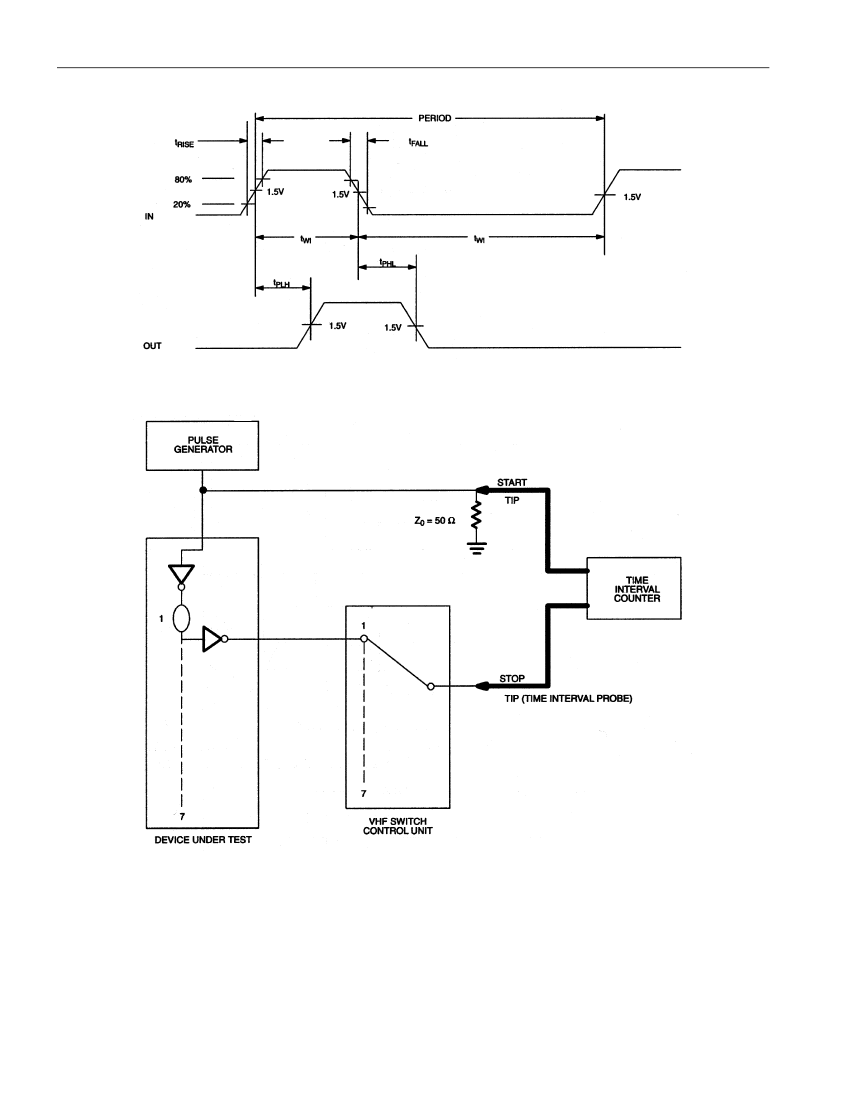

older methods using hybrid technology. The DS1007 reproduces the input logic state at the output after

the fixed delay. Dallas Semiconductor can customize standard products to meet special needs. For special

requests and rapid delivery, call (972) 371–4348.

1 of 6

111799
