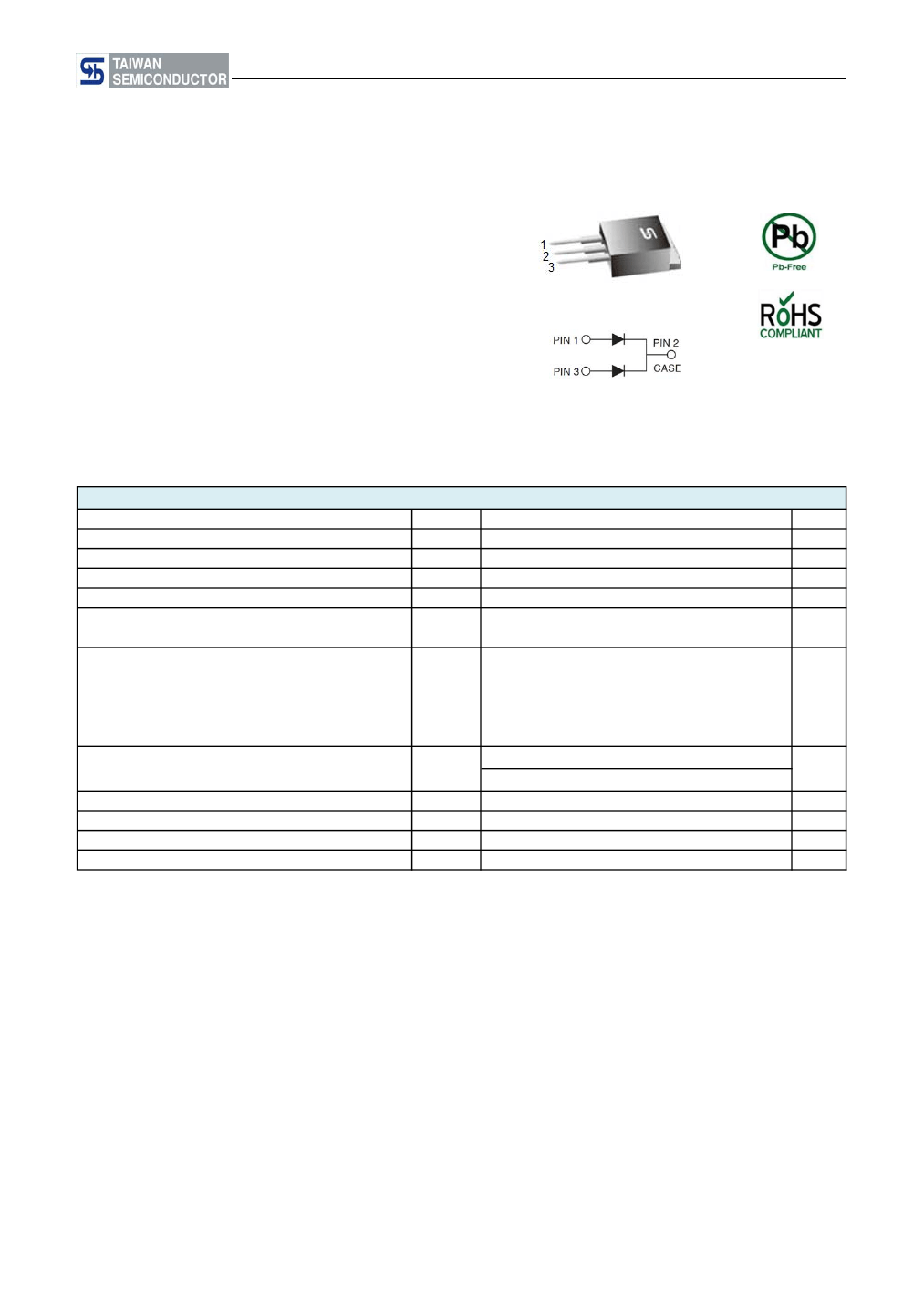

MBRI30100CT
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Dual Common Cathode Schottky Rectifier
I
2
PAK
MECHANICAL DATA
Case:
I
2
PAK
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
As marked
Weight:
1.4 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 2)
I
F
= 15 A, T
J
=25℃
I
F
= 15 A, T
J
=125℃
I
F
= 30 A, T
J
=25℃
I
F
= 30 A, T
J
=125℃
Maximum reverse current @ rated VR
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
MBRI30100CT
100
70
100
30
200
UNIT
V
V
V
A
A
V
F
0.84
0.70
0.94
0.82
0.2
7.5
10000
1.5
- 55 to +150
- 55 to +150
V
I
R
dV/dt
R
θJC
T
J
T
STG
mA
V/μs
O
C/W
O
O
C
C
Document Number: DS_D1310021
Version: E13
MBRI30100CT
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
MBRI30100CT
PACKING CODE
C0
GREEN COMPOUND
CODE
Suffix "G"
PACKAGE
I
2
PAK
PACKING
50 / Tube
EXAMPLE
PREFERRED P/N
MBRI30100CT C0
MBRI30100CT C0G
PART NO.
MBRI30100CT
MBRI30100CT
PACKING CODE
C0
C0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

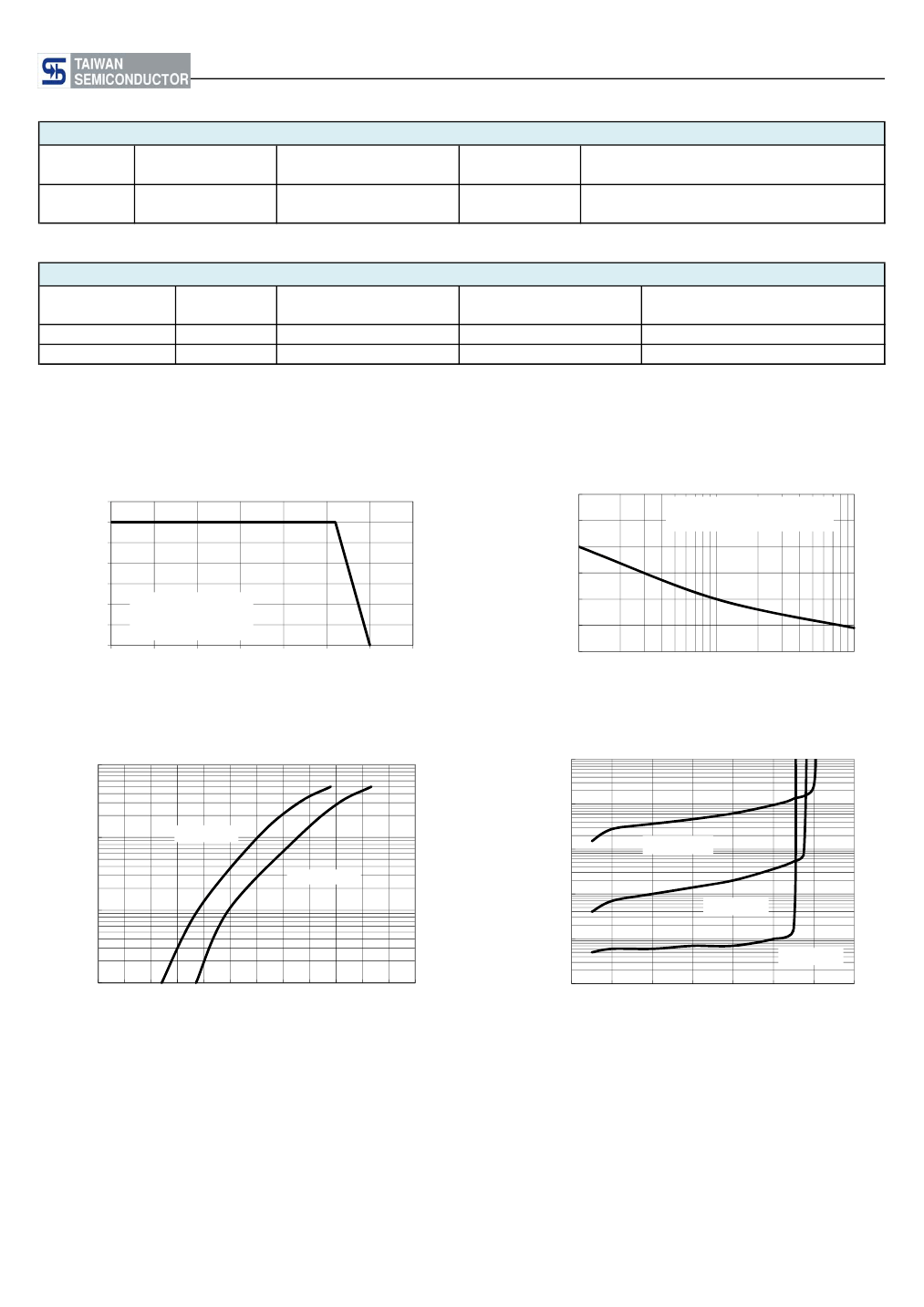

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
PEAK FORWARD SURGE CURRENT(A)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
AVERAGE FORWARD CURRENT (A)
FIG. 2 MAXIMUM NON-REPETITIVE
FORWARD SURGE CURRENT PER LEG
35
30
25
20
15
10
5
0
0
25
50
75
100
125
150
175
CASE TEMPERATURE (℃)
RESISTIVE OR
INDUCTIVE LOAD
WITH HEATSINK
300
250
200
150
100
50
0
1
8.3ms Single Half Sine Wave
JEDEC Method
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
PER LEG
10
1
10
TJ=125℃
0.1
TJ=125℃
TJ=25℃
0.01
TJ=75℃
1
0.001
TJ=25℃
0.1
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2
0.0001
0
20
40
60
80
100
120
140
PERCENT OF VR (%)
Document Number: DS_D1310021
Version: E13
MBRI30100CT
Taiwan Semiconductor

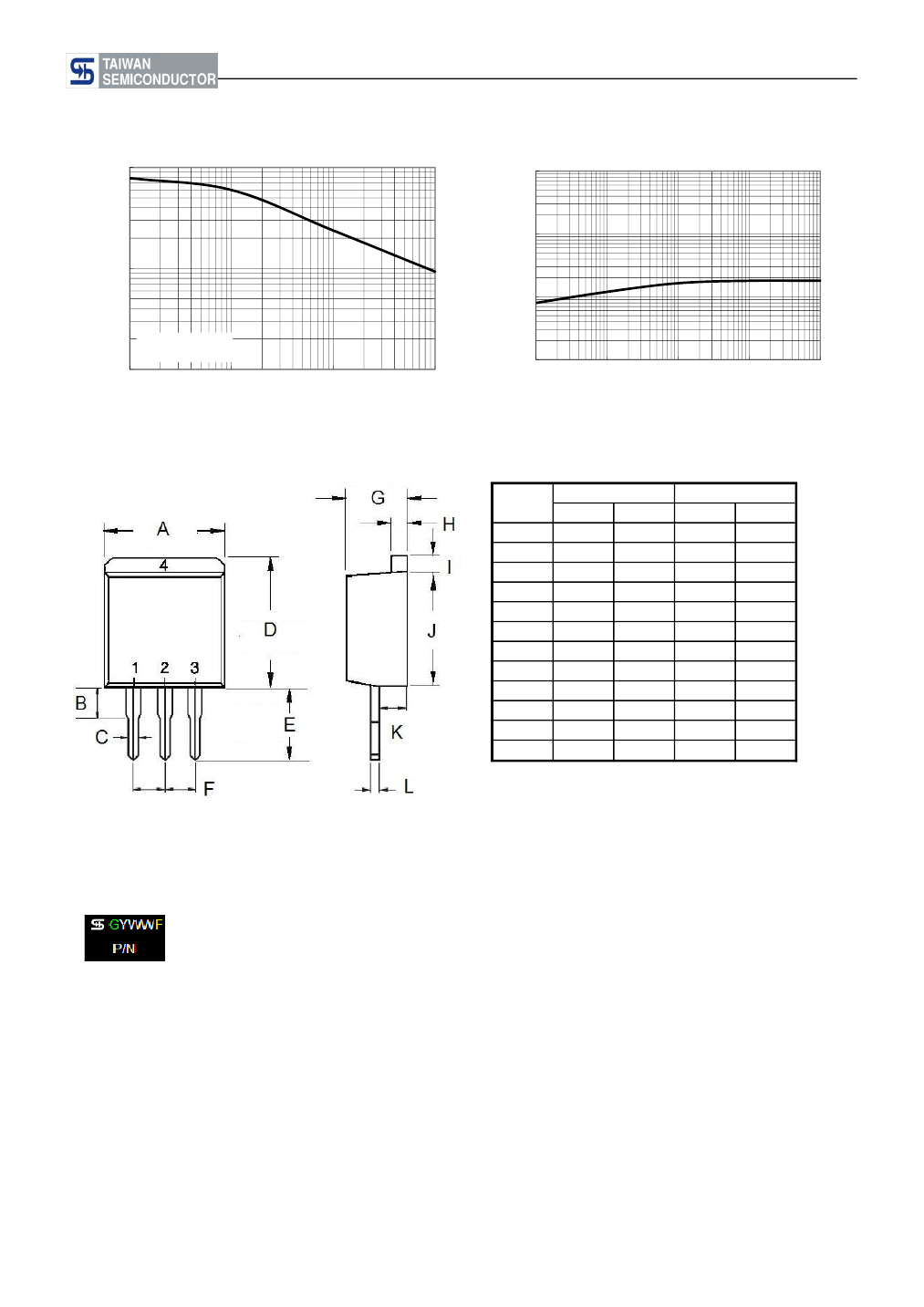

FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
TRANSIENT THERMAL IMPEDANCE(℃/ W)
1000
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
100
CAPACITANCE (pF)
10
100
1
f=1.0MHz
Vsig=50mVp-p
10
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
-
3.56
0.68
14.60
7.58
2.41
4.44
1.14
1.14
8.25
2.54
0.35
Max
10.50
4.06
0.94
15.88
8.12
2.67
4.70
1.40
1.40
9.25
2.79
0.64
Unit (inch)
Min
-
0.140
0.027
0.575
0.298
0.095
0.175
0.045
0.045
0.325
0.100
0.014
Max
0.413
0.160
0.037
0.625
0.320
0.105
0.185
0.055
0.055
0.364
0.110
0.025
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
Document Number: DS_D1310021
Version: E13
MBRI30100CT
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1310021
Version: E13
