TLE7251V
Hi gh Speed CAN-Transceiver with Bus Wake-up
1
Overview
Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fully compatible to ISO 11898-2/-5
Wide common mode range for electromagnetic immunity (EMI)
Very low electromagnetic emission (EME)
Excellent ESD robustness
Guaranteed loop delay symmetry to support CAN FD data frames
up to 2 MBit/s
V
IO
input for voltage adaption to the microcontroller supply
Extended supply range on
V
CC
and
V
IO
supply
CAN short circuit proof to ground, battery and
V
CC
TxD time-out function
Low CAN bus leakage current in power-down state
Overtemperature protection
Protected against automotive transients
Stand-by mode with remote wake-up function
Wake-up indication on the RxD output
Transmitter supply
V
CC
can be turned off in stand-by mode
Green Product (RoHS compliant)

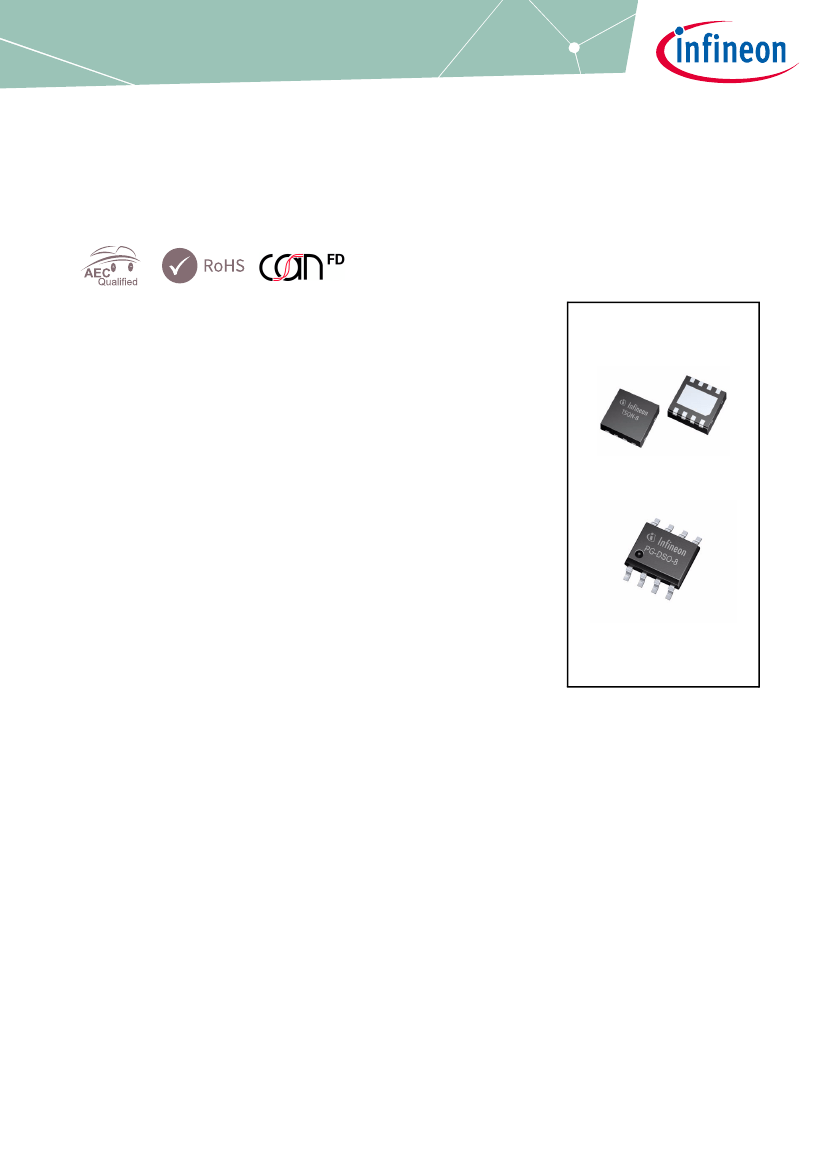

Two package variants: PG-TSON-8 and PG-DSO-8
Potential applications
•
•
•
Gateway modules
Body Control Modules (BCM)
Engine Control Unit (ECUs)
Product validation
Qualified for automotive applications. Product validation according to AEC-Q100/101.
Data Sheet
1
www.infineon.com/automotive-transceivers
Rev. 1.01
2018-09-06
TLE7251V
High Speed CAN-Transceiver with Bus Wake-up
Overview
Description
The TLE7251V is a transceiver designed for HS CAN networks in automotive and industrial applications. As an
interface between the physical bus layer and the CAN protocol controller, the TLE7251V drives the signals to
the bus and protects the microcontroller against interferences generated within the network. Based on the
high symmetry of the CANH and CANL signals, the TLE7251V provides a very low level of electromagnetic
emission (EME) within a wide frequency range.
The TLE7251V is available in a small, leadless PG-TSON-8 package and in a PG-DSO-8 package. Both packages
are RoHS compliant and halogen free. Additionally the PG-TSON-8 package supports the solder joint
requirements for automated optical inspection (AOI). The TLE7251VLE and the TLE7251VSJ are fulfilling or
exceeding the requirements of the ISO11898-2.
The TLE7251V provides a digital supply input
V
IO
and a stand-by mode. It is designed to fulfill the enhanced
physical layer requirements for CAN FD and supports data rates up to 2 MBit/s.
On the basis of a very low leakage current on the HS CAN bus interface the TLE7251V provides an excellent
passive behavior in power-down state. These and other features make the TLE7251V exceptionally suitable for
mixed supply HS CAN networks.
Based on the Infineon Smart Power Technology SPT, the TLE7251V provides excellent ESD immunity together
with a very high electromagnetic immunity (EMI). The TLE7251V and the Infineon SPT technology are
AEC qualified and tailored to withstand the harsh conditions of the automotive environment.
Two different operating modes, additional fail-safe features like a TxD time-out and the optimized output slew
rates on the CANH and CANL signals make the TLE7251V the ideal choice for large HS CAN networks with high
data transmission rates.
Type
TLE7251VLE
TLE7251VSJ
Package
PG-TSON-8
PG-DSO-8
Marking
7251V
7251V
Data Sheet
2
Rev. 1.01
2018-09-06
TLE7251V
High Speed CAN-Transceiver with Bus Wake-up
Table of contents
1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Potential applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product validation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Table of contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2
3
3.1
3.2
4
4.1
4.2
4.2.1
4.2.2
4.3
4.3.1
4.3.2
4.3.3
4.3.4
4.3.5
4.3.6
4.4
5
5.1
5.2
5.3
5.4
5.5
6
6.1
6.2
6.3
7
7.1
7.2
8
8.1
8.2
8.3
8.3.1
8.3.2
Data Sheet
Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Pin definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Functional description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
High speed CAN physical layer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Modes of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Normal-operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power-up and undervoltage condition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Power-down state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Forced stand-by mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Undervoltage on the digital supply
V
IO
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Undervoltage on the transmitter supply
V
CC
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Voltage adaption to the microcontroller supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remote wake-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Fail safe functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Short circuit protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unconnected logic pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TxD time-out function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overtemperature protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delay time for mode change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General product characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Thermal resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15
15
15
15
16
16
17
17
18
18
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Functional device characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Application information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESD robustness according to IEC61000-4-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Application example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Examples for mode changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode change to stand-by mode during a “dominant” bus signal . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mode changes from stand-by mode to normal-operating mode . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
26
26
27
28
29
30
Rev. 1.01
2018-09-06
