S-10: DescriptionTIME DELAY BLOW ELECTRIC FUSE, 10A, 125VAC, 10000A (IR), INLINE/HOLDER; CategoryCircuit protection; File Size168KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/

Download Datasheet Parametric View All

S-10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	S-10	-	-	View	Buy Now

S-10 Overview

TIME DELAY BLOW ELECTRIC FUSE, 10A, 125VAC, 10000A (IR), INLINE/HOLDER

S-10 Parametric

Parameter Name	Attribute value
Rated voltage (AC)	125 V
state	ACTIVE
Rated current	10 A
terminal coating	NOT SPECIFIED
Installation features	INLINE/HOLDER
Manufacturer Series	S
Electric fuse	ELECTRIC FUSE
Fusing characteristics	TIME DELAY
Rated breaking capacity	10000 V

Preview

Download Datasheet

View All

RF COILS <Pin Type: S-10 Series>

Type: S-10K, S-10KN

◆

Product Description

・10.8×10.8mm

Max.(L×W), 13.0mm Max. Height. (S-10K)

・10.3×10.3mm

Max.(L×W), 12.5mm Max. Height. (S-10KN)

・Inductance:30μH

Max.

・Operating

frequency: 300MHz Max.

・In

addition to the reference versions of parameters shown here,

custom designs are available to meet your exact requirements..

◆

Feature

・Variable

type.

・Both

shielded(S-10K) and unshielded(S-10KN) types are available.

・RoHS

Compliance

◆

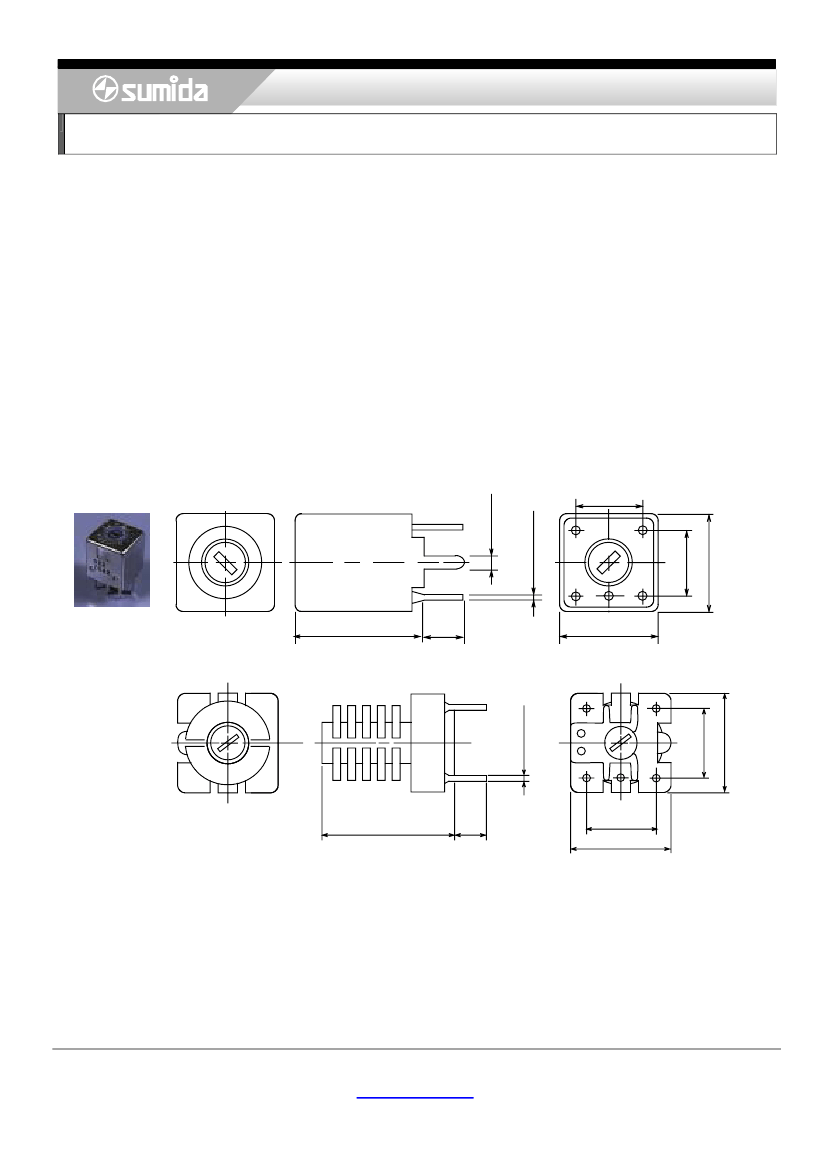

Dimensions (mm)

1.5 ±0.2

7.0±0.2

+0.1

φ0.7-0.05

S-10K

12.5±0.5

+1.0

-0.5

3.5

10.4±0.4

φ0.7±0.1

10.4 ±0.4

7.0 ±0.2

S-10KN

12.0±0.5

＋1.0

－0.5

4.0

7.0±0.2

10.0±0.3

＊

Dimension does not include solder used on coil.

＊

Pin pitch should be measured at the root of terminal.

＊

Dimensions without tolerance are approx.

Please refer to the sales offices on our website for a representative near you

www.sumida.com

10.0±0.3

7.0±0.2

1/2
