BYG22DHE3/TR3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYG22DHE3/TR3

BYG22DHE3/TR3: DescriptionRectifiers 2.0A 200 Volt 25ns; CategoryDiscrete semiconductor diode; File Size94KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BYG22DHE3/TR3 Overview

Rectifiers 2.0A 200 Volt 25ns

BYG22DHE3/TR3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE
application	ULTRA FAST SOFT RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	35 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse recovery time	0.025 µs
surface mount	YES
technology	AVALANCHE
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

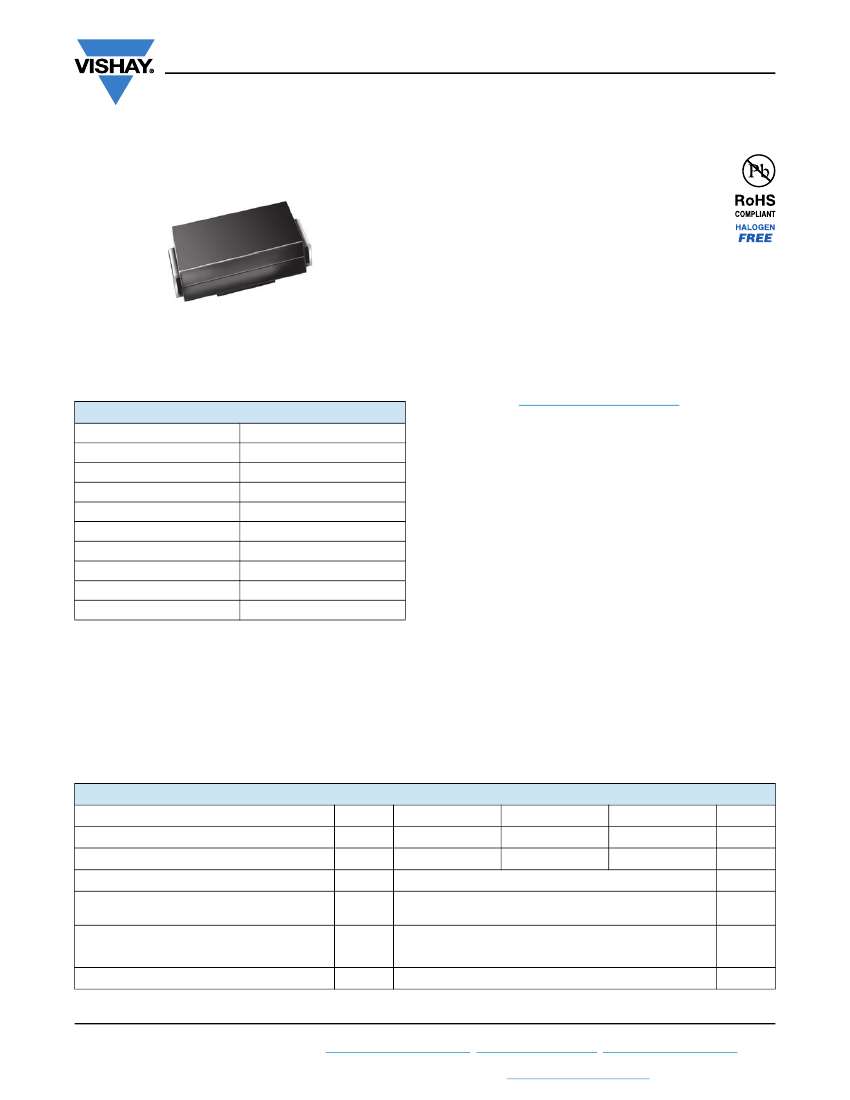

BYG22A, BYG22B, BYG22D

www.vishay.com

Vishay General Semiconductor

Ultrafast Avalanche SMD Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Glass passivated pellet chip junction

• Low reverse current

• Low forward voltage

• Soft recovery characteristic

• Ultra fast reverse recovery time

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

SMA

(DO-214AC)

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

max.

Package

Diode variations

2.0 A

50 V, 100 V, 200 V

35 A

1.0 μA

1.1 V

25 ns

20 mJ

150 °C

SMA (DO-214AC)

Single

TYPICAL APPLICATIONS

For use in high frequency rectification and freewheeling

application in switching mode converters and inverters for

consumer, computer, automotive, and telecommunication.

MECHANICAL DATA

Case:

SMA (DO-214AC)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, and

commercial grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified



(“_X” denotes revision code e.g. A, B,...)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meet JESD 201 class 2

whisker test

Polarity:

Color band denotes the cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Average forward current

Peak forward surge current 10 ms single half

sine-wave superimposed on rated load

Pulse energy in avalanche mode,

non repetitive (inductive load switch off)

(BR)R

= 1 A, T

= 25 °C

Operating junction and storage temperature range

RRM

F(AV)

FSM

, T

STG

SYMBOL

BYG22A

BYG22B

100

2.0

BYG22D

200

UNIT

-55 to +150

°C

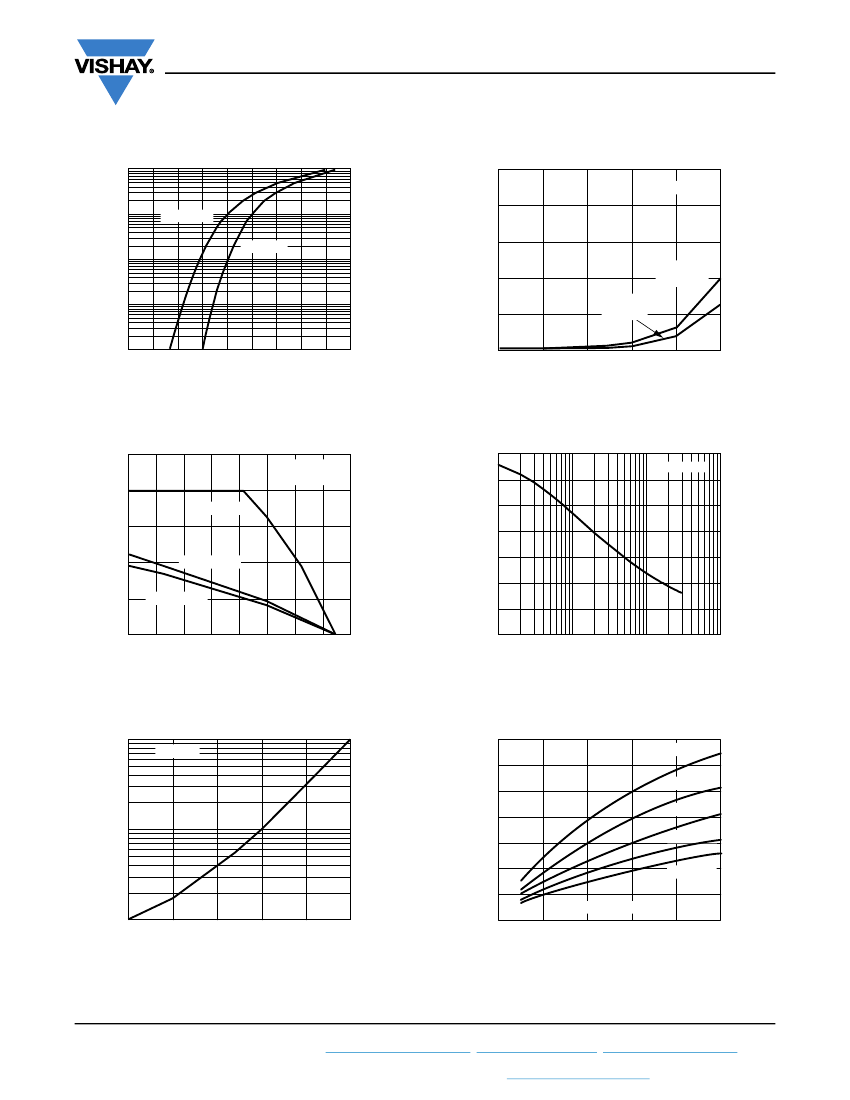

Revision: 17-Aug-17

Document Number: 88959

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

BYG22DHE3/TR3 Related Products

	BYG22DHE3/TR3	BYG22AHE3/TR3	BYG22D-M3/TR3	BYG22B-M3/TR3
Description	Rectifiers 2.0A 200 Volt 25ns	Rectifiers 2.0A 50 Volt 25ns	Rectifiers 2A,200V,25nS UF Fast Avalanche,SMD	Rectifiers 2A,100V,25nS UF Fast Avalanche,SMD
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE	FREE WHEELING DIODE
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	35 A	35 A	35 A	35 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Maximum repetitive peak reverse voltage	200 V	50 V	200 V	100 V
Maximum reverse recovery time	0.025 µs	0.025 µs	0.025 µs	0.025 µs
surface mount	YES	YES	YES	YES
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	30	30
Maker	Vishay	-	Vishay	Vishay
