346MS8GE datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Wireless rf/communication> 346MS8GE

346MS8GE: Description0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5 dB INSERTION LOSS-MAX; CategoryTopical application Wireless rf/communication; File Size315KB，6 Pages; ManufacturerHittite Microwave（ADI）; Websitehttp://www.hittite.com/

Download Datasheet Parametric Compare View All

346MS8GE Overview

0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5 dB INSERTION LOSS-MAX

346MS8GE Parametric

Parameter Name	Attribute value
Maximum input power	18.06 dBm
Number of terminals	8
Minimum operating frequency	0.0 MHz
Maximum operating frequency	8000 MHz
Minimum operating temperature	-40 Cel
Maximum operating temperature	85 Cel
Processing package description	PLASTIC, SMT, 8 PIN
each_compli	Yes
state	Active
Microwave RF Type	VARIABLE ATTENUATOR
Rated attenuation	32 dB
Impedance characteristics	50 ohm
structure	COMPONENT
Maximum insertion loss	2.5 dB
jesd_609_code	e0
Packaging Materials	PLASTIC/EPOXY
ckage_equivalence_code	TSSOP8,.19
sub_category	RF/Microwave Attenuators
Craftsmanship	GAAS
terminal coating	TIN LEAD

Preview

Download Datasheet

View All

HMC346MS8G

346MS8GE

v05.0607

GaAs MMIC SMT VOLTAGE-VARIABLE

ATTENUATOR, DC - 8 GHz

Typical Applications

Features

Wide Bandwidth: DC - 8 GHz

Low Phase Shift vs. Attenuation

32 dB Attenuation Range

ATTENUATORS - SMT

This attenuator is ideal for use as a VVA

for DC - 8 GHz applications:

• Point-to-Point Radio

• VSAT Radio

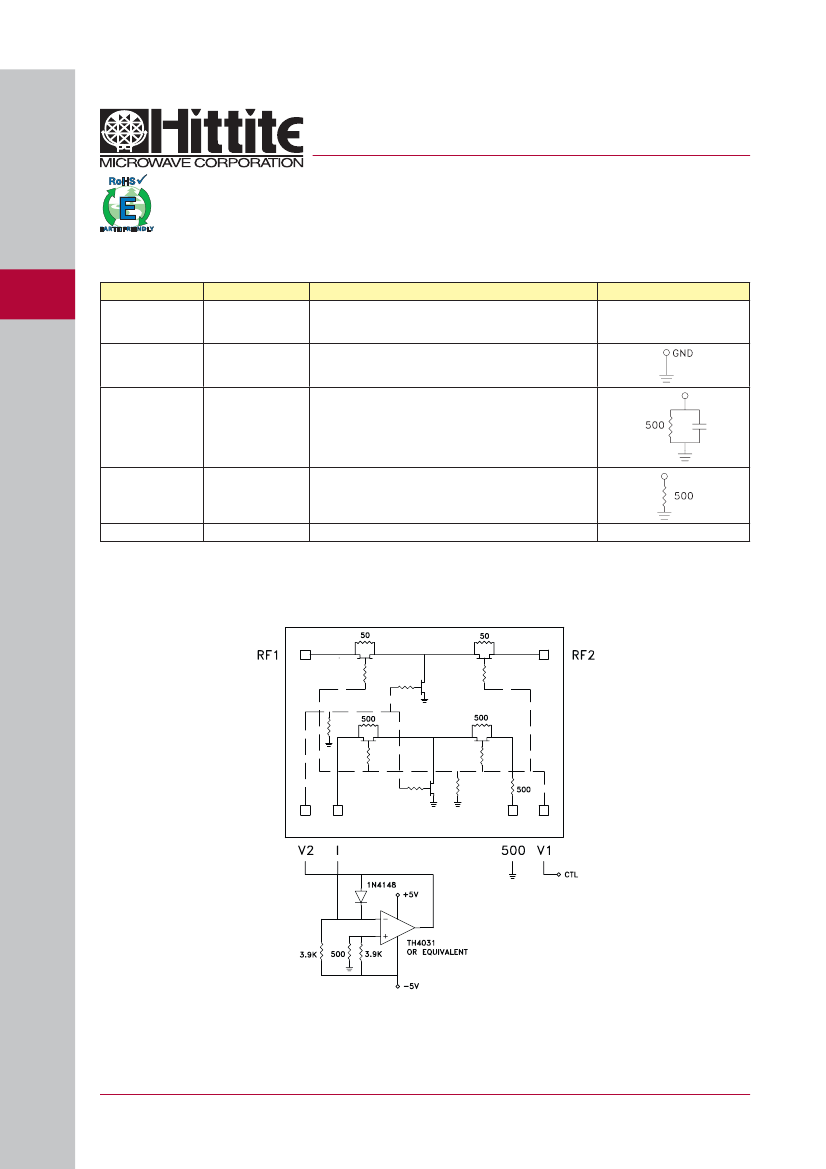

Functional Diagram

General Description

The HMC346MS8G & HMC346MS8GE are absorp-

tive Voltage Variable Attenuators (VVA) in 8 lead sur-

face-mount packages operating from DC - 8 GHz. It

features an on-chip reference attenuator for use with

an external op-amp to provide simple single voltage

attenuation control, 0 to -3V. The device is ideal in

designs where an analog DC control signal must con-

trol RF signal levels over a 30 dB amplitude range.

Applications include AGC circuits and temperature

compensation of multiple gain stages in microwave

point-to-point and VSAT radios.

Electrical Specifications,

= +25° C, 50 ohm system

Parameter

Insertion Loss

Attenuation Range

Return Loss

Switching Characteristics

Input Power for 0.25 dB Compression (0.5 - 8 GHz)

Input Third Order Intercept (0.5 - 8 GHz)

(Two-tone Input Power = -8 dBm Each Tone)

DC - 8 GHz

tRISE, tFALL (10/90% RF)

tON, tOFF (50% CTL to 10/90% RF)

Min. Atten.

Atten. >2 dB

Min. Atten.

Atten. >2 dB

Min

Typical

1.5

-2

+25

+10

Max

2.5

Units

dBm

6 - 102

For price, delivery, and to place orders, please contact Hittite Microwave Corporation:

20 Alpha Road, Chelmsford, MA 01824 Phone: 978-250-3343 Fax: 978-250-3373

Order On-line at www.hittite.com

346MS8GE Related Products

	346MS8GE	HMC346MS8G	HMC346MS8G_07
Description	0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5 dB INSERTION LOSS-MAX	0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5 dB INSERTION LOSS-MAX	0 MHz - 8000 MHz RF/MICROWAVE VARIABLE ATTENUATOR, 2.5 dB INSERTION LOSS-MAX
Number of terminals	8	8	8
Minimum operating frequency	0.0 MHz	-	0.0 MHz
Maximum operating frequency	8000 MHz	8000 MHz	8000 MHz
Minimum operating temperature	-40 Cel	-40 °C	-40 Cel
Maximum operating temperature	85 Cel	85 °C	85 Cel
structure	COMPONENT	COMPONENT	COMPONENT
Maximum insertion loss	2.5 dB	2.5 dB	2.5 dB
Maximum input power	18.06 dBm	-	18.06 dBm
Processing package description	PLASTIC, SMT, 8 PIN	-	PLASTIC, SMT, 8 PIN
each_compli	Yes	-	Yes
state	Active	-	Active
Microwave RF Type	VARIABLE ATTENUATOR	-	VARIABLE ATTENUATOR
Rated attenuation	32 dB	-	32 dB
Impedance characteristics	50 ohm	-	50 ohm
jesd_609_code	e0	-	e0
Packaging Materials	PLASTIC/EPOXY	-	PLASTIC/EPOXY
ckage_equivalence_code	TSSOP8,.19	-	TSSOP8,.19
sub_category	RF/Microwave Attenuators	-	RF/Microwave Attenuators
Craftsmanship	GAAS	-	GAAS
terminal coating	TIN LEAD	-	TIN LEAD
