CMDZ5236B TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> CMDZ5236B TR

CMDZ5236B TR: DescriptionZener Diodes 250mW 5% Tolerance; Categorysemiconductor Discrete semiconductor; File Size437KB，3 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMDZ5236B TR Overview

Zener Diodes 250mW 5% Tolerance

CMDZ5236B TR Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Central Semiconductor
Product Category	Zener Diodes
RoHS	Details
Vz - Zener Voltage	7.5 V
Mounting Style	SMD/SMT
Package / Case	SOD-323
Pd - Power Dissipation	250 mW
Voltage Tolerance	5 %
Voltage Temperature Coefficient	0.058 %/C
Zener Current	20 mA
Zz - Zener Impedance	6 Ohms
Minimum Operating Temperature	- 65 C
Maximum Operating Temperature	+ 150 C
Configuration	Single
Packaging	Reel
Ir - Reverse Current	3 uA
Factory Pack Quantity	3000
Vf - Forward Voltage	0.9 V
Unit Weight	0.001164 oz

Preview

Download Datasheet

View All

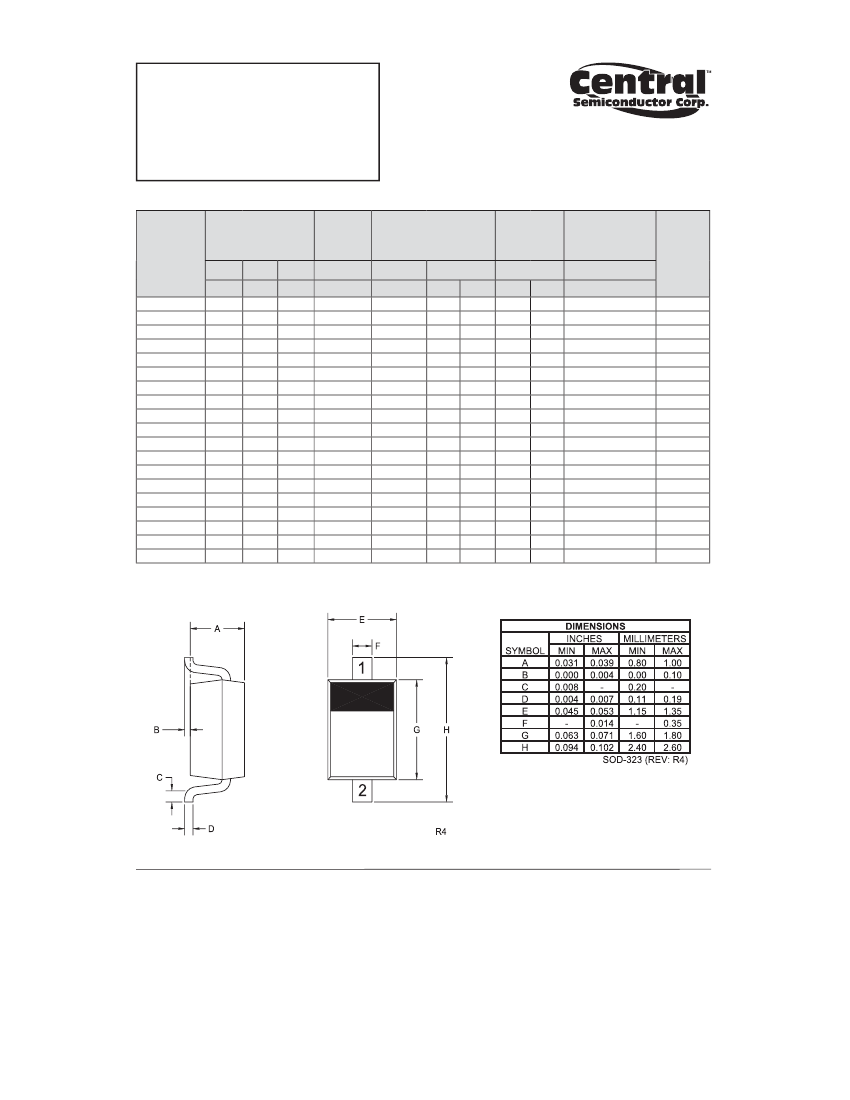

CMDZ5221B THRU CMDZ5261B

SURFACE MOUNT

SILICON ZENER DIODE

2.4 VOLTS THRU 47 VOLTS

250mW, 5% TOLERANCE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMDZ5221B

Series Silicon Zener Diode is a high quality voltage

regulator, manufactured in a super-mini surface mount

package, designed for use in industrial, commercial,

entertainment and computer applications.

MARKING CODE: SEE MARKING CODES ON

ELECTRICAL CHARACTERISTICS TABLE

SOD-323 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Temperature

Thermal Resistance

SYMBOL

TJ, Tstg

UNITS

°C

°C/W

250

-65 to +150

500

ELECTRICAL CHARACTERISTICS:

(TA=25°C), VF=0.9V MAX @ IF=10mA (FOR ALL TYPES)

ZENER

VOLTAGE

VZ @ IZT

MIN

CMDZ5221B

CMDZ5222B

CMDZ5223B

CMDZ5224B

CMDZ5225B

CMDZ5226B

CMDZ5227B

CMDZ5228B

CMDZ5229B

CMDZ5230B

CMDZ5231B

CMDZ5232B

CMDZ5233B

CMDZ5234B

CMDZ5235B

CMDZ5236B

CMDZ5237B

CMDZ5238B

CMDZ5239B

CMDZ5240B

CMDZ5241B

CMDZ5242B

2.280

2.375

2.565

2.660

2.850

3.135

3.420

3.705

4.085

4.465

4.845

5.320

5.700

5.890

6.460

7.125

7.790

8.265

8.645

9.500

10.45

11.40

NOM

2.4

2.5

2.7

2.8

3.0

3.3

3.6

3.9

4.3

4.7

5.1

5.6

6.0

6.2

6.8

7.5

8.2

8.7

9.1

MAX

2.520

2.625

2.835

2.940

3.150

3.465

3.780

4.095

4.515

4.935

5.355

5.880

6.300

6.510

7.140

7.875

8.610

9.135

9.555

10.50

11.55

12.60

TEST

CURRENT

MAXIMUM ZENER

IMPEDANCE

ZZT @ IZT

7.0

5.0

6.0

8.0

ZZK @ IZK

1200

1250

1300

1400

1600

1700

1900

2000

1900

1600

1000

750

500

600

0.25

MAXIMUM

REVERSE

CURRENT

IR @ VR

μA

100

5.0

3.0

2.0

1.0

2.0

3.0

3.5

4.0

5.0

6.0

6.5

7.0

8.0

8.4

9.1

MAXIMUM ZENER

VOLTAGE

TEMPERATURE

MARKING

COEFFICIENT

CODE

ΘV

%/°C

-0.085

-0.080

-0.075

-0.070

-0.065

-0.060

±0.055

±0.030

+0.038

+0.045

+0.050

+0.058

+0.062

+0.065

+0.068

+0.075

+0.076

+0.077

TYPE

R4 (8-January 2010)

CMDZ5236B TR Related Products

	CMDZ5236B TR	CMDZ5228B BK	CMDZ5237B BK	CMDZ5236B BK	CMDZ5258B BK
Description	Zener Diodes 250mW 5% Tolerance	Zener Diodes 250mW 5% Tolerance Zener Single Diode	Zener Diodes 250mW 5% Tolerance Zener Single Diode	Zener Diodes 250mW 5% Tolerance Zener Single Diode	Zener Diodes 250mW 5% Tolerance Zener Single Diode
Product Attribute	Attribute Value	Attribute Value	Attribute Value	Attribute Value	Attribute Value
Manufacturer	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor	Central Semiconductor
Product Category	Zener Diodes	Zener Diodes	Zener Diodes	Zener Diodes	Zener Diodes
RoHS	Details	Details	Details	Details	Details
Package / Case	SOD-323	SOD-323	SOD-323	SOD-323	SOD-323
Packaging	Reel	Bulk	Bulk	Bulk	Bulk
Factory Pack Quantity	3000	5000	5000	5000	5000
