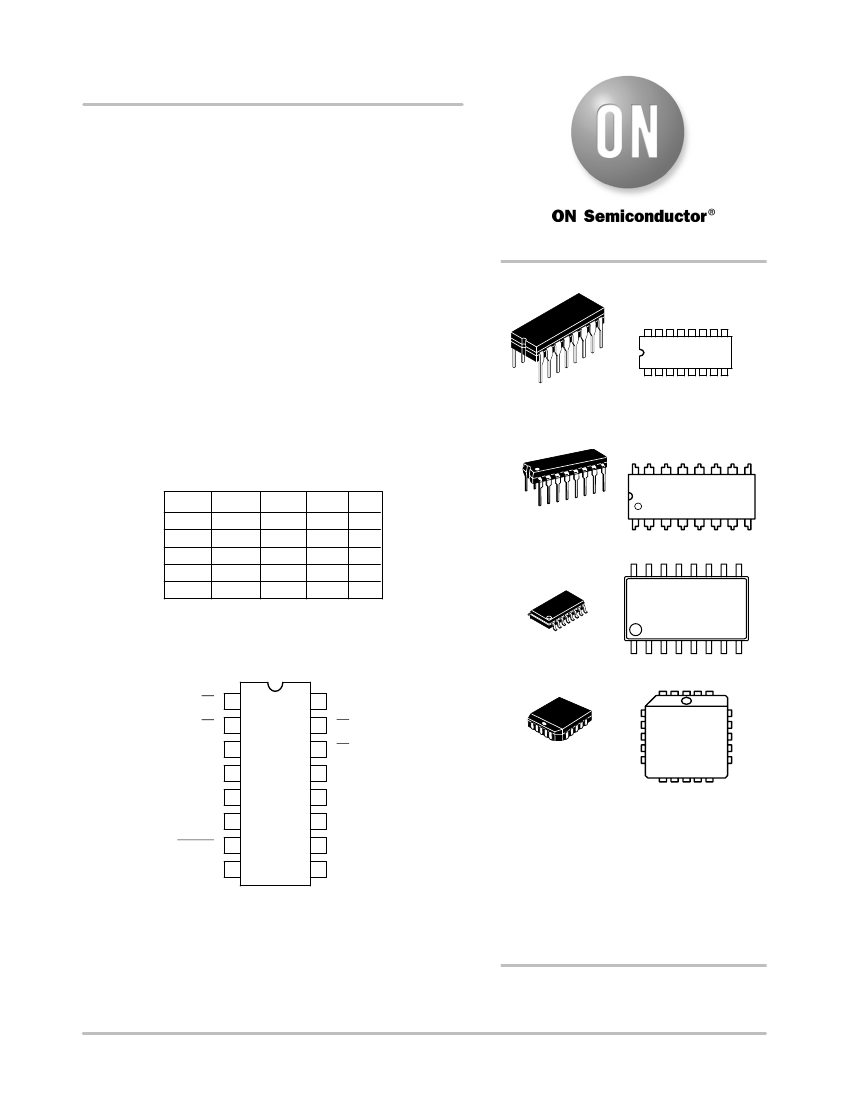

MC10H159
Quad 2−Input Multiplexer
(Inverting)
Description
The MC10H159 is a quad 2−input multiplexer with enable. This
MECL 10H™ part is a functional/pinout duplication of the standard
MECL 10K™ family part, with 100% improvement in propagation
delay and no increase in power−supply current.
Features
http://onsemi.com
MARKING DIAGRAMS*
16
MC10H159L
AWLYYWW
CDIP−16
L SUFFIX
CASE 620A
1
•
Propagation Delay, 1.5 ns Typical
•
Power Dissipation, 218 mW Typical
•
Improved Noise Margin 150 mV (Over Operating Voltage and
Temperature Range)
•
Voltage Compensated
•
MECL 10K Compatible
•
Pb−Free Packages are Available*
TRUTH TABLE
Enable
L
L
L
L
H
Select
L
L
H
H
X
D0
X
X
L
H
X
D1
L
H
X
X
X
Q
H
L
H
L
L
16
16
1
PDIP−16
P SUFFIX
CASE 648
1
MC10H159P
AWLYYWWG
10H159
ALYWG
DIP
PIN ASSIGNMENT
Q0
Q1
D11
D10
D01
D00
ENABLE
V
EE
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
V
CC
Q2
Q3
D20
D21
D30
D31
SELECT
SOEIAJ−16
CASE 966
1 20
20 1
PLLC−20
FN SUFFIX
CASE 775
A
WL, L
YY, Y
WW, W
G
10H159G
AWLYYWW
= Assembly Location
= Wafer Lot
= Year
= Work Week
= Pb−Free Package
Pin assignment is for Dual−in−Line Package.
For PLCC pin assignment, see the Pin Conversion Tables on page 18
of the ON Semiconductor MECL Data Book (DL122/D).
*For additional marking information, refer to
Application Note AND8002/D.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 4 of this data sheet.
©
Semiconductor Components Industries, LLC, 2006
February, 2006
−
Rev. 7
1
Publication Order Number:
MC10H159/D
MC10H159
Table 1. MAXIMUM RATINGS
Symbol
V
EE
V
I
I
out
T
A
T
stg
Power Supply (V
CC
= 0)
Input Voltage (V
CC
= 0)
Output Current
−
Continuous
−
Surge
Characteristic
Rating
−8.0
to 0
0 to V
EE
50
100
0 to +75
−55
to +150
−55
to +165
Unit
Vdc
Vdc
mA
°C
°C
°C
Operating Temperature Range
Storage Temperature Range
−
Plastic
−
Ceramic
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit
values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied,
damage may occur and reliability may be affected.
Table 2. ELECTRICAL CHARACTERISTICS
(V
EE
=
−5.2
V
±5%)
(Note 1)
0°
Symbol
I
E
I
inH
Characteristic
Power Supply Current
Input Current High
Pin 9
Pins 3−7 and 10−13
Input Current Low
High Output Voltage
Low Output Voltage
High Input Voltage
Low Input Voltage
Min
−
−
−
0.5
−1.02
−1.95
−1.17
−1.95
Max
58
475
515
−
−0.84
−1.63
−0.84
−1.48
Min
−
−
−
0.5
−0.98
−1.95
−1.13
−1.95
25°
Max
53
295
320
−
−0.81
−1.63
−0.81
−1.48
Min
−
−
−
0.3
−0.92
−1.95
−1.07
−1.95
75°
Max
58
295
320
−
−0.735
−1.60
−0.735
−1.45
mA
Vdc
Vdc
Vdc
Vdc
Unit
mA
mA
I
inL
V
OH
V
OL
V
IH
V
IL
1. Each MECL 10H series circuit has been designed to meet the dc specifications shown in the test table, after thermal equilibrium has been
established. The circuit is in a test socket or mounted on a printed circuit board and transverse air flow greater than 500 linear fpm is
maintained. Outputs are terminated through a 50
W
resistor to
−2.0
V.
Table 3. AC PARAMETERS
0°
Symbol
t
pd
Characteristic
Propagation Delay
Data
Select
Enable
Rise Time
Fall Time
Min
0.5
1.0
1.0
0.5
0.5
Max
2.2
3.2
3.2
2.2
2.2
Min
0.5
1.0
1.0
0.5
0.5
25°
Max
2.2
3.2
3.2
2.2
2.2
Min
0.5
1.0
1.0
0.5
0.5
75°
Max
2.2
3.2
3.2
2.2
2.2
ns
ns
Unit
ns
t
r
t
f
NOTE: Device will meet the specifications after thermal equilibrium has been established when mounted in a test socket or printed circuit
board with maintained transverse airflow greater than 500 lfpm. Electrical parameters are guaranteed only over the declared
operating temperature range. Functional operation of the device exceeding these conditions is not implied. Device specification limit
values are applied individually under normal operating conditions and not valid simultaneously.
http://onsemi.com
2
MC10H159
APPLICATION INFORMATION
The MC10H159 is a quad two channel multiplexer with
enable. It incorporates common enable and common data
select inputs. The select input determines which data inputs
are enabled. A high (H) level enables data inputs D0 0, D1
0, D2 0, and D3 0. A low (L) level enables data inputs D0
1, D1 1, D2 1, and D3 1. Any change on the data inputs will
be reflected at the outputs while the enable is low. Input
levels are inverted at the output.
LOGIC DIAGRAM
SELECT 9
D0 1 5
D0 0 6
1 Q0
D1 1 3
D1 0 4
ENABLE 7
D2 1 12
D2 0 13
2 Q1
15 Q2
D3 1 10
D3 0 11
V
CC
PIN 16
V
EE
PIN 8
14 Q3
http://onsemi.com
3
MC10H159
ORDERING INFORMATION
Device
MC10H159FN
MC10H159FNG
MC10H159FNR2
MC10H159FNR2G
MC10H159L
MC10H159M
MC10H159MG
MC10H159MEL
MC10H159MELG
MC10H159P
MC10H159PG
Package
PLLC−20
PLLC−20
(Pb−Free)
PLLC−20
PLLC−20
(Pb−Free)
CDIP−16
SOEIAJ−16
SOEIAJ−16
(Pb−Free)
SOEIAJ−16
SOEIAJ−16
(Pb−Free)
PDIP−16
PDIP−16
(Pb−Free)
Shipping
†
46 Units / Rail
46 Units / Rail
500 / Tape & Reel
500 / Tape & Reel
25 Unit / Rail
50 Unit / Rail
50 Unit / Rail
2000 / Tape & Reel
2000 / Tape & Reel
25 Unit / Rail
25 Unit / Rail
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
http://onsemi.com
4
MC10H159

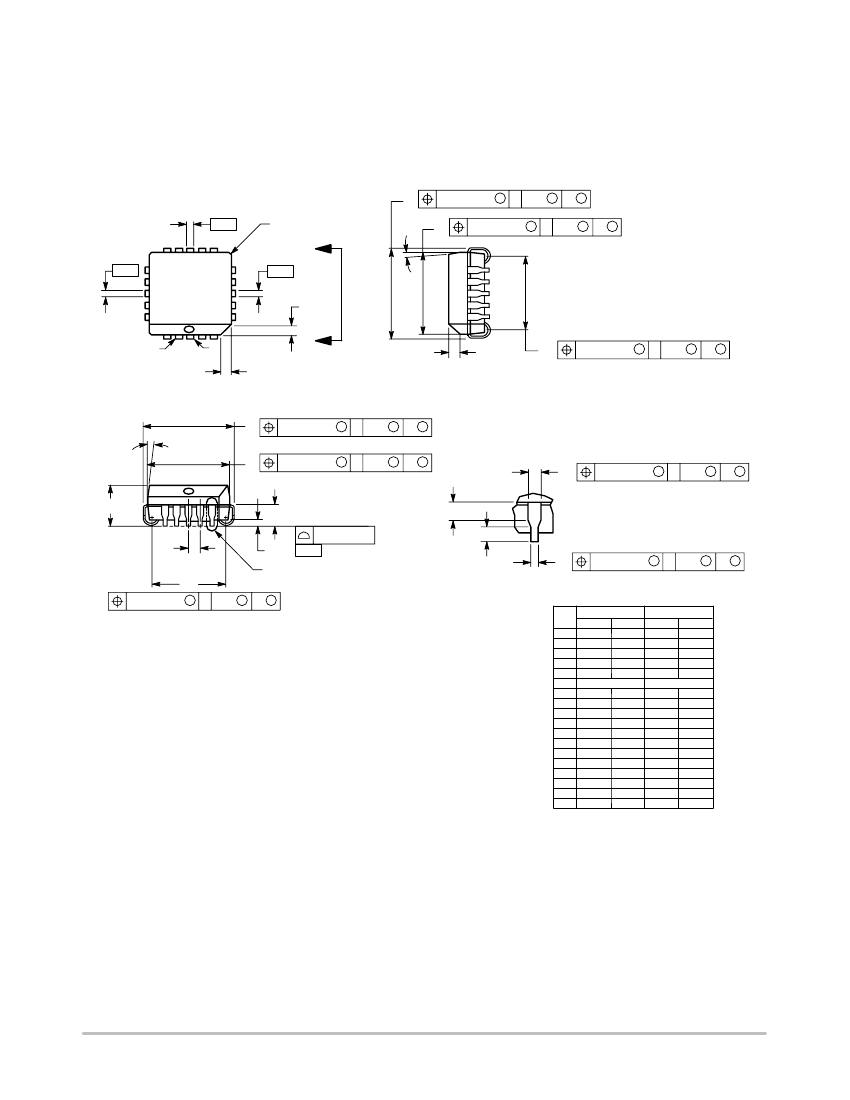

PACKAGE DIMENSIONS
20 LEAD PLLC
CASE 775−02
ISSUE E
B
−N−
Y BRK
D
−L−
−M−
W
D
V
0.010 (0.250)
T L−M
N
Z
0.007 (0.180)
M
T L−M
U
S
N
S
S
0.007 (0.180)
M
T L−M
N
S
20
1
X
VIEW D−D
G1
S
S
S
A
Z
R
0.007 (0.180)
M
T L−M
0.007 (0.180)
M
T L−M
S
N
N
S
S
S
H
K1
0.007 (0.180)
M
T L−M
S
N
S
C
E
G
G1
0.010 (0.250)
S
T L−M
0.004 (0.100)
J
−T−
VIEW S
S
SEATING
PLANE
K
F
VIEW S
0.007 (0.180)
M
T L−M
S
N
S
N
S
NOTES:
1. DIMENSIONS AND TOLERANCING PER ANSI Y14.5M,
1982.
2. DIMENSIONS IN INCHES.
3. DATUMS
−L−, −M−,
AND
−N−
DETERMINED WHERE TOP
OF LEAD SHOULDER EXITS PLASTIC BODY AT MOLD
PARTING LINE.
4. DIMENSION G1, TRUE POSITION TO BE MEASURED AT
DATUM
−T−,
SEATING PLANE.
5. DIMENSIONS R AND U DO NOT INCLUDE MOLD FLASH.
ALLOWABLE MOLD FLASH IS 0.010 (0.250) PER SIDE.
6. DIMENSIONS IN THE PACKAGE TOP MAY BE SMALLER
THAN THE PACKAGE BOTTOM BY UP TO 0.012 (0.300).
DIMENSIONS R AND U ARE DETERMINED AT THE
OUTERMOST EXTREMES OF THE PLASTIC BODY
EXCLUSIVE OF MOLD FLASH, TIE BAR BURRS, GATE
BURRS AND INTERLEAD FLASH, BUT INCLUDING ANY
MISMATCH BETWEEN THE TOP AND BOTTOM OF THE
PLASTIC BODY.
7. DIMENSION H DOES NOT INCLUDE DAMBAR
PROTRUSION OR INTRUSION. THE DAMBAR
PROTRUSION(S) SHALL NOT CAUSE THE H DIMENSION
TO BE GREATER THAN 0.037 (0.940). THE DAMBAR
INTRUSION(S) SHALL NOT CAUSE THE H DIMENSION TO
BE SMALLER THAN 0.025 (0.635).
DIM
A
B
C
E
F
G
H
J
K
R
U
V
W
X
Y
Z
G1
K1
INCHES
MIN
MAX
0.385
0.395
0.385
0.395
0.165
0.180
0.090
0.110
0.013
0.019
0.050 BSC
0.026
0.032
0.020
−−−
0.025
−−−
0.350
0.356
0.350
0.356
0.042
0.048
0.042
0.048
0.042
0.056
−−−
0.020
2
_
10
_
0.310
0.330
0.040
−−−
MILLIMETERS
MIN
MAX
9.78
10.03
9.78
10.03
4.20
4.57
2.29
2.79
0.33
0.48
1.27 BSC
0.66
0.81
0.51
−−−
0.64
−−−
8.89
9.04
8.89
9.04
1.07
1.21
1.07
1.21
1.07
1.42
−−−
0.50
2
_
10
_
7.88
8.38
1.02
−−−
http://onsemi.com
5
