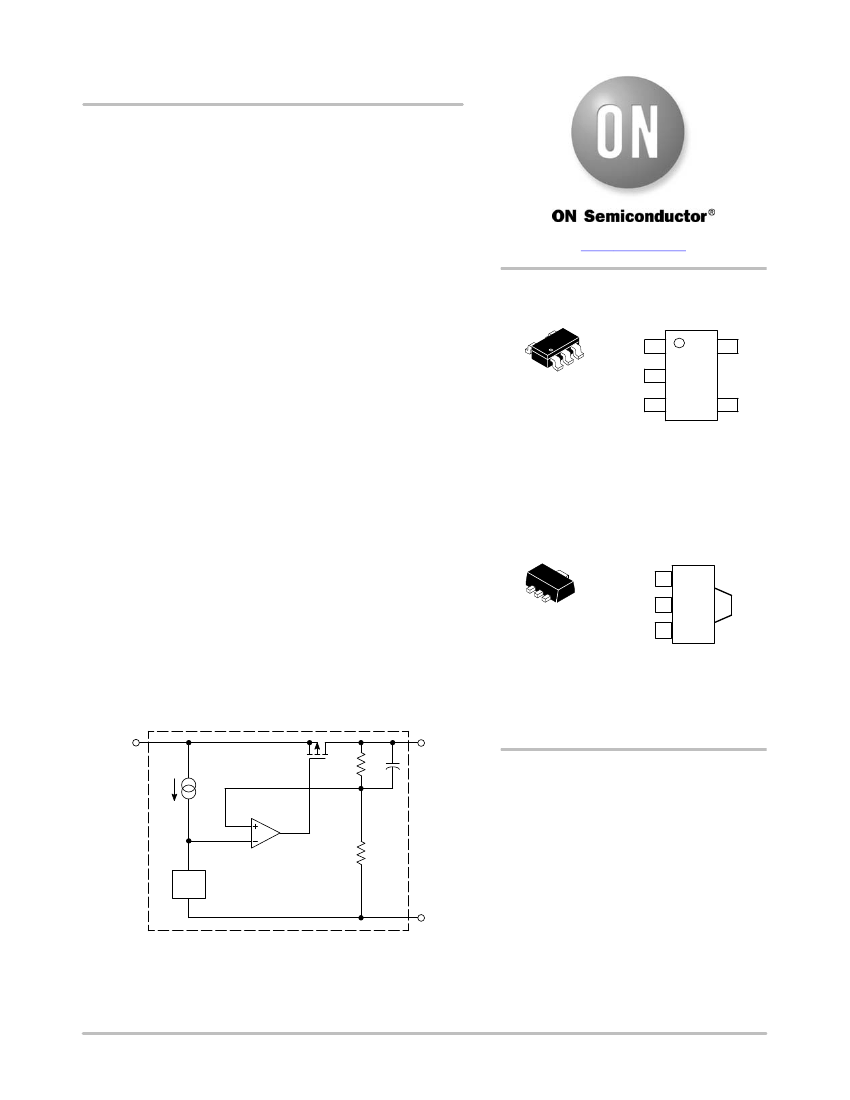

MC78LC00 Series
Micropower Voltage
Regulator
The MC78LC00 series of fixed output low dropout linear regulators
are designed for handheld communication equipment and portable
battery powered applications which require low quiescent current. The
MC78LC00 series features an ultra−low quiescent current of 1.1
mA.
Each device contains a voltage reference unit, an error amplifier, a
PMOS power transistor, and resistors for setting output voltage.
The MC78LC00 has been designed to be used with low cost ceramic
capacitors and requires a minimum output capacitor of 0.1
mF.
The
device is housed in the micro−miniature Thin SOT23−5 surface mount
package and SOT−89, 3 pin. Standard voltage versions are 1.5, 1.8,
2.5, 2.7, 2.8, 3.0, 3.3, 4.0, and 5.0 V. Other voltages are available in
100 mV steps.
Features
www.onsemi.com
MARKING DIAGRAMS AND
PIN CONNECTIONS
5
1
TSOP−5
NTR SUFFIX
CASE 483
GND
V
in
V
out
1
XXX
AYW
G
G
5 N/C
2
3
4 N/C
•
•
•
•
•
•
•
•
Low Quiescent Current of 1.1
mA
Typical
Excellent Line and Load Regulation
Maximum Operating Voltage of 12 V
Low Output Voltage Option
High Accuracy Output Voltage of 2.5%
Industrial Temperature Range of −40°C to 85°C
Two Surface Mount Packages (SOT−89, 3 Pin, or SOT−23, 5 Pin)
These are Pb−Free Devices
(Top View)
XXX= Specific Device Code
A = Assembly Location
Y = Year
W = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
TAB
GND 1
1
SOT−89
H SUFFIX
CASE 1213
V
in
2
V
out
3
(Top View)
(Tab is connected to Pin 2)
XX = Specific Device Code
DD = Date Code
XX
DD
Tab
Typical Applications
•
Battery Powered Instruments
•
Hand−Held Instruments
•
Camcorders and Cameras
2
V
in
3
V
O
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 10 of this data sheet.
V
ref
1
GND
This device contains 8 active transistors.
Figure 1. Representative Block Diagram
©
Semiconductor Components Industries, LLC, 2016
1
August, 2016 − Rev. 11
Publication Order Number:
MC78LC00/D
MC78LC00 Series
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á Á Á Á Á Á Á Á Á Á Á ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
PIN FUNCTION DESCRIPTION
Pin No.
1
2
3
4
5
Pin Name
GND
V
in
Description
Power supply ground
Positive power supply input voltage
Regulated Output
V
out
N/C
N/C
No Internal Connection
No Internal Connection
MAXIMUM RATINGS
Rating
Symbol
V
in
Value
12
Unit
V
V
Input Voltage
Output Voltage
V
out
−0.3 to V
in
+0.3
Power Dissipation and Thermal Characteristics
Case 483−01 (Thin SOT23−5) NTR Suffix
Power Dissipation @ T
A
= 85°C
Thermal Resistance, Junction−to−Ambient
Case 1213 (SOT−89) H Suffix
Power Dissipation @ T
A
= 25°C
Thermal Resistance, Junction−to−Ambient
Operating Junction Temperature
Operating Ambient Temperature
Storage Temperature
P
D
R
qJA
P
D
R
qJA
T
J
140
280
900
111
mW
°C/W
mW
°C/W
°C
°C
°C
+125
T
A
−40 to +85
T
stg
−55 to +150
10
Lead Soldering Temperature @ 260°C
T
solder
sec
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
www.onsemi.com
2
MC78LC00 Series
ELECTRICAL CHARACTERISTICS
(V
in
= V
out(nom.)
+ 1.0 V, C
in
= 1.0
mF,
C
out
= 1.0
mF,
T
J
= 25°C, unless otherwise noted.) (Note 5)
NTR SUFFIX
Characteristic
Output Voltage (T
A
= 25°C, I
out
= 1.0 mA)
1.5 V
1.8 V
2.5 V
2.7 V
2.8 V
3.0 V
3.3 V
4.0 V
5.0 V
Output Voltage (T
A
= −40°C to 85°C)
1.5 V
1.8 V
2.5 V
2.7 V
2.8 V
3.0 V
3.3 V
4.0 V
5.0 V
Line Regulation (V
in
= V
O(nom.)
+ 1.0 V to 12 V, I
out
= 1.0 mA)
Load Regulation (I
out
= 1.0 mA to 10 mA)
Output Current (Note 6)
1.5 V, 1.8 V (V
in
= 4.0 V)
2.5 V, 2.7 V, 2.8 V, 3.0 V (V
in
= 5.0 V)
3.3 V (V
in
= 6.0 V)
4.0 V (V
in
= 7.0 V)
5.0 V (V
in
= 8.0 V)
Dropout Voltage (I
out
= 1.0 mA, Measured at V
out
−3.0%)
1.5 V
1.6 V−3.2 V
3.3 V−3.9 V
4.0 V−5.0 V
Quiescent Current (I
out
= 1.0 mA to I
O(nom.)
)
Output Voltage Temperature Coefficient
Output Noise Voltage (f = 1.0 kHz to 100 kHz)
Symbol
V
out
1.455
1.746
2.425
2.646
2.744
2.94
3.234
3.9
4.90
V
out
1.455
1.746
2.425
2.619
2.716
2.910
3.201
3.9
4.90
Reg
line
Reg
load
I
out
Min
Typ
1.5
1.8
2.5
2.7
2.8
3.0
3.3
4.0
5.0
1.5
1.8
2.5
2.7
2.8
3.0
3.3
4.0
5.0
0.05
40
50
80
80
80
100
35
30
30
30
1.1
"100
89
Max
1.545
1.854
2.575
2.754
2.856
3.06
3.366
4.1
5.10
Unit
V
V
1.545
1.854
2.575
2.781
2.884
3.09
3.399
4.1
5.10
0.2
60
−
−
−
−
−
mV
−
−
−
−
70
60
53
38
3.6
−
−
mA
ppm/°C
mVrms
%/V
mV
mA
35
50
50
80
80
−
−
V
in
−V
out
I
Q
T
c
−
−
−
V
n
1. This device series contains ESD protection and exceeds the following tests:
Human Body Model 2000 V per MIL−STD−883, Method 3015
Machine Model Method 200 V
2. Latch up capability (85°C)
"100
mA
3. Maximum package power dissipation limits must be observed.
TJ(max)
*
TA
PD
+
R
qJA
4. Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible.
5. Low duty pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
6. Output Current is measured when V
out
= V
O1
− 3% where V
O1
= V
out
at I
out
= 0 mA.
www.onsemi.com
3
MC78LC00 Series
ELECTRICAL CHARACTERISTICS
(V
in
= V
out(nom.)
+ 1.0 V, C
in
= 1.0
mF,
C
out
= 1.0
mF,
T
J
= 25°C, unless otherwise noted.) (Note 11)
HT SUFFIX
Characteristic
Output Voltage
30HT1 Suffix (V
in
= 5.0 V)
33HT1 Suffix (V
in
= 5.0 V)
40HT1 Suffix (V
in
= 6.0 V)
50HT1 Suffix (V
in
= 7.0 V)
Line Regulation
V
in
= [V
O
+ 1.0] V to 10 V, I
O
= 1.0 mA
Load Regulation (I
O
= 1.0 to 10 mA)
30HT1 Suffix (V
in
= 5.0 V)
33HT1 Suffix (V
in
= 6.0 V)
40HT1 Suffix (V
in
= 7.0 V)
50HT1 Suffix (V
in
= 8.0 V)
Output Current (Note 12)
30HT1 Suffix (V
in
= 5.0 V)
33HT1 Suffix (V
in
= 6.0 V)
40HT1 Suffix (V
in
= 7.0 V)
50HT1 Suffix (V
in
= 8.0 V)
Reg
line
Symbol
Min
2.950
3.218
3.900
4.875
−
Typ
3.0
3.3
4.0
5.0
0.05
Max
3.075
3.382
4.100
5.125
0.2
%/V
mV
Unit
V
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁ Á
Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á Á
ÁÁÁ Á
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á Á Á
ÁÁÁ Á
Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ
Á Á
Á Á Á
Reg
load
−
−
−
−
40
40
50
60
50
50
65
80
40
35
25
25
60
60
70
90
−
−
−
−
I
O
mA
35
35
45
55
−
−
−
−
−
−
−
−
−
Dropout Voltage
30HT1 Suffix (I
O
= 1.0 mA)
33HT1 Suffix (I
O
= 1.0 mA)
40HT1 Suffix (I
O
= 1.0 mA)
50HT1 Suffix (I
O
= 1.0 mA)
Quiescent Current
30HT1 Suffix (V
in
= 5.0 V)
33HT1 Suffix (V
in
= 5.0 V)
40HT1 Suffix (V
in
= 6.0 V)
50HT1 Suffix (V
in
= 7.0 V)
V
in
− V
O
mV
60
53
38
38
I
CC
mA
1.1
1.1
1.2
1.3
3.3
3.3
3.6
3.9
−
Output Voltage Temperature Coefficient
T
C
±100
ppm/°C
7. This device series contains ESD protection and exceeds the following tests:
Human Body Model 2000 V per MIL−STD−883, Method 3015
Machine Model Method 200 V
8. Latch up capability (85°C)
"100
mA
9. Maximum package power dissipation limits must be observed.
TJ(max)
*
TA
PD
+
R
qJA
10. Low duty cycle pulse techniques are used during testing to maintain the junction temperature as close to ambient as possible.
11. Low duty pulse techniques are used during test to maintain junction temperature as close to ambient as possible.
12. Output Current is measured when V
out
= V
O1
− 3% where V
O1
= V
out
at I
out
= 0 mA.
DEFINITIONS
Load Regulation
The change in output voltage for a change in output current
at a constant temperature.
Dropout Voltage
difference between the input current (measured through the
LDO input pin) and the output current.
Line Regulation
The input/output differential at which the regulator output
no longer maintains regulation against further reductions in
input voltage. Measured when the output drops 3% below its
nominal. The junction temperature, load current, and
minimum input supply requirements affect the dropout level.
Maximum Power Dissipation
The change in output voltage for a change in input voltage.
The measurement is made under conditions of low dissipation
or by using pulse technique such that the average chip
temperature is not significantly affected.
Line Transient Response
Typical over and undershoot response when input voltage is
excited with a given slope.
Maximum Package Power Dissipation
The maximum total dissipation for which the regulator will
operate within its specifications.
Quiescent Current
The quiescent current is the current which flows through the
ground when the LDO operates without a load on its output:
internal IC operation, bias, etc. When the LDO becomes
loaded, this term is called the Ground current. It is actually the
The maximum power package dissipation is the power
dissipation level at which the junction temperature reaches its
maximum operating value, i.e. 125°C. Depending on the
ambient power dissipation and thus the maximum available
output current.
www.onsemi.com
4
MC78LC00 Series
3.2
3.1
V
O
, OUTPUT VOLTAGE (V)
3
2.9
2.8
2.7
2.6
2.5
2.4
2.3
2.2
2.5
2.7
2.9
3.1
T
A
= 25°C
3.3
3.5
2.2
2.5
I
O
= 5 mA
I
O
= 1 mA
I
O
= 10 mA
NTR Series
V
O
, OUTPUT VOLTAGE (V)
3.0
I
O
= 1.0 mA
3.2
T
A
= 25°C
2.8
I
O
= 5.0 mA
2.6
2.4
I
O
= 10 mA
2.7
MC78LC30HT1
V
in
, Input Voltage (V)
2.9
3.1
V
in
, Input Voltage (V)
3.3
3.5

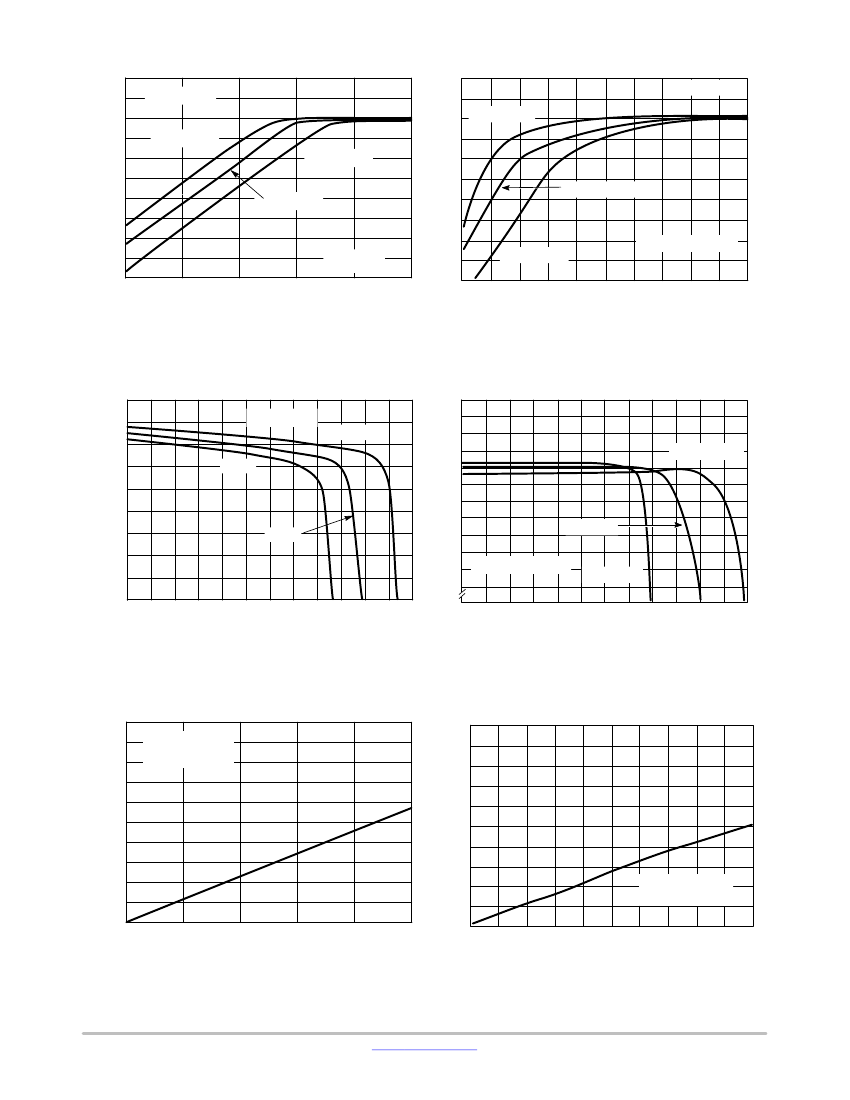

Figure 2. Output Voltage versus Input Voltage
Figure 3. Output Voltage versus Input Voltage
3.05
3
V
O
, OUTPUT VOLTAGE (V)
2.95
2.9
2.85
2.8
2.75
2.7
2.65
2.6
0
20
40
60
80
100
120
I
O
, Output Current (mA)
25°C
80°C
NTR Series
V
O
, OUTPUT VOLTAGE (V)
−40°C
3.2
3.1
T
A
= −30°C
3.0
2.9
2.8
2.7
0
0
MC78LC30HT1
T
A
= 25°C
T
A
= 80°C
100
120
20
40
60
80
I
O
, Output Current (mA)
Figure 4. Output Voltage versus Output Current
Figure 5. Output Voltage versus Output Current
2
V
in
−V
O
, DROPOUT VOLTAGE (V)
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
10
20
30
40
50
I
O
, Output Current (mA)
MC78LC30NTR
T
A
= 25°C
V
in
−V
O
, DROPOUT VOLTAGE (V)
2.0
1.6
1.2
0.8
MC78LC30HT1
T
A
= 25°C
0.4
0
0
10
20
30
40
50
I
O
, Output Current (mA)
Figure 6. Dropout Voltage versus Output Current
Figure 7. Dropout Voltage versus Output Current
www.onsemi.com
5
京公网安备 11010802033920号
EEWORLD
