BA80JC5T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BA80JC5T

BA80JC5T: DescriptionLDO Voltage Regulators V-REF PREC 8V 1500MA 3-PIN; CategoryPower/power management The power supply circuit; File Size497KB，17 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA80JC5T Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BA80JC5T	-	-	View	Buy Now

BA80JC5T Overview

LDO Voltage Regulators V-REF PREC 8V 1500MA 3-PIN

BA80JC5T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-220FP
package instruction	ROHS COMPLIANT, TO-220FP, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Adjustability	FIXED
Maximum drop-back voltage 1	0.5 V
Nominal dropback voltage 1	0.3 V
Maximum absolute input voltage	18 V
Maximum input voltage	16 V
Minimum input voltage	8.92 V
JESD-30 code	R-XSFM-T3
JESD-609 code	e2
Maximum grid adjustment rate	0.06%
Maximum load regulation	0.06%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	125 °C
Working temperature TJ-Min
Maximum output current 1	1.5 A
Maximum output voltage 1	8.08 V
Minimum output voltage 1	7.92 V
Nominal output voltage 1	8 V
Package body material	UNSPECIFIED
Encapsulate equivalent code	SIP3,.1ISO-TB
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

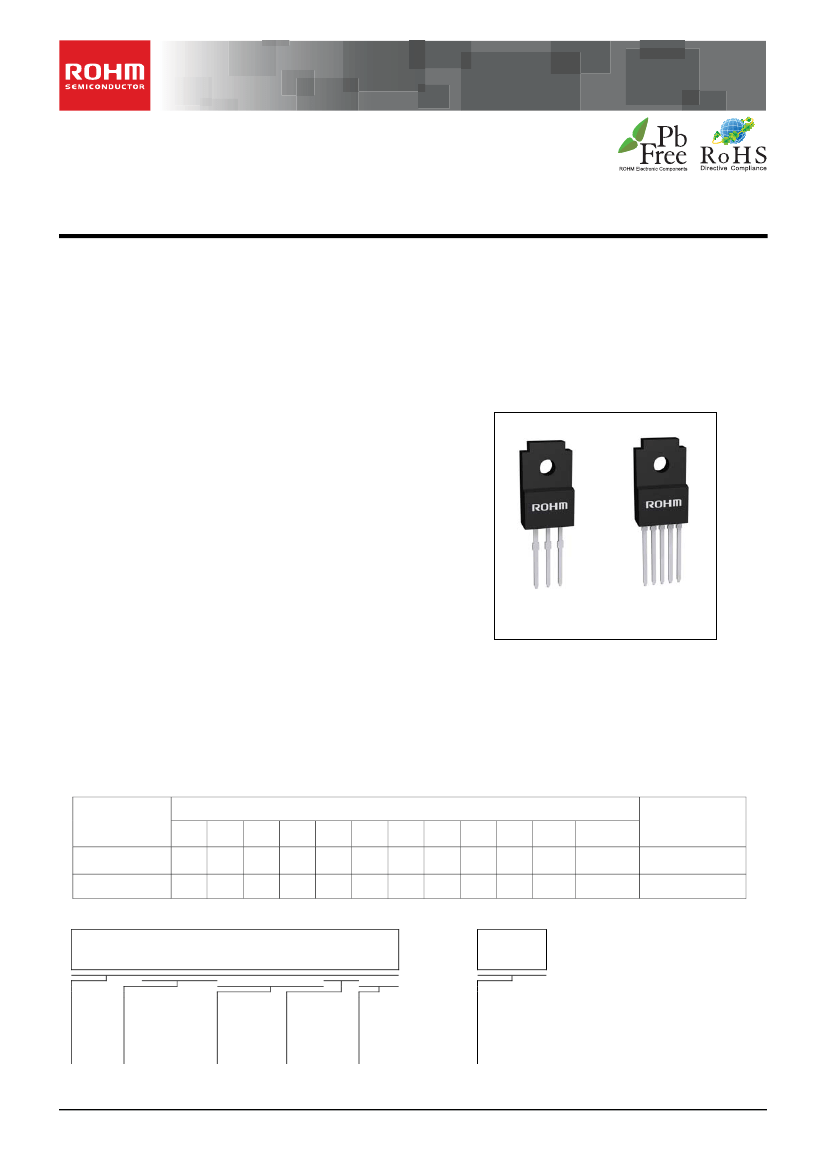

Datasheet

1.5A Variable/Fixed Output

LDO Regulators

BAxxJC5 Series(Fixed)

BA00JC5WT(Variable)

●General

Description

The BAxxJC5 are low-saturation regulators with an output current of 1.5A and a voltage accuracy of

±1%.

A broad output

voltage range is offered, from 1.5V to 12V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent

damage due to short-circuiting and overloading, respectively.

●Features

Output voltage accuracy:

±1%

Broad output voltage range available: 1.5V -12V

(BAxxJC5 series)

Low saturation-voltage type with PNP output

Built-in overcurrent protection circuit

Built-in thermal shutdown circuit

Integrated shutdown switch (BA00JC5WT)

●Key

Specifications

Input Power Supply Voltage:

16.0V(Max.)

Output voltage type: BAxxJC5 Series

Fixed

BA00JC5WT

Variable

Output current:

1.5A(Max.)

Shutdown current: (BA00JC5WT)

0μA(Typ.)

Operating temperature range:

-40℃ to +105℃

●Applications

All electronic devices that use microcontrollers and

logic circuits

●Packages

TO220FP-3

TO220FP-5

W (Typ.) x D (Typ.) x H (Max.)

10.00mm x 30.50mm x 4.60mm

TO220FP-3

TO220FP-5

●Lineup

Matrix

Output Voltage (V)

Part Number

1.5

BAxxJC5T

BAxxJC5WT

1.8

2.5

3.0

3.3

5.0

6.0

6.3

8.0

9.0

12.0

Variable

TO220FP-3

TO220FP-5

Package

●Ordering

Information

Package

Packaging and forming specification

None:Tube Contener

Output voltage

Part

number

00:Variable

Other:Fixed

Current

capacity

JC5:1.5A

Shutdown

switch

W : Include

None:without

：TO220FP-3

TO220FP-5

○Product

structure：Silicon monolithic integrated circuit

www.rohm.com

TSZ22111½14½001

○This

product is not designed protection against radioactive rays.

1/13

TSZ02201-0R6R0A600140-1-2

14.Feb.2012 Rev.001

BA80JC5T Related Products

	BA80JC5T	BA18JC5T	BA30JC5T	BA90JC5T	BA00JC5WT	BA15JC5T	BA60JC5T	BA00JC5WT-V5
Description	LDO Voltage Regulators V-REF PREC 8V 1500MA 3-PIN	LDO Voltage Regulators VREF PRECISION 1.8V 1500MA 3PIN	LDO Voltage Regulators V-REF PREC 3V 1500MA 3-PIN	LDO Voltage Regulators V-REF PREC 9V 1500MA 3-PIN	LDO Voltage Regulators LDO REG 1.5V-12V 1.5A 5PIN	LDO Voltage Regulators VREF PRECISION 1.5V 1500MA 3PIN	Voltage References 1.5A	LDO Voltage Regulators VOLT VAR OUTPUT 1.5V-45V
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
Parts packaging code	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP	TO-220FP	-
package instruction	ROHS COMPLIANT, TO-220FP, 3 PIN	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	, SIP3,.1ISO-TB	TO-220, SIP5,.1,67TB	ROHS COMPLIANT, TO-220FP, 3 PIN	ROHS COMPLIANT, TO-220FP, 3 PIN	-
Contacts	3	3	3	3	3	3	3	-
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Factory Lead Time	5 weeks	6 weeks	-	5 weeks	-	5 weeks	5 weeks	-
Adjustability	FIXED	FIXED	FIXED	FIXED	ADJUSTABLE	FIXED	FIXED	-
Nominal dropback voltage 1	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	0.3 V	-
Maximum absolute input voltage	18 V	18 V	18 V	18 V	-	18 V	18 V	-
Maximum input voltage	16 V	16 V	16 V	16 V	16 V	16 V	16 V	-
Minimum input voltage	8.92 V	3 V	3.97 V	9.91 V	3 V	3 V	6.94 V	-
JESD-30 code	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T3	R-XSFM-T5	R-XSFM-T3	R-XSFM-T3	-
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	-
Maximum grid adjustment rate	0.06%	0.06%	0.06%	0.06%	-	0.06%	0.06%	-
Maximum load regulation	0.06%	0.06%	0.06%	0.06%	-	0.06%	0.06%	-
Number of functions	1	1	1	1	1	1	1	-
Output times	1	1	1	1	1	1	1	-
Number of terminals	3	3	3	3	5	3	3	-
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	-
Maximum output current 1	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	-
Maximum output voltage 1	8.08 V	1.818 V	3.03 V	9.09 V	12 V	1.515 V	6.06 V	-
Minimum output voltage 1	7.92 V	1.782 V	2.97 V	8.91 V	1.5 V	1.485 V	5.94 V	-
Nominal output voltage 1	8 V	1.8 V	3 V	9 V	2.5 V	1.5 V	6 V	-
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	-
Encapsulate equivalent code	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB	SIP5,.1,67TB	SIP3,.1ISO-TB	SIP3,.1ISO-TB	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	-
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	TIN COPPER	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.778 mm	2.54 mm	2.54 mm	-
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum time at peak reflow temperature	10	10	10	10	10	10	10	-
Maximum voltage tolerance	1%	1%	1%	1%	-	1%	1%	-
Base Number Matches	1	1	1	1	1	1	-	-
