LC104 Overview

General Power Transformer

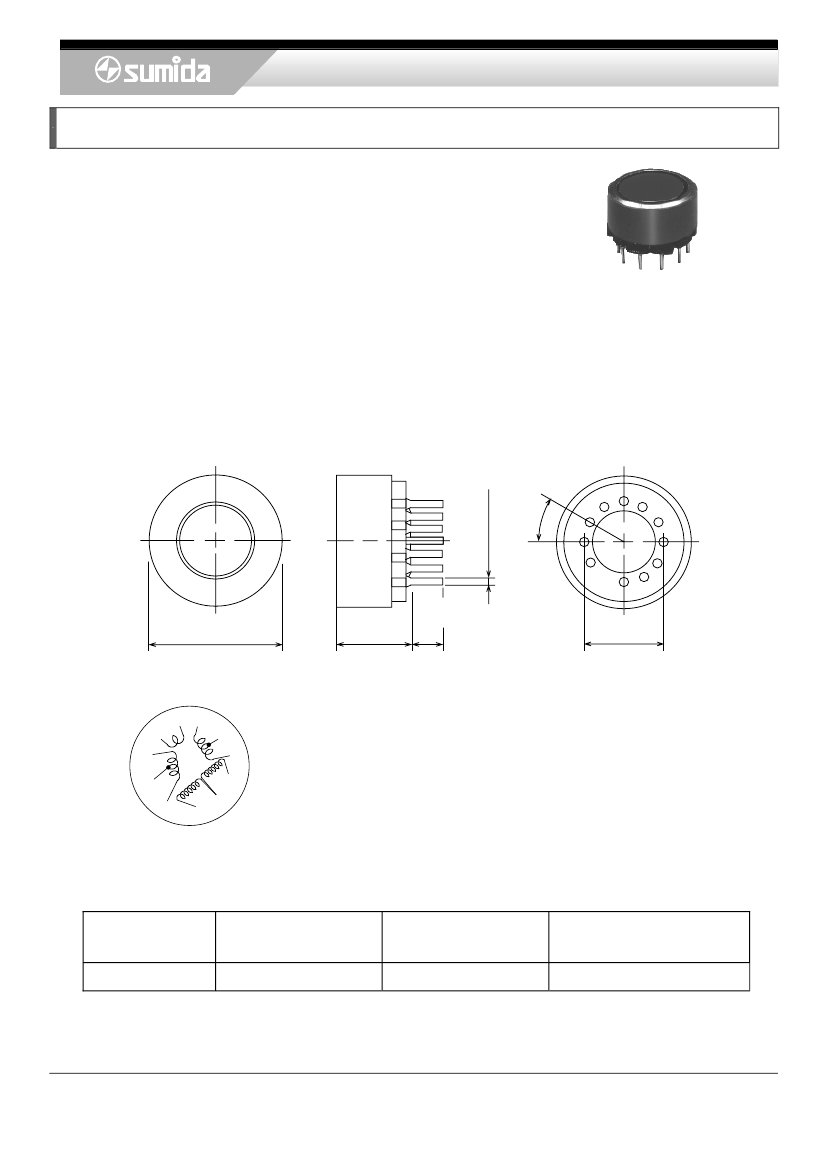

General Power Transformer <Pin Type: LC Series>
Type: LC104
Product Description
・¢10.7mm
Max.(L×W), 5.0mm Max. Height.
・In
addition to the typical versions of parameters shown here,
custom designs are available to meet your exact requirements.
Feature
・Magnetically
shielded construction.
・Max.
Operating frequency 500kHz. Max. Operating power 1.8W(500kHz)
・Ideally
used in Portable equipment, Drive for fluorescent display tube.
・RoHS
Compliance
Dimensions (mm)
φ10.1 +0.6
-0.4
+0.3
-0.5
4.6±0.4 2.5
φ0.5±0.1
30 。
8.0±0.3
Schematics (Bottom)
S
S
S
S
S
“S” is winding start.
Specification (LC104)
Sample No.
2362-T011
Inductance (1-3)
1kHz/1V
Insulation Resistance
(Winding-winding)
100Vdc 1min.
100MΩ Min.
Hi-pot
Winding-winding
100Vdc 1min./2mA
No damage
140µH ± 30%
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/1
