BAT43-TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAT43-TR

BAT43-TR: DescriptionSchottky Diodes & Rectifiers 30 Volt 200mA 4.0 Amp IFSM; CategoryDiscrete semiconductor diode; File Size83KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

BAT43-TR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BAT43-TR	-	-	View	Buy Now

BAT43-TR Overview

Schottky Diodes & Rectifiers 30 Volt 200mA 4.0 Amp IFSM

BAT43-TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	Vishay
Parts packaging code	DO-35
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.33 V
JEDEC-95 code	DO-35
JESD-30 code	O-XALF-W2
JESD-609 code	e2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	4 A
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	0.2 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
Maximum reverse recovery time	0.005 µs
surface mount	NO
technology	SCHOTTKY
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

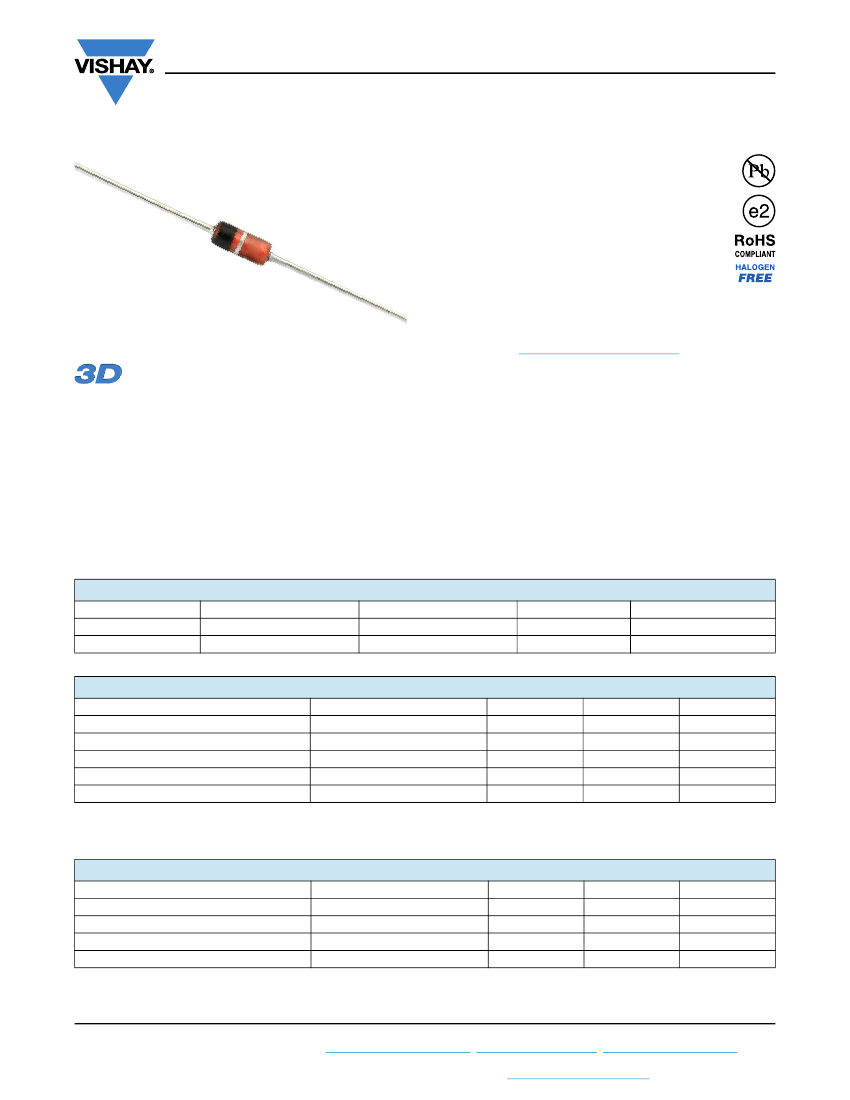

BAT42, BAT43

www.vishay.com

Vishay Semiconductors

Small Signal Schottky Diode

FEATURES

• For general purpose applications

• These diodes feature very low turn-on voltage

and fast guard ring against excessive voltage,

such as electrostatic discharges

• These diodes are also available in the SOD-123

case with the type designations BAT42W-V to

BAT43W-V and in MiniMELF SOD-80 case with

the type designations LL42 to LL43

• AEC-Q101 qualified

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

DESIGN SUPPORT TOOLS

click logo to get started

Models

Available

MECHANICAL DATA

Case:

DO-35 (DO-204AH)

Weight:

approx. 125 mg

Cathode band color:

black

Packaging codes/options:

TR/10K per 13" reel (52 mm tape), 50K/box

TAP/10K per ammo tape (52 mm tape), 50K/box

PARTS TABLE

PART

BAT42

BAT43

ORDERING CODE

BAT42-TR or BAT42-TAP

BAT43-TR or BAT43-TAP

CIRCUIT CONFIGURATION

Single

TYPE MARKING

BAT42

BAT43

REMARKS

Tape and reel/ammopack

ABSOLUTE MAXIMUM RATINGS

amb

= 25 °C, unless otherwise specified)

PARAMETER

Repetitive peak reverse voltage

Forward continuous current

(1)

Repetitive peak forward current

Surge forward current

(1)

Power dissipation

(1)

TEST CONDITION

SYMBOL

RRM

VALUE

200

500

200

UNIT

< 1 s,

< 0.5

< 10 ms

amb

= 65 °C

FRM

FSM

tot

Note

(1)

Valid provided that leads at a distance of 4 mm from case are kept at ambient temperature

THERMAL CHARACTERISTICS

amb

= 25 °C, unless otherwise specified)

PARAMETER

Thermal resistance junction to ambient air

Junction temperature

Ambient operating temperature range

Storage temperature range

(1)

TEST CONDITION

SYMBOL

thJA

amb

stg

VALUE

300

125

-65 to +125

-65 to +150

UNIT

K/W

°C

Note

(1)

Valid provided that leads at a distance of 4 mm from case are kept at ambient temperature

Rev. 1.8, 01-Jun-17

Document Number: 85660

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000
