B280-13-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B280-13-F

B280-13-F: DescriptionSchottky Diodes & Rectifiers 2.0A 80V; CategoryDiscrete semiconductor diode; File Size398KB，6 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

B280-13-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B280-13-F	-	-	View	Buy Now

B280-13-F Overview

Schottky Diodes & Rectifiers 2.0A 80V

B280-13-F Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
Factory Lead Time	19 weeks
Other features	LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.69 V
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

Green

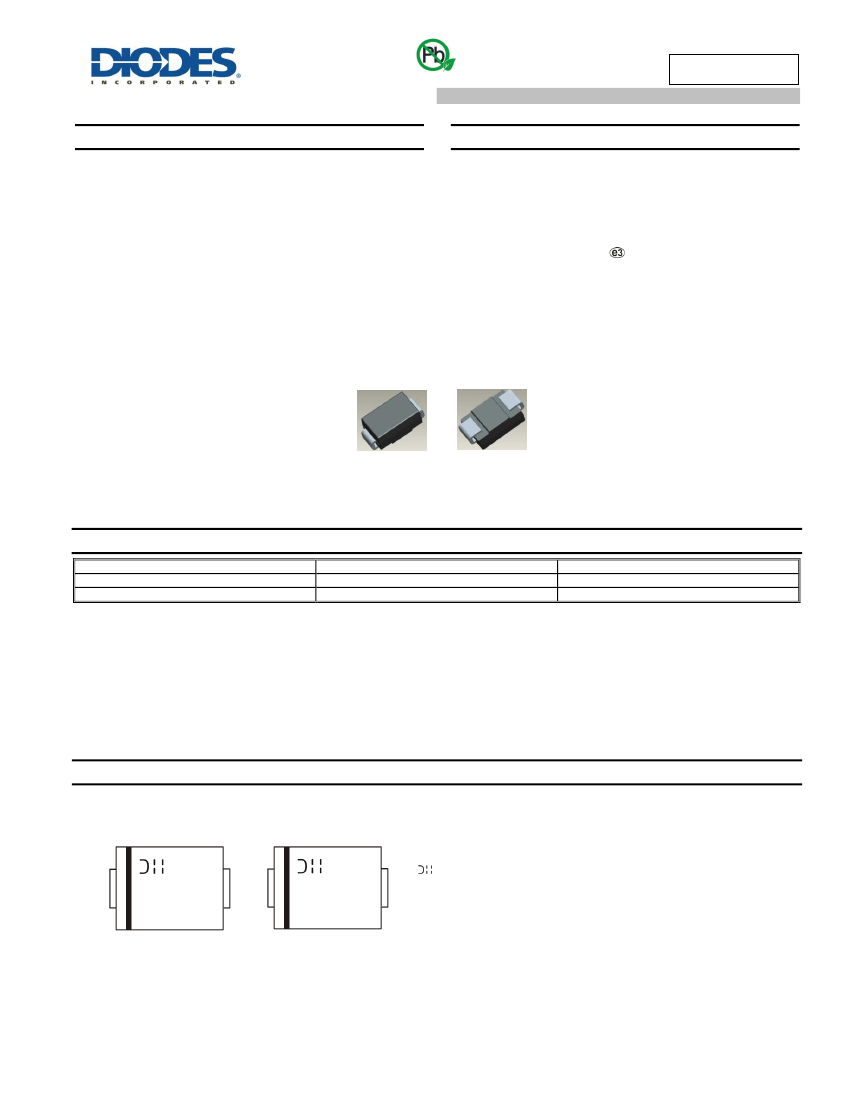

B270 - B2100

2.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER

Features



Schottky Barrier Chip

Guard Ring Die Construction for Transient Protection

Low Power Loss, High Efficiency

Surge Overload Rating to 50A Peak

For Use in Low Voltage, High Frequency Inverters, Free

Wheeling, and Polarity Protection Application

High Temperature Soldering: +260°

C/10 Second at Terminal

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Mechanical Data



Case: SMB

Case Material: Molded Plastic. UL Flammability Classification

Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Lead Free Plating (Matte Tin Finish). Solderable per

MIL-STD-202, Method 208

Polarity: Cathode Band or Cathode Notch

Weight: 0.093 grams (Approximate)

Top View

Bottom View

Ordering Information

(Note 4)

Part Number

B2xx-13-F

B2xxx-13-F

Notes:

Case

SMB

Packaging

3000/Tape & Reel

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at https://www.diodes.com/design/support/packaging/diodes-packaging/.

Marking Information

YWW

XXXX

YWW

XXXXX

XXXX/XXXXX = Product Type Marking Code, ex: B290 (SMB Package)

= Manufacturers’ Code Marking

YWW = Date Code Marking

Y = Last Digit of Year (ex: 7 for 2017)

WW = Week Code (01 to 53)

B270 - B2100

Document number: DS30021 Rev. 12 - 2

1 of 6

www.diodes.com

January 2018

B280-13-F Related Products

	B280-13-F	B270-13-F	B290-13-F	B2100-13-F
Description	Schottky Diodes & Rectifiers 2.0A 80V	Schottky Diodes & Rectifiers 2.0A 70V	Schottky Diodes & Rectifiers 90V 2A	Schottky Diodes & Rectifiers 100V 2A
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	R-PDSO-C2	ROHS COMPLIANT, PLASTIC, SMB, 2 PIN	R-PDSO-C2
Contacts	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE	LOW POWER LOSS, FREE WHEELING DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.69 V	0.69 V	0.69 V	0.69 V
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	80 V	70 V	90 V	100 V
surface mount	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40
Base Number Matches	1	1	1	1
Factory Lead Time	19 weeks	-	19 weeks	19 weeks
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-
