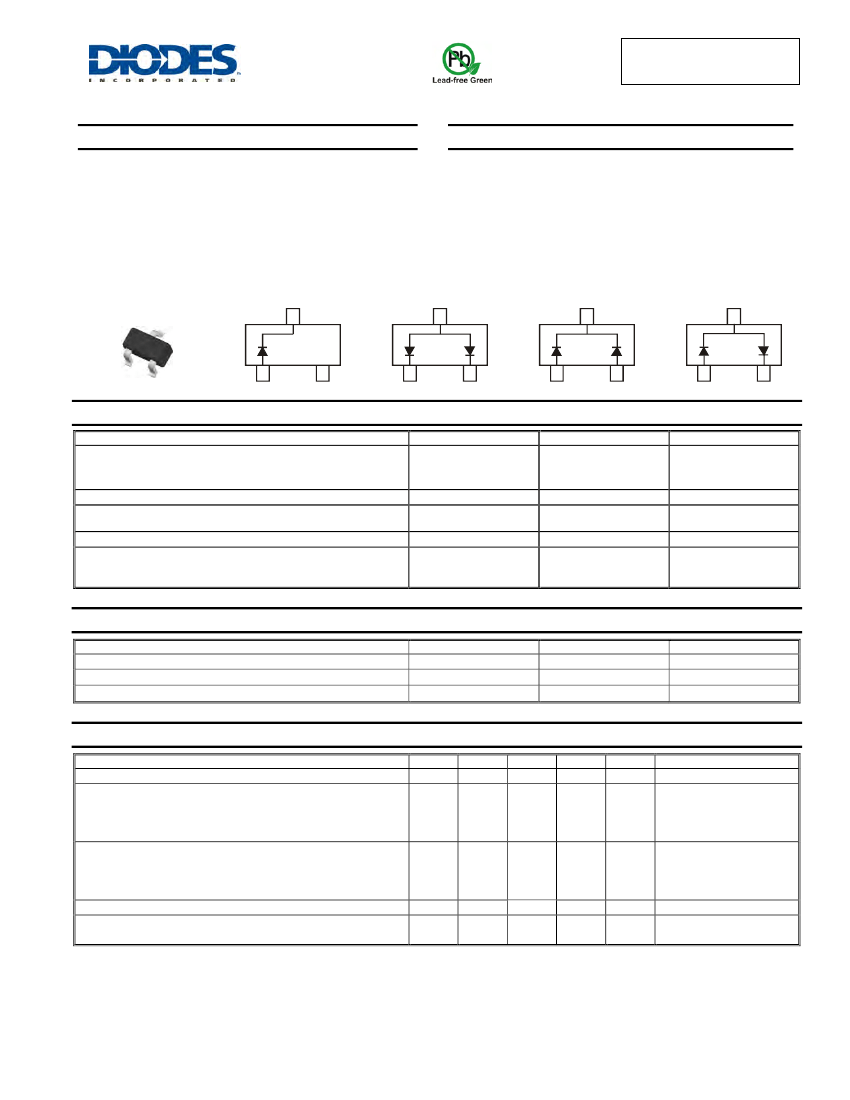

BAS16T, BAW56T,
BAV70T, BAV99T
SURFACE MOUNT FAST SWITCHING DIODE
Please click here to visit our online spice models database.
Features
•
•
•
•
•
•
Ultra-Small Surface Mount Package
Fast Switching Speed
For General Purpose Switching Applications
High Conductance
Lead Free/RoHS Compliant (Note 1)
"Green" Device (Note 3 and 4)
Mechanical Data
•
•
•
•
•
•
•
•
•
SOT-523
Case: SOT-523
Case Material - Molded Plastic. UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020D
Terminals: Solderable per MIL-STD-202, Method 208
Lead Free Plating (Matte Tin Finish)
Polarity: See Diagrams Below
Marking Information: See Diagrams Below & Page 2
Ordering Information: See Page 2
Weight: 0.002 grams (approximate)
TOP VIEW
BAS16T Marking: A2
BAW56T Marking: JD
BAV70T Marking: JJ
BAV99T Marking: JE
Maximum Ratings
@T
A
= 25°C unless otherwise specified
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
Single Diode
Double Diode
@ t = 1.0μs
@ t = 1.0ms
@ t = 1.0s
I
FM
I
FRM
I
FSM
Value
85
60
155
75
500
4.0
1.0
0.5
Unit
V
V
mA
mA
A
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 2)
Repetitive Peak Forward Current
Non-Repetitive Peak Forward Surge Current
Thermal Characteristics
Characteristic
Power Dissipation (Note 2)
Thermal Resistance Junction to Ambient (Note 2)
Operating and Storage Temperature Range
Symbol
P
D
R
θ
JA
T
J
, T
STG
Value
150
833
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
Characteristic
Reverse Breakdown Voltage (Note 5)
Forward Voltage
@T
A
= 25°C unless otherwise specified
Symbol
V
(BR)R
V
F
Min
85
⎯
Typ
⎯
⎯
Max
⎯
0.715
0.855
1.0
1.25
2.0
100
60
30
⎯
4.0
Unit
V
V
μA
μA
μA
nA
pF
ns
Test Condition
I
R
= 100μA
I
F
= 1.0mA
I
F
= 10mA
I
F
= 50mA
I
F
= 150mA
V
R
= 75V
V
R
= 75V, T
J
= 150°C
V
R
= 25V, T
J
= 150°C
V
R
= 25V
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 10mA,
I
rr
= 0.1 x I
R
, R
L
= 100Ω
Leakage Current (Note 5)
Total Capacitance
Reverse Recovery Time
Notes: 1.
2.
3.
4.
I
R
C
T
t
rr
⎯
⎯
⎯
⎯
1.5
⎯
No purposefully added lead.
Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
Product manufactured with Date Code UO (week 40, 2007) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code UO are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
5. Short duration pulse test used to minimize self-heating effect.
BAS16T, BAW56T,
BAV70T, BAV99T
Document number: DS30260 Rev. 10 - 2
1 of 3
www.diodes.com
March 2009
© Diodes Incorporated
BAS16T, BAW56T,
BAV70T, BAV99T
I
R
, INSTANTANEOUS REVERSE CURRENT (nA)
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
1
10,000
T
A
= 150ºC
T
A
= 125ºC
1,000
0.1
100
T
A
= 75ºC
10
T
A
= 25ºC
T
A
= 0ºC
0.01
1
T
A
= -40ºC
0.001
1.0
0.5
0
1.5
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)

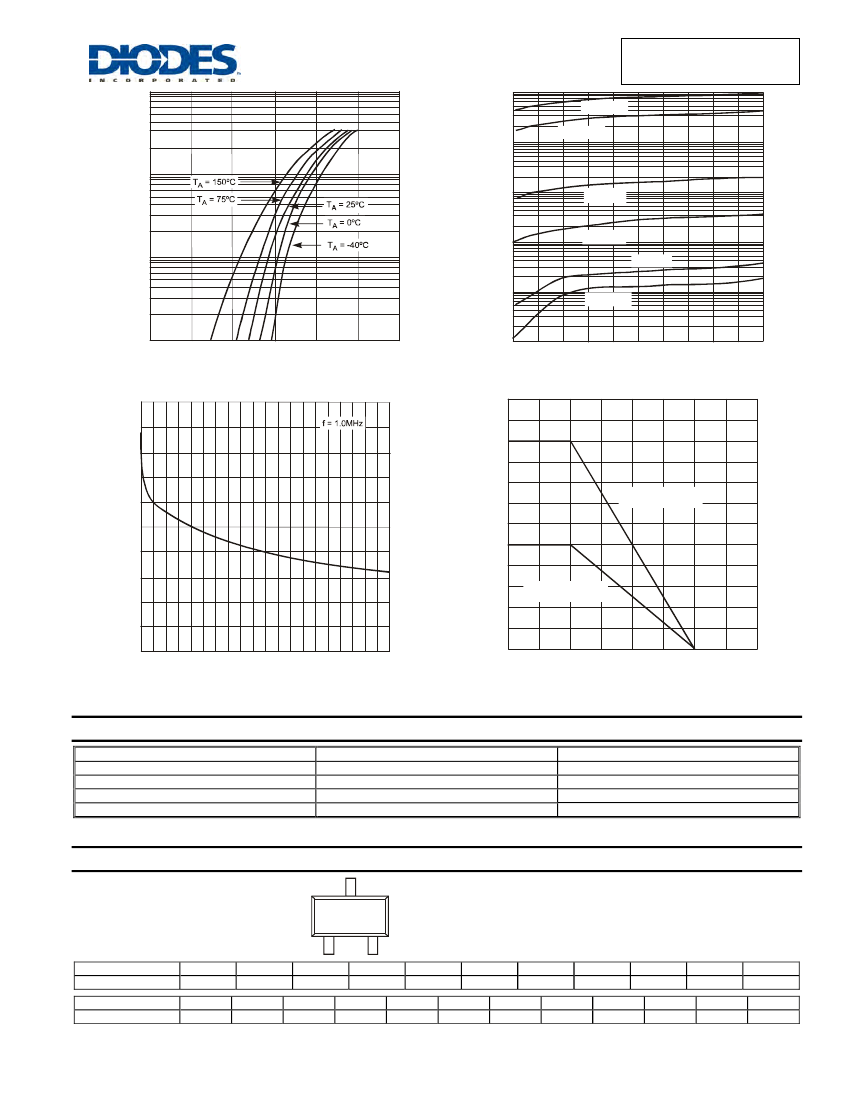

Fig. 1 Typical Forward Characteristics, Per Element
2.0
1.8
0.1
0
20
40
60
80
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 2 Typical Reverse Characteristics, Per Element
300
C
T
, TOTAL CAPACITANCE (pF)
250
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
10
30
40
0
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 3 Total Capacitance vs. Reverse Voltage, Per Element
I
F
, FORWARD CURRENT (mA)
1.6
200
Single diode loaded
150
100
Double diode loaded
50
0
0
50
100
150
200
T
s
, SOLDERING POINT TEMPERATURE
Fig. 4 Current Derating Curve, Total Package
Ordering Information
Part Number
BAS16T-7-F
BAW56T-7-F
BAV70T-7-F
BAV99T-7-F
Notes:
(Note 6)
Case
SOT-523
SOT-523
SOT-523
SOT-523
Packaging
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
3000/Tape & Reel
6. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
XX = Product Type Marking Code (See Page 1, e.g. A2 = BAS16T)
YM = Date Code Marking
Y = Year (ex: N = 2002)
M = Month (ex: 9 = September)
2006
T
May
5
Jun
6
2007
U
Jul
7
2008
V
Aug
8
2009
W
Sep
9
2010
X
Oct
O
2011
Y
Nov
N
2012
Z
Dec
D
XXYM
Date Code Key
Year
Code
Month
Code
2002
N
Jan
1
2003
P
Feb
2
2004
R
Mar
3
2005
S
Apr
4
BAS16T, BAW56T,
BAV70T, BAV99T
Document number: DS30260 Rev. 10 - 2
2 of 3
www.diodes.com
March 2009
© Diodes Incorporated
BAS16T, BAW56T,
BAV70T, BAV99T

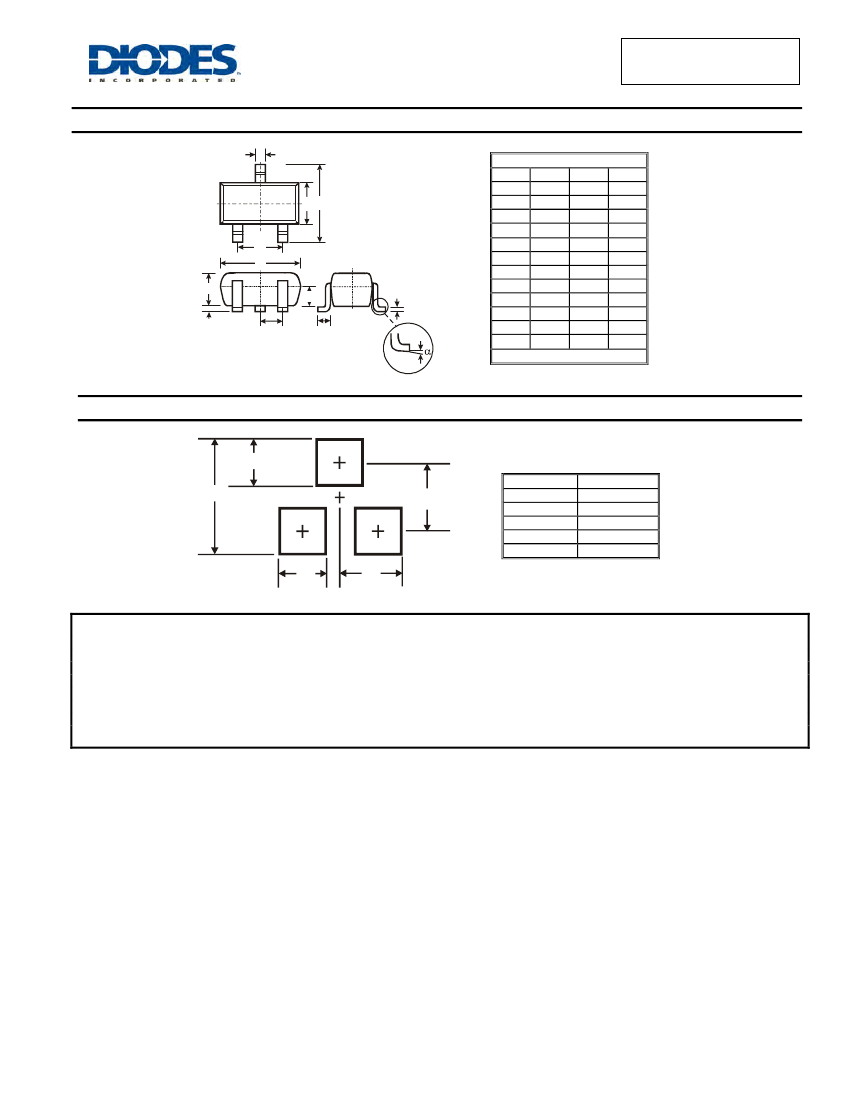

Package Outline Dimensions
A
B C
G
H
K
M
N
J
D
L
SOT-523
Dim
Min
Max
Typ
A
0.15
0.30
0.22
B
0.75
0.85
0.80
C
1.45
1.75
1.60
D
0.50
⎯
⎯
G
0.90
1.10
1.00
H
1.50
1.70
1.60
J
0.00
0.10
0.05
K
0.60
0.80
0.75
L
0.10
0.30
0.22
M
0.10
0.20
0.12
N
0.45
0.65
0.50
0°
8°
α
⎯
All Dimensions in mm
Suggested Pad Layout
Y
Z
C
Dimensions Value (in mm)
Z
1.8
X
0.4
Y
0.51
C
1.3
E
0.7
X
E
IMPORTANT NOTICE
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product
described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall
assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website,
harmless against all damages.
LIFE SUPPORT
Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written
approval of the President of Diodes Incorporated.
BAS16T, BAW56T,
BAV70T, BAV99T
Document number: DS30260 Rev. 10 - 2
3 of 3
www.diodes.com
March 2009
© Diodes Incorporated
