ICE2A165: DescriptionAC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V; CategoryPower/power management The power supply circuit; File Size959KB，37 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

ICE2A165 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ICE2A165	-	-	View	Buy Now

ICE2A165 Overview

AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V

ICE2A165 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Infineon
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR
control mode	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	21 V
Minimum input voltage	8.5 V
Nominal input voltage	15 V
JESD-30 code	R-PDIP-T8
length	9.52 mm
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.37 mm
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	107 kHz
Temperature level	OTHER
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

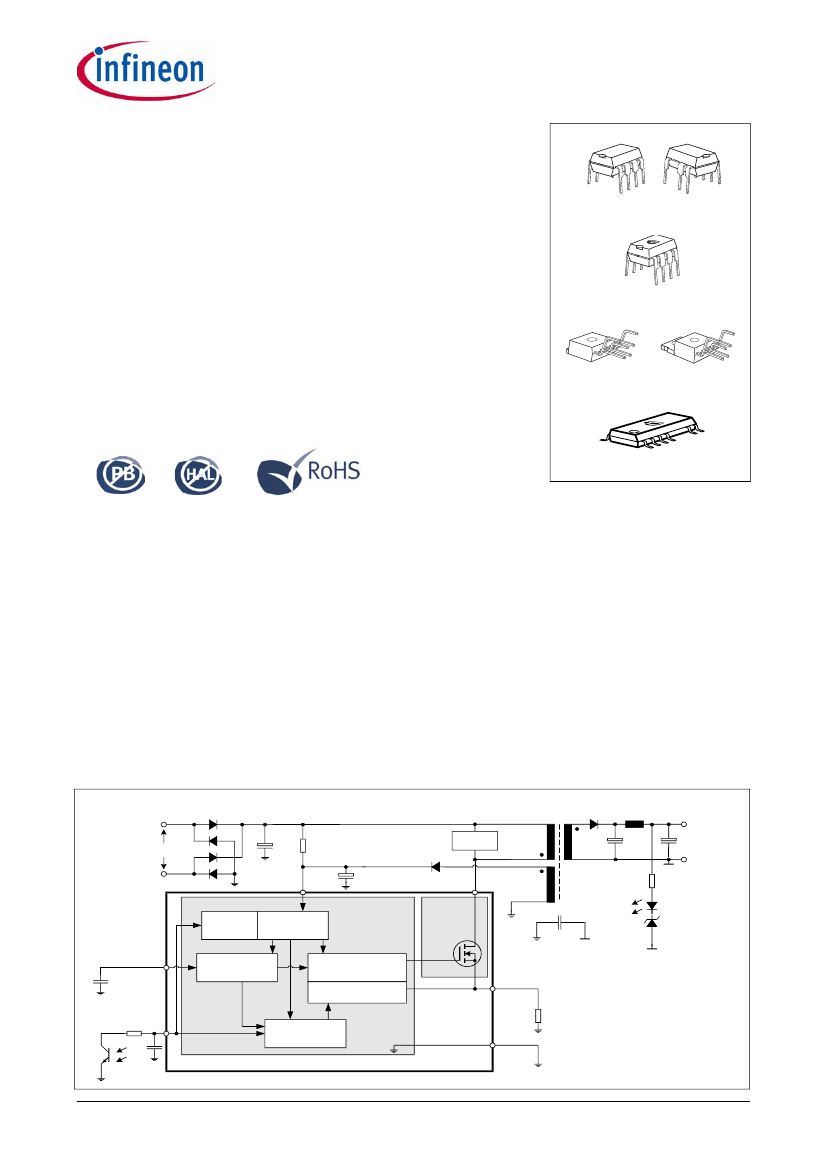

Datas heet, V2.10a , 25 Mar 2 014

CoolSET™-F2

ICE2A0565/165/265/365

ICE2B0565/165/265/365

ICE2A0565G

ICE2A0565Z

ICE2A180Z/280Z

ICE2A765I/2B765I

ICE2A765P2/2B765P2

ICE2A380P2

Off-Line SMPS Current Mode

Controller with integrated 650V/

800V CoolMOS™

PMM Power Management

&Multimarket

CoolSET™-F2

Revision History:

Previous Version: 2.10

Page

4, 22, 24

Subjects (major changes since last revision)

revised typo

2014-3-25

Datasheet

For questions on technology, delivery and prices please contact the Infineon Technologies Offices in Germany or

the Infineon Technologies Companies and Representatives worldwide: see our webpage at http://

www.infineon.com.

CoolMOS™, CoolSET™ are trademarks of Infineon Technologies AG.

Edition 2014-3-25

Published by

Infineon Technologies AG,

81726 Munich, Germany,

2014 Infineon Technologies AG.

Legal disclaimer

The information given in this document shall in no event be regarded as a guarantee of conditions or

characteristics. With respect to any examples or hints given herein, any typical values stated herein and/or any

information regarding the application of the device, Infineon Technologies hereby disclaims any and all warranties

and liabilities of any kind, including without limitation, warranties of non-infringement of intellectual property rights

of any third party.

Information

For further information on technology, delivery terms and conditions and prices, please contact your nearest

Infineon Technologies Office (www.infineon.com).

Warnings

Due to technical requirements, components may contain dangerous substances. For information on the types in

question, please contact your nearest Infineon Technologies Office.

Infineon Technologies Components may be used in life-support devices or systems only with the express written

approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure

of that life-support device or system or to affect the safety or effectiveness of that device or system. Life support

devices or systems are intended to be implanted in the human body or to support and/or maintain and sustain

and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may

be endangered.

CoolSET™-F2

Table of Contents

1.1

1.2

1.3

1.4

1.5

3.1

3.2

3.2.1

3.2.2

3.3

3.4

3.4.1

3.4.2

3.5

3.5.1

3.5.2

3.6

3.7

3.8

3.8.1

3.8.2

3.8.3

4.1

4.2

4.3

4.4

4.4.1

4.4.2

4.4.3

4.4.4

4.4.5

4.4.6

Page

Pin Configuration and Functionality

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pin Configuration with PG-DIP-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pin Configuration with PG-DIP-7-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Pin Configuration with PG-TO220-6-46/7 . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Pin Configuration with PG-DSO-16/12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Pin Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Representative Blockdiagram

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Functional Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Improved Current Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

PWM-OP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

PWM-Comparator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Soft-Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Oscillator and Frequency Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Frequency Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Current Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Leading Edge Blanking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Propagation Delay Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

PWM-Latch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Protection Unit (Auto Restart Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Overload / Open Loop with Normal Load . . . . . . . . . . . . . . . . . . . . . . . .15

Overvoltage due to Open Loop with No Load . . . . . . . . . . . . . . . . . . . . .16

Thermal Shut Down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Electrical Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Thermal Impedance (ICE2X765I and ICE2X765P2) . . . . . . . . . . . . . . . . . .20

Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Supply Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Internal Voltage Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Control Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Protection Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Current Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

CoolMOS™ Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Typical Performance Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . .26

Layout Recommendation for C

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Outline Dimension

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

25 Mar 2014

Version 2.10a

ICE2A165 Related Products

	ICE2A165	ICE2A280ZXKLA1	ICE2A280Z	ICE2A265	ICE2A0565	ICE2A180Z
Description	AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V	AC/DC Converters AC/DC COOLSET	AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 800V	AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V	AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 650V	AC/DC Converters COOLSET IC CUR-MODE PWM CTRLR 800V
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Infineon	Infineon	Infineon	Infineon	Infineon	Infineon
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP8,.3	DIP,	DIP, DIP7/8,.3	GREEN, PLASTIC, DIP-8	DIP, DIP8,.3	DIP, DIP7/8,.3
Contacts	8	7	7	8	8	7
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR	SWITCHING REGULATOR
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION	PULSE WIDTH MODULATION
Maximum input voltage	21 V	21 V	21 V	21 V	21 V	21 V
Minimum input voltage	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V	8.5 V
Nominal input voltage	15 V	15 V	15 V	15 V	15 V	15 V
JESD-30 code	R-PDIP-T8	R-PDIP-T7	R-PDIP-T7	R-PDIP-T8	R-PDIP-T8	R-PDIP-T7
length	9.52 mm	9.52 mm	9.52 mm	9.52 mm	9.52 mm	9.52 mm
Number of functions	1	1	1	1	1	1
Number of terminals	8	7	7	8	8	7
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum output current	1 A	2 A	2 A	2 A	0.5 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.37 mm	4.37 mm	4.37 mm	4.37 mm	4.37 mm	4.37 mm
surface mount	NO	NO	NO	NO	NO	NO
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	107 kHz	107 kHz	107 kHz	107 kHz	107 kHz	107 kHz
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm	7.62 mm
Encapsulate equivalent code	DIP8,.3	-	DIP7/8,.3	DIP8,.3	DIP8,.3	DIP7/8,.3
