PAM8100

Green

3-VRMS Line Driver with Adjustable Gain

Description

The PAM8100 is a 3-VRMS pop-free stereo line driver designed to

allow the removal of the output DC-blocking capacitors for reduced

component count and cost. The device is ideal for single-supply

electronics where size and cost are critical design parameters.

The PAM8100 is capable of driving 3Vrms into a 2.5-kΩ load with 5-V

supply voltage. The device has differential inputs and uses external

gain-setting resistors to support a gain range of ±1 V/V to ±10 V/V.

The PAM8100 has built-in mute control for pop-free on/off control.

The PAM8100 has an external and internal undervoltage detector that

mutes the output.

Using the PAM8100 in audio products can reduce component count

considerably compared to traditional methods of generating a 3-Vrms

output.

The PAM8100 is available in a 14-pin TSSOP.

Pin Assignments

TSSOP-14

+INR

-INR

OUTR

SGND

MUTE

PVSS

CN

+INL

-INL

OUTL

UVP

PGND

PVDD

CP

Features



Eliminates Pop/Clicks

-

Eliminates Output DC-Blocking Capacitors

-

Provides Flat Frequency Response 20Hz-

20kHz

Low Noise and THD

-

SNR > 105 dB

-

Typical Vn < 13uVms

-

THD+N < 0.005%

Output Voltage Into 2.5-kΩ Load

-

2 Vrms With 3.3V Supply Voltage

-

3 Vrms With 5V Supply Voltage

Differential Input

-

External Undervoltage Mute

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Applications



PDP / LCD TVs

Blu-ray Disc™, DVD Players

Home Theater in a Box

Set-Top Boxes



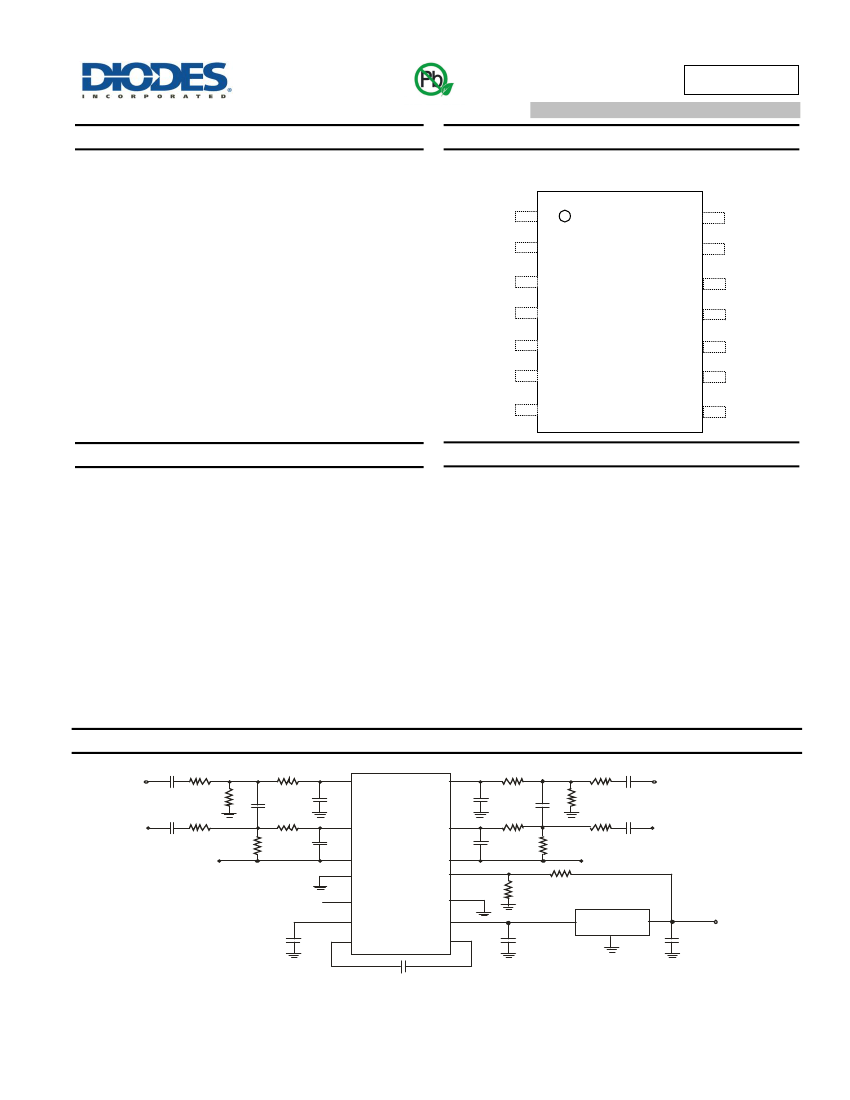

Typical Applications Circuit

C3

+

RIGHT

INPUT

C3

-

R2

RIGHT

OUTPUT

C1

3

R1

R2

C2

R3

2

- INR

- INL

13

C1

12

11

R11

5

EN

PGND

PVDD

CP

10

9

8

5V Supply

1uF

R12

R3

R2

LEFT

OUTPUT

C1

R1

R3

1

+

+INR

+INL

14

C1

R3

R2

C2

R1

C3

LEFT

INPUT

R1

C3

-

PAM8100

OUTR

OUTL

UVP

4 SGND

6 PVSS

1uF

7 CN

Linear Low

Drop

System Supply

1uF

Notes:

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

PAM8100

Document number: DS36986 Rev. 1 - 2

1 of 7

www.diodes.com

December 2015

PAM8100

Pin Descriptions

Pin Number

1

2

3

4

5

6

7

8

9

10

11

12

13

14

Name

+INR

-INR

OUTR

SGND

MUTE

PVSS

CN

CP

PVDD

PGND

UVP

OUTL

-INL

+INL

I/O

I

O

P

I

P

I/O

P

I

O

I

Description

Right-channel OPAMP positive input

Right-channel OPAMP negative input

Right-channel OPAMP output

Signal ground

Mute, active-high

Supply voltage

Charge-pump flying capacitor negative terminal

Charge-pump flying capacitor positive terminal

Positive supply

Power ground

Under voltage protection input

Left-channel OPAMP output

Left-channel OPAMP negative input

Left-channel OPAMP positive input

Absolute Maximum Ratings

(@T

A

= +25°C, unless otherwise specified.)

Symbol

V

DD

V

I

T

A

T

J

T

STG

Supply Voltage

Input Pins

Operating Free-Air Temperature Range

Operating Junction Temperature Range

Storage Temperature Range

Description

VALUE

–0.3 to 6.0

GND-0.3 to VDD + 0.3

–40 to +85

–40 to +150

–65 to +150

UNIT

V

°C

Recommended Operating Conditions

(@T

A

= +25°C, unless otherwise specified.)

Symbol

VIN

RL

VIH

VIL

TA

Supply Voltage

Load Impedance

High-Level Input Voltage

Low-Level Input Voltage

Operating Free-Air Temperature

Parameter

-

MUTE

Min

2.5

0.6

1.2

-0.3

-40

Nom

-

10

-

25

Max

5

-

V

IN

0.4

+85

Unit

V

kΩ

V

°C

Thermal Information

Parameter

Thermal Resistance (Junction to Ambient)

Thermal Resistance (Junction to Case)

Symbol

θ

JA

θ

JC

Package

TSSOP-14

Maximum

35

14

Unit

°C/W

PAM8100

Document number: DS36986 Rev. 1 - 2

2 of 7

www.diodes.com

December 2015

PAM8100

Electrical Characteristics

Unless otherwise specified.)

(@VDD=3.3V, TA=+25°C, RL=10kΩ, C(PUMP)=C(PVSS) =1μF , CIN=2.2μF, RIN=15kΩ, Rfb=30kΩ,

PARAMETER

Output Offset Voltage

Power-Supply Rejection Ratio

High-Level Output Voltage

Low-Level Output Voltage

MUTE High

MUTE Low

Supply Current

Output Voltage (outputs in

phase)

Total Harmonic Distortion Plus

Noise

Crosstalk

Maximum Capacitive Load

Noise Output Voltage

Signal-to-Noise Ratio

External UnderVoltage Detection

External Under-Voltage

Detection Hysteresis Current

Charge Pump Frequency

Symbol

V

OS

P

SRR

V

OH

V

OL

V

IH

V

IL

I

DD

No load

Conditions

Min

-

3.1

-

1.5

-

2.0

-

200

Typ

-

70

-

10

2.4

0.0015

-110

470

13

104

1.25

5

300

Max

3

-

-3.05

-

0.4

-

400

Units

mV

dB

V

mA

Vrms

%

dB

pF

uVrms

dB

V

µA

kHz

Input AC-GND,

f=1kHz,Vpp=200mV

VDD=3.3V

No load, MUTE=VDD

No load, MUTE=GND

THD=1%, VDD=3.3V, f=1kHz

VO=2Vrms, f=1kHz

VO=1Vrms, f=1kHz

-

Input AC-GND, A-weighted

VO=2Vrms, A-weighted

-

Vo

THD+N

CS

MCL

V

N

SNR

V

UVP

IHYSI

f

CP

PAM8100

Document number: DS36986 Rev. 1 - 2

3 of 7

www.diodes.com

December 2015

PAM8100

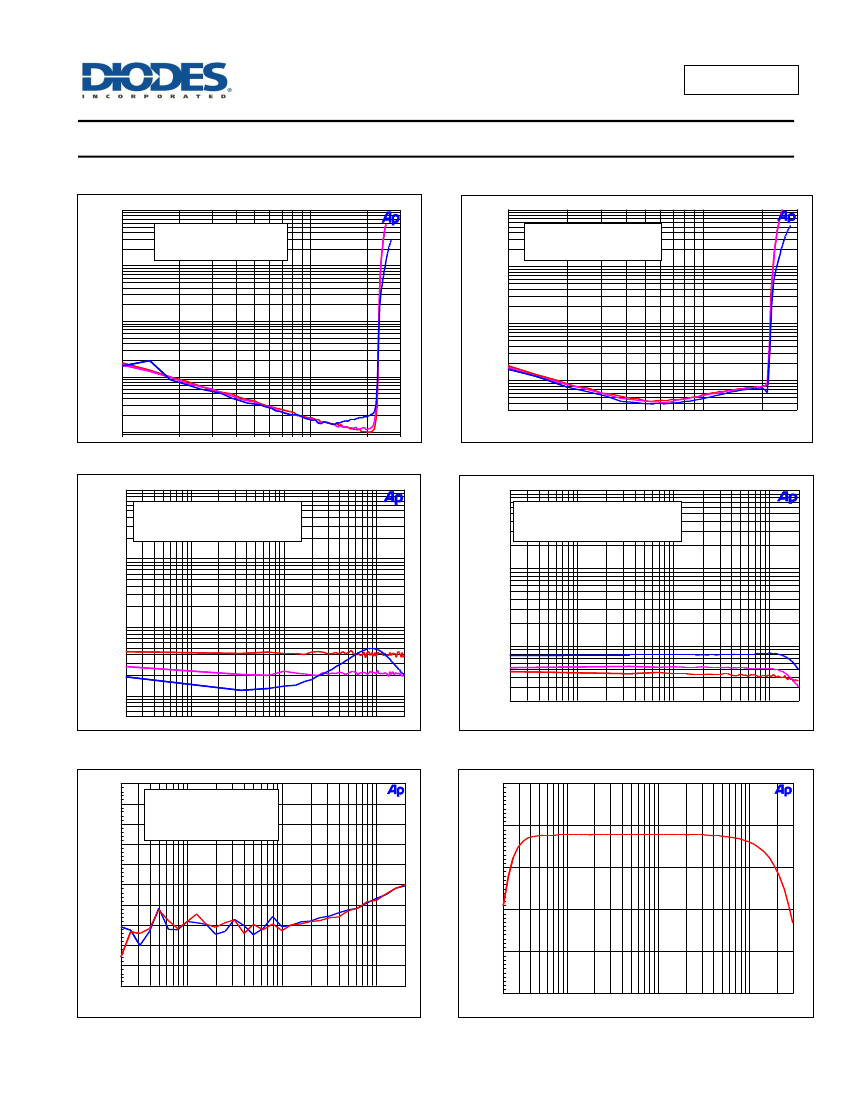

Performance Characteristics

(@T

A

=+25°C, VDD=3.3V, C(PUMP)=C(PVSS) =1μF , CIN=2.2μF, RIN=15 kΩ, Rfb=30kΩ,unless

otherwise specified.)

THD+N vs. Output Voltage (RL=10kΩ)

10

5

10

5

THD+N vs. Output Voltage (RL=600Ω)

2

1

0.5

f=100Hz/1kHz/10kHz

(Red/Pink/Blue)

2

1

0.5

f=100Hz/1kHz/10kHz

(Red/Pink/Blue)

0.2

%

0.2

0.1

0.05

%

0.1

0.05

0.02

0.01

0.005

0.02

0.01

0.005

0.003

100m

200m

300m

400m 500m

V

700m

1

2

3

0.002

0.0009

100m

200m

300m

400m 500m

V

700m

1

2

3

THD+N vs. Frequency (RL=10kΩ)

1

0.5

1

THD+N vs. Frequency (RL=600Ω)

VO=0.5Vrms/1 Vrms /2 Vrms

(Red/Pink/Blue)

0.5

VO=0.5Vrms/1 Vrms /2 Vrms

(Red/Pink/Blue)

0.2

0.1

0.05

%

0.05

%

0.02

0.01

0.02

0.005

0.01

0.005

0.002

0.001

0.0006

20

50

100

200

500

Hz

1k

2k

5k

10k

20k

0.002

20

50

100

200

500

Hz

1k

2k

5k

10k

20k

Crosstalk vs. Frequency (RL=10kΩ)

-70

+8

Gain vs. Frequency (RL=10kΩ)

-76

-82

VO=1Vrms, Vref=1V

Red---Left to Right

Blue---Right to Left

+6.4

-88

-94

d

B

d

B

g

A

+4.8

-100

-106

+3.2

-112

-118

+1.6

-124

-130

20

50

100

200

500

Hz

1k

2k

5k

10k

20k

+0

20

50

100

200

500

Hz

1k

2k

5k

10k

20k 30k

PAM8100

Document number: DS36986 Rev. 1 - 2

4 of 7

www.diodes.com

December 2015

PAM8100

Ordering Information

PAM8100 X X X

Package Type

R: TSSOP

Pin Configuration

R: 14 Pin

Shipping Package

R: Tape & Real

Part Number

PAM8100RRR

Package Type

TSSOP-14

Shipping

2,500/Tape & Real

Marking Information

TSSOP-14

XXX: Internal Code

Y: Year: 1, 2, 3 ~

W: Week: "A~Z" means week

1 to week 26; "a~y" mean

week 27 to 51, "z" means 52

and 53

PAM8100

XXXYW

5 of 7

www.diodes.com

PAM8100

Document number: DS36986 Rev. 1 - 2

December 2015
