BAT43WS-E3-18

Description
Schottky Diodes & Rectifiers 30Volt 200mA 4A IFSM
CategoryDiscrete semiconductor    diode
File Size85KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

BAT43WS-E3-18 Online Shopping

Suppliers Part Number Price MOQ In stock
BAT43WS-E3-18 - - View Buy Now

BAT43WS-E3-18 Overview

Schottky Diodes & Rectifiers 30Volt 200mA 4A IFSM

BAT43WS-E3-18 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerVishay
package instructionR-PDSO-G2
Contacts2
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.33 V
JESD-30 codeR-PDSO-G2
JESD-609 codee3
Humidity sensitivity level1
Maximum non-repetitive peak forward current4 A
Number of components1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Maximum power dissipation0.15 W
Maximum repetitive peak reverse voltage30 V
Maximum reverse recovery time0.005 µs
surface mountYES
technologySCHOTTKY
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10

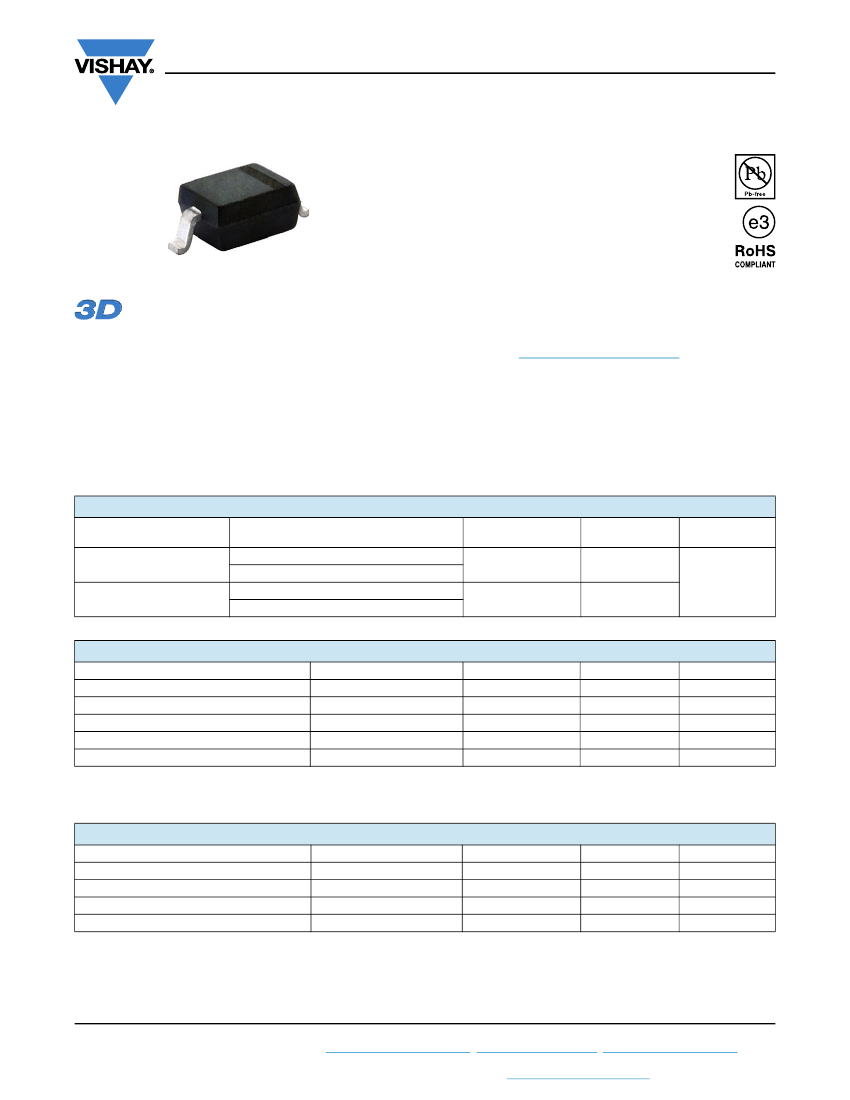

BAT42WS, BAT43WS
www.vishay.com
Vishay Semiconductors
Small Signal Schottky Diode
FEATURES
• These diodes feature very low turn-on voltage
and fast switching. These devices are
protected by a PN junction guard ring against
excessive voltage, such as electrostatic
discharges
• For general purpose applications
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
• AEC-Q101 qualified available
• Base P/N-E3 - RoHS-compliant, commercial grade
• Base P/N-HE3 - RoHS-compliant, AEC-Q101 qualified
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL DATA
Case:
SOD-323
Weight:
approx. 4.3 mg
Packaging codes/options:
18/10K per 13" reel (8 mm tape), 10K/box
08/3K per 7" reel (8 mm tape), 15K/box
PARTS TABLE
PART
BAT42WS
BAT43WS
ORDERING CODE
BAT42WS-E3-08 or BAT42WS-E3-18
BAT42WS-HE3-08 or BAT42WS-HE3-18
BAT43WS-E3-08 or BAT43WS-E3-18
BAT43WS-HE3-08 or BAT43WS-HE3-18
CIRCUIT
CONFIGURATION
Single
Single
TYPE MARKING
L2
Tape and reel
L3
REMARKS
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Repetitive peak reverse voltage
Forward continuous current
Surge forward current
Power dissipation
(1)
Note
(1)
Valid provided that electrodes are kept at ambient temperature
(1)
(1)
(1)
TEST CONDITION
SYMBOL
V
RRM
I
F
VALUE
30
200
500
4
150
UNIT
V
mA
mA
A
mW
Repetitive peak forward current
t
p
< 1 s,
δ
< 0.5
t
p
< 10 ms
I
FRM
I
FSM
P
tot
THERMAL CHARACTERISTICS
(T
amb
= 25 °C, unless otherwise specified)
PARAMETER
Thermal resistance junction to ambient air
Junction temperature
Operating temperature range
Storage temperature range
Note
(1)
Valid provided that electrodes are kept at ambient temperature
(1)
TEST CONDITION
SYMBOL
R
thJA
T
j
T
op
T
stg
VALUE
650
125
-55 to +125
-55 to +150
UNIT
K/W
°C
°C
°C
Rev. 1.6, 01-Jun-17
Document Number: 81813
1
For technical questions within your region:
DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
