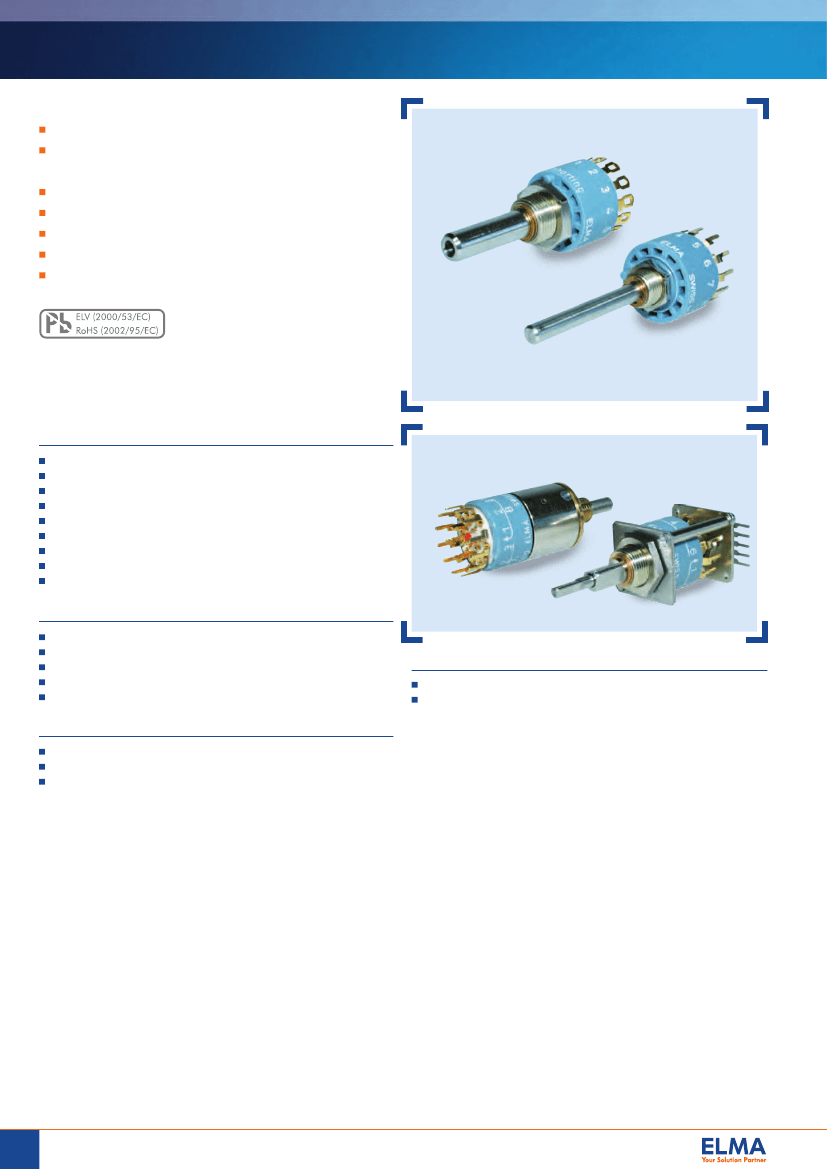

Selector Switch Type 01
Compact 12 positions selector switch
25,000 switching cycles with up to 6.0 Ncm
switching torque
Gold plated contacts: 3 micron
Robust metal housing with metal shaft
Optional IP68 front panel sealing
Operating temperature range: -40 to +85°C
Various options and customization
Standard Product Variety
Soldering eyelets or pins for PCB
From 1 x 12 to 4 x 3 poles/positions per wafer
Single or dual wafer
30, 36 or 60° indexing angle
Shorting or non-shorting
2.0, 4.0 or 6.0 Ncm switching torque
IP60 or IP68 front panel sealing
Configurable end stops
Shaft diameter: 3, 4 or 6 mm
Examples of Customization
Possible Customization
Shaft dimensions and shape
Bushing dimensions
Switching torque
Hollow shaft, inner shaft
Others
Examples of Customization
Interlock function; pull-to-turn
Dual concentric version with E33 Encoder feed through
Typical Applications
Industrial controls
Avionics, instrumentation, test systems
Medical and audio equipment
41
Rotary Switches
www.elma.com
Selector Switch Type 01
Preference Types Selection Chart
1
Indexing Angle 30°, Shorting
Contact
Arrangement
Construction
Function
(Poles x Positions)
1 x 12, endless rotating
2 x 12, endless rotating
1 x 12
2 x 12
1 x 11
2 x 11
2x6
4x6
4x3
8x3
With Solder Eyelets
01-1123
01-2123
01-1183
01-2183
01-1113
01-2113
01-1263
01-2263
01-1433
01-2433
With Pins for PCB
01-1123-20
–
01-1183-20
–
01-1113-20
–
01-1263-20
–
01-1433-20
–
Indexing Angle 30°, Non-Shorting
Contact
Arrangement
Construction
Function
(Poles x Positions)
1 x 12, endless rotating
1 x 12
1 x 11
2x6
4x3
With Solder Eyelets
01-1124
01-1184
01-1114
01-1264
01-1434
With Pins for PCB
01-1124-20
01-1184-20
01-1114-20
01-1264-20
01-1434-20
Indexing Angle 36°, Shorting
Contact
Arrangement
Construction
Function
(Poles x Positions)
1 x 10, endless rotating
1 x 10
With Solder Eyelets
01-1103
01-1193
With Pins for PCB
01-1103-20
01-1193-20
Indexing Angle 60°, Non-Shorting
Contact
Arrangement
Construction
Function
(Poles x Positions)
1 x 6, endless rotating
1x6
2x3
4x2
With Solder Eyelets
01-1104
01-1164
01-1234
01-1424
With Pins for PCB
01-1104-20
01-1164-20
01-1234-20
01-1424-20
Stop Pins
Packaging Unit
10 pcs.
50 pcs.
1
Order Number
4007-36
4007-35
On switches with fixed end-stop, additional stops can be set, by means of
a plastic pin, on any position between 2 and the maximum (stop pins to be
ordered separately).
For other types/options, see type key.
www.elma.com
Rotary Switches
42
Selector Switch Type 01

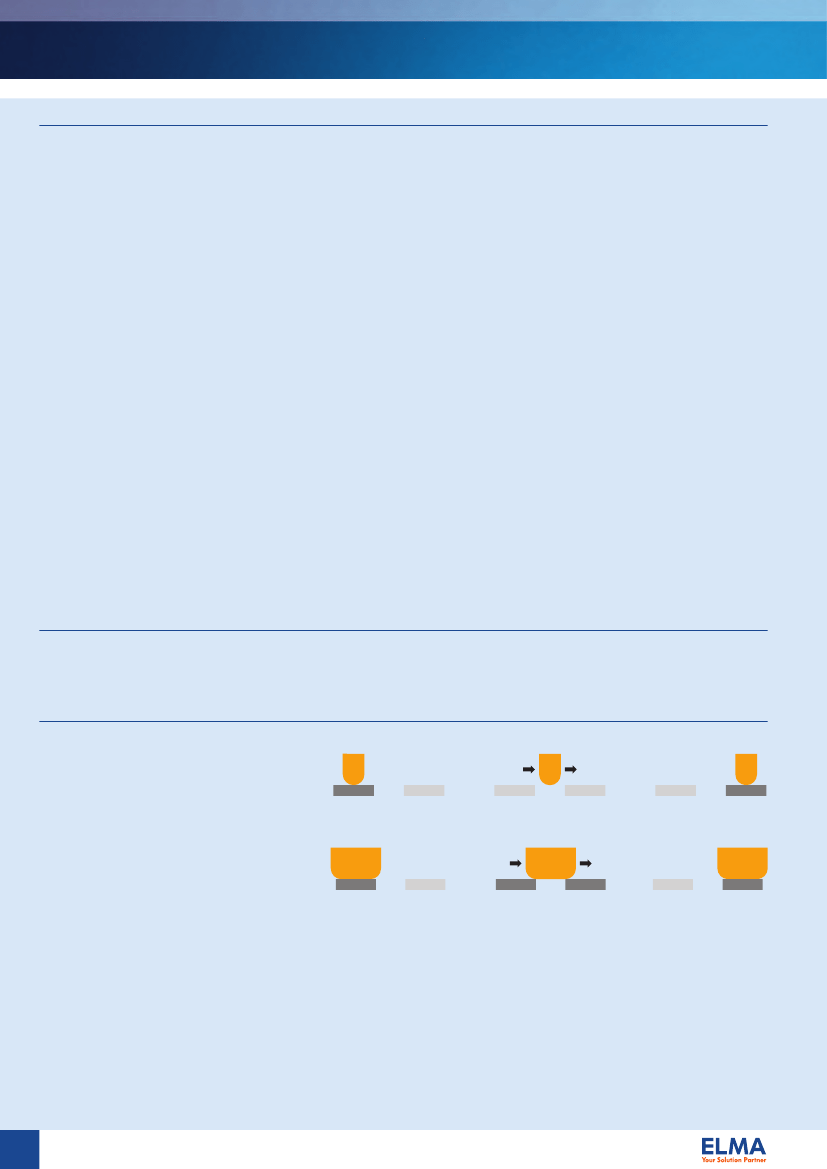

Specifications
Mechanical Data
Resolution: ........................................................................12 positions max. (30° indexing); shorting or non-shorting
10 positions max. (36° indexing); shorting
6 positions max. (60° indexing); non-shorting
Switching torque (new condition):........................................2.0, 4.0 or 6.0 Ncm (+/- 25%), additional wafers may increase switching torque
Rotational life: ...................................................................25,000 switching cycles min.
Fastening torque of nut: .....................................................300 Ncm max.
Electrical Data
Functions:..........................................................................From 1 x 12 to 4 x 3 poles/positions per wafer (max. 2 wafers)
Switching mode: ................................................................Shorting (for 30° and 36° indexing)
Non-shorting (for 30° and 60° indexing)
Load current: .....................................................................2 A max. (resistive load)
Switching voltage: ..............................................................42 VDC max.
Contact resistance (new condition): .....................................10 mOhms max.
Insulation resistance: ..........................................................10
11
Ohms min. (contact to contact/housing)
Switching capacitance: .......................................................1 pF max. (contact to contact)
Dielectric withstanding voltage:...........................................500 VDC during 60 seconds
Material Data
Shaft: ................................................................................Stainless steel
Bushing: ............................................................................Nickel silver
Housing: ...........................................................................Fiber enforced plastic
Nut: ..................................................................................Brass with glossy nickel plating
Contact plating: .................................................................AuCo (hard gold); 3 µm
Insulation material: ............................................................Wafer: HF ceramic, rotor: Polybutylene (PBTB)
Soldering leads:.................................................................Alloy copper, AuCo plated (hard gold)
Environmental Data
Operating/storage temperature range: ...............................-40 to +85°C
IP sealing: .........................................................................IP60, optional IP68 (2 bar, 1 hour) shaft/front panel sealing
Vibration: ..........................................................................10 G
rms
max. @ 10 to 2000 Hz
Flammability:.....................................................................UL94-HB
Packaging Sizes
Tray: .................................................................................10 pcs.
Soldering Conditions
Hand soldering:.................................................................340°C max. during 2 s max.
Wave soldering: .................................................................280°C max. peak temperature during 5 s max.
Switching Modes
Non-Shorting
(break before make)
Contact bridge
Contact bridge
Contact bridge
Contact 1
Contact 2
Contact 1
Contact 2
Contact 1
Contact 2
Shorting
(make before break)
Contact bridge
Contact bridge
Contact bridge
Contact 1
Contact 2
Contact 1
Contact 2
Contact 1
Contact 2
43
Rotary Switches
www.elma.com
Selector Switch Type 01

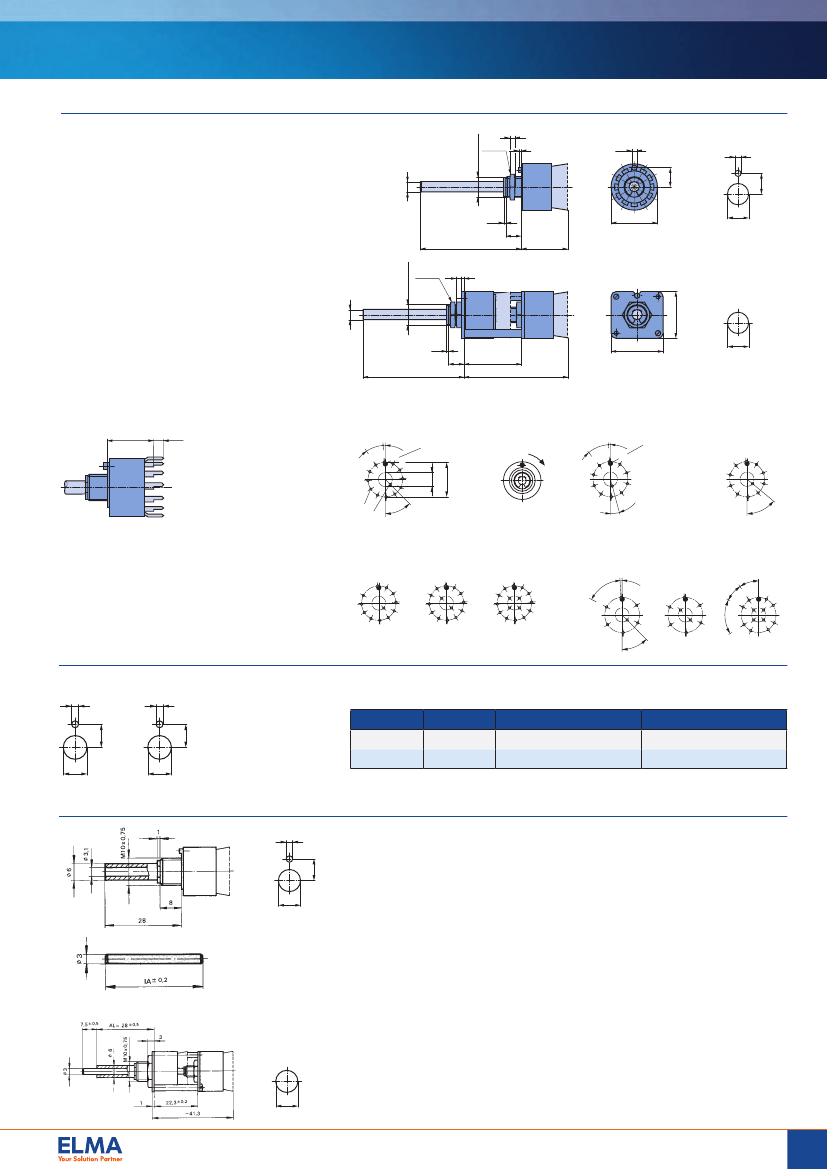

Drawings
With Solder Eyelets
M8 x 0,75
SW= Key spanner
SW10
2
1
ø2
Front panel cut out
2,2
7,5
7,5
ø4
0,8
6
AL = 39,2
18
ø18
8,2
M8 x 0,75
SW10 2
1
18,2
ø4
0,8
6
AL = 39,2
22,3
40,3
20,2
8,2
With Pins for PCB Mounting
~14,5
3,5
Drilling diagram for 30° indexing angle
1x12
0°
3,5°
3
12 1
11
10
A
9
7
2
3
Drilling diagram for 36° indexing
1x10
3,5°
1
2
3
A
7
6
5
4
9
8
7
6
A
5
51°
Locating lug
Drilling diagram
view from the
shaft end
9
8
1x10, endless rotating
Locating lug
10
1
2
3
4
36
°
10
5
6
ø1,3
8
ø1,5
7,5
4
16,7
45°
°
15
Drilling diagram for 60° indexing angle
1 x 11
1
11
10
9
8
7
A
6
2
3
4
5
6B
5B
4B
2x6
1A 2A 3A
A
B
3B 2B 1B
4A
5A
6A
4x3
1A 2A 3A
3D
2D
1D
A
D
B
C
1B
2B
3B
6
A
5
4
2
3
3B
2A
A
B
3A
30
6
0°
1x6
3,5°
1
2x3
1A
4x2
°
°
33,5
1A
A
D
2C
2A
B
C
1C
1B
2B
2D
3C 2C 1C
60
°
1D
2B
1B
Special
cut out
Diameter
Front-panel
Shaft
3 mm
2,2
7,5
45°
6 mm
2,2
7,5
Type 01 switches are also available with the following shaft diameters:
Ø
3 mm
6 mm
AL
59 mm
28 mm
Bushing
M6 x 0.75 x 6.0 mm
M10 x 0.75 x 8.0 mm
Nut Size
10 mm
14 mm
6,2
10,2
Hollow Shaft System
2,2
Hollow Shaft
10,2
10,2
2,2
Hollow shaft to allow concentric operation of either two switches or, for exam-
ple, a switch and a potentiometer. The inner shaft (Ø 3 mm) must be ordered
separately.
7,5
7,5
Inner Shaft
10,2
Front panel cut out
Must be ordered separately for switches with hollow shaft.
10,2
Front panel cut out
Switches with 2 Drive Shafts
It is possible for two switches to be operated individually by concentric shafts on
the same mounting. When ordering, the type number of each switch should be
given and specified.
10,2
www.elma.com
Rotary Switches
44
Selector Switch Type 01

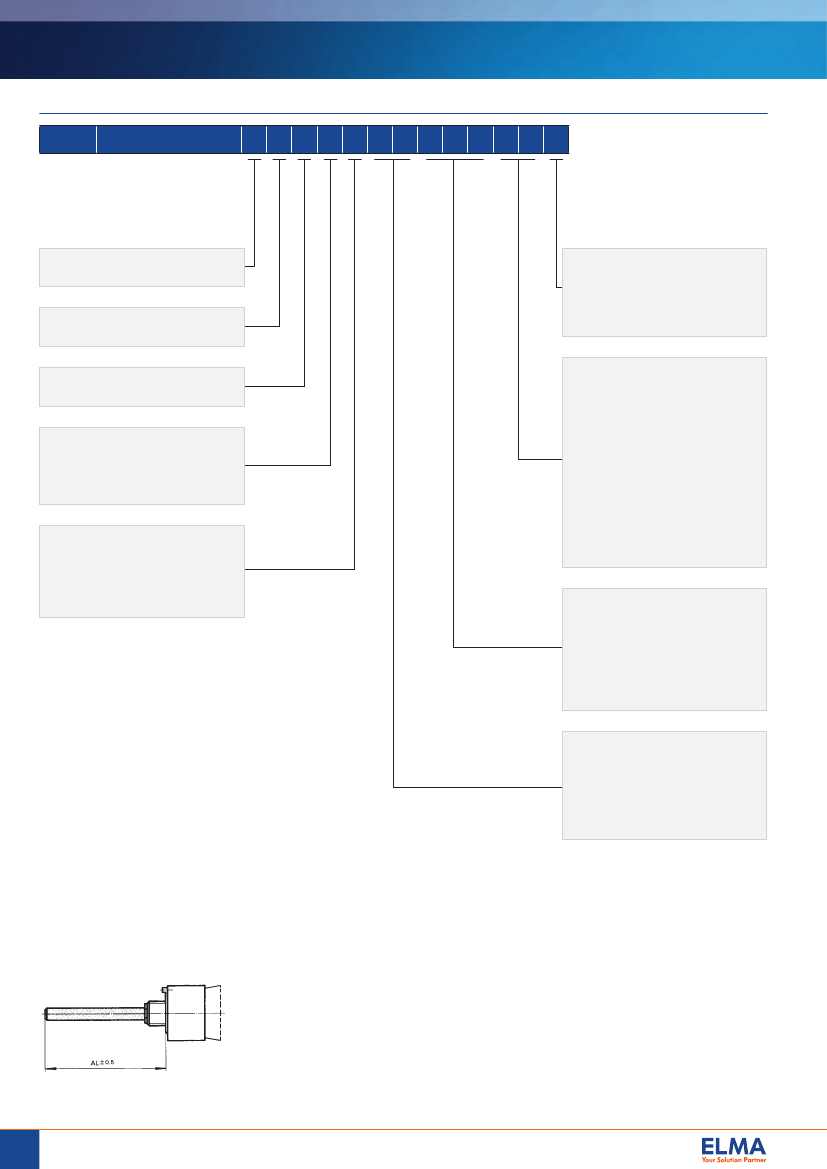

Type Key
0
1
-
X X X X
-
X X X X X X X X
Number of Wafers
Shaft Diameter
0 - 4 mm
M - 3 mm
N - 6 mm
Number of Poles per Wafer
Factory set character
Factory Set End Stop
00 -
11 -
10 -
09 -
08 -
07 -
06 -
05 -
04 -
03 -
02 -
Standard
11 pos.
10 pos.
9 pos.
8 pos.
7 pos.
6 pos.
5 pos.
4 pos.
3 pos.
2 pos.
Switching Mode
3 - Shorting
4 - Non-shorting
Torque
– - 4.0 Ncm
M - 2.0 Ncm
N - 6.0 Ncm
Shaft Length (AL)
000 -
-
-
xxx -
59 mm (3 mm shaft)
39.2 mm (4 mm shaft)
28 mm (6 mm shaft)
Custom
1
(e.g. 18.5 mm = 185)
Pin Style, IP Sealing
00
20
30
70
2
-
-
-
-
Eyelets
Pins for PCB
Eyelets, IP68
2
Pins for PCB, IP68
2
Only available for one wafer versions with 3 or 4 mm
shaft diameter.
1
Customized Shaft Length
Please state shaft length (AL) measured from mounting face
(max. AL = 80 mm).
45
Rotary Switches
www.elma.com
