BA6886 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Other integrated circuit (IC)> The signal circuit> BA6886

BA6886: DescriptionBRUSH DC MOTOR CONTROLLER, 1 A, PSFM10; CategoryOther integrated circuit (IC) The signal circuit; File Size512KB，9 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BA6886 Overview

BRUSH DC MOTOR CONTROLLER, 1 A, PSFM10

BA6886 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Parts packaging code	SFM
package instruction	,
Contacts	10
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PSFM-T10
Number of functions	1
Number of terminals	10
Maximum operating temperature	75 °C
Minimum operating temperature	-20 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	24 mA
Maximum supply voltage (Vsup)	28 V
Minimum supply voltage (Vsup)	6.5 V
surface mount	NO
Temperature level	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

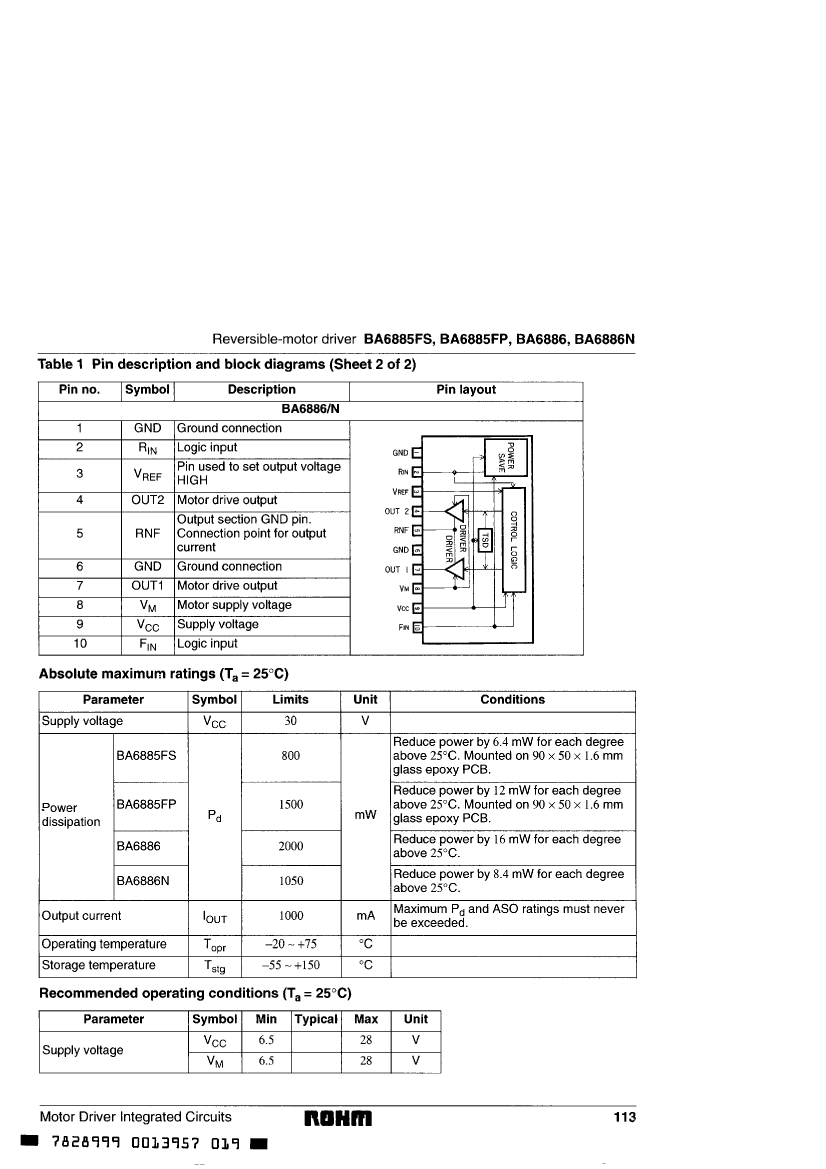

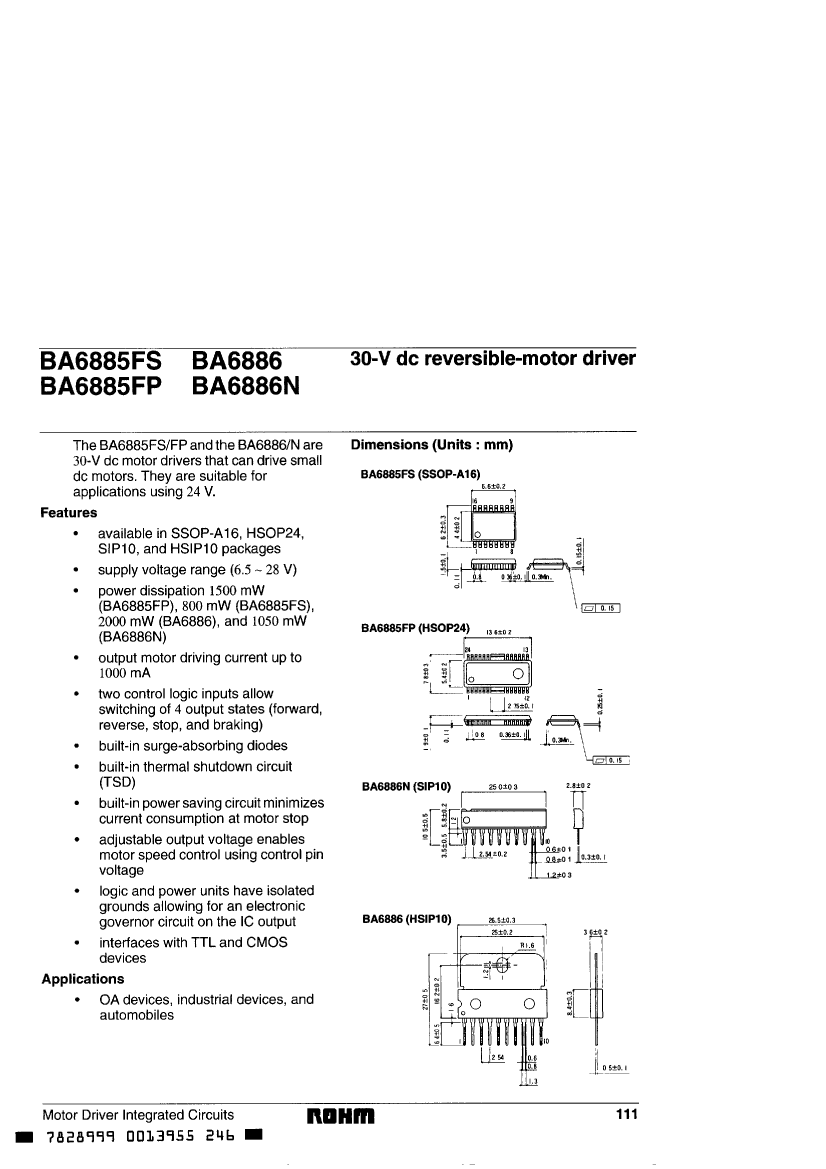

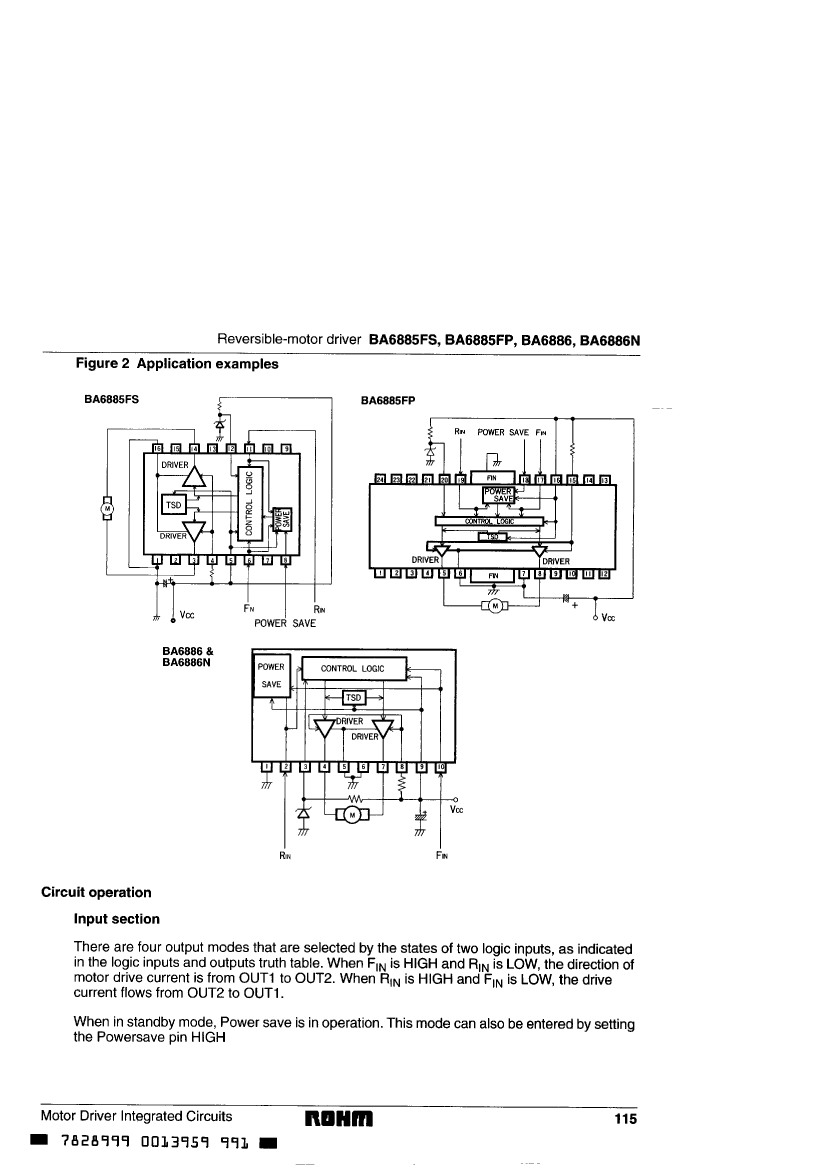

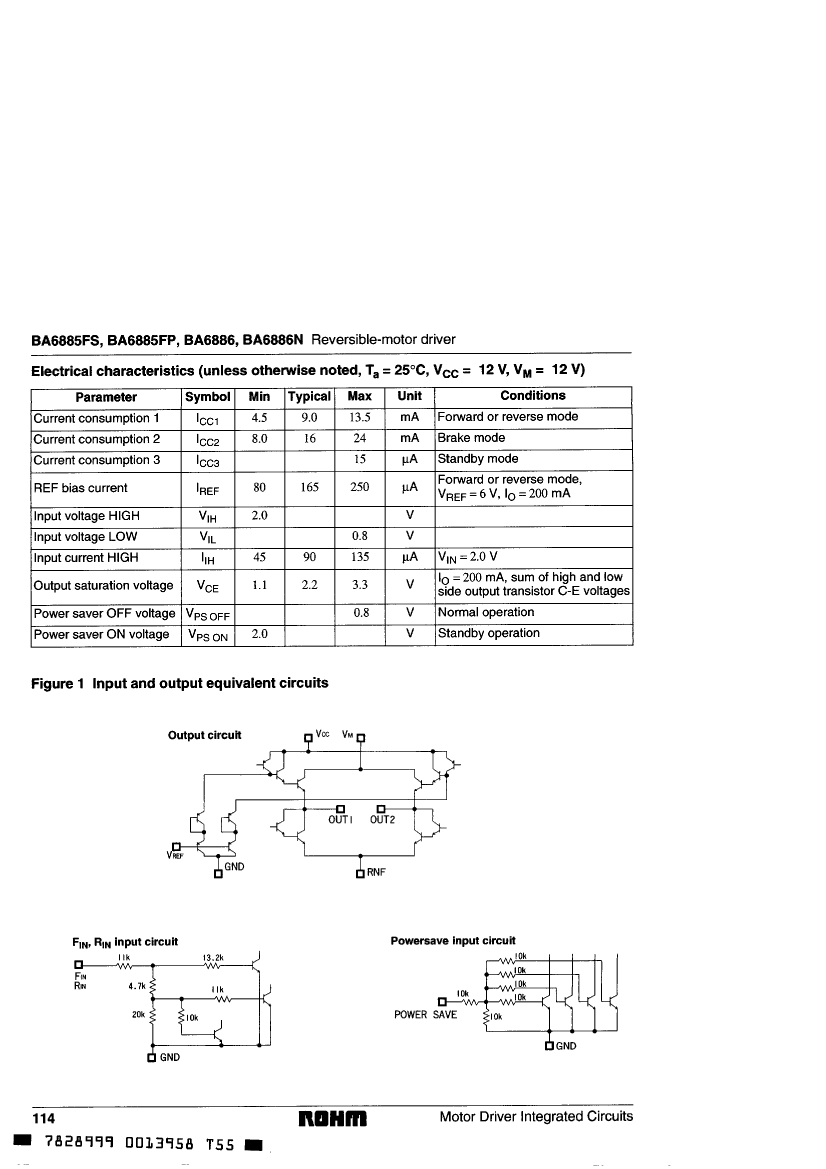

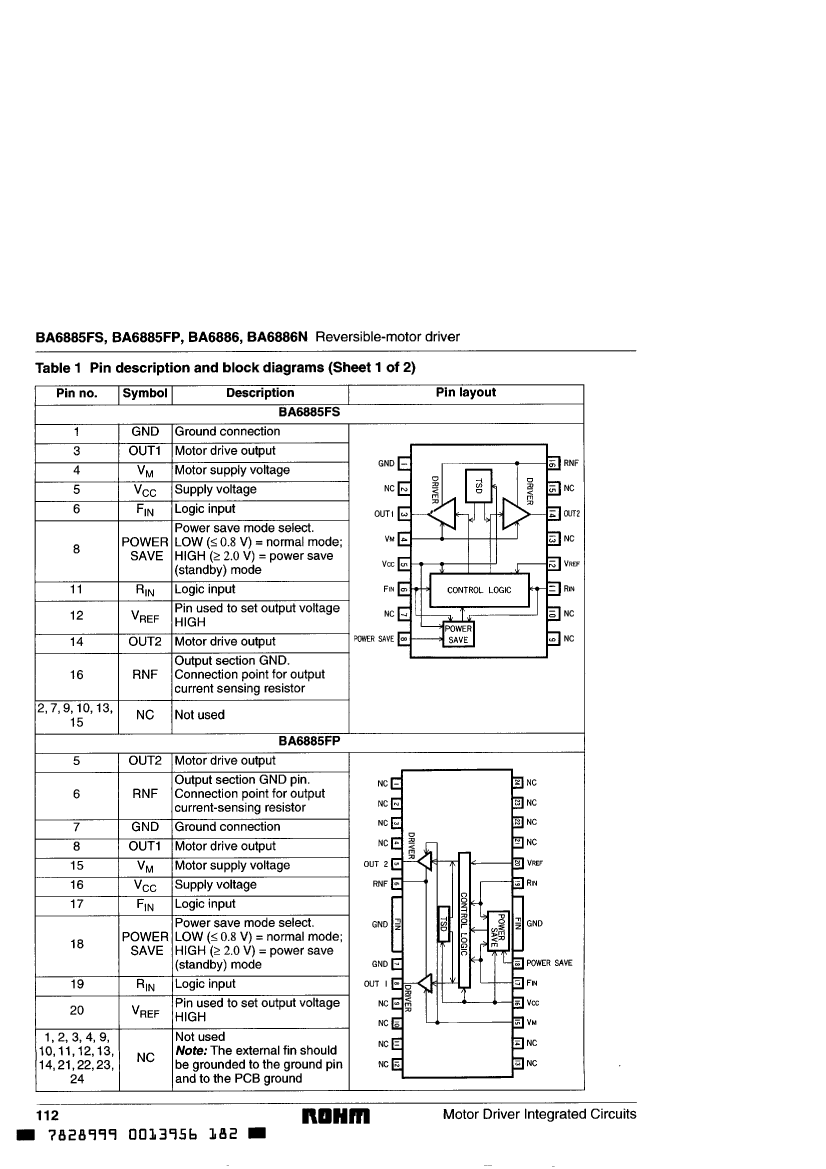

Preview

Download Datasheet

View All

BA6886 Related Products

	BA6886	BA6885FP	BA6885FS	BA6886N
Description	BRUSH DC MOTOR CONTROLLER, 1 A, PSFM10	BRUSH DC MOTOR CONTROLLER, 1 A, PSFM10	BRUSH DC MOTOR CONTROLLER, 1 A, PSFM10	BRUSH DC MOTOR CONTROLLER, 1 A, PSFM10
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	SFM	SOIC	SOIC	SIP
package instruction	,	HSSOP,	LSSOP,	SIP,
Contacts	10	24	16	10
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER	BRUSH DC MOTOR CONTROLLER
JESD-30 code	R-PSFM-T10	R-PDSO-G24	R-PDSO-G16	R-PSIP-T10
Number of functions	1	1	1	1
Number of terminals	10	24	16	10
Maximum operating temperature	75 °C	75 °C	75 °C	75 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C
Maximum output current	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	24 mA	24 mA	24 mA	24 mA
Maximum supply voltage (Vsup)	28 V	28 V	28 V	28 V
Minimum supply voltage (Vsup)	6.5 V	6.5 V	6.5 V	6.5 V
surface mount	NO	YES	YES	NO
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	DUAL	DUAL	SINGLE
Is it Rohs certified?	conform to	conform to	-	conform to
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
length	-	13.6 mm	6.6 mm	25.2 mm
encapsulated code	-	HSSOP	LSSOP	SIP
Maximum seat height	-	2.11 mm	1.7 mm	7.2 mm
Terminal pitch	-	0.8 mm	0.8 mm	2.54 mm
width	-	5.4 mm	4.4 mm	2.8 mm
