2N3906RLRP

Description
Bipolar Transistors - BJT 200mA 40V PNP
CategoryDiscrete semiconductor    The transistor
File Size167KB,7 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Parametric Compare View All

2N3906RLRP Online Shopping

Suppliers Part Number Price MOQ In stock
2N3906RLRP - - View Buy Now

2N3906RLRP Overview

Bipolar Transistors - BJT 200mA 40V PNP

2N3906RLRP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeTO-92
package instructionCASE 29-11, TO-226, 3 PIN
Contacts3
Manufacturer packaging codeCASE 29-11
Reach Compliance Codenot_compliant
ECCN codeEAR99
Factory Lead Time1 week
Maximum collector current (IC)0.2 A
Collector-emitter maximum voltage40 V
ConfigurationSINGLE
Minimum DC current gain (hFE)30
JEDEC-95 codeTO-92
JESD-30 codeO-PBCY-T3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeROUND
Package formCYLINDRICAL
Peak Reflow Temperature (Celsius)240
Polarity/channel typePNP
Maximum power dissipation(Abs)0.35 W
Certification statusNot Qualified
surface mountNO
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal locationBOTTOM
Maximum time at peak reflow temperature30
transistor applicationsAMPLIFIER
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz
Maximum off time (toff)300 ns
Maximum opening time (tons)70 ns
Base Number Matches1

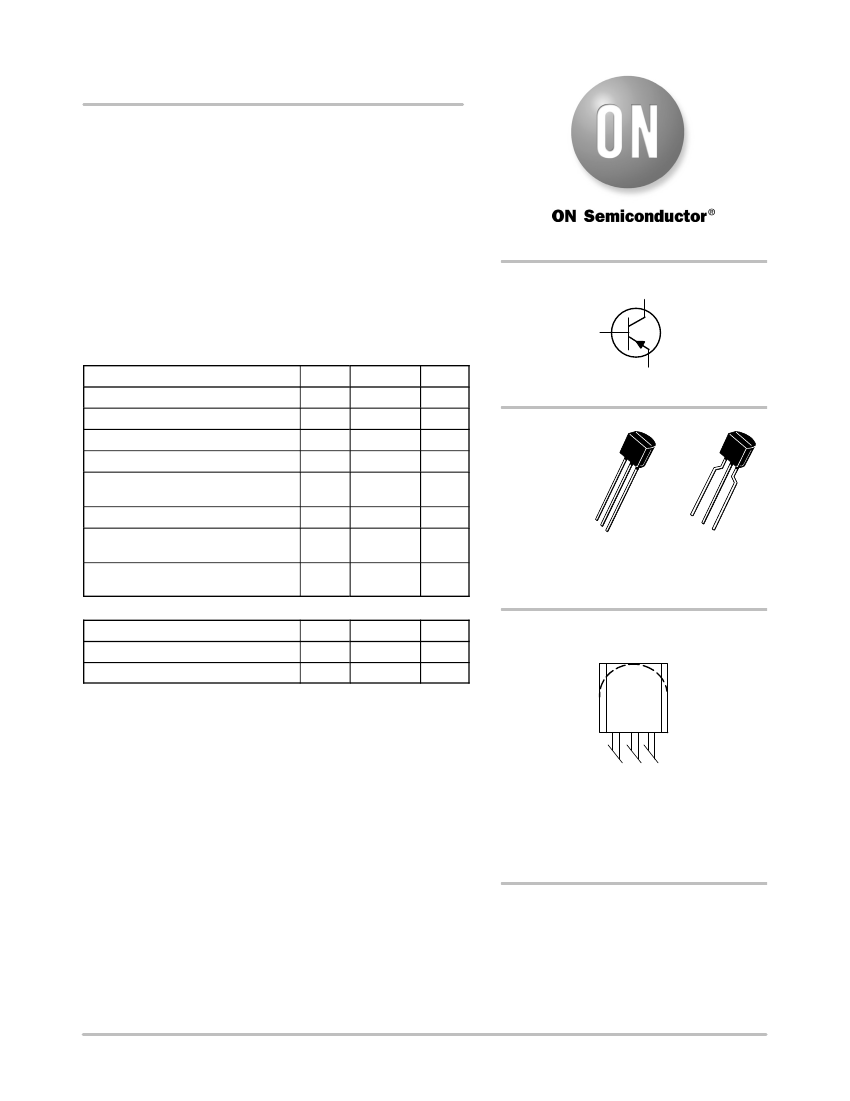

2N3906
General Purpose
Transistors
PNP Silicon
Features
http://onsemi.com
COLLECTOR
3
2
BASE
Symbol
V
CEO
V
CBO
V
EBO
I
C
P
D
P
D
P
D
T
J
, T
stg
Value
40
40
5.0
200
625
5.0
250
1.5
12
−55
to +150
Unit
Vdc
Vdc
Vdc
mAdc
mW
mW/°C
mW
W
mW/°C
°C
TO−92
CASE 29
STYLE 1
12
1
2
1
EMITTER
Pb−Free Packages are Available*
MAXIMUM RATINGS
Rating
Collector
Emitter Voltage
Collector
Base Voltage
Emitter
Base Voltage
Collector Current
Continuous
Total Device Dissipation @ T
A
= 25°C
Derate above 25°C
Total Power Dissipation @ T
A
= 60°C
Total Device Dissipation @ T
C
= 25°C
Derate above 25°C
Operating and Storage Junction
Temperature Range
3
STRAIGHT LEAD
BULK PACK
3
BENT LEAD
TAPE & REEL
AMMO PACK
THERMAL CHARACTERISTICS
(Note 1)
Characteristic
Thermal Resistance, Junction−to−Ambient
Thermal Resistance, Junction−to−Case
Symbol
R
qJA
R
qJC
Max
200
83.3
Unit
°C/W
°C/W
2N
3906
ALYWG
G
MARKING DIAGRAM
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Indicates Data in addition to JEDEC Requirements.
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W = Work Week
G
= Pb−Free Package
(Note: Microdot may be in either location)
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 3 of this data sheet.
*For additional information on our Pb−Free strategy and soldering details, please
download the ON Semiconductor Soldering and Mounting Techniques
Reference Manual, SOLDERRM/D.
©
Semiconductor Components Industries, LLC, 2010
February, 2010
Rev. 4
1
Publication Order Number:
2N3906/D

2N3906RLRP Related Products

2N3906RLRP 2N3906RLRAG 2N3906RL1G 2N3906 2N3906G 2N3906RLRM 2N3906ZL1G 2N3906RLRPG
Description Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP Bipolar Transistors - BJT 200mA 40V PNP
Parts packaging code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
package instruction CASE 29-11, TO-226, 3 PIN CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3 CASE 29-11, TO-226, 3 PIN CYLINDRICAL, O-PBCY-T3 CASE 29-11, TO-226, 3 PIN CYLINDRICAL, O-PBCY-T3 CYLINDRICAL, O-PBCY-T3
Contacts 3 3 3 3 3 3 3 3
Manufacturer packaging code CASE 29-11 29-11 29-11 29-11 29-11 CASE 29-11 CASE 29-11 29-11
Reach Compliance Code not_compliant unknown unknown not_compliant unknown not_compliant unknown unknown
Maximum collector current (IC) 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A 0.2 A
Collector-emitter maximum voltage 40 V 40 V 40 V 40 V 40 V 40 V 40 V 40 V
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Minimum DC current gain (hFE) 30 30 30 100 30 30 30 30
JEDEC-95 code TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92 TO-92
JESD-30 code O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-W3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3 O-PBCY-T3
Number of components 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3
Maximum operating temperature 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape ROUND ROUND ROUND ROUND ROUND ROUND ROUND ROUND
Package form CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL CYLINDRICAL
Polarity/channel type PNP PNP PNP PNP PNP PNP PNP PNP
Maximum power dissipation(Abs) 0.35 W 1.5 W 0.35 W 0.35 W 1.5 W 0.35 W 0.35 W 0.35 W
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE WIRE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM BOTTOM
Transistor component materials SILICON SILICON SILICON SILICON SILICON SILICON SILICON SILICON
Nominal transition frequency (fT) 250 MHz 250 MHz 250 MHz 250 MHz 250 MHz 250 MHz 250 MHz 250 MHz
Base Number Matches 1 1 1 1 1 1 1 1
ECCN code EAR99 EAR99 EAR99 - EAR99 EAR99 EAR99 EAR99
Factory Lead Time 1 week 1 week 1 week 1 week - - - 1 week
JESD-609 code e0 e1 e1 - e1 e0 e1 e1
Peak Reflow Temperature (Celsius) 240 NOT SPECIFIED 260 - NOT SPECIFIED 240 260 260
Terminal surface Tin/Lead (Sn/Pb) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu) - Tin/Silver/Copper (Sn/Ag/Cu) Tin/Lead (Sn/Pb) Tin/Silver/Copper (Sn/Ag/Cu) Tin/Silver/Copper (Sn/Ag/Cu)
Maximum time at peak reflow temperature 30 NOT SPECIFIED 40 - NOT SPECIFIED 30 40 40
transistor applications AMPLIFIER - SWITCHING - - AMPLIFIER SWITCHING AMPLIFIER
Maximum off time (toff) 300 ns 300 ns 300 ns - 300 ns 300 ns 300 ns 300 ns
Maximum opening time (tons) 70 ns 70 ns 70 ns - 70 ns 70 ns 70 ns 70 ns
Brand Name - ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor - - ON Semiconductor
Is it lead-free? - Lead free Lead free Contains lead Lead free - - Lead free
