XRP7714ILBTR-0X14-F

Description
Switching Controllers 4 CH Digital Power Controller with LDO
CategoryPower/power management    The power supply circuit
File Size928KB,29 Pages
ManufacturerExar
Environmental Compliance
Related ProductsFound12parts with similar functions to XRP7714ILBTR-0X14-F
Download Datasheet Parametric Compare View All

XRP7714ILBTR-0X14-F Online Shopping

Suppliers Part Number Price MOQ In stock
XRP7714ILBTR-0X14-F - - View Buy Now

XRP7714ILBTR-0X14-F Overview

Switching Controllers 4 CH Digital Power Controller with LDO

XRP7714ILBTR-0X14-F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerExar
Parts packaging codeQFN
package instructionHVQCCN, LCC40,.24SQ,20
Contacts40
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresALSO OPERATES IN ADJUSTABLE MODE FROM 0.9VTO 5.1V; 5 VOLT OUTPUT ALSO AVAILABLE
Analog Integrated Circuits - Other TypesSWITCHING CONTROLLER
control modeVOLTAGE-MODE
Control TechnologyPULSE WIDTH MODULATION
Maximum input voltage25 V
Minimum input voltage4.75 V
JESD-30 codeS-XQCC-N40
JESD-609 codee3
length6 mm
Humidity sensitivity level3
Number of functions1
Number of terminals40
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Nominal output voltage3.3 V
Package body materialUNSPECIFIED
encapsulated codeHVQCCN
Encapsulate equivalent codeLCC40,.24SQ,20
Package shapeSQUARE
Package formCHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height0.8 mm
surface mountYES
Switch configurationPUSH-PULL
Maximum switching frequency1500 kHz
Temperature levelAUTOMOTIVE
Terminal surfaceMatte Tin (Sn)
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperature40
width6 mm

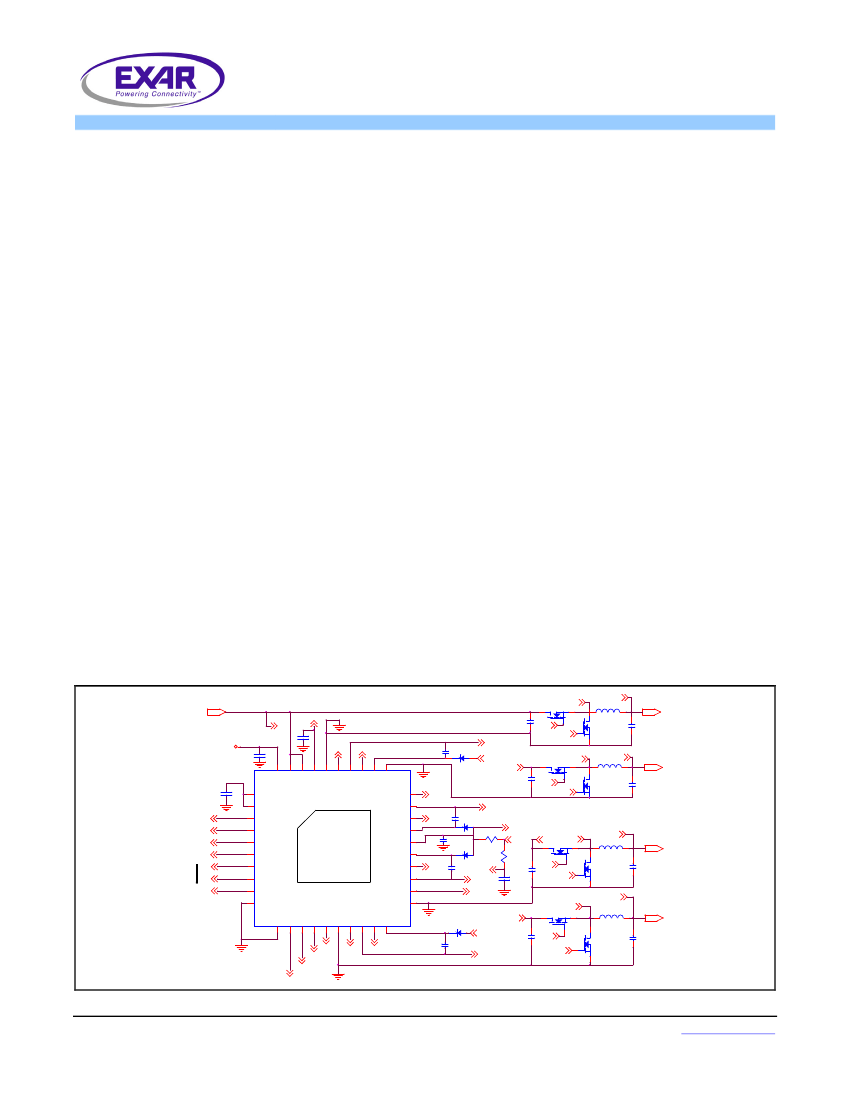

XRP7714
Quad Channel Digital PWM Step Down Controller
March 2011
Rev. 1.1.6
GENERAL DESCRIPTION
The XRP7714 is a quad-output pulse-width
modulated (PWM) step-down DC-DC controller
with a built-in LDO for standby power and
GPIOs. The device provides a complete power
management solution in one IC and is fully
programmable via an I
2
C serial interface.
Independent Digital Pulse Width Modulator
(DPWM) channels regulate output voltages
and provide all required protection functions
such as current limiting and over-voltage
protection.
Each output voltage can be programmed from
0.9V to 5.1V without the need of an external
voltage divider. The wide range of the
programmable DPWM switching frequency
(from 300 KHz to 1.5 MHz) enables the user to
optimize between efficiency and component
size. Input voltage range is from 4.75V to
25V.
An I
2
C bus interface is provided to
program the IC as well as to communicate
with the host for fault reporting and handling,
power rail parameters monitoring, etc.
The device offers a complete solution including
independently programmable: soft-start, soft-
stop, start-up delay and ramp of each PWM
regulator.
APPLICATIONS
Multi Channel Power Supplies
Audio-Video Equipments
Industrial & Telecom Equipments
Processors & DSPs Based Equipments
FEATURES
4 Channel Step Down Controller
Programmable Output Voltage 0.9V-5.1V
Programmable 1.5MHz DPWM Frequency
Integrated FET Drivers
4.75V to 5.5V and 5.5V to 25V Input
Voltage Range
Up to 6 Reconfigurable GPIO Pins
Fully Programmable via I
2
C Interface
Independent Digital Pulse Width
Modulator (DPWM) channels
Complete Monitoring and Reporting
Complete Power Up/Down Sequencing
Full On Board Protection
OTP, UVLO, OCP and OVP
Built-in 3.3V/5V LDO
PowerArchitect™ Design Software
Green/Halogen Free 40-pin TQFN
TYPICAL APPLICATION DIAGRAM
VIN: 4.75 TO 25V
VCCA
Vin
C3
GL1
C5
GH1
LX1
C4
D1
C1
GH1
GL1
LX1
Q1
Q2
Vout1
L1
C2
VOUT1
LDO OUT
40
39
38
36
32
37
35
34
33
31
VCCD
Vin
C6
GH2
GL2
LX2
LX2
Q3
Q4
Vout2
L2
VOUT2
PGND1
LDOOUT
PGND2
VCCA
BST1
LX1
VIN1
VIN2
GH1
GL1
C8
1
2
AVDD
DVDD
GPIO0
GPIO1
GPIO2
GPIO3
GL2
LX2
GH2
30
29
28
27
26
25
24
23
22
21
C7
GL2
C9
D2
R1
C10
D3
R2
GH4
C11
ENABLE
LX4
GL4
GH4
C14
C12
VCCD
VCCA
Vin
GPIO0
GPIO1
GPIO2
GPIO3
3
4
5
6
7
8
9
10
GH2
U1
XRP7714
BST2
VCCD
BST4
GH4
LX4
Q5
Q6
Vout4
L3
VOUT4
I2C
SDA
SCL
GPIO4_SDA
GPIO5_SCL
ENABLE
Exposed Pad: DGND
C13
LX4
GL4
PGND4
GL4
ENABLE
PGND3
VOUT1
VOUT2
VOUT3
VOUT4
DGND
Vout3
LX3
Vin
AGND
BST3
GH3
GL3
LX3
VOUT3
L4
C16
D4
Q7
C15
GH3
Q8
GL3
11
12
13
14
15
16
17
18
19
Vout4
Vout3
Vout2
Vout1
GL3
GH3
20
VCCD
C17
LX3
Fig. 1: XRP7714 Application Diagram
Exar Corporation
48720 Kato Road, Fremont CA 94538, USA
www.exar.com
Tel. +1 510 668-7000 – Fax. +1 510 668-7001
