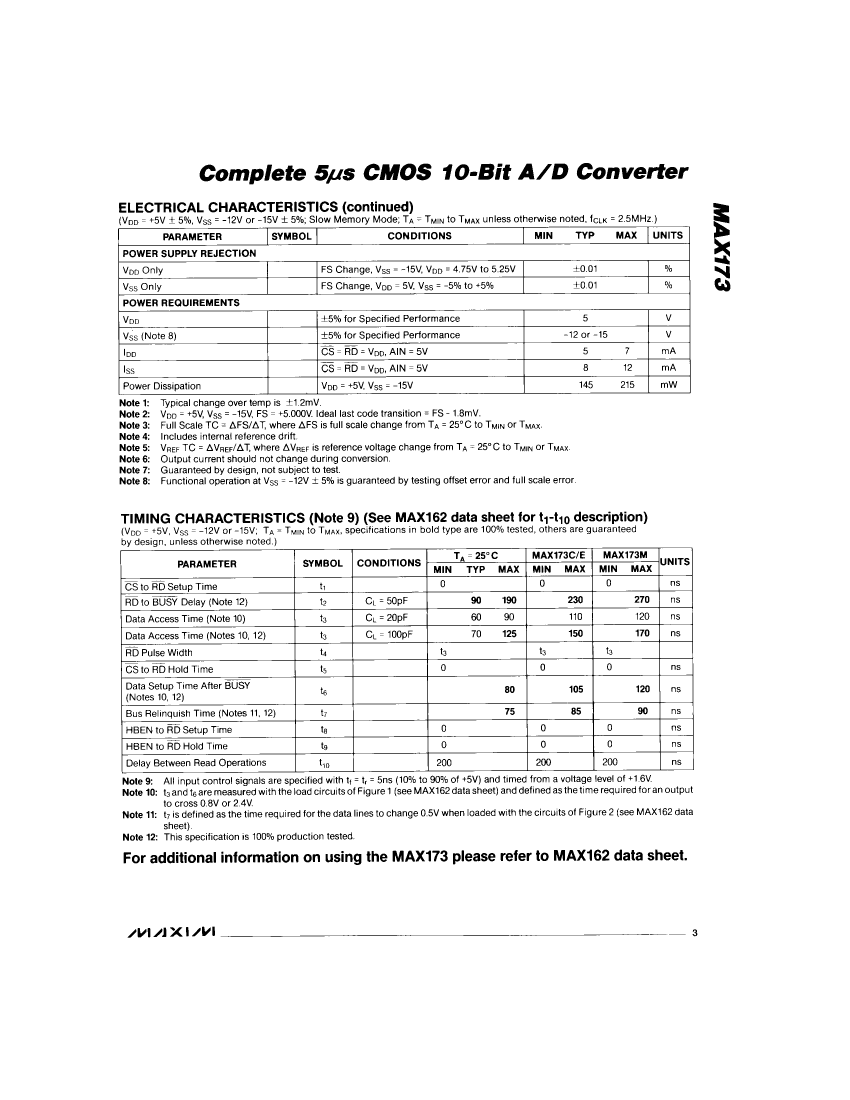

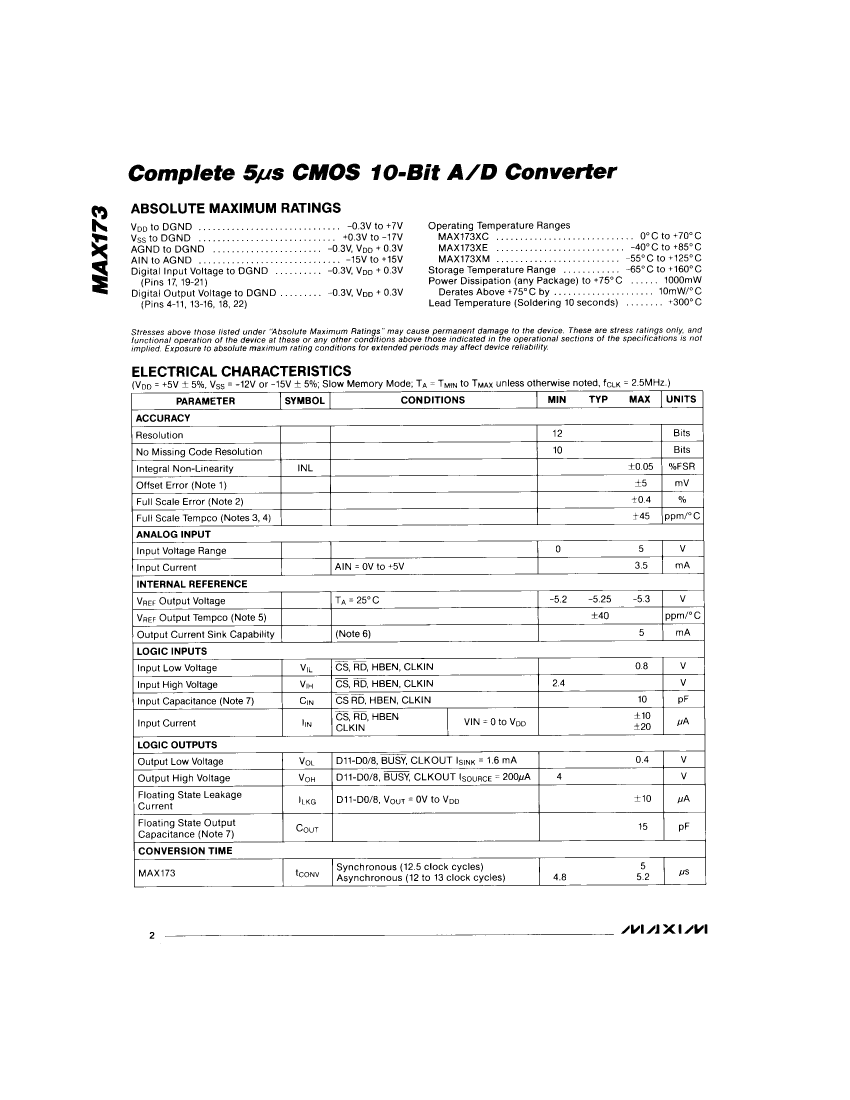

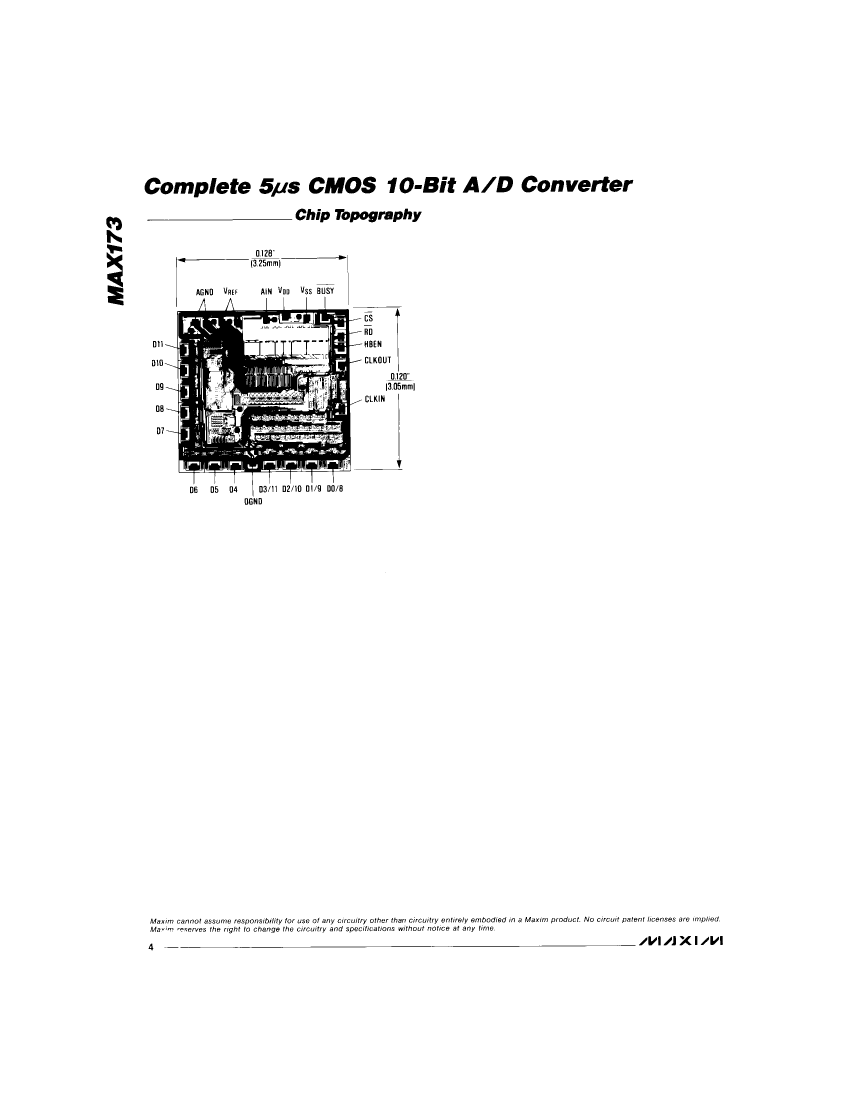

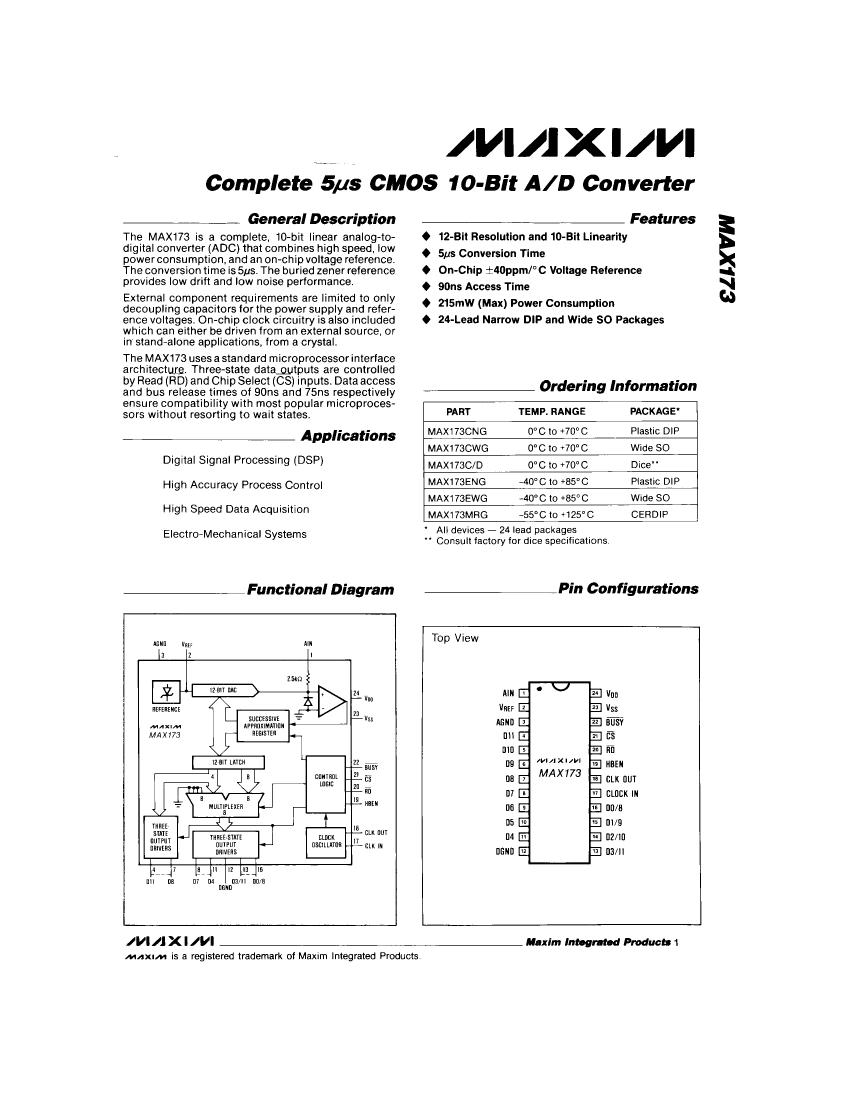

Preview

MAX173C/D: DescriptionAnalog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference; Categorysemiconductor Analog mixed-signal IC; File Size130KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

MAX173C/D Overview

Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference

MAX173C/D Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Maxim
Product Category	Analog to Digital Converters - ADC
Resolution	10 bit
Number of Channels	1 Channel
Sampling Rate	200 kS/s
Input Type	Single-Ended
Architecture	SAR
Number of Converters	1 Converter
Product	Analog to Digital Converters
Operating Supply Voltage	4.75 V to 5.25 V
Pd - Power Dissipation	1000 mW
Reference Voltage	- 5.25 V

Preview

Download Datasheet

View All

MAX173C/D Related Products

	MAX173C/D	MAX173EWG	MAX173CWG-T	MAX173ENG+	MAX173ENG
Description	Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference	Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference	Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference	Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference	Analog to Digital Converters - ADC CMOS 5us 10-Bit Complete ADC with Voltage Reference
Is it lead-free?	-	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	conform to	incompatible
Maker	-	Maxim	Maxim	Maxim	Maxim
Parts packaging code	-	SOIC	SOIC	DIP	DIP
package instruction	-	SOP-24	SOP-24	DIP, DIP24,.6	PLASTIC, DIP-24
Contacts	-	24	24	24	24
Reach Compliance Code	-	not_compliant	not_compliant	compliant	not_compliant
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Maximum analog input voltage	-	5 V	5 V	5 V	5 V
Maximum conversion time	-	5.2 µs	5.2 µs	5.2 µs	5.2 µs
Converter type	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	-	R-PDSO-G24	R-PDSO-G24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	-	e0	e0	e3	e0
length	-	15.4 mm	15.4 mm	30.545 mm	30.545 mm
Maximum linear error (EL)	-	0.05%	0.05%	0.05%	0.05%
Humidity sensitivity level	-	1	1	1	1
Nominal negative supply voltage	-	-12 V	-12 V	-12 V	-12 V
Number of analog input channels	-	1	1	1	1
Number of digits	-	10	10	10	10
Number of functions	-	1	1	1	1
Number of terminals	-	24	24	24	24
Maximum operating temperature	-	85 °C	70 °C	85 °C	85 °C
Minimum operating temperature	-	-40 °C	-	-40 °C	-40 °C
Output bit code	-	BINARY	BINARY	BINARY	BINARY
Output format	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	-	SOP	SOP	DIP	DIP
Encapsulate equivalent code	-	SOP24,.4	SOP24,.4	DIP24,.6	DIP24,.6
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	-	240	240	260	240
power supply	-	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V	5,-12/-15 V
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	-	2.65 mm	2.65 mm	4.572 mm	4.572 mm
Nominal supply voltage	-	5 V	5 V	5 V	5 V
surface mount	-	YES	YES	NO	NO
technology	-	CMOS	CMOS	CMOS	CMOS
Temperature level	-	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	-	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Tin/Lead (Sn85Pb15)
Terminal form	-	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	-	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	-	20	NOT SPECIFIED	30	20
width	-	7.5 mm	7.5 mm	7.62 mm	7.62 mm
