DS1603
Elapsed Time Counter Module
PIN ASSIGNMENT
V
CC
RST
www.maxim-ic.com
FEATURES
§
§
§
§
§
§
§
§
§
§
§
§
Two 32-bit counters keep track of real-time
and elapsed time
Counters keep track of seconds for over 125
years
Battery powered counter counts seconds from
the time battery is attached until V
BAT
is less
than 2.5V
V
CC
powered counter counts seconds while
V
CC
is above V
TP
and retains the count in the
absence of V
CC
under battery backup power
Clear function resets selected counter to 0
Read/write serial port affords low pin count
Powered internally by a lithium energy cell
that provides over 10 years of operation
One-byte protocol defines read/write, counter
address and software clear function
Self-contained crystal provides an accuracy of
±2 min per month
Operating temperature range of 0°C to +70°C
Low-profile SIP module
Underwriters Laboratory (UL) recognized
DQ
NC
CLK
OSC
GND
1
2
3
4
5
6
7
PIN DESCRIPTION
RST
CLK
DQ
GND
V
CC
OSC
NC
- Reset
- Clock
- Data Input/Output
- Ground
- +5V
- 1Hz Oscillator Output
- No Connect
DESCRIPTION
The DS1603 is a real-time clock/elapsed time counter designed to count seconds when V
CC
power is
applied and continually count seconds under battery backup power with an additional counter regardless
of the condition of V
CC
. The continuous counter can be used to derive time of day, week, month, and year
by using a software algorithm. The V powered counter will automatically record the amount of time
CC
that V power is applied. This function is particularly useful in determining the operational time of
CC
equipment in which the DS1603 is used. Alternatively, this counter can also be used under software
control to record real-time events. Communication to and from the DS1603 takes place via a 3-wire serial
port. A 1-byte protocol selects read/ write functions, counter clear functions and oscillator trim. The
device contains a 32.768kHz crystal that will keep track of time to within
±2
min/mo. An internal lithium
energy source contains enough energy to power the continuous seconds counter for over 10 years.
OPERATION

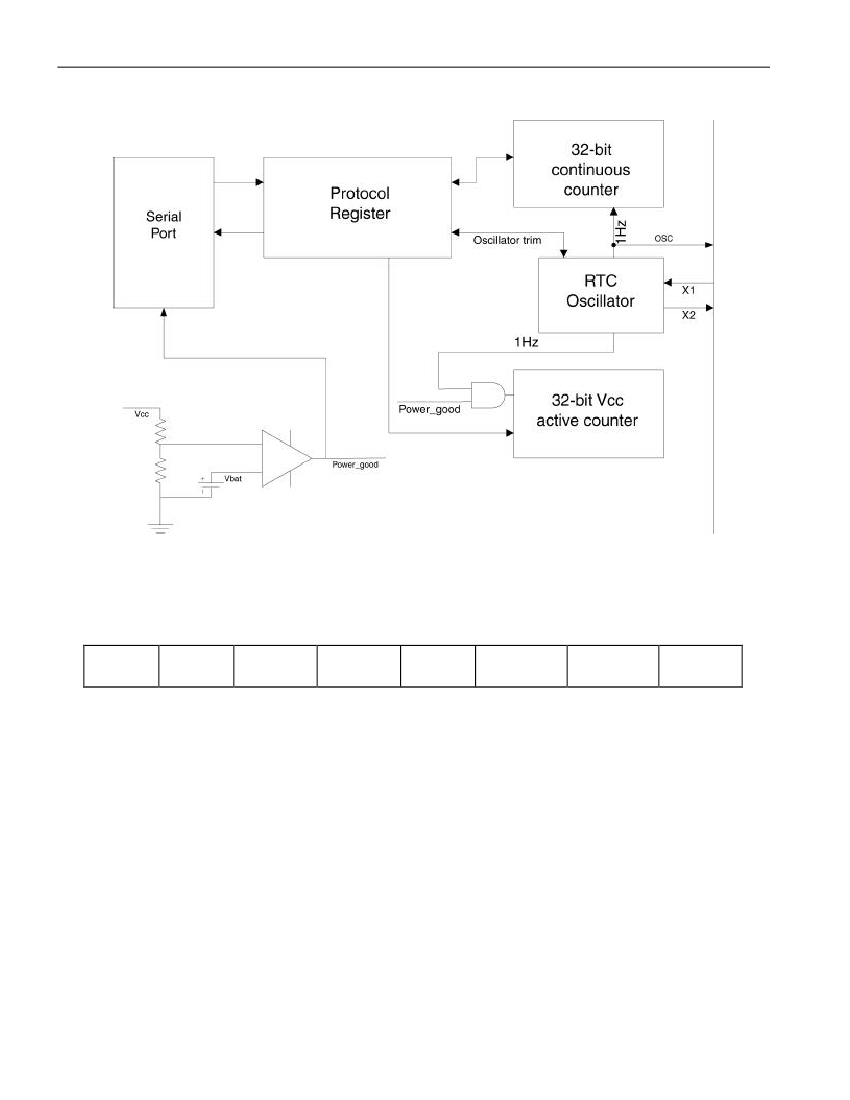

The main elements of the DS1603 are shown in Figure 1. As shown, communications to and from the
elapsed time counter occur over a 3-wire serial port. The port is activated by driving
RST
to a high state.
Note:
Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here:
www.maxim-ic.com/errata.
1 of 8
093002
DS1603
With
RST
at high level 8 bits are loaded into the protocol shift register providing read/write, register
select, register clear, and oscillator trim information. Each bit is serially input on the rising edge of the
clock input. After the first eight clock cycles have loaded the protocol register with a valid protocol
additional clocks will output data for a read or input data for a write. V
CC
must be present to access the
DS1603. If V
CC
< V
TP
, the DS1603 will switch to internal power and disable the serial port to conserve
energy. When running off of the internal power supply, only the continuous counter will continue to
count and the counter powered by V
CC
will stop, but retain the count, which had accumulated when V
CC
power was lost. The 32-bit V
CC
counter is gated by V
CC
and the internal 1Hz signal.
PROTOCOL REGISTER
The protocol bit definition is shown in Figure 2. Valid protocols and the resulting actions are shown in
Table 1. Each data transfer to the protocol register designates what action is to occur. As defined, the
MSB (bit 7 which is designated ACC) selects the 32-bit continuous counter for access. If ACC is a logical
1 the continuous counter is selected and the 32 clock cycles that follow the protocol will either read or
write this counter. If the counter is being read, the contents will be latched into a different register at the
end of protocol and the latched contents will be read out on the next 32 clock cycles. This avoids reading
garbled data if the counter is clocked by the oscillator during a read. Similarly, if the counter is to be
written, the data is buffered in a register and all 32 bits are jammed into the counter simultaneously on the
rising edge of the 32
nd
clock. The next bit (bit 6 which is designated AVC) selects the 32–bit V
CC
active
counter for access. If AVC is a logical 1 this counter is selected and the 32 clock cycles that follow will
either read or write this counter. If both bit 7 and bit 6 are written to a logic high, all clock cycles beyond
the protocol are ignored and bit 5, 4, and 3 are loaded into the oscillator trim register. A value of binary 3
(011) will give a clock accuracy of
±120
seconds per month at +25°C. Increasing the binary number
towards 7 will cause the real- time clock to run faster. Conversely, lowering the binary number towards 0
will cause the clock to run slower. Binary 000 will stop the oscillator completely. This feature can be used
to conserve battery life during storage. In this mode the internal power supply current is reduced to 100
nA maximum. In applications where oscillator trimming is not practical or not needed, a default setting of
011 is recommended. Bit 2 of protocol (designated CCC) is used to clear the continuous counter. When
set to logic 1, the continuous counter will reset to 0 when
RST
is taken low. Bit 1 of protocol (designated
CVC) is used to clear the V
CC
active counter. When set to logical 1, the V
CC
active counter will reset to 0
when
RST
is taken low. Both counters can be reset simultaneously by setting CCC and CVC both to a
logical 1. Bit 0 of the protocol (designated RD) determines whether the 32 clocks to follow will write a
counter or read a counter. When RD is set to a logical 0 a write action will follow when RD is set to a
logical 1 a read action will follow. When sending the protocol, 8 bits should always be sent. Sending less
than 8 bits can produce erroneous results. If clearing the counters or trimming the oscillator, the data
transfer can be terminated after the 8-bit protocol is sent. However, when reading or writing the counters,
32 clock cycles should always follow the protocol.
RESET AND CLOCK CONTROL
All data transfers are initiated by driving the
RST
input high. The
RST
input has two functions. First,
RST
turns on the serial port logic, which allows access to the protocol register for the protocol data entry.
Second, the
RST
signal provides a method of terminating the protocol transfer or the 32-bit counter
transfer. A clock cycle is a sequence of a rising edge followed by a falling edge. For write inputs, data
must be valid during the rising edge of the clock. Data bits are output on the falling edge of the clock
when data is being read. All data transfers terminate if the
RST
input is transitioned low and the DQ pin
goes to a high- impedance state.
RST
should only be transitioned low while the clock is high to avoid
disturbing the last bit of data. All data transfers must consist of 8 bits when transferring protocol only or
8 + 32 bits when reading or writing either counter. Data transfer is illustrated in Figure 3.
2 of 9
DS1603
DATA INPUT
Following the 8-bit protocol that inputs write mode, 32 bits of data are written to the selected counter on
the rising edge of the next 32 CLK cycles. After 32 bits have been entered any additional CLK cycles will
be ignored until
RST
is transitioned low to end data transfer and then high again to begin new data
transfer.
DATA OUTPUT
Following the eight CLK cycles that input read mode protocol, 32 bits of data will be output from the
selected counter on the next 32 CLK cycles. The first data bit to be transmitted from the selected 32-bit
counter occurs on the falling edge after the last bit of protocol is written. When transmitting data from the
selected 32-bit counter,
RST
must remain at high level as a transition to low level will terminate data
transfer. Data is driven out the DQ pin as long as CLK is low. When CLK is high the DQ pin is tristated.
OSCILLATOR OUTPUT
Pin 6 of the DS1603 module is a 1Hz output signal. This signal is present only when V
CC
is applied and
greater than the internal power supply. However, the output is guaranteed to meet TTL requirement only
while V
CC
is within normal limits. This output can be used as a 1-second interrupt or time tick needed in
some applications.
INTERNAL POWER
The internal battery of the DS1603 module provides 35mAh and will run the elapsed time counter for
over 10 years in the absence of power.
PIN DESCRIPTIONS
V
CC
, GND –
DC power is provided to the device on these pins. V
CC
is the +5V input. When 5V is applied
within normal limits, the device is fully accessible and data can be written and read. When a 3V battery is
connected to the device and V
CC
is below 1.25 x V
BAT
, reads and writes are inhibited. As V
CC
falls below
V
BAT
the continuous counter is switched over to the internal battery.
CLK (Serial Clock Input) –
CLK is used to synchronize data movement on the serial interface.
DQ (Data Input/Output) –
The DQ pin is the bi-directional data pin for the 3-wire interface.
RST (Reset) –
The reset signal must be asserted high during a read or a write.
OSC (One Hertz Output Signal) –
This signal is only present when Vcc is at a valid level and the
oscillator is enabled.
3 of 9
