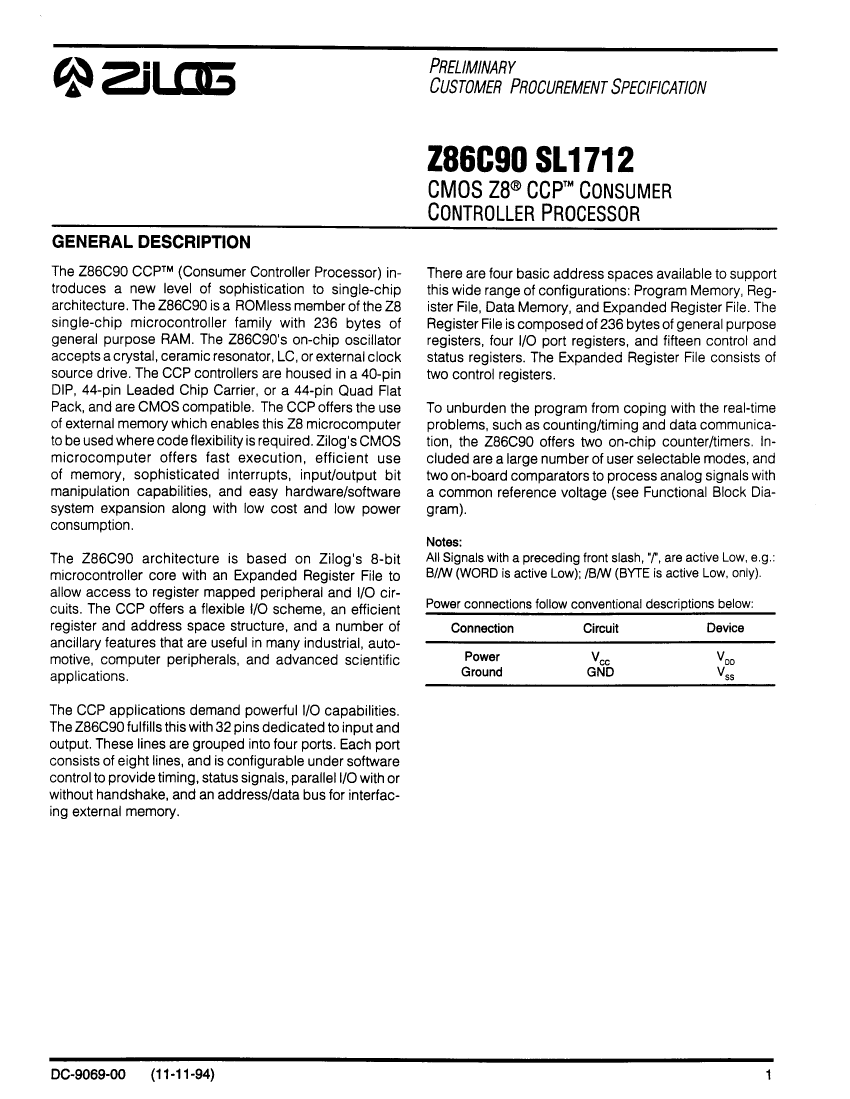

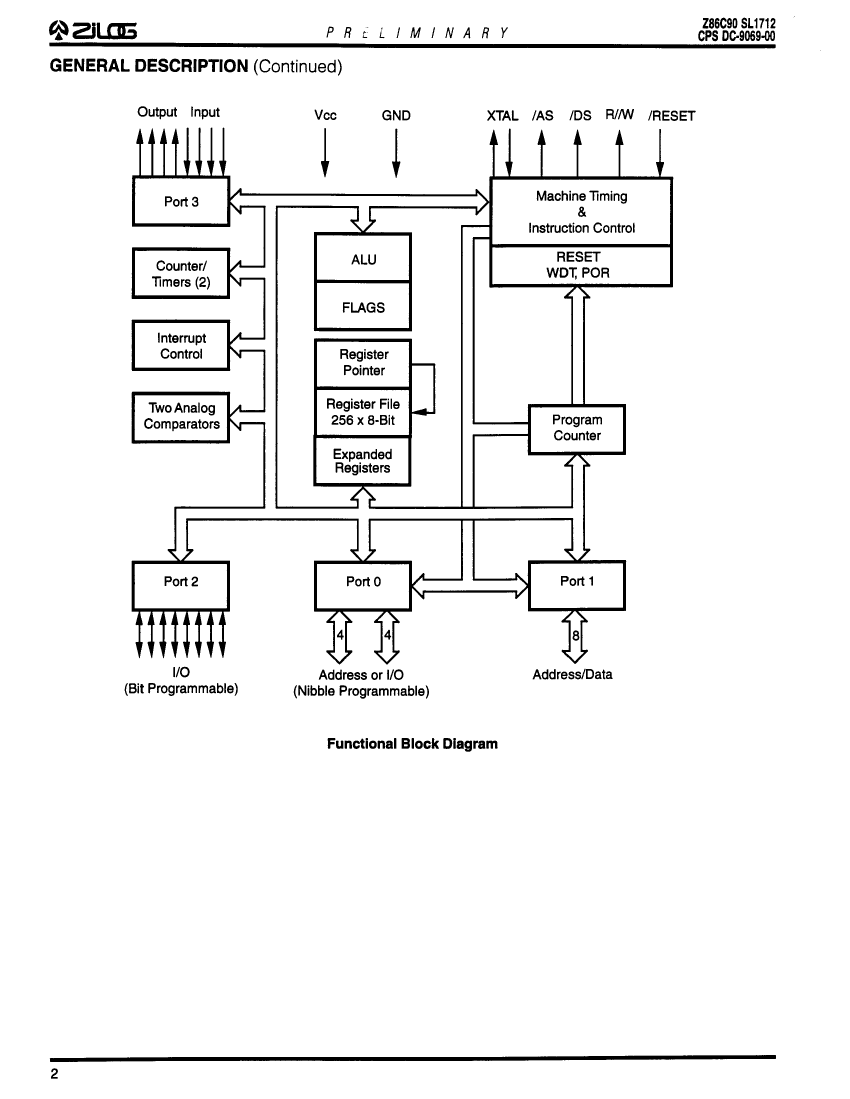

8-bit Microcontrollers - MCU 12MHz ROMLESS C40

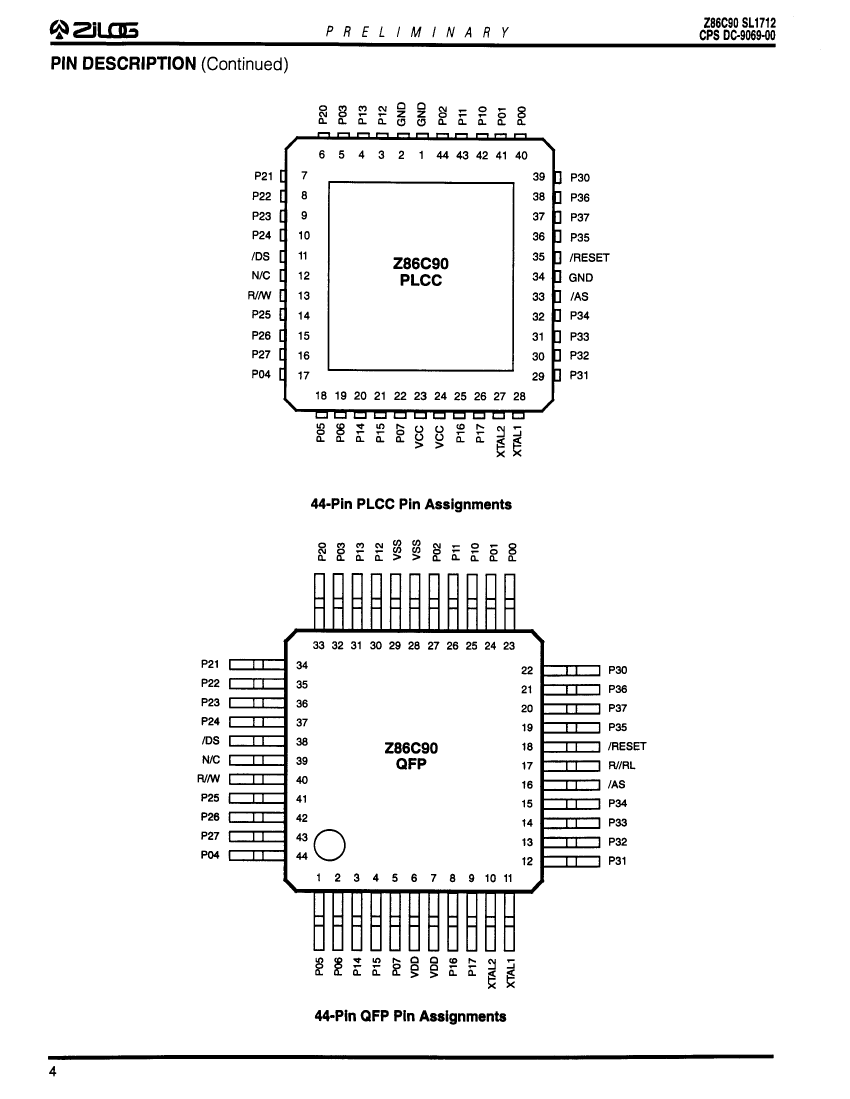

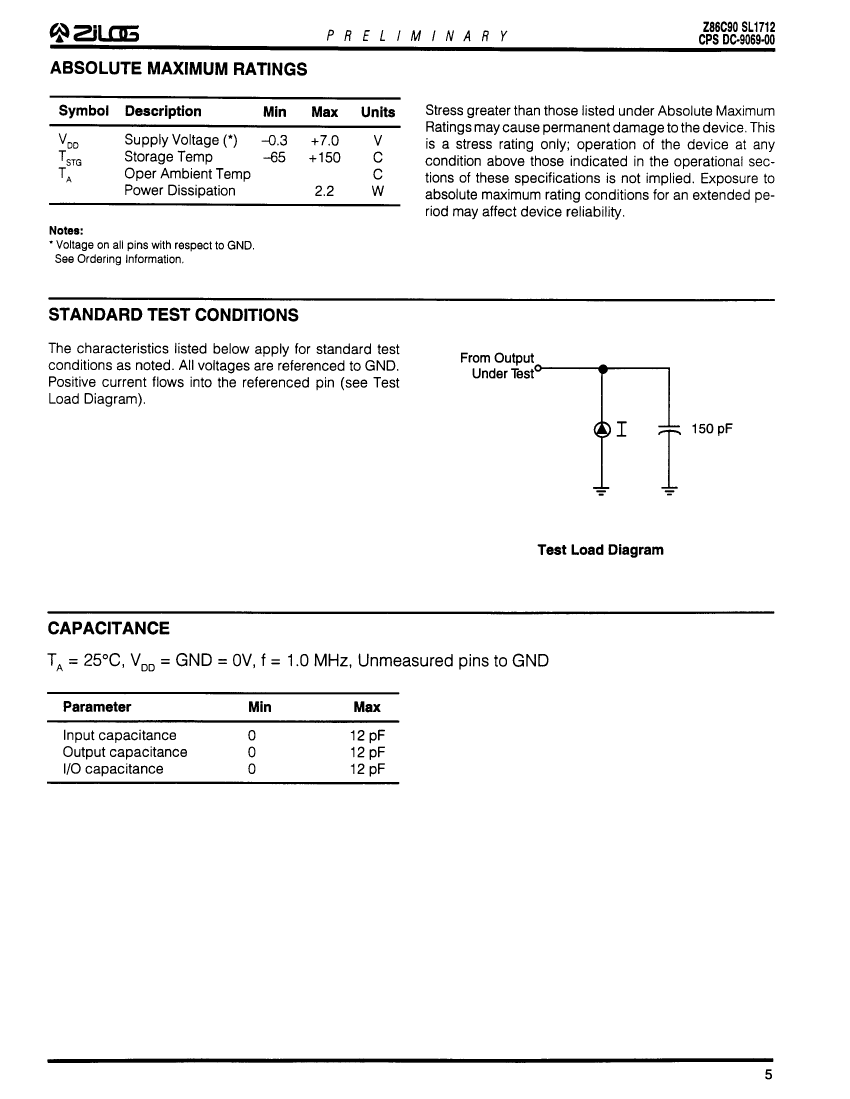

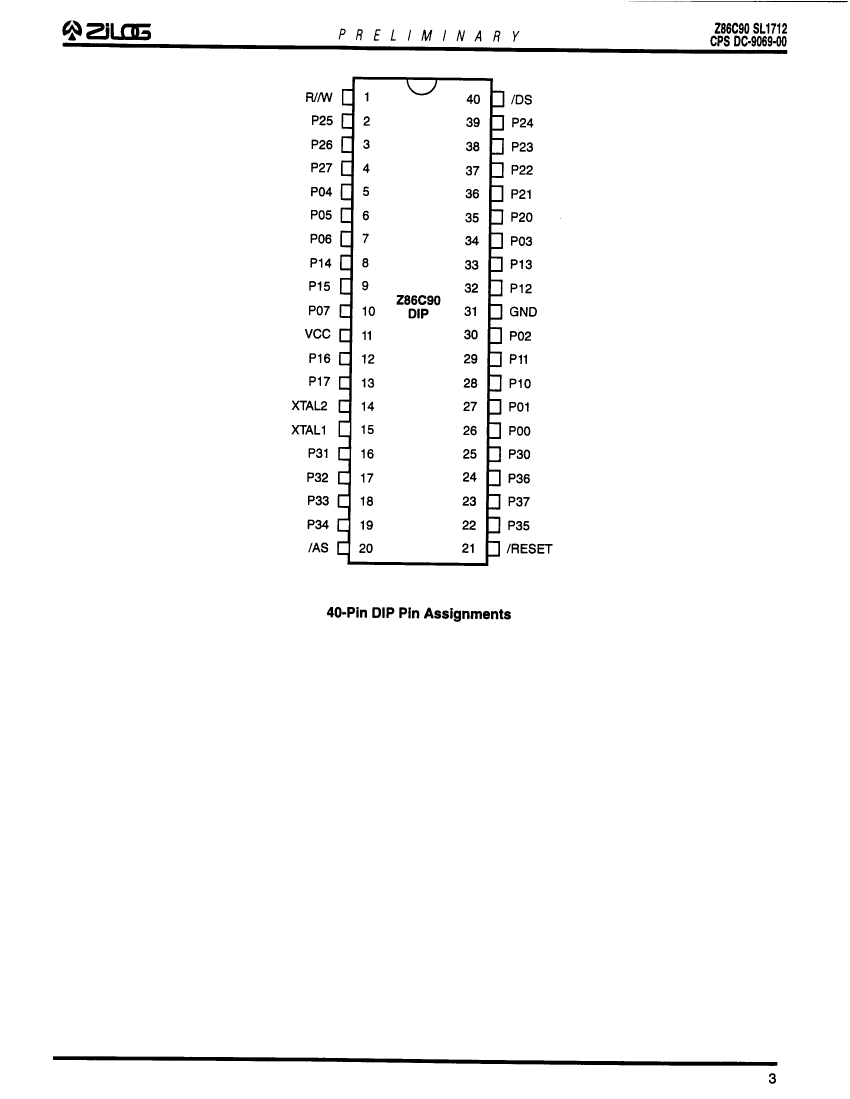

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Zilog, Inc. |
| Parts packaging code | QFP |
| package instruction | QFP, |
| Contacts | 44 |
| Reach Compliance Code | compliant |
| Has ADC | NO |
| Address bus width | 16 |
| bit size | 8 |
| boundary scan | NO |
| maximum clock frequency | 12 MHz |
| DAC channel | NO |
| DMA channel | NO |
| External data bus width | 8 |
| Format | FIXED POINT |
| Integrated cache | NO |
| JESD-30 code | S-PQFP-G44 |
| JESD-609 code | e3 |
| length | 10 mm |
| low power mode | YES |
| Humidity sensitivity level | 3 |
| Number of DMA channels | |
| Number of external interrupt devices | 4 |
| Number of I/O lines | 32 |
| Number of serial I/Os | |
| Number of terminals | 44 |
| Number of timers | 2 |
| On-chip data RAM width | 8 |
| On-chip program ROM width | |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| PWM channel | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QFP |
| Package shape | SQUARE |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | 260 |
| Certification status | Not Qualified |
| RAM (number of words) | 256 |
| rom(word) | 0 |
| Maximum seat height | 2.5 mm |
| speed | 12 MHz |
| Maximum slew rate | 20 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 3 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | MATTE TIN |
| Terminal form | GULL WING |
| Terminal pitch | 0.8 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | 40 |
| width | 10 mm |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER |
| Z86C9012FSG | Z86C9012VSC | Z86C9012PEG | Z86C9012PEC | Z86C9012FSC | Z86C9012ASG | |
|---|---|---|---|---|---|---|
| Description | 8-bit Microcontrollers - MCU 12MHz ROMLESS C40 | 8-bit Microcontrollers - MCU 12MHz ROMLESS C40 | 8-bit Microcontrollers - MCU 12MHz ROMLESS C40 | 8-bit Microcontrollers - MCU 12MHz ROMLESS C40 | 8-bit Microcontrollers - MCU 12MHz ROMLESS C40 | 8-bit Microcontrollers - MCU Z8 12MHZ ROMLESS C40 |
| Parts packaging code | QFP | - | DIP | DIP | QFP | QFP |
| package instruction | QFP, | - | DIP, | DIP, DIP40,.6 | QFP, QFP44,.57SQ,32 | , |
| Contacts | 44 | - | 40 | 40 | 44 | - |
| Reach Compliance Code | compliant | - | unknown | unknown | unknown | unknown |
| Has ADC | NO | - | NO | NO | NO | - |
| Address bus width | 16 | - | 16 | 16 | 16 | - |
| bit size | 8 | - | 8 | 8 | 8 | - |
| boundary scan | NO | - | NO | NO | NO | - |
| maximum clock frequency | 12 MHz | - | 12 MHz | 12 MHz | 12 MHz | - |
| DAC channel | NO | - | NO | NO | NO | - |
| DMA channel | NO | - | NO | NO | NO | - |
| External data bus width | 8 | - | 8 | 8 | 8 | - |
| Format | FIXED POINT | - | FIXED POINT | FIXED POINT | FIXED POINT | - |
| Integrated cache | NO | - | NO | NO | NO | - |
| JESD-30 code | S-PQFP-G44 | - | R-PDIP-T40 | R-PDIP-T40 | S-PQFP-G44 | - |
| JESD-609 code | e3 | - | e3 | e0 | e0 | - |
| length | 10 mm | - | 52.325 mm | 52.325 mm | 10 mm | - |
| low power mode | YES | - | YES | YES | YES | - |
| Number of external interrupt devices | 4 | - | 4 | 4 | 4 | - |
| Number of I/O lines | 32 | - | 32 | 32 | 32 | - |
| Number of terminals | 44 | - | 40 | 40 | 44 | - |
| Number of timers | 2 | - | 2 | 2 | 2 | - |
| On-chip data RAM width | 8 | - | 8 | 8 | 8 | - |
| Maximum operating temperature | 70 °C | - | 105 °C | 105 °C | 70 °C | - |
| PWM channel | NO | - | NO | NO | NO | - |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | - |
| encapsulated code | QFP | - | DIP | DIP | QFP | - |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR | SQUARE | - |
| Package form | FLATPACK | - | IN-LINE | IN-LINE | FLATPACK | - |
| Peak Reflow Temperature (Celsius) | 260 | - | 225 | NOT SPECIFIED | 225 | - |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | - |
| RAM (number of words) | 256 | - | 256 | 256 | 256 | - |
| Maximum seat height | 2.5 mm | - | 4.24 mm | 4.24 mm | 2.5 mm | - |
| speed | 12 MHz | - | 12 MHz | 12 MHz | 12 MHz | - |
| Maximum slew rate | 20 mA | - | 20 mA | 20 mA | 20 mA | - |
| Maximum supply voltage | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V | - |
| Minimum supply voltage | 3 V | - | 3 V | 3 V | 3 V | - |
| Nominal supply voltage | 5 V | - | 5 V | 5 V | 5 V | - |
| surface mount | YES | - | NO | NO | YES | - |
| technology | CMOS | - | CMOS | CMOS | CMOS | - |
| Temperature level | COMMERCIAL | - | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | - |
| Terminal surface | MATTE TIN | - | TIN | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal form | GULL WING | - | THROUGH-HOLE | THROUGH-HOLE | GULL WING | - |
| Terminal pitch | 0.8 mm | - | 2.54 mm | 2.54 mm | 0.8 mm | - |
| Terminal location | QUAD | - | DUAL | DUAL | QUAD | - |
| Maximum time at peak reflow temperature | 40 | - | 30 | NOT SPECIFIED | 30 | - |
| width | 10 mm | - | 15.24 mm | 15.24 mm | 10 mm | - |
| uPs/uCs/peripheral integrated circuit type | MICROCONTROLLER | - | MICROCONTROLLER | MICROCONTROLLER | MICROCONTROLLER | - |
