FAN7930 — Critical Conduction Mode PFC Controller
April 2010
FAN7930
Critical Conduction Mode PFC Controller
Features
PFC Ready Signal
Input Voltage Absent Detection Circuit
Maximum Switching Frequency Limitation
Internal Soft-Start and Startup without Overshoot
Internal Total Harmonic Distortion (THD) Optimizer
Precise Adjustable Output Over-Voltage Protection
Open-Feedback Protection and Disable Function
Zero Current Detector
150μs Internal Startup Timer
MOSFET Over-Current Protection
Under-Voltage Lockout with 3.5V Hysteresis
Low Startup and Operating Current
Totem-Pole Output with High State Clamp
+500/-800mA
Peak Gate Drive Current

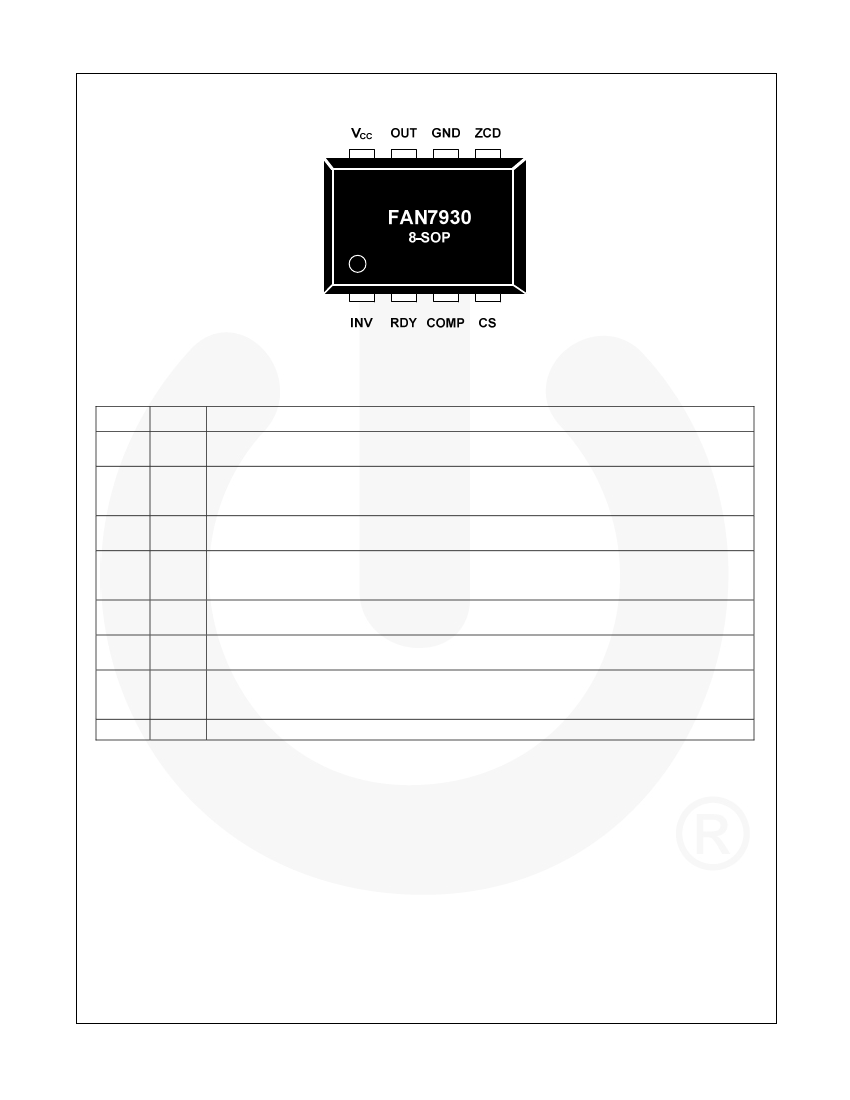

8-Pin SOP
Description

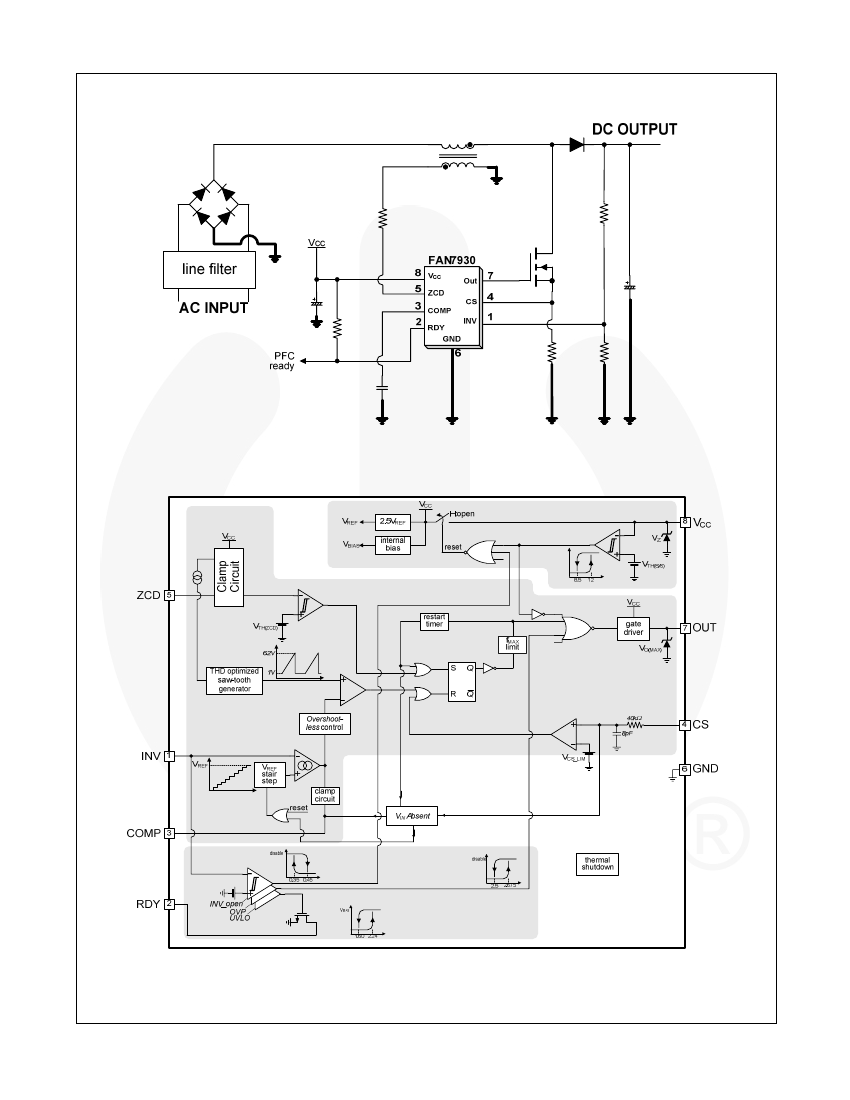

The FAN7930 is an active power factor correction (PFC)
controller for boost PFC applications that operate in
critical conduction mode (CRM). It uses a voltage-mode
PWM that compares an internal ramp signal with the
error amplifier output to generate a MOSFET turn-off
signal. Because the voltage-mode CRM PFC controller
does not need rectified AC line voltage information, it
saves the power loss of an input voltage sensing network
