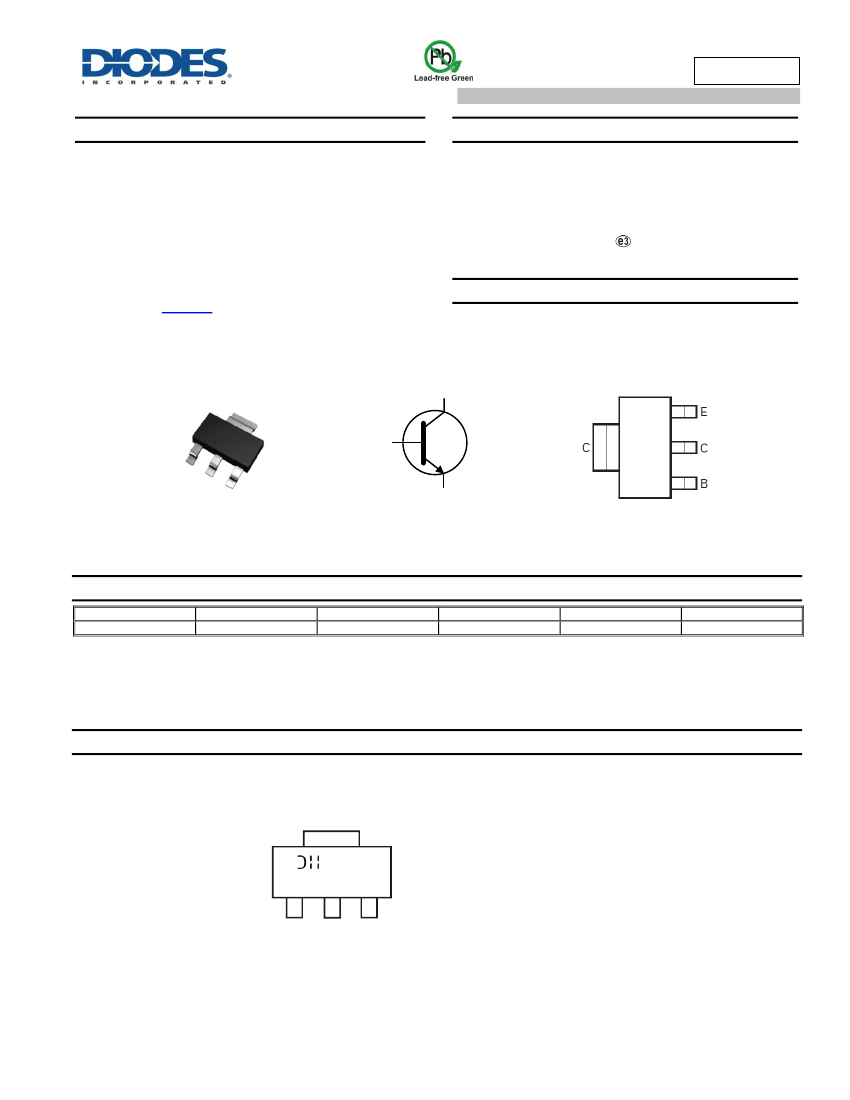

DZTA42
300V NPN HIGH VOLTAGE TRANSISTOR IN SOT223
Features
BV
CEO
> 300V
I
C
= 500mA high Collector Current
2W Power Dissipation
Low Saturation Voltage V
CE(sat)
< 500mV @ 20mA
Complementary PNP Type: DZTA92
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
An Automotive-Compliant Part is Available Under Separate
Datasheet (DZTA42Q)
Mechanical Data
Case: SOT223
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (Approximate)
Applications
Switch-Mode Power Supplies (SMPS)
Video Output Stages
Motor Driver
SOT223
C
B
E
Top View
Device Symbol
Top View
Pin-Out
Ordering Information
(Note 4)
Product
DZTA42-13
Notes:
Compliance
AEC-Q101
Marking
K3M
Reel Size (inches)
13
Tape width (mm)
12
Quantity per reel
2,500
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
SOT223
(Top View)
YWW
K3M
K3M = Product Type Marking Code
YWW = Date Code Marking
Y = Last Digit of Year ex: 6 = 2016
WW = Week code 01 - 52
DZTA42
Datasheet Number: DS30582 Rev. 7 - 2
1 of 7
www.diodes.com
June 2016
© Diodes Incorporated
DZTA42
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Base Current
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
B
Value
300
300
6
500
100
Unit
V
V
V
mA
mA
Thermal Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Power Dissipation
Thermal Resistance, Junction to Ambient
Thermal Resistance, Junction to Leads
Operating and Storage Temperature Range
(Note 5)
(Note 6)
(Note 5)
(Note 6)
(Note 7)
Symbol
P
D
R
θJA
R
θJL
T
J,
T
STG
Value
2
1
62
125
19.4
-65 to +150
Unit
W
°C/W
°C/W
°C
ESD Ratings
(Note 8)
Characteristic
Electrostatic Discharge - Human Body Model
Electrostatic Discharge - Machine Model
Notes:
Symbol
ESD HBM
ESD MM
Value
4,000
400
Unit
V
V
JEDEC Class
3A
C
5. For a device mounted with the collector lead on 50mm x 50mm 1oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured
under still air conditions whilst operating in a steady-state.
6. Same as note (5), except mounted on minimum recommended pad (MRP) layout.
7. Thermal resistance from junction to solder-point (at the end of the collector lead).
8. Refer to JEDEC specification JESD22-A114 and JESD22-A115.
DZTA42
Datasheet Number: DS30582 Rev. 7 - 2
2 of 7
www.diodes.com
June 2016
© Diodes Incorporated
DZTA42

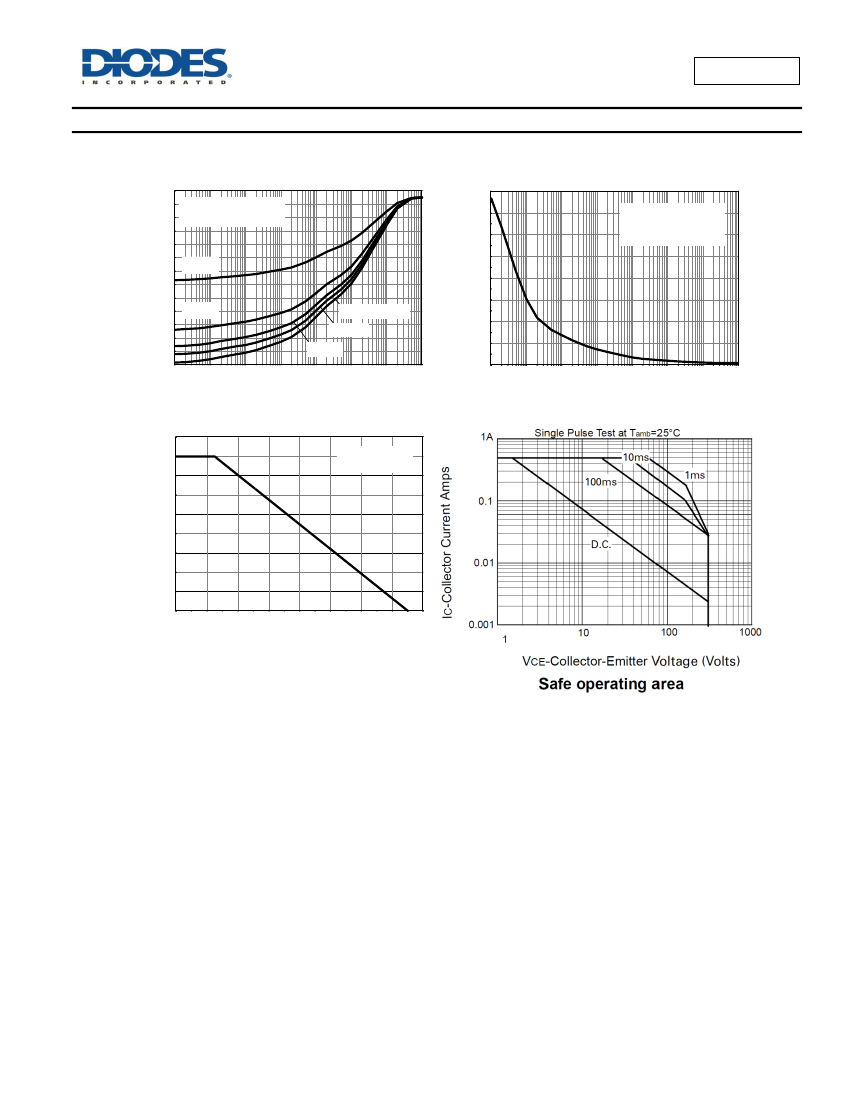

Thermal Characteristics and Derating Information
Thermal Resistance (°C/W)
160
60
50
40
30
20
10
0
100µ
1m
10m 100m
1
D=0.2
Single Pulse
D=0.05
D=0.1
Maximum Power (W)
50mm x 50mm 1oz Cu
T
amb
=
25°C
140
120
100
80
60
40
20
0
100µ
1m
10m 100m
50mm x 50mm 1oz Cu
T
amb
=
25°C
Single pulse
D=0.5
10
100
1k
1
10
100
1k
Pulse Width (s)
Pulse Width (s)
Transient Thermal Impedance
Max Power Dissipation (W)
2.0
1.5
1.0
0.5
0.0
50mm x 50mm
1oz Cu
Pulse Power Dissipation
0
20
40
60
80
100 120 140 160
Temperature (°C)
Derating Curve
DZTA42
Datasheet Number: DS30582 Rev. 7 - 2
3 of 7
www.diodes.com
June 2016
© Diodes Incorporated
DZTA42
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
OFF CHARACTERISTICS
Collector-Base Breakdown Voltage
Collector-Emitter Breakdown Voltage (Note 9)
Emitter-Base Breakdown Voltage
Collector-Base Cut-off Current
Emitter-Base Cut-off Current
ON CHARACTERISTICS (Note 9)
Collector-Emitter Saturation Voltage
Base-Emitter Saturation Voltage
Static Forward Current Transfer Ratio
SMALL SIGNAL CHARACTERISTICS
Transition Frequency
Output Capacitance
Note:
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
V
CE(sat)
V
BE(sat)
h
FE
Min
300
300
6
—
—
—
—
25
40
40
Typ
—
—
—
—
—
—
—
—
—
—
Max
—
—
—
0.1
0.1
0.5
0.9
—
—
—
Unit
V
V
V
µA
µA
V
V
Test Condition
I
C
= 100µA
I
C
= 1mA
I
E
= 100µA
V
CB
= 200V
V
EB
= 6V, I
C
= 0
I
C
= 20mA, I
B
= 2mA
I
C
= 20mA, I
B
= 2mA
I
C
= 1mA, V
CE
= 10V
I
C
= 10mA, V
CE
= 10V
I
C
= 30mA, V
CE
= 10V
I
C
= 10mA, V
CE
= 20V
f = 100MHz
V
CB
= 20V, f = 1MHz
f
T
Cobo
50
—
—
—
—
3
MHz
pF
9. Measured under pulsed conditions. Pulse width ≤ 300µs. Duty cycle ≤ 2%.

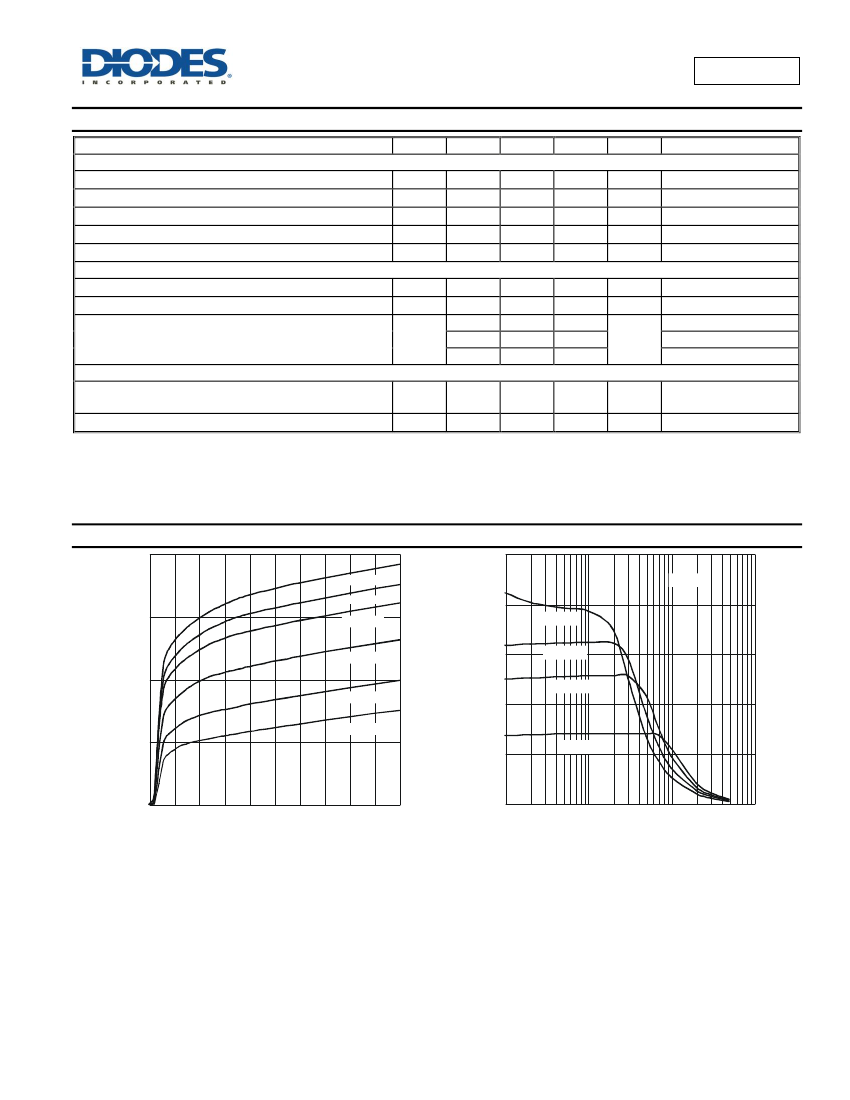

Typical Electrical Characteristics
0.2
(@T
A
= +25°C, unless otherwise specified.)
250
I
B
= 10mA
V
CE
= 5V
I
C
, COLLECTOR CURRENT (A)
I
B
= 8mA
200
h
FE
, DC CURRENT GAIN
0.15
I
B
= 6mA
T
A
= 150
°
C
I
B
= 4mA
150
T
A
= 85
°
C
0.1
I
B
= 2mA
T
A
= 25
°
C
100
I
B
= 1mA
0.05
50
T
A
= -55
°
C
0
0
0
1
2
3
4
5
V
CE
, COLLECTOR-EMITTER VOLTAGE (V)
Figure 1 Typical Collector Current
vs. Collector-Emitter Voltage
10
100
1,000
I
C
, COLLECTOR CURRENT (mA)
Figure 2 Typical DC Current Gain vs. Collector Current
1
DZTA42
Datasheet Number: DS30582 Rev. 7 - 2
4 of 7
www.diodes.com
June 2016
© Diodes Incorporated

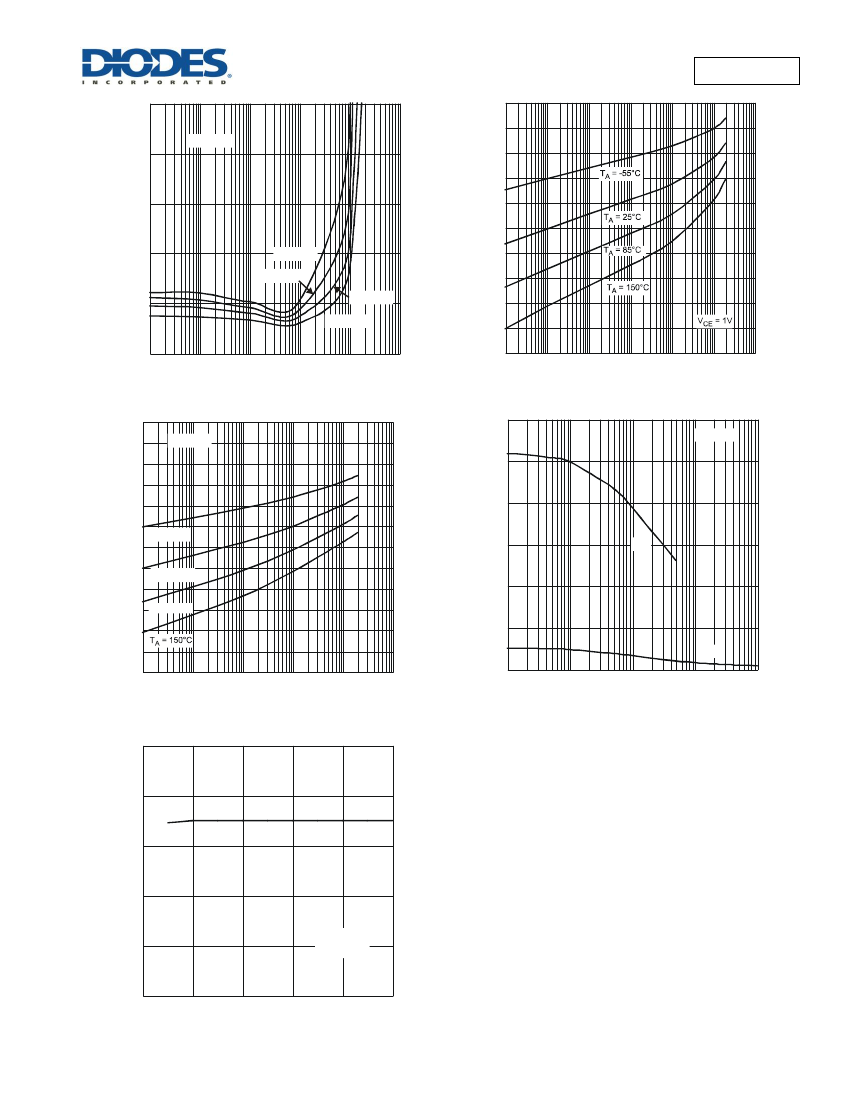

DZTA42
V
BE(ON)
, BASE-EMITTER TURN-ON VOLTAGE (V)
0.5
I
C
/I
B
= 10
1
V
CE(SAT)
, COLLECTOR-EMITTER
SATURATION VOLTAGE (V)
0.4
0.8
0.3
0.6
0.2
T
A
= 150
°
C
T
A
= 85
°
C
0.4
0.1
T
A
= 25
°
C
T
A
= -55
°
C
0.2
0
0.01
0.1
1
10
100
1,000
I
C
, COLLECTOR CURRENT (mA)
Figure 3 Typical Collector-Emitter Saturation Voltage
vs. Collector Current
I
C
/I
B
= 10
0
0.001
0.01
0.1
1
10
100 1,000
I
C
, COLLECTOR CURRENT (mA)
Figure 4 Typical Base-Emitter Turn-On Voltage
vs. Collector Current
f = 1MHz
V
BE(SAT)
, BASE-EMITTER SATURATION VOLTAGE (V)
1.2
120
1
100
CAPACITANCE (pF)
0.8
T
A
= -55
°
C
80
0.6
T
A
= 25
°
C
60
C
ibo
0.4
T
A
= 85
°
C
40
0.2
0
0.01
20
C
obo
0.1
1
10
100
1,000
I
C
, COLLECTOR CURRENT (mA)
Figure 5 Typical Base-Emitter Saturation Voltage
vs. Collector Current
0
0.01
0.1
1
10
100
V
R
, REVERSE VOLTAGE (V)
Figure 6 Typical Capacitance Characteristics
200
f
T
, GAIN-BANDWIDTH PRODUCT (MHz)
160
120
80
40
V
CE
= 20V
f = 100MHz
0
40
60
80
100
I
C
, COLLECTOR CURRENT
Figure 7 Typical Gain-Bandwidth Product vs. Collector Current
0
20
DZTA42
Datasheet Number: DS30582 Rev. 7 - 2
5 of 7
www.diodes.com
June 2016
© Diodes Incorporated
