SIDACtor
®
Protection Thyristors
Broadband Optimized
™
Protection

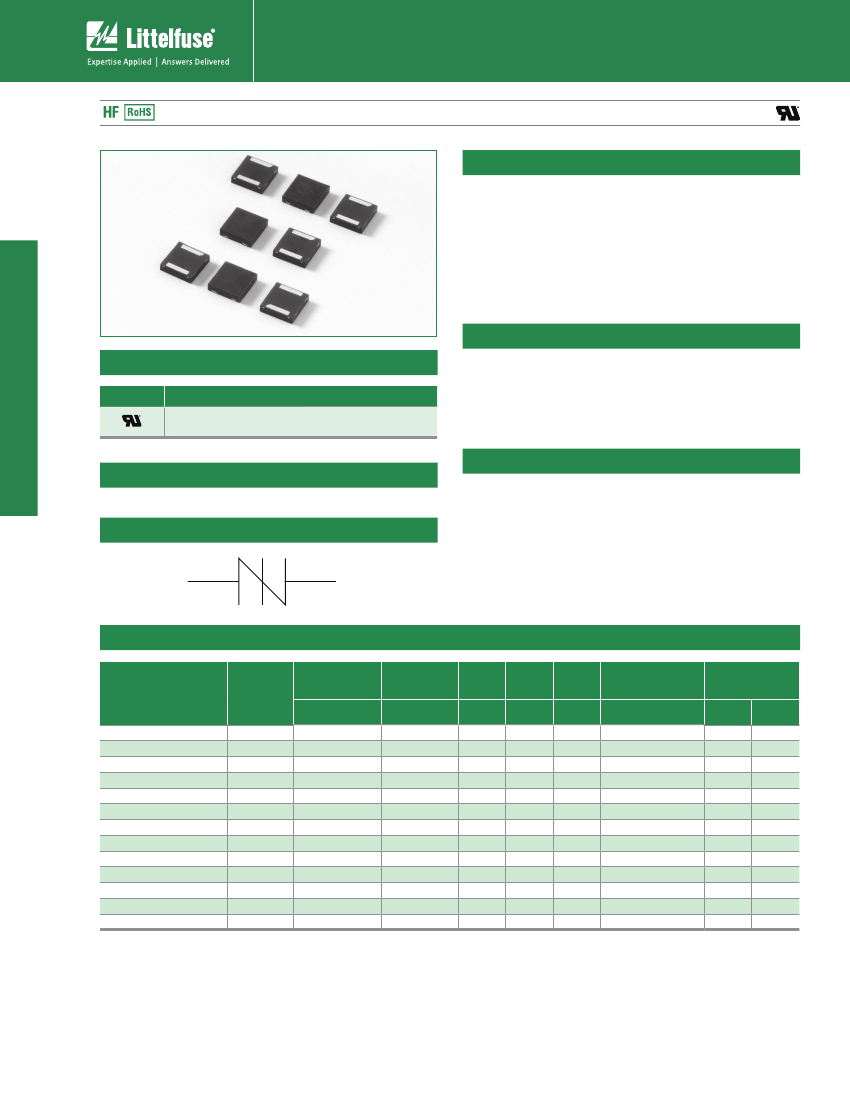

Q2L Series - 3.3x3.3 QFN
Description
®
-
Q2L Series
Features and Benefits
Agency Approvals
Agency
Agency File Number
E133083
-
Applicable Global Standards
Pinout Designation
Not Applicable
Schematic Symbol
Electrical Characteristics
V
DRM
Part Number
P0080Q22CLRP
P0300Q22CLRP
P0640Q22CLRP
P0720Q22CLRP
P0900Q22CLRP
P1100Q22CLRP
P1300Q22CLRP
P1500Q22CLRP
P1800Q22CLRP
P2300Q22CLRP
P2600Q22CLRP
P3100Q22CLRP
P3500Q22CLRP
Marking
P-8C
P03C
P06C
P07C
P09C
P11C
P13C
P15C
P18C
P23C
P26C
P31C
P35C
@l
DRM
=5μA
V min
6
25
58
65
75
90
120
140
170
190
220
275
320
V
S
@100V/μs
V max
25
40
77
88
98
130
160
180
220
260
300
350
400
Capacitance
@1MHz, 2V bias
pF min
35
25
55
50
45
45
40
35
35
30
30
30
25
pF max
75
45
85
75
70
70
60
55
50
50
45
45
40
I
H
I
S
I
T
A max
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
V
T
@I
T
= 2.2 Amps
V max
5
5
5
5
5
5
5
5
5
5
5
5
5
mA min mA max
50
50
150
150
150
150
150
150
150
150
150
150
150
800
800
800
800
800
800
800
800
800
800
800
800
800
63
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
SIDACtor
®
Protection Thyristors
Broadband Optimized
™
Protection
I
pp
Series
C
2x10μs
A min
500
PP
PP
I
TSM
10x560μs
A min
150
10x1000μs
A min
100
50 / 60 Hz
A min
30
di/dt
1.2x50μs/8x20μs
A min
400
10x160μs
A min
200
Amps/μs max
500
Q2L Series
<
J
<
Thermal Considerations
Package
3.3 x 3.3 QFN
Symbol
T
J
T
R
0
Parameter
Value
Unit
°C
°C
120
°C W
V-I Characteristics
t
r
x t
d
Pulse Waveform
+I
I
PP
– Peak Pulse Current – %I
PP
I
T
I
S
I
H
I
DRM
-V
V
T
V
DRM
V
S
+V
100
Peak
Value
t
r
= rise time to peak value
t
d
= decay time to half value
Waveform = t
r
x t
d
50
Half Value
0
0
-I
t
r
t
d
t – Time (μs)
Normalized V
S
Change vs. Junction Temperature
Normalized DC Holding Current vs. Case Temperature
Percent of V
S
Change – %
10
I
H
(T
C
= 25ºC)
14
12
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
-40
-20
0
20
40
60
80
100 120 140
160
6
4
2
0
-4
-6
-8
-40 -20
0
I
H
8
25 °C
25°C
20 40 60 80 100 120 140 160
Ratio of
Junction Temperature (T
J
) – °C
Case Temperature (T
C
) - ºC
64
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Q2L Series–3.3x3.3 QFN
Surge Ratings
SIDACtor
®
Protection Thyristors
Broadband Optimized
™
Protection
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Figure 1
T
P
Ramp-up
t
P
Critical Zone
T
L
to T
P
Pre Heat
- Temperature Max (T
s(max)
)
- Time (Min to Max) (t
s
)
Temperature
Average ramp up rate (Liquidus Temp (T
L
)
to peak)
T
L
T
S(max)
Preheat
t
L
Ramp-down
Q2L Series
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Temperature (t
L
)
T
S(min)
t
S
Peak Temp (T
P
)
Time within 5°C of actual Peak Temp (t
p
)
Ramp-down Rate
Time 25°C to Peak Temp (T
P
)
Do not exceed
25
time to peak temperature
(t 25ºC to peak)
Time
Environmental Specifications
DRM
Physical Specifications
High Temp Voltage
Blocking
Lead Material
Temp Cycling
Terminal Finish
Body Material
Biased Temp &
Humidity
High Temp Storage
Low Temp Storage
Thermal Shock
Resistance to Solder
Heat
Moisture Sensitivity
Level
DC
Dimensions — 3.3x3.3 QFN
BOTTOM VIEW
C
J
E
Inches
Dimensions
Min
0.126
0.126
0.075
0.011
0.088
0.035
0.000
0.004
0.004
0.063
0.045
0.095
0.082
Max
0.134
0.134
0.083
0.019
0.096
0.043
0.008
0.012
0.012
0.071
0.053
0.103
0.090
Millimeters
Min
3.200
3.200
1.900
0.285
2.230
0.900
0.000
0.100
0.100
1.610
1.153
2.420
2.080
Max
3.400
3.400
2.100
0.485
2.430
1.100
0.200
0.300
0.300
1.810
1.353
2.620
2.280
TOP VIEW
A
B
F
END VIEW
H
SIDE VIEW
M1
M2
1.50
(.059”)
1.27
(.050”)
2.54
(.100”)
C
E
F
H
J
N2
N1
K1
K2
Recommended
Soldering Pad Outline
(Reference Only)
M1
M2
65
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
SIDACtor
®
Protection Thyristors
Broadband Optimized
™
Protection

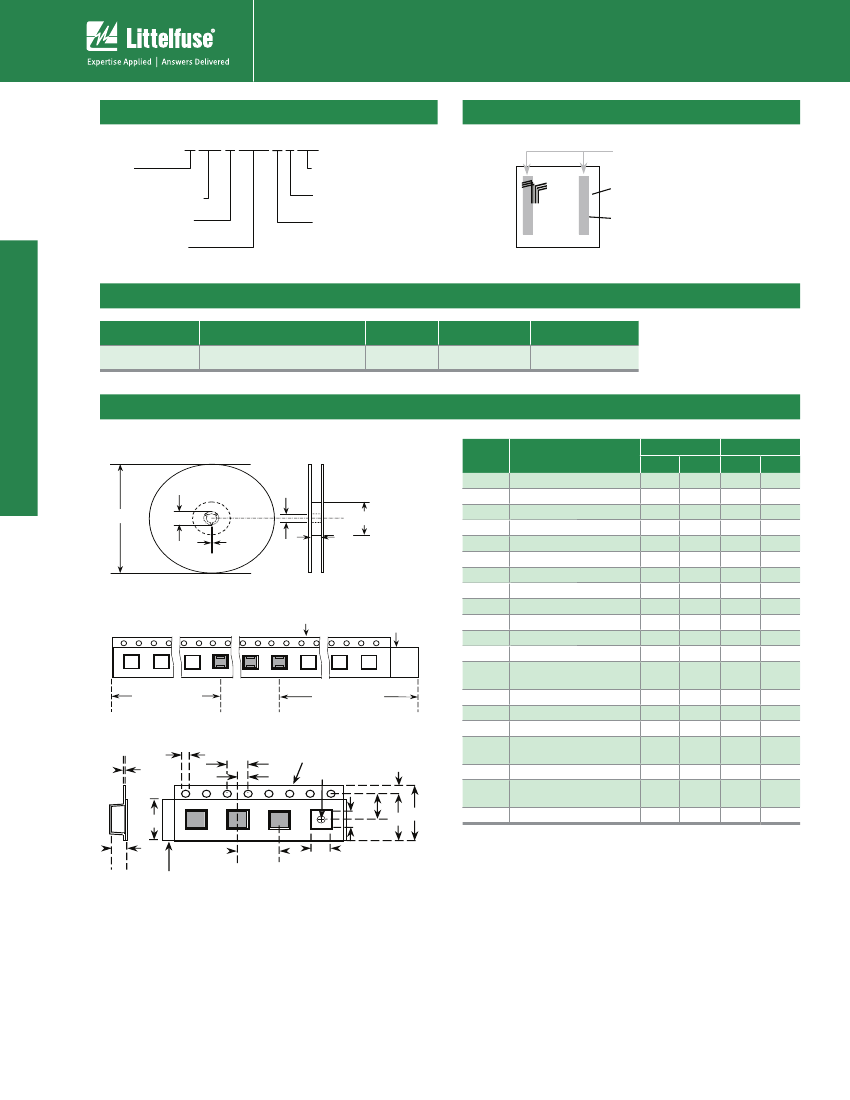

Part Numbering
Part Marking
Terminals on Back
P xxx 0 Q22 C L RP
TYPE
P=SIDACtor
MEDIAN VOLTAGE
CONSTRUCTION
VARIABLE
REEL PACK
RoHS COMPLIANT
I
PP
RATING
XXXX
XXXXX
Part Marking Code
(Refer to Electrical Characteristics Table)
Date code
Q2L Series
PACKAGE TYPE
Packing Options
Package Type
Q22
Description
Quantity
5000
Added Suffix
RP
Industry Standard
Tape and Reel Specifications — 3.3x3.3 QFN
Reel Dimension
Symbols
Description
Inches
Min
0.059
0.504
0.795
1.969
0.488
0.138
0.138
0.059
0.059
0.065
0.400
0.215
0.039
0.153
0.311
0.077
0.010
0.453
0.358
Max
12.992
0.531
Millimeters
Min
Max
C
A
D
B
W
1
N
Tape Leader and Trailer Dimensions
END
CARRIER TAPE
START
COVER TAPE
A
B
C
D
N
W
1
A
0
B
0
D
0
D
1
E
1
E
2
F
0.567
0.146
0.146
0.063
0.073
0.408
0.219
0.051
0.161
0.319
0.081
0.014
0.484
0.366
12.80
20.20
50.00
12.40
3.50
3.50
1.50
1.50
1.65
10.15
5.45
1.00
3.90
7
.90
1.90
0.25
3.70
3.70
1.60
10.35
TRAILER
160mm MIN
LEADER
400mm
MIN
Tape Dimension Items
K
0
P
0
P
1
P
2
4.10
8.10
2.05
0.35
12.30
D
0
T
P
0
P
2
CARRIER TAPE
D
1
E
1
T
W
W
0
K
0
COVER TAPE
B
0
F
E
2
W
P
1
A
0
W
0
9.10
9.30
66
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
