0852-0012 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 0852-0012

0852-0012: DescriptionRocker Switch, SPDT, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size72KB，2 Pages; ManufacturerTherm-O-Disc (Emerson)

Download Datasheet Parametric View All

0852-0012 Overview

Rocker Switch, SPDT, Latched, Quick Connect Terminal, Rocker Actuator, Panel Mount

0852-0012 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Actuator type	ROCKER
body width	24.38 mm
body height	37.41 mm
Body length or diameter	43.18 mm
Contact (AC) maximum rated R load	15A@277VAC
Maximum contact current (AC)	15 A
Maximum contact voltage (AC)	277 V
Installation features	PANEL MOUNT
surface mount	NO
Switch action	LATCHED
switch function	SPDT
Switch type	ROCKER SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

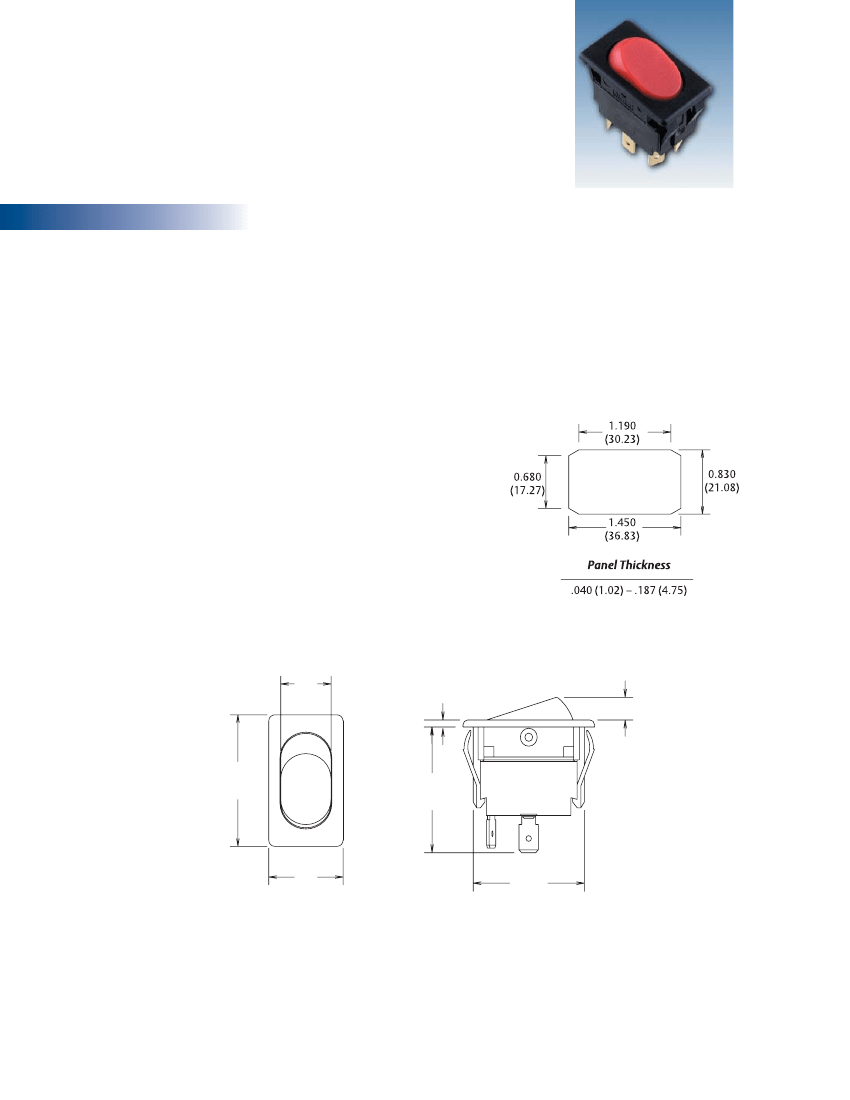

McGILL

0852, 0862 Series

Euro-Style Rocker Switches

The McGill

0852, 0862 series feature the patented Euro-design rocker and bezel for applications

where aesthetics are as important as functionality. Available with a variety of circuit, termination

and lamp configurations, the 0852 or 0862 series can be configured to fit almost any requirement.

Specifications

• UL recognized, CSA certified

— 15A, 277VAC

— 3/4 HP, 125-277VAC

• VDE approval available

• 125V and 250VAC neon lamps available

• 14V and 28VDC incandescent lamps available

Panel Opening

Construction

• .250 x .032 spade terminals

• .187 spade terminals, screw terminals, solder terminals and 16-gauge wire leads are also available.

Consult factory for other circuits, colors or custom designs.

0.650

(16.51)

0.085

(2.15)

0.275

(6.98)

1.700

(43.18)

1.473

(37.41)

0.960

(24.38)

1.435

(36.44)

Approximate dimensions in inches and (millimeters).
