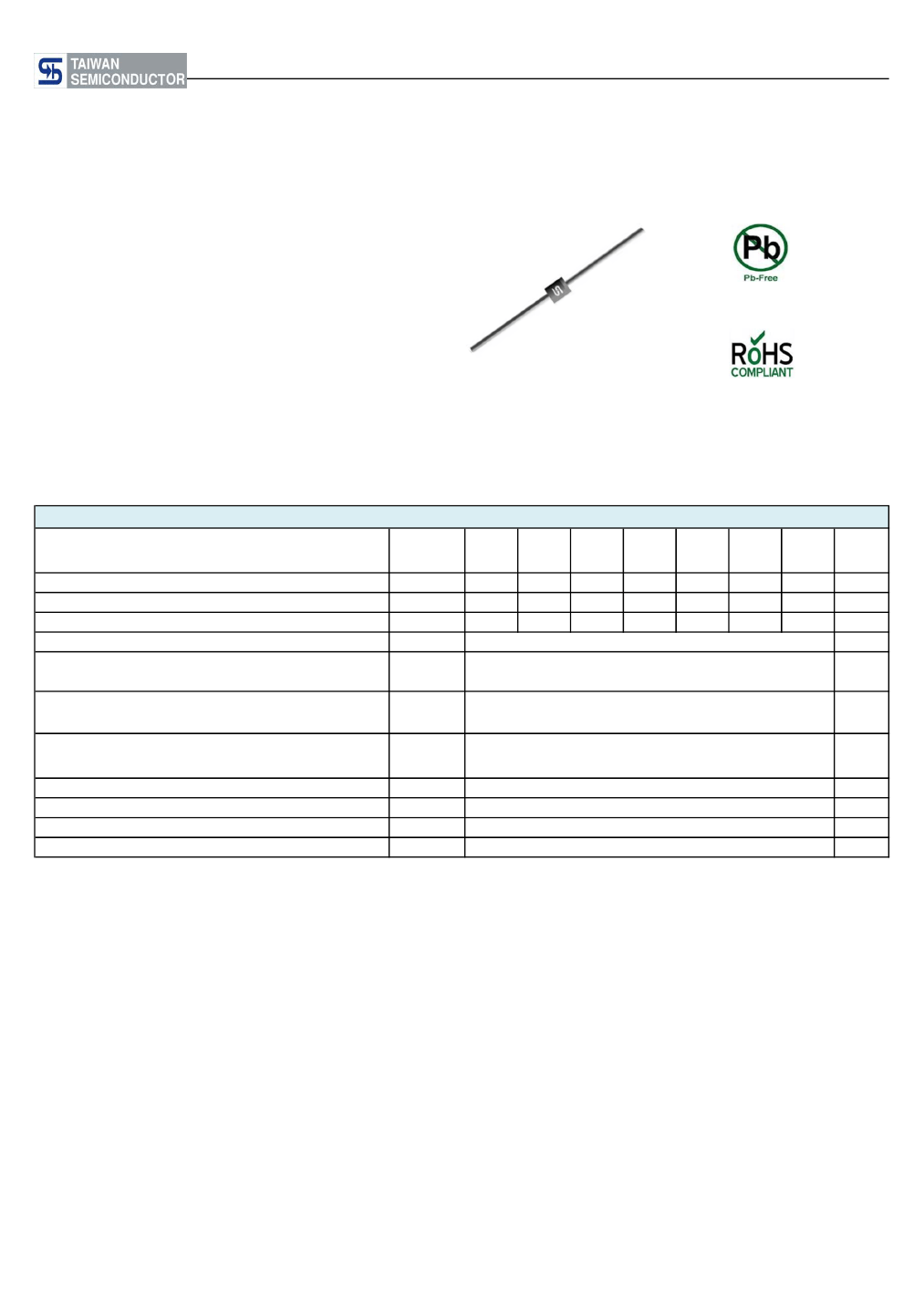

1N4001S thru 1N4007S
Taiwan Semiconductor
CREAT BY ART
FEATURES
- High efficiency, low VF
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Silicon Rectifiers
MECHANICAL DATA
Case:
A-405
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Weight:
0.2g (approximately)
A-405
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated VR
Typical junction capacitance (Note 2)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300
μs,
1% duty cycle
Note 2: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Cj
R
θJA
T
J
T
STG
1N
50
35
50
1N
100
70
100
1N
200
140
200
1N
400
280
400
1
30
1.0
5
50
15
50
- 55 to +150
- 55 to +150
O
1N
600
420
600
1N
800
560
800
1N
1000
700
1000
4001S 4002S 4003S 4004S 4005S 4006S 4007S
UNIT
V
V
V
A
A
V
μA
pF
C/W
O
O
C
C
Document Number: DS_D1402005
Version: E14
1N4001S thru 1N4007S
Taiwan Semiconductor
CREAT BY ART

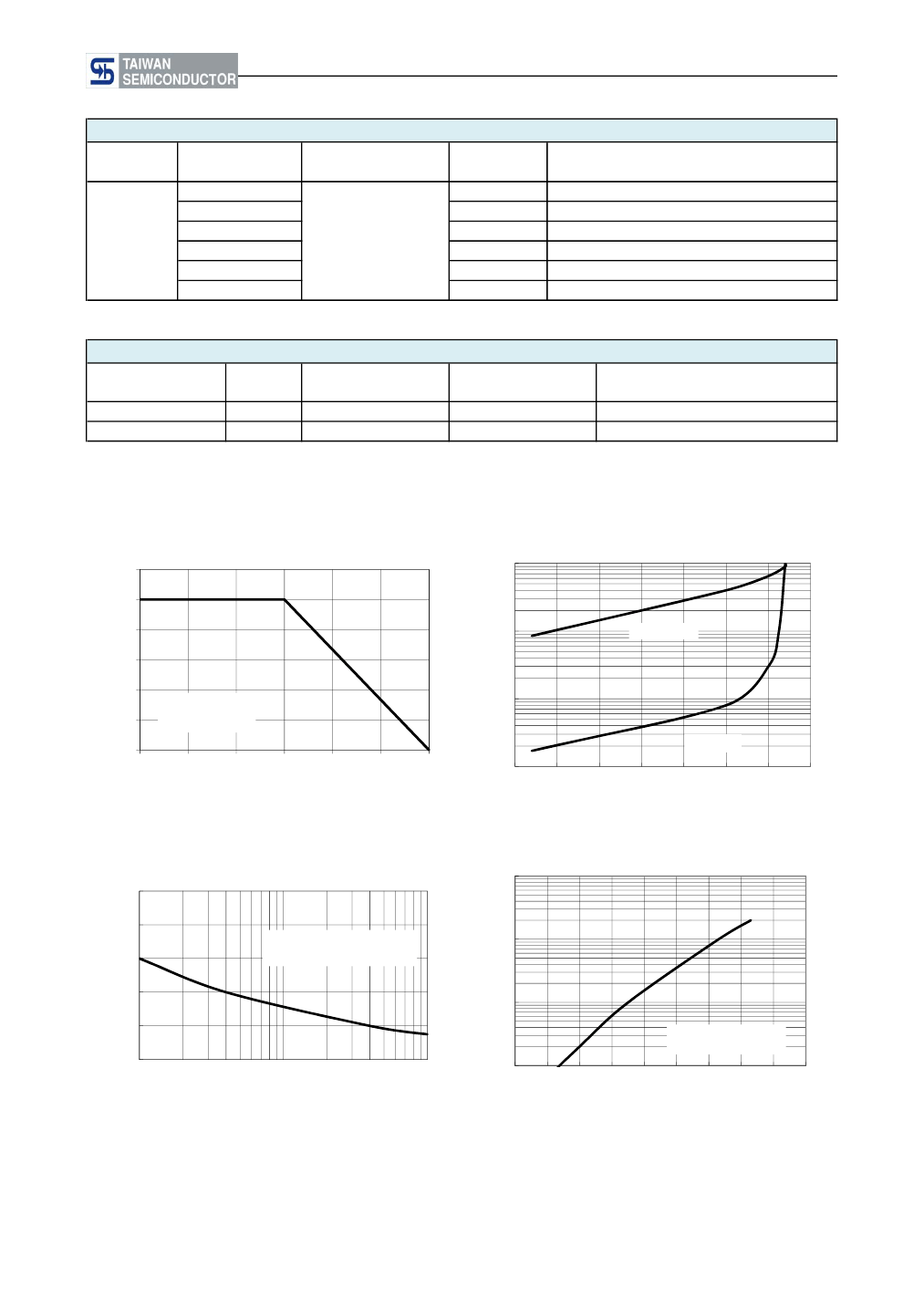

ORDERING INFORMATION
PART NO.
PACKING CODE
P0
P1
1N400xS
(Note 1)
A1
A0
R0
B0
Note 1: "x" defines voltage from 50V (1N4001S) to 1000V (1N4007S)
Suffix "G"
GREEN COMPOUND
CODE
A-405
A-405
A-405
A-405
A-405
A-405
2K / AMMO box
2K / AMMO box
3K / AMMO box
3K / AMMO box
5K / 13" Reel
1K / Bulk packing
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
1N4007S A0
1N4007S A0G
PART NO.
1N4007S
1N4007S
PACKING CODE
A0
A0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1- MAXMUM FORWARD CURRENT DERATING
CURVE
1.2
AVERAGE FORWARD RECTIFIED
CURRENT (A)
REVERSE LREAKAGE CURRENT (μA)
1
0.8
0.6
0.4
0.2
0
0
25
50
75
100
125
150
AMBIENT TEMPERATURE(
o
C)
RESISTIVE OR
INDUCTIVE LOAD
10
FIG. 2- TYPICAL REVERSE CHARACTERISTICS
1
TJ=125℃
0.1
TJ=25℃
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
FIG. 3- MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT(A)
50
40
30
20
10
0
1
10
NUMBER OF CYCLES AT 60 Hz
100
8.3ms Single Half Sine Wave
JEDEC Method
INSTANTANEOUS FORWARD CURRENT
(A)
FIG. 4- TYPICAL FORWARD CHARACTERISTICS
100
10
1
Pulse Width=300μs
1% Duty Cycle
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
1.5
FORWARD VOLTAGE (V)
Document Number: DS_D1402005
Version: E14
1N4001S thru 1N4007S
Taiwan Semiconductor
CREAT BY ART
FIG. 5- TYPICAL JUNCTION CAPACITANCE
JUNCTION CAPACITANCE (pF)
100
10
1
0.1
1
10
100
REVERSE VOLTAGE (V)
PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
2.00
0.53
25.40
4.20
25.40
Max
2.70
0.64
-
5.20
-
Unit (inch)
Min
0.079
0.021
1.000
0.165
1.000
Max
0.106
0.025
-
0.205
-
DIM.
A
B
C
D
E
MARKING DIAGRAM
P/N =
G=
F=
Specific Device Code
Green Compound
Factory Code
YWW = Date Code
Document Number: DS_D1402005
Version: E14
1N4001S thru 1N4007S
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1401031
Version: E14
