Quad/Dual - enhanced master transceiver function for each channel
Backward compatible to quad-channel master transceiver MLX80001
Lowest space (QFN4x4, wettable flanks) and minimized external components
Quad/Dual versions with same package and foot print for cost/space optimized design
Slew rate selection and High Speed Flash mode
Wide operating voltage range V
S
= 5 to 27 V
Fully compatible to 3.3V and 5V devices
Very low standby current consumption of (typ) 10µA in sleep mode
WAKE input for local wake-up capability
Remote and local wake-up source recognition
Control output INH for external components
Integrated termination (resistor & decoupling diode) for both LIN master & slave nodes
TxD dominant time out function in slave configuration
RxD dominant time out function in master configuration
Sleep timer
Low EME (emission) and high EMI (immunity) level
High impedance LIN pin in case of loss of ground or battery
Enhanced ESD robustness
o
+/- 10kV according to IEC 61000-4-2 for pins LIN, Vs and WAKE
2. Ordering Information
Product Code
MLX80002
MLX80004
Legend:
Temperature Code:
Package Code:
Option Code:
Packing Form:
Ordering example:
Temperature
Code
K
K
Package Code
LW
LW
Option Code
CAA-001
BAA-001
Packing Form
Code
RE
RE
K = -40 to 125°C
LW = Quad Flat Package (QFN), wettable flanks
BAA-001 = Design Revision
RE = Reel
MLX80004 KLW-BAA-001-RE
Revision 021 – Sept 2016
Page 1 of 38
MLX80002/MLX80004
Enhanced Universal Dual/Quad LIN Transceiver
Datasheet

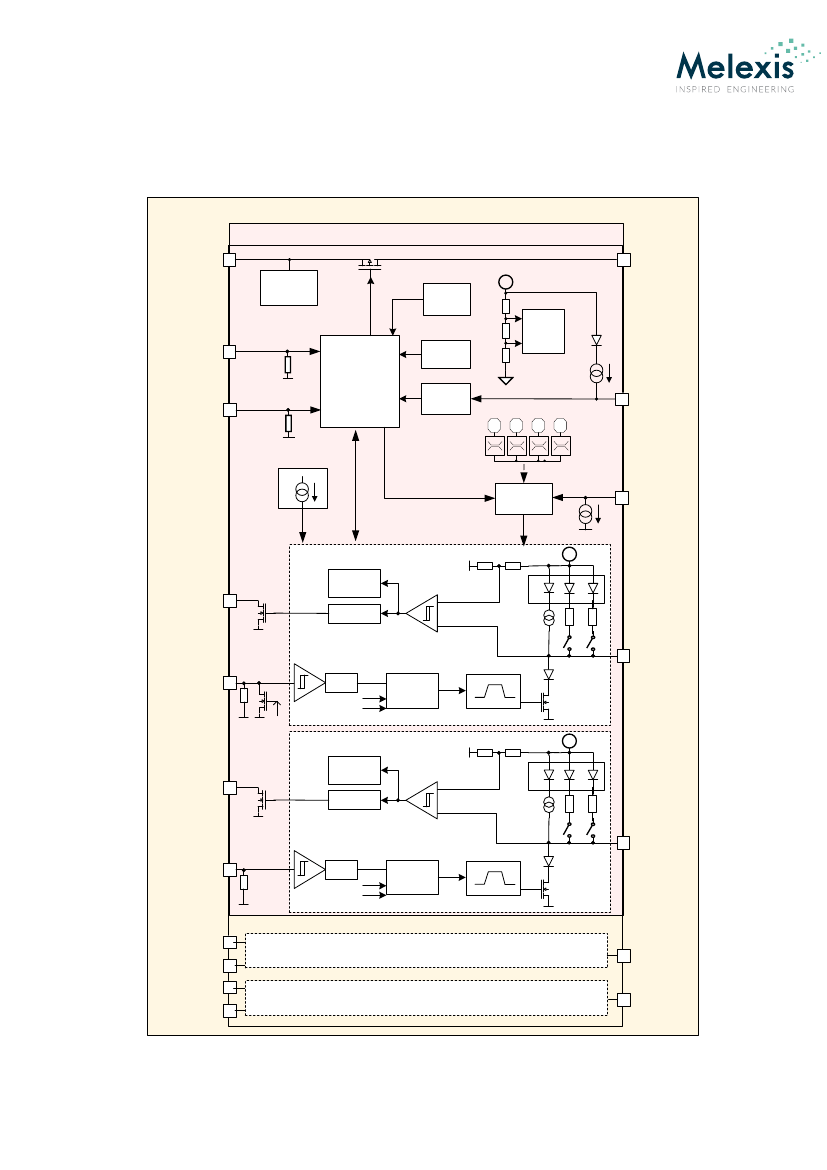

3. General Description
The MLX80004(2) is a quad/dual LIN transceiver physical layer device for a single wire data link capable of operating in
applications using baud rates up to 20kBd. It is compliant to LIN2.x as well as to the SAE J2602 specifications. The IC
furthermore can be used in ISO9141 systems. The MLX80004 is functionally compatible to the MLX80001 quad master
LIN transceiver.
The device is flexible for use in LIN – master applications and slave applications as well.
Due to the integrated master termination and the high ESD/EMC robustness of the device a minimum space and
number of external components is required.
The number of LIN – channels can be easily adapted on the application requirements by combinations of quad and dual
channel devices within the same foot print.
Because of the very low power consumption of the MLX80004 while being in sleep mode it’s suitable for ECU
applications with hard standby current requirements. The implemented high resistive LIN - termination in sleep mode as
well as the RxD dominant time-out feature allows a comfortable handling of LIN short circuits to GND.
In order to reduce the power consumption in case of failure modes, the integrated sleep timer takes care for switching
the IC into the most power saving sleep mode after Power-On or Wake-Up events are not followed by a mode change
response of the microcontroller.
The MLX80004/2 has an improved EMI performance and ESD robustness according to the OEM Common Hardware
Requirements for LIN in Automotive Applications Rev.1.2.
By using the MODE0/1 pins the application can be easily adapted on the required baud rate in order to optimize the
EMC emissions. A high speed Flash Mode with disabled slew rate control is available as well.
To fulfill different OEM requirements, the integrated master termination can be disabled and external master resistors
and decoupling diodes can be used. In this mode the MLX80004/2 can be used in slave applications as well.
Revision 021 – Sept 2016
Page 2 of 38
MLX80002/MLX80004
Enhanced Universal Dual/Quad LIN Transceiver
Datasheet
4. Table of Contents
1.
2.
3.
4.
5.
6.
7.
Features and Benefits................................................................................................................................................... 1
Ordering Information ................................................................................................................................................... 1
General Description ..................................................................................................................................................... 2
Table of Contents ......................................................................................................................................................... 3
Absolute Maximum Ratings ........................................................................................................................................................... 8
Initialization and Standby mode .................................................................................................................................................. 16
Active Modes ................................................................................................................................................................................ 16
8.3.1 High Speed mode ............................................................................................................................................................. 17
Wake Up........................................................................................................................................................................................ 18
Wake Up Source Recognition ...................................................................................................................................................... 18
Fail-safe Features ....................................................................................................................................................... 22
9.1
9.2
9.3
9.4
9.5
9.6
9.7
9.8
9.9
9.10
Loss of battery .............................................................................................................................................................................. 22
Loss of Ground .............................................................................................................................................................................. 22
Short circuit to battery ................................................................................................................................................................. 22
Ground shift and short circuit to ground .................................................................................................................................... 22
Undervoltage lock out .................................................................................................................................................................. 22
Open Circuit protection ............................................................................................................................................................... 22
Application Example ............................................................................................................................................... 24
Standard Transceiver Mode ......................................................................................................................................................... 25
Revision 021 – Sept 2016
Page 3 of 38
MLX80002/MLX80004
Enhanced Universal Dual/Quad LIN Transceiver
Datasheet
10.3 Application Circuitry for EMC ...................................................................................................................................................... 26
10.3.1 External Circuitry on Supply Lines ............................................................................................................................... 27
10.3.2 External Circuitry on LIN Lines ..................................................................................................................................... 27
10.3.3 External Circuitry on Signal Lines ................................................................................................................................. 27
Tape and Reel Specification .................................................................................................................................... 30
ESD and EMC.......................................................................................................................................................... 33
Automotive Qualification Test Pulses.......................................................................................................................................... 33
Test Pulses On supply Lines ......................................................................................................................................................... 33
Test pulses on Pin LIN................................................................................................................................................................... 34
Test pulses on signal lines ............................................................................................................................................................ 34
Test circuitry for automotive transients...................................................................................................................................... 35
EMC Test pulse definition ............................................................................................................................................................ 36
15.
16.
Standard information regarding manufacturability of Melexis products with different soldering processes ........... 37
