A041-2641-234-Z: DescriptionD Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size675KB，2 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric Compare View All

A041-2641-234-Z Overview

D Type Connector, 26 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

A041-2641-234-Z Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	ROHS COMPLIANT
body width	0.492 inch
subject depth	0.642 inch
body length	1.543 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	A04
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	THREADED RIVET
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Terminal length	0.125 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	26
Base Number Matches	1

Preview

Download Datasheet

View All

HOW TO ORDER:

CURRENT: 5A

CONTACT RESISTANCE: < 30m

Ω

INSULATOR RESISTANCE: > 1000M

Ω

DIELECTRIC WITHSTANDING VOLTAGE: 1000VAC FOR 1 MIN.

OPERATING TEMPERATURE: -55° C TO +105° C

ELECTRICAL:

CONTACT TYPE:

1 - FEMALE

SHELL PLATING: MOUNTING OPTION:

1 - TIN PLATED

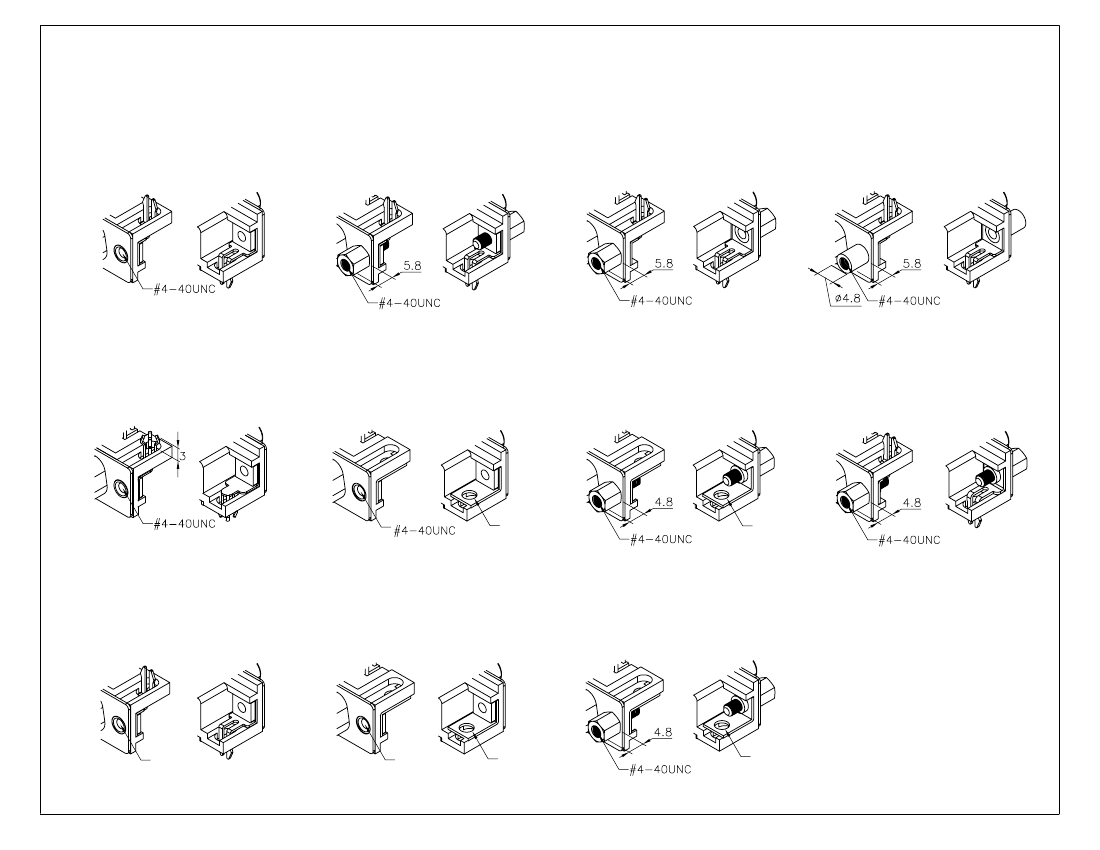

SEE MOUNTING

2 - ZINC PLATED OPTIONS PAGE

NUMBER OF CONTACTS:

3 - ALL PLASTIC

15, 26, 44, 62

4 - NICKEL PLATED

FOOTPRINT:

4 - 8.89mm

PLATING OVERALL:

0 - FULL Au FLASH

4 - 10u" Au

5 - 15u" Au

7 - 30u" Au

8 - FULL TIN

RoHS

COMPLIANT

MATERIAL:

INSULATOR: PBT & 30% GLASS FIBER (UL94V-0)

CONTACT: COPPER ALLOY

CONTACT PLATING: OPTIONAL GOLD OR TIN ALL OVER NICKEL,

BLACK

Rev

0 Issued

SELECTIVE PLATING:

1 - Au FLASH CONTACT AREA/TIN TAIL

9 - 15u" Au CONTACT AREA/TIN TAIL

A - 30u" Au CONTACT AREA/TIN TAIL

Drawn Checked Approved

Date

12/18/06

B.S.

S.M.

SMP TECHNOLOGY, INC.

SCALE

DRAWING No. A04-1

TOL. DEC.

.X +/- 0.35

MAT'L

.XX +/- 0.25

.XXX +/-

FINISH

ANGLE +/-

UNIT: mm

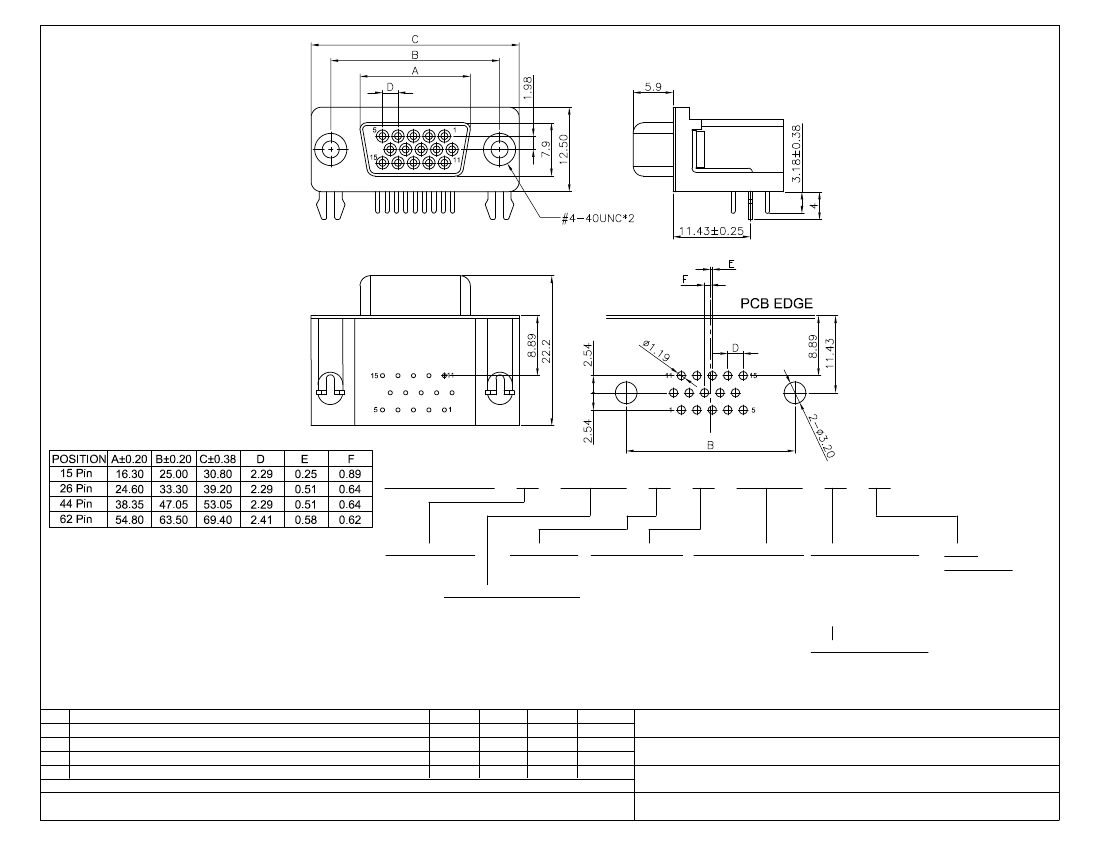

D-Sub Connector, High Density, Right Angle, Female

SERIES: A 0 4

Pg: 1
