LX5112CDP

Description
ULTRA 9 - CHANNEL SCSI TERMINATOR
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size149KB,4 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

LX5112CDP Overview

ULTRA 9 - CHANNEL SCSI TERMINATOR

LX5112CDP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMicrosemi
Parts packaging codeSOIC
package instructionPOWER, PLASTIC, SOIC-16
Contacts16
Reach Compliance Code_compli
ECCN codeEAR99
Differential outputNO
Interface integrated circuit typeSCSI BUS TERMINATOR
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length9.9 mm
Number of functions1
Number of signal lines9
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Nominal pull-up resistor110 Ω
Certification statusNot Qualified
Maximum seat height1.75 mm
Maximum supply voltage5.5 V
Minimum supply voltage3.3 V
Nominal supply voltage4.75 V
surface mountYES
technologyBICMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
width3.9 mm
LIN D
O C
#:
5111
UltraMAX
T
H E
TM
LX5111/5112
D
A T A
U LT R A 9 - C
HANNEL
S C S I T
E R M I N ATOR
I
N F I N I T E
P
O W E R
O F
I
N N O VA T I O N
P
R O D U C T I O N
S
H E E T
DESCRIPTION
The LX5111/5112 SCSI terminators are part of
Linfinity's UltraMAX family of high-performance,
adaptive, non-linear mode SCSI products, which
are designed to deliver true UltraSCSI performance
in SCSI applications. The low voltage BiCMOS
architecture employed in their design offers su-
perior performance to older linear passive and
active techniques. Linfinity's UltraMAX architecture
employs high-speed adaptive elements for each
channel, thereby providing the fastest response
possible — typically 35MHz, which is 100 times
faster than the older linear regulator/terminator
approach used by other manufacturers. Products
using this older linear regulator approach have
bandwidths which are dominated by the output
capacitor and which are limited to 500KHz (see
further discussion in the Functional Description
section). The UltraMAX architecture also eliminates
the output compensation capacitor typical in earlier
terminator designs. Each is approved for use with
SCSI-1, -2, -3, UltraSCSI and beyond — providing
the highest performance alternative available to-
day.
Another key improvement offered by the
LX5111/5112 lies in their ability to insure reliable,
error-free communications even in systems which
do not adhere to recommended SCSI hardware
design guidelines, such as the use of improper
cable lengths and impedances. Frequently, this
situation is not controlled by the peripheral or host
designer and, when problems occur, they are the
first to be made aware of the problem. The
LX5111/5112 architecture is much more tolerant
of marginal system integrations.
Recognizing the needs of portable and
configurable peripherals, the LX5111/5112 have
a TTL compatible sleep/disable mode. Quiescent
current is typically less than 275µA in this mode,
while the output capacitance is also less than 3pF.
The obvious advantage of extended battery life
for portable systems is inherent in the product's
sleep-mode feature. Additionally, the disable
function permits factory-floor or production-line
configurability, reducing inventory and product-
line diversity costs. Field configurability can also
be accomplished without physically removing
components which, often times results in field
returns due to mishandling.
Reduced component counts is also inherent in
the LX5111/5112's architecture. Traditional ter-
mination techniques require large stabilization and
transient protection capacitors of up to 20µF in
value and size. The LX5111/5112 architecture
does not require these components, allowing all
the cost savings associated with inventory, board
space, assembly, reliability, and component costs.
K E Y F E AT U R E S
s
ULTRA-FAST RESPONSE FOR FAST-20
SCSI APPLICATIONS
s
35MHz CHANNEL BANDWIDTH
s
3.3V OPERATION
s
LESS THAN 3pF OUTPUT CAPACITANCE
s
SLEEP-MODE CURRENT LESS THAN
275µA
s
THERMALLY SELF LIMITING
s
NO EXTERNAL COMPENSATION
CAPACITORS
s
IMPLEMENTS 8-BIT OR 16-BIT (WIDE)
APPLICATIONS
s
COMPATIBLE WITH ACTIVE NEGATION
DRIVERS (60mA / CHANNEL)
s
COMPATIBLE WITH PASSIVE AND
ACTIVE TERMINATIONS
s
APPROVED FOR USE WITH SCSI 1, 2, 3
AND ULTRA SCSI
s
HOT SWAP COMPATIBLE
s
PIN-FOR-PIN COMPATIBLE WITH
LX5211 AND UC5606 (LX5111)
s
PIN-FOR-PIN COMPATIBLE WITH
LX5212 AND UC5603/5613/5614
(LX5112)
IMPORTANT:
For the most current data, consult LinFinity's web site:
http://www.linfinity.com.

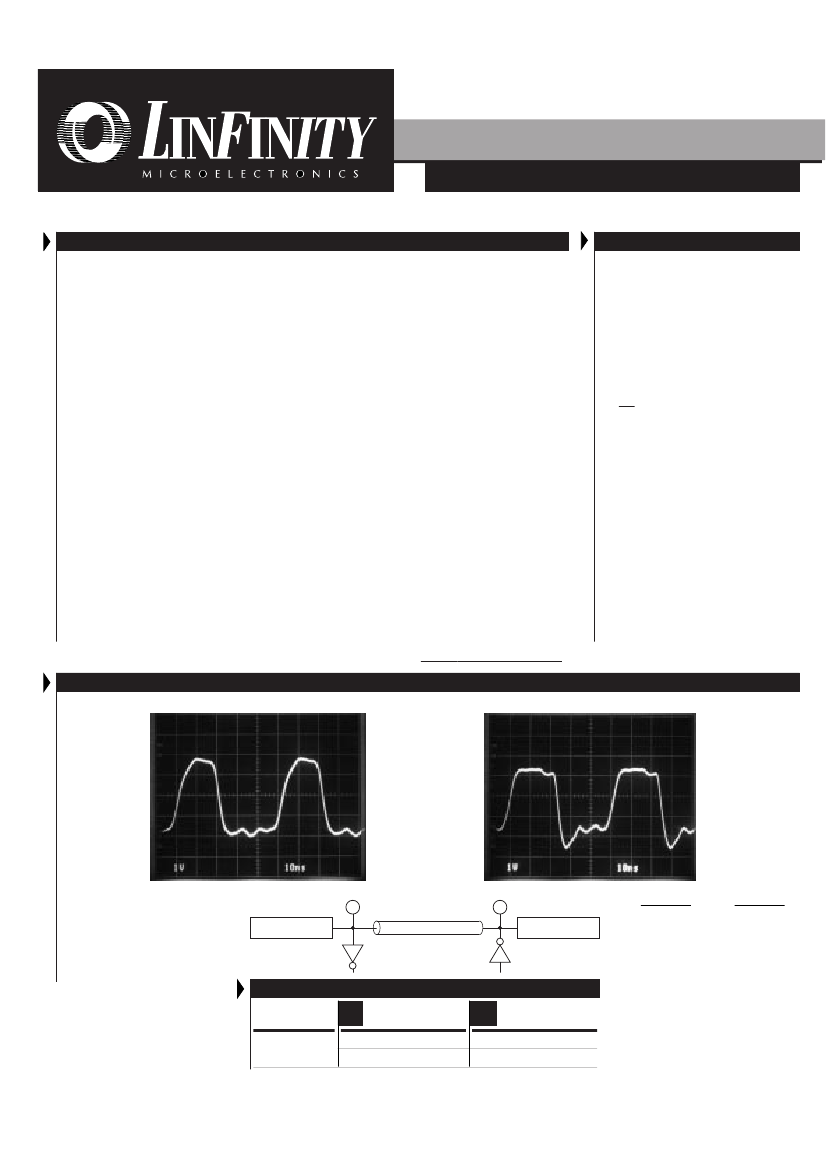

PRODUCT HIGHLIGHT
R
E C E I V I N G
W
AV E F O R M
- 2 0 M H
Z
D
R I V I N G
W
AV E F O R M
- 2 0 M H
Z
Receiver
1 Meter, AWG 28
LX5111/5112
LX5268
Driver
NOTE:
LX5111/5112
LX5268
PA C K A G E O R D E R I N F O R M AT I O N
T
A
(°C)
0 to 70
For An In-Depth
Discussion On Applying
SCSI, Request Linfinity
Application Note:
"Understanding The Single-
Ended SCSI Bus"
DP
Plastic SOIC
16-pin, Power
LX5111CDP
LX5112CDP
PWP
Plastic TSSOP
24-pin, Power
LX5111CPWP
LX5112CPWP
Note: All surface-mount packages are available in Tape & Reel.
Append the letter "T" to part number. (i.e. LX5111CDPT)
Copyright © 1997
Rev. 1.1 12/97
L
IN
F
INITY
M
ICROELECTRONICS
I
NC
.
11861 W
ESTERN
A
VENUE
, G
ARDEN
G
ROVE
, CA. 92841, 714-898-8121, F
AX
: 714-893-2570
1

LX5112CDP Related Products

LX5112CDP LX5112CPWP LX5112 LX5111CPWP LX5111CDP LX5111
Description ULTRA 9 - CHANNEL SCSI TERMINATOR ULTRA 9 - CHANNEL SCSI TERMINATOR ULTRA 9 - CHANNEL SCSI TERMINATOR ULTRA 9 - CHANNEL SCSI TERMINATOR ULTRA 9 - CHANNEL SCSI TERMINATOR ULTRA 9 - CHANNEL SCSI TERMINATOR
Is it Rohs certified? incompatible incompatible - incompatible incompatible -
Maker Microsemi Microsemi - Microsemi Microsemi -
Parts packaging code SOIC TSSOP - TSSOP SOIC -
package instruction POWER, PLASTIC, SOIC-16 POWER, PLASTIC, TSSOP-24 - TSSOP, POWER, PLASTIC, SOIC-16 -
Contacts 16 24 - 24 16 -
Reach Compliance Code _compli _compli - _compli _compli -
ECCN code EAR99 EAR99 - EAR99 EAR99 -
Differential output NO NO - NO NO -
Interface integrated circuit type SCSI BUS TERMINATOR SCSI BUS TERMINATOR - SCSI BUS TERMINATOR SCSI BUS TERMINATOR -
JESD-30 code R-PDSO-G16 R-PDSO-G24 - R-PDSO-G24 R-PDSO-G16 -
JESD-609 code e0 e0 - e0 e0 -
length 9.9 mm 7.8 mm - 7.8 mm 9.9 mm -
Number of functions 1 1 - 1 1 -
Number of signal lines 9 9 - 9 9 -
Number of terminals 16 24 - 24 16 -
Maximum operating temperature 70 °C 70 °C - 70 °C 70 °C -
Package body material PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY -
encapsulated code SOP TSSOP - TSSOP SOP -
Package shape RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR -
Package form SMALL OUTLINE SMALL OUTLINE, THIN PROFILE, SHRINK PITCH - SMALL OUTLINE, THIN PROFILE, SHRINK PITCH SMALL OUTLINE -
Nominal pull-up resistor 110 Ω 110 Ω - 110 Ω 110 Ω -
Certification status Not Qualified Not Qualified - Not Qualified Not Qualified -
Maximum seat height 1.75 mm 1.2 mm - 1.2 mm 1.75 mm -
Maximum supply voltage 5.5 V 5.5 V - 5.5 V 5.5 V -
Minimum supply voltage 3.3 V 3.3 V - 3.3 V 3.3 V -
Nominal supply voltage 4.75 V 4.75 V - 4.75 V 4.75 V -
surface mount YES YES - YES YES -
technology BICMOS BICMOS - BICMOS BICMOS -
Temperature level COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL -
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal form GULL WING GULL WING - GULL WING GULL WING -
Terminal pitch 1.27 mm 0.65 mm - 0.65 mm 1.27 mm -
Terminal location DUAL DUAL - DUAL DUAL -
width 3.9 mm 4.4 mm - 4.4 mm 3.9 mm -
